STEP 6. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC B1C39 set?

YES:

 Return to Step 1.

NO:

 The procedure is complete.

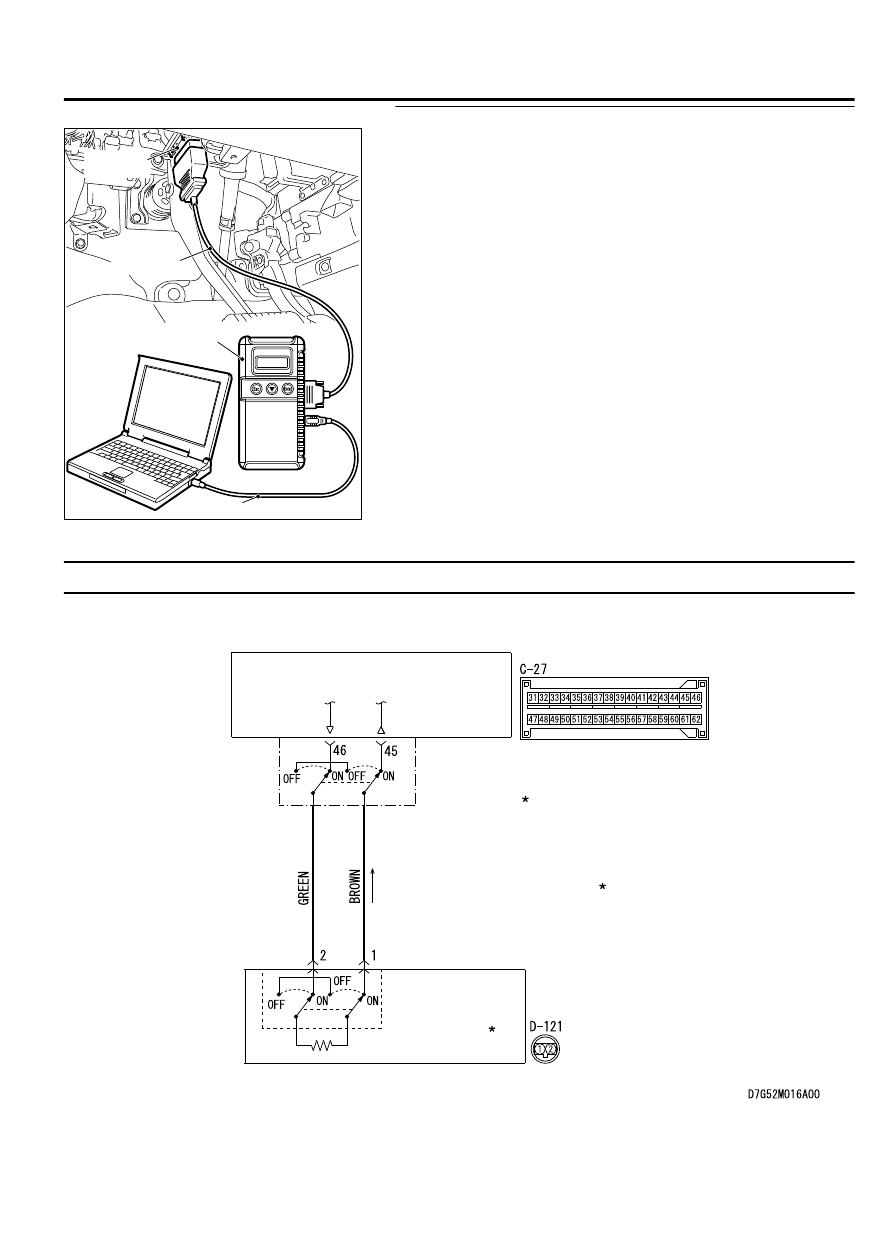

DTC B1C3A: Driver's Pre-tensioner (Squib) System (Squib Circuit Open)

M15204000937USA0000010000

SEAT BELT
PRE-TENSIONER
(LH)

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

Seat Belt Pre-Tensioner (LH) (Squib) Circuit

SRS-ECU

: CONNECTOR COUPLED : ON
  CONNECTOR UNCOUPLED : OFF

NOTE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-223

SRS AIR BAG DIAGNOSIS

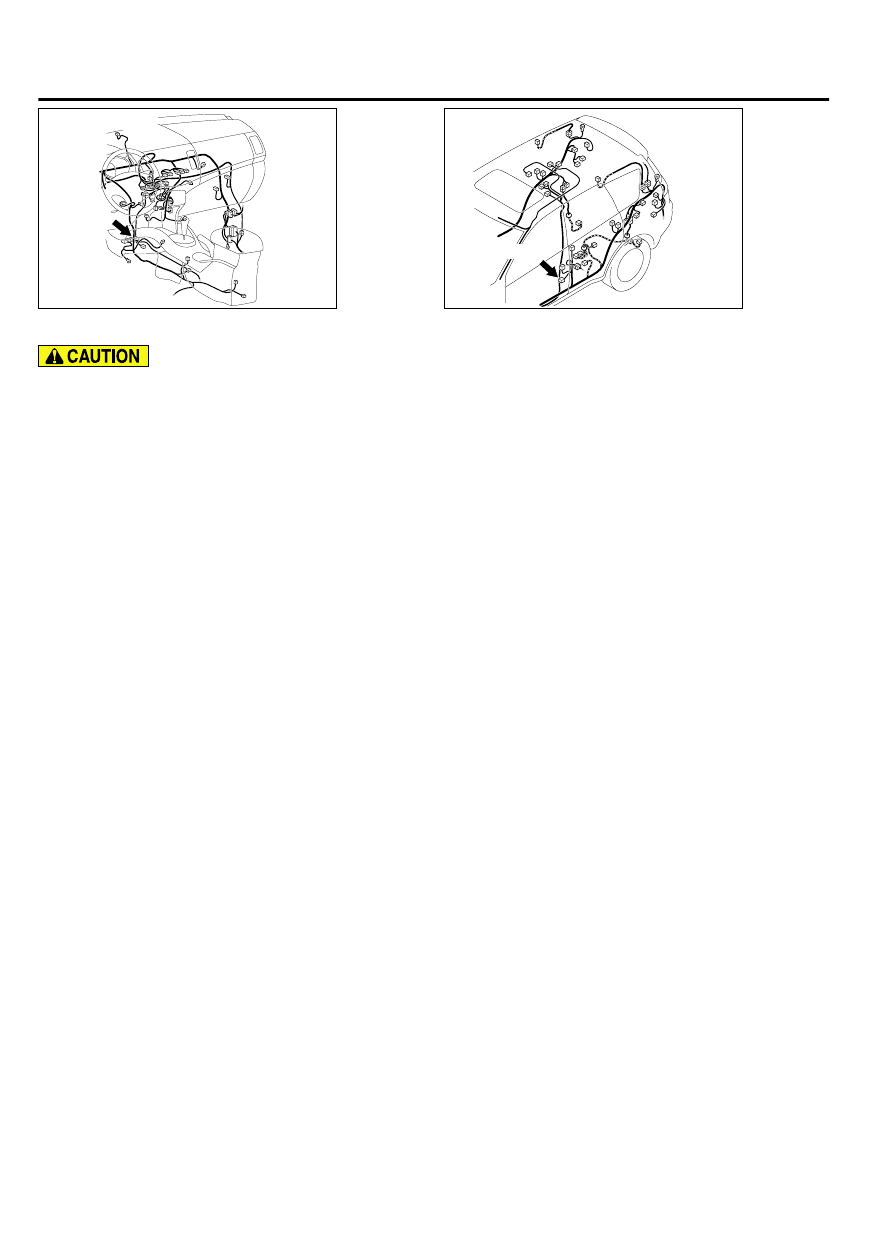

ZC600876

Connector: C-27

C-27 (Y)

0025

ZC600880

Connector: D-121

D-121 (B)

0015



If  DTC  B1C3A  is  set  in  the  SRS-ECU,  always
diagnose the CAN main bus line.

CIRCUIT OPERATION
The  SRS-ECU  judges  how  severe  a  collision  is  by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is over
a  predetermined  level,  the  SRS-ECU  sends  an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the pre-tensioner will deploy.

DTC SET CONDITIONS
This  DTC  is  set  if  there  is  abnormal  resistance
between the input terminals of the driver's seat belt
pre-tensioner (squib).

TROUBLESHOOTING HITS

｠

Improper connector contact

｠

Open circuit in the driver's seat belt pre-tensioner
(squib) circuit

｠

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN Communication System)

｠

MB991865: Dummy resistor

｠

MB991884: Resister harness

52B-224

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

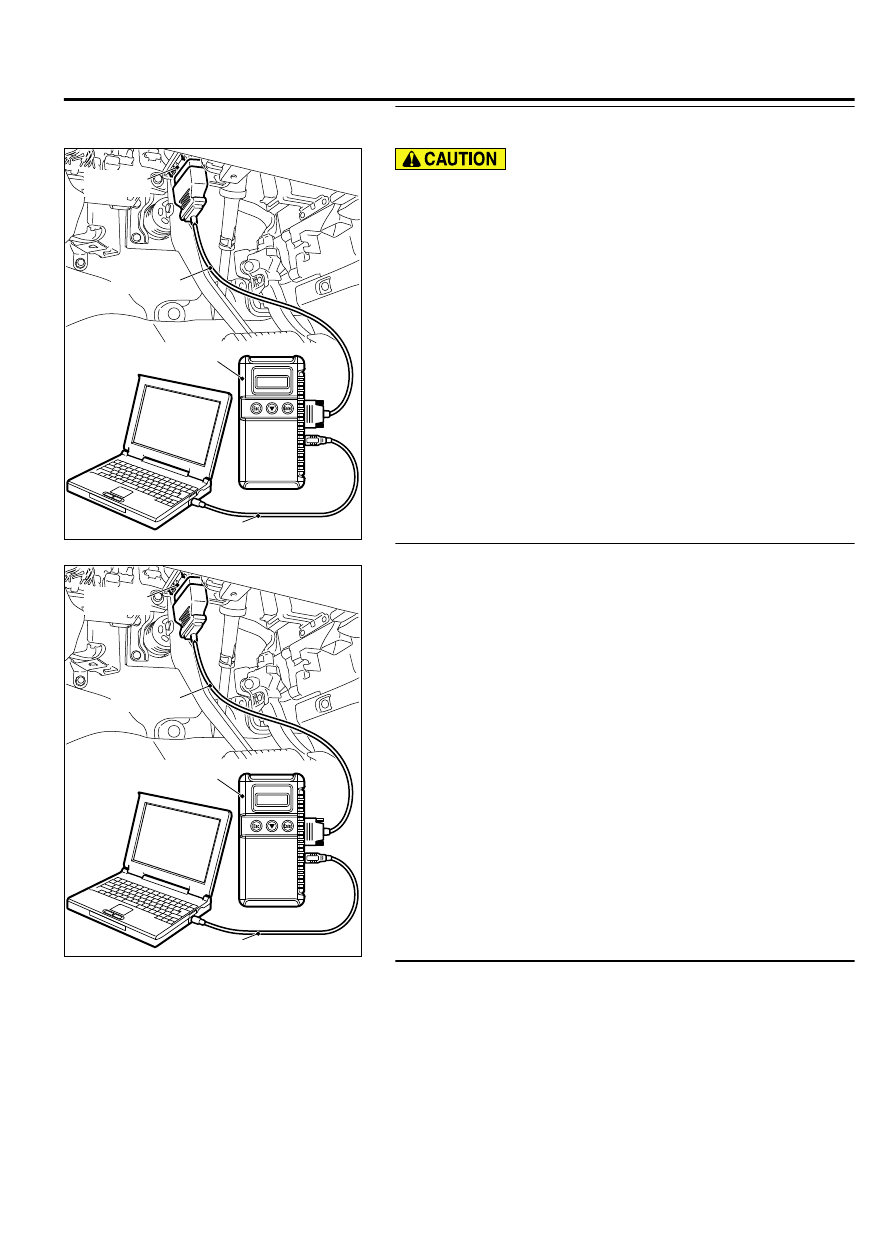

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Go to Step 3.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to Cope with Intermittent Malfunction P.00-15).

STEP 3. Check the driver's seat belt pre-tensioner. (Using
scan tool MB991958, read the diagnostic trouble code.)

(1)

Disconnect the negative battery terminal.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-225

SRS AIR BAG DIAGNOSIS

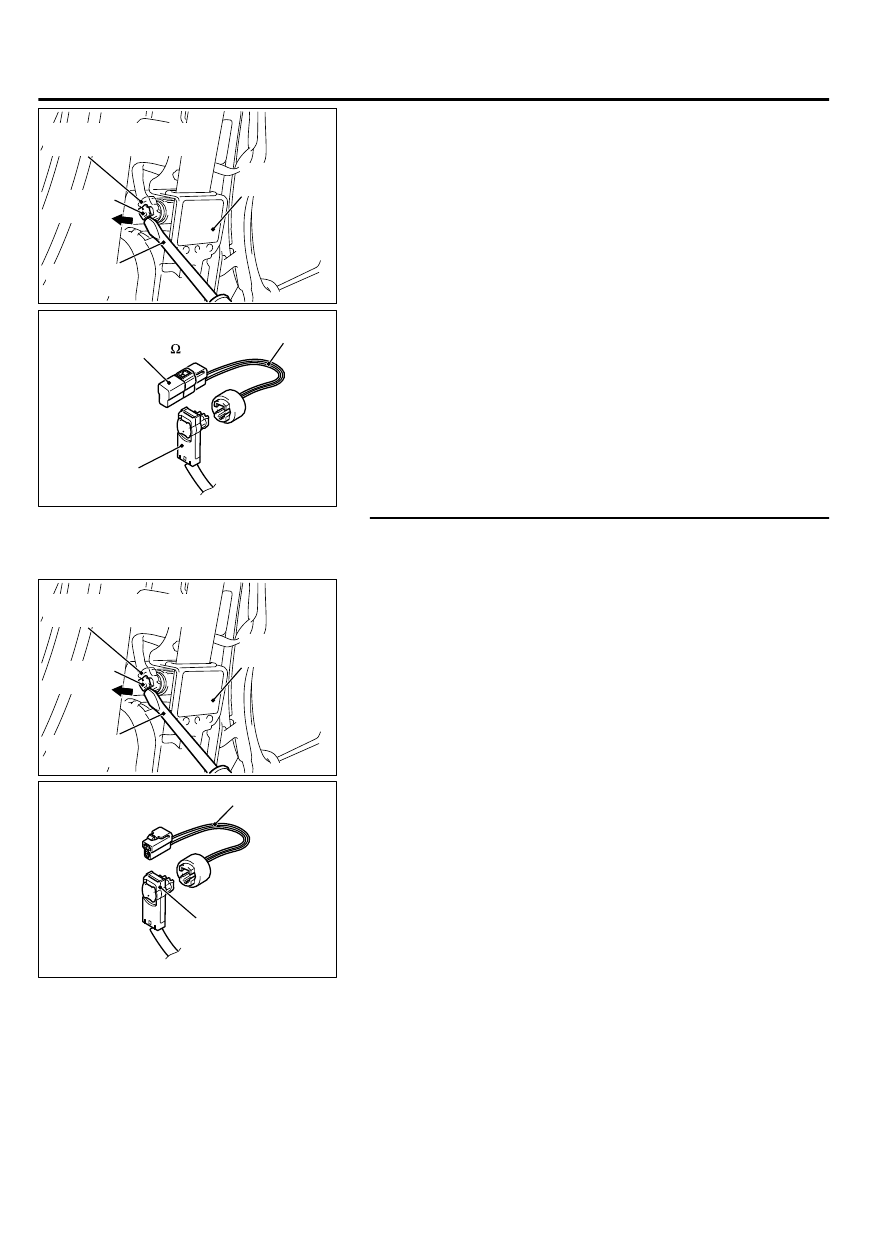

ZC6018230001

Seat belt
pre-tensioner

Floor wiring harness side
connector (2-pin, black)

Locking
button

Flat-tipped
screwdriver

(2)

Disconnect driver's seat belt pre-tensioner connector D-121.
Use a flat-tipped screwdriver to unlock the locking button at
the harness side connector by withdrawing it toward you in
two stages, and then disconnect the connector.

ZC600214

Harness side
connector

MB991865
(Dummy resistor: 3



)

MB991884
(Resistor harness)

0000

(3)

Connect special tool MB991865 to special tool MB991884.

(4)

Connect special tool MB991884 to the D-121 harness side
connector.

(5)

Connect the negative battery terminal.

(6)

Erase diagnostic trouble code memory, and then check the
diagnostic trouble code.

Q:Is DTC B1C3A set?

YES:

 Go to Step 4.

NO:

 Replace the driver's seat belt with pre-tensioner

(Refer to P.52B-345). Then go to Step 5.

STEP 4. Check the harness for open circuit between SRS-
ECU connector C-27 (terminal No.45 and 46) and the driver's
seat belt pre-tensioner D-121 (terminal No.1 and 2).

ZC6018230001

Seat belt
pre-tensioner

Floor wiring harness side
connector (2-pin, black)

Locking
button

Flat-tipped
screwdriver

(1)

Disconnect SRS-ECU connector C-27 and driver's seat belt
pre-tensioner connector D-121, and measure at the wiring
harness  side.  For  connector  D-121,  use  a  flat-tipped
screwdriver to unlock the locking button at the harness side
connector by withdrawing it toward you in two stages, and
then disconnect the connector.

ZC603339

MB991884

D-121
Harness side
connector

0001

(2)

Connect  D-121  harness  side  connector  to  special  tool
MB991884.
