DTC B1B19: Curtain Air bag Module (LH) (Squib) System (Shorted to Squib Circuit
Power Supply)

M15204000966USA0000010000

CURTAIN AIR BAG
MODULE
(SQUIB) (LH)

SRS-ECU

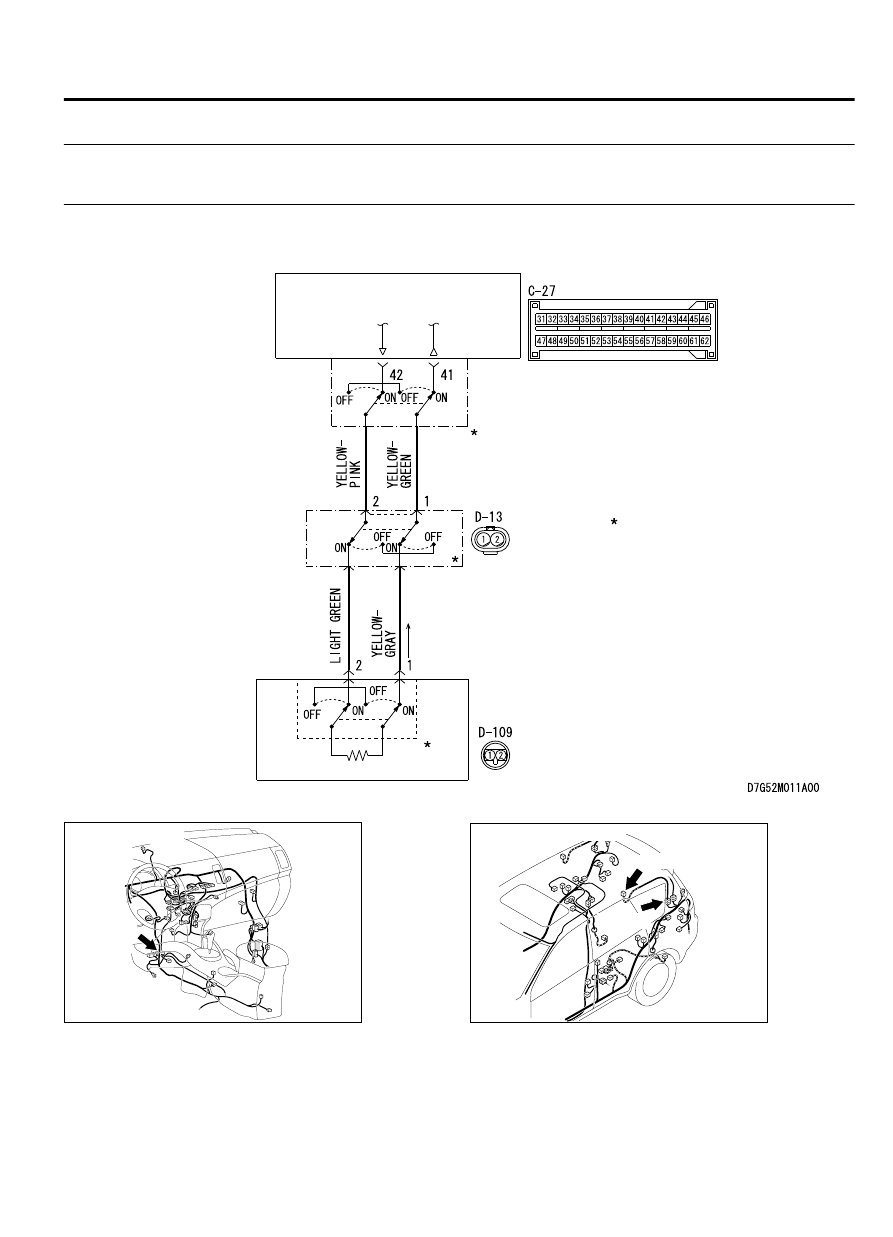

Curtain Air Bag Module (Squib) (LH) Circuit

: CONNECTOR LOCK SWITCH
  CONNECTOR COUPLED : ON
  CONNECTOR UNCOUPLED : OFF

NOTE

ZC600876

Connector: C-27

C-27 (Y)

0025

ZC6008800011

D-13 (Y)

D-109 (B)

Connectors: D-13, D-109

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-99

SRS AIR BAG DIAGNOSIS



If  DTC  B1B19  is  set  in  the  SRS-ECU,  always
diagnose the CAN main bus line.

CIRCUIT OPERATION

｠

The SRS-ECU judges how severe a collision is by
detecting  signals  from  the  side  impact  sensors
installed on the lower side of the center pillar and at
the  quarter  panel  inner.  If  the  impact  is  over  a
predetermined  level,  the  SRS-ECU  sends  an
ignition signal. At this time, if the side-airbag safing
G-sensor is on, the SRS side-airbag will inflate.

｠

The  ignition  signal  is  input  to  the  curtain  air  bag
module (LH) to inflate the curtain air bag.

DTC SET CONDITIONS
This  DTC  is  set  if  there  is  abnormal  resistance
between  the  input  terminals  of  the  curtain  air  bag
module (LH) (squib).

TROUBLESHOOTING HITS

｠

Damaged wiring harnesses or connectors

｠

Short  to  the  power  supply  in  the  curtain  air  bag
module (LH) (squib) harness

｠

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN Communication System)

｠

MB991865: Dummy resistor

｠

MB991866: Resister harness

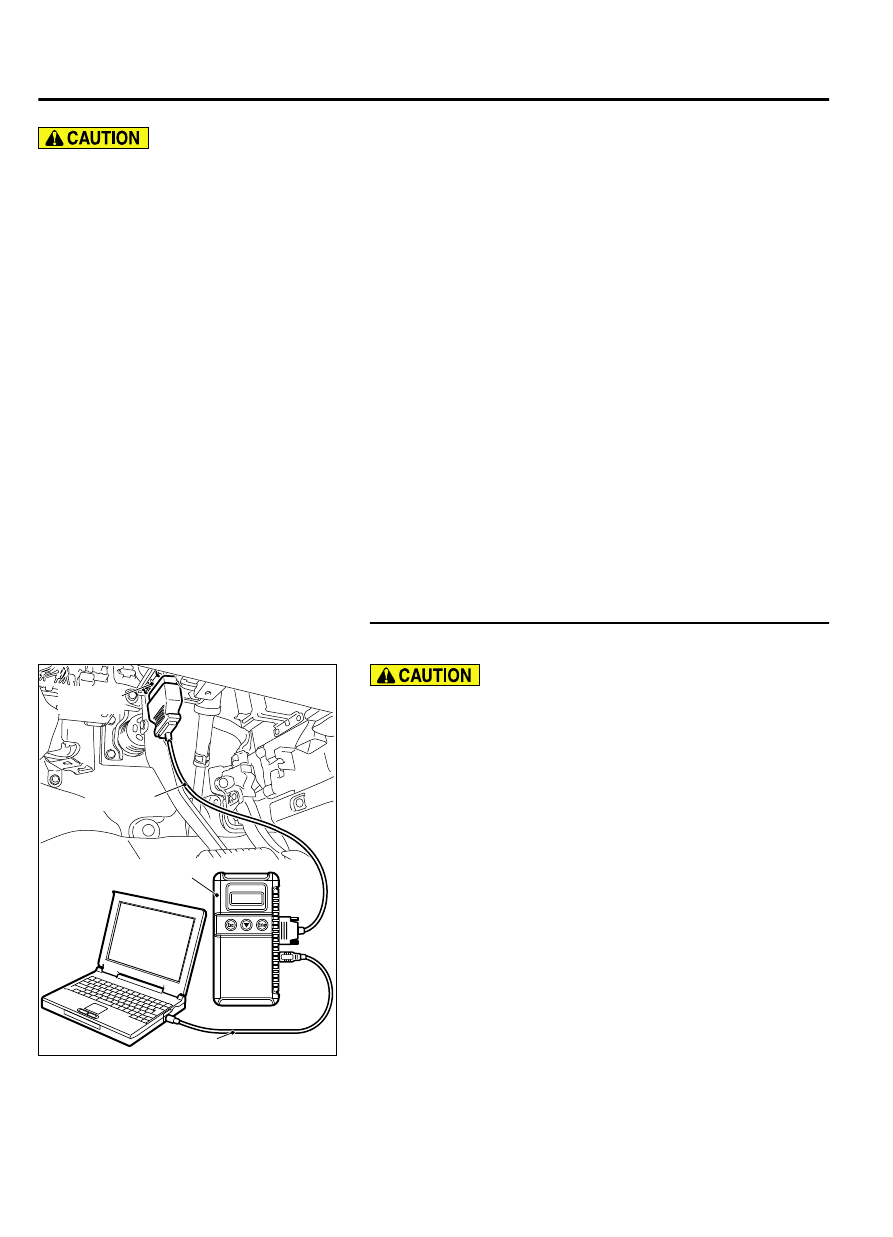

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line (Refer to GROUP 54D,

Diagnosis P.54D-17).

52B-100

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

STEP 2. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Go to Step 3.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to Use Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunctions P.00-15).

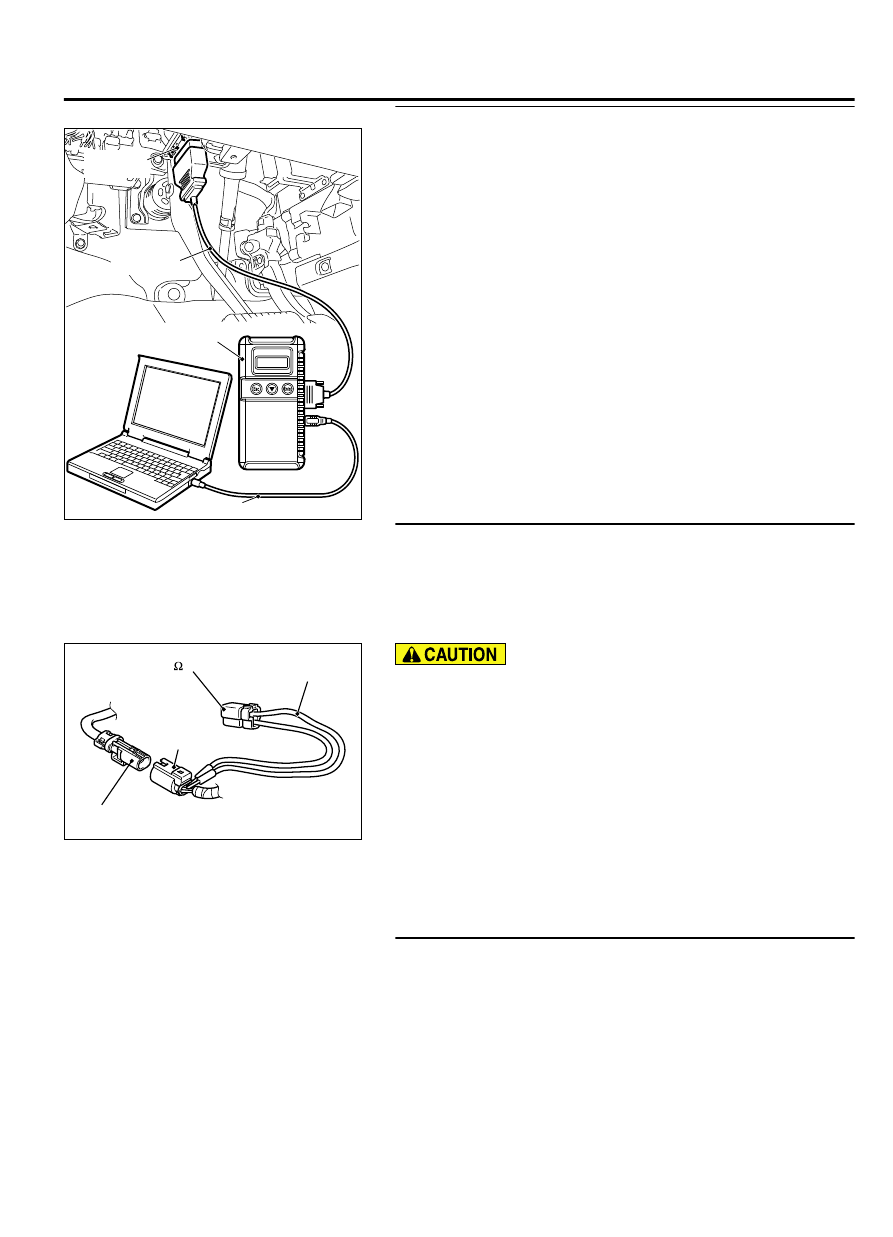

STEP 3. Check by dummy resistor connection. (Using scan
tool MB991958, read the diagnostic trouble code.)

(1)

Disconnect the negative battery terminal.

(2)

Disconnect  the  D-13  intermediate  connector  (connection
between curtain air bag harness and floor harness).

(3)

Connect special tool MB991865 to special tool MB991866.

ZC600211

D-13 Intermediate connector
(Curtain air bag harness side)

D-13
Intermediate
connector



(

Floor harness side

)

MB991865
(Dummy resistor: 3



)

MB991866

(Resistor harness)

0000

Do not insert a probe into the terminal from its front side
directly,  as  the  connector  contact  pressure  may  be
weakened.

(4)

Insert  the  probe  of  resistor  harness,  to  which  the  dummy
resistor  is  installed,  from  the  back  of  D-13  intermediate
connector (floor harness side).

(5)

Connect the negative battery terminal.

(6)

After erasing the diagnostic trouble code memory, check the
diagnostic trouble code again.

(7)

Disconnect the negative battery terminal.

Q:Is DTC B1B19 set?

YES:

 Go to Step 4.

NO:

 Go to Step 5.

STEP 4. Voltage measurement at the C-27 SRS-ECU
connector.

(1)

Disconnect the negative battery terminal.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-101

SRS AIR BAG DIAGNOSIS

ZC600210

A

Lock lever

0000

(2)

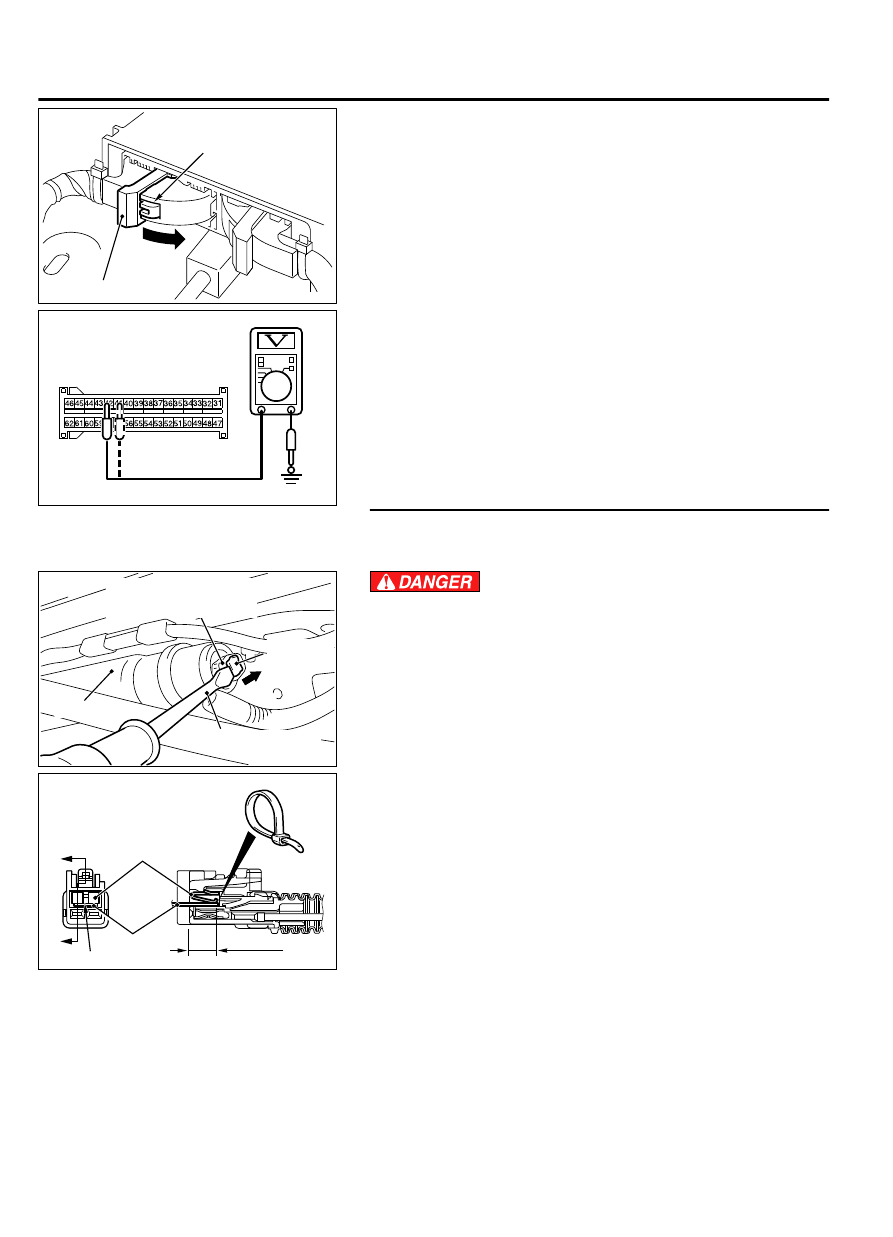

While  pushing  the  part  "A"  indicated  in  the  figure  of  the
harness side connector, turn the lock lever to the direction of
the arrow to release the lock lever, and disconnect the C-27
SRS-ECU connector.

(3)

Disconnect  the  D-13  intermediate  connector  (connection
between curtain air bag harness and floor harness).

(4)

Connect the negative battery terminal.

(5)

Ignition switch: ON



ZC500795

C-27 Harness side
connector (front view)

0014

(6)

Measure the voltage between the C-27 wiring harness side
connector terminal No. 41, 42 and body ground.
Voltage should measure 0 volt

Q:Is the measured 0 volt?

YES:

 Go to Step 6.

NO:

 Repair the wiring harness.

STEP 5. Voltage measurement at the D-13 intermediate
connector.

(1)

Disconnect the negative battery terminal.

ZC602163

Locking
button

Flat-tipped screwdriver

Inflator

Curtain air bag wiring
harness side connector

0000

To  prevent  the  air  bag  from  deploying  unintentionally,
disconnect the curtain air bag module connector D-109 to
short the squib circuit.

(2)

Disconnect curtain air bag module (LH) D-109. Use a flat-
tipped screwdriver to unlock the locking button at the harness
side connector by withdrawing it toward you in two stages,
and then disconnect the connector.

(3)

Disconnect  the  D-13  intermediate  connector  (connection
between curtain air bag harness and floor harness).

ZC600212

D-13 Intermediate
connector (module side )
(front view)

A

A

4 mm or more

Terminal

Cable tie

Short
spring

Section
A - A

0000

(4)

Because the short spring is installed to the D-13 intermediate
connector (curtain air bag harness side), insert a cable tie [3
mm  (0.12  inch)  wide,  0.5  mm  (0.02  inch)  thick]  between
terminals 1, 2 and the short spring to release the short spring.

(5)

Connect the negative battery terminal.

(6)

Ignition switch: ON

52B-102

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS
