or damaged terminals, or terminals pushed back in the
connector.

Q:Is the door mirror (RH) connector E-01 and rear window

defogger relay connector C-309 in good condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check if
the door mirrors works normally.

STEP 3. Check the wiring harness between the door mirror
(RH) connector E-01 (terminal 2) and rear window defogger
relay connector C-309 (terminal 3).

NOTE:

Also check intermediate connector C-113 for loose,

corroded or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-113 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between door mirror (RH) connector

E-01  (terminal  2)  and  rear  window  defogger  relay

connector C-309 (terminal 3) in good condition?

YES:

 Go to step 4.

NO:

 Repair the wiring harness as necessary. Check if all

heated door mirrors work normally.

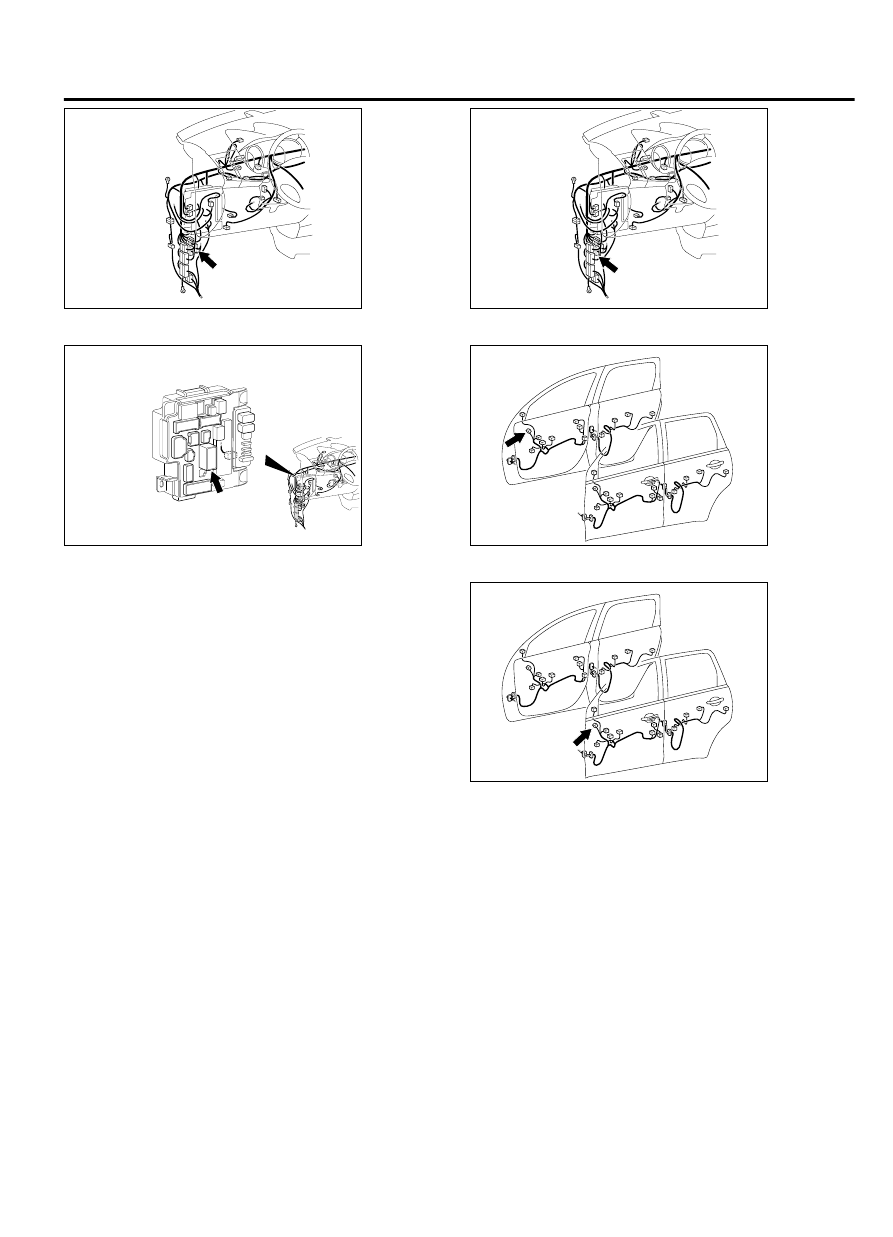

STEP 4. Check door mirror (LH) connector E-15.

Q:Is the door mirror (LH) connector E-15 in good condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the damaged component(s). Check if

all heated door mirrors work normally.

STEP 5. Check the wiring harness between door mirror (LH)
connector E-15 (terminal 2) and rear window defogger relay
connector C-309 (terminal 3).

NOTE:

Also check intermediate connector C-127 for loose,

corroded or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-127 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between door mirror (RH) connector

E-15  (terminal  2)  and  rear  window  defogger  relay

connector C-309 (terminal 3) in good condition?

YES:

 The procedure is complete.

NO:

 Repair the wiring harness as necessary. Check if the

all heated door mirrors work normally.

OUTSIDE MIRROR

51C-5

DIAGNOSIS

INSPECTION PROCEDURE 2: Left or right heated door mirror does not operate

M15102200013USA0000010001

REAR WINDOW
DEFOGGER
RELAY

RELAY
BOX

C-126

C-113

C-127

C-112

DOOR MIRROR
ASSEMBLY (LH)

2

1

1

2

DOOR MIRROR
ASSEMBLY (RH)

BLA

CK-

WHITE

BLA

CK

BLA

CK

BLA

CK

BLA

CK

BLA

CK-

WHITE

BLA

CK-

WHITE

BR

O

WN

BLA

CK-

WHITE

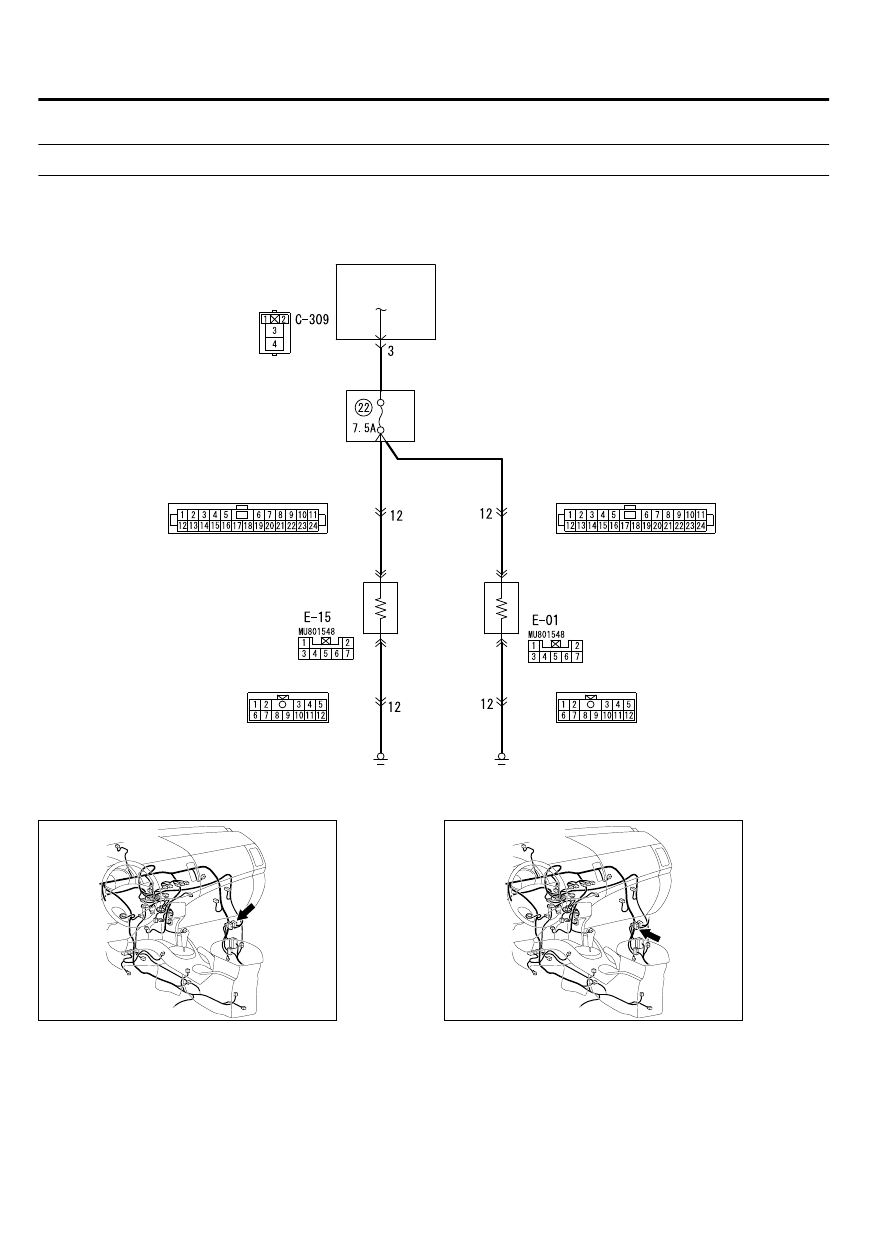

Heated Door Mirror Circuit

ZC6022550000

ZC6008760024

Connector: C-112

ZC600876

Connector: C-113

0020

C-113 (BR)



51C-6

OUTSIDE MIRROR

DIAGNOSIS

ZC600875

Connector: C-126

0021

ZC6008750014

Connector: C-127

C-127 (BR)



ZC600878

Connector: C-309

C-309 (B)

0009

ZC6008810006

Connector: E-01



ZC6008810007

Connector: E-15



CIRCUIT OPERATION
If  either  of  the  heated  door  mirror  do  not  operate
normally, it may be due to malfunctions in the heated
door mirror circuit or door mirror.

TROUBLESHOOTING HINTS

｠

Malfunction of the heated door mirror circuit

｠

Malfunction of the door mirror

｠

The wiring harness or connectors may have loose,
corroded  or  damaged  terminals,  or  terminals
pushed back in the connector.

DIAGNOSIS

Required Special Tools:

｠

MB991223: Test Harness Set

OUTSIDE MIRROR

51C-7

DIAGNOSIS

STEP 1. Verify the operation of each heated door mirror.

Q:Which door mirror does not heat?

Door mirror (LH):

 Go to Step 2.

Door mirror (RH):

 Go to Step 8.

STEP 2. Check door mirror (LH) connector E-15 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is door mirror (LH) connector E-15 in good condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. And then
check to see that the heater function of the door mirror
(LH) operates normally.

STEP 3. Check the heater of the door mirror (LH).

When  relocating  the  car  between  locations  of  extremely
different temperatures (warm and cold), leave the car in a
location  for  a  while  to  adapt  to  the  temperature  prior  to
checking it.

ZC6003790000

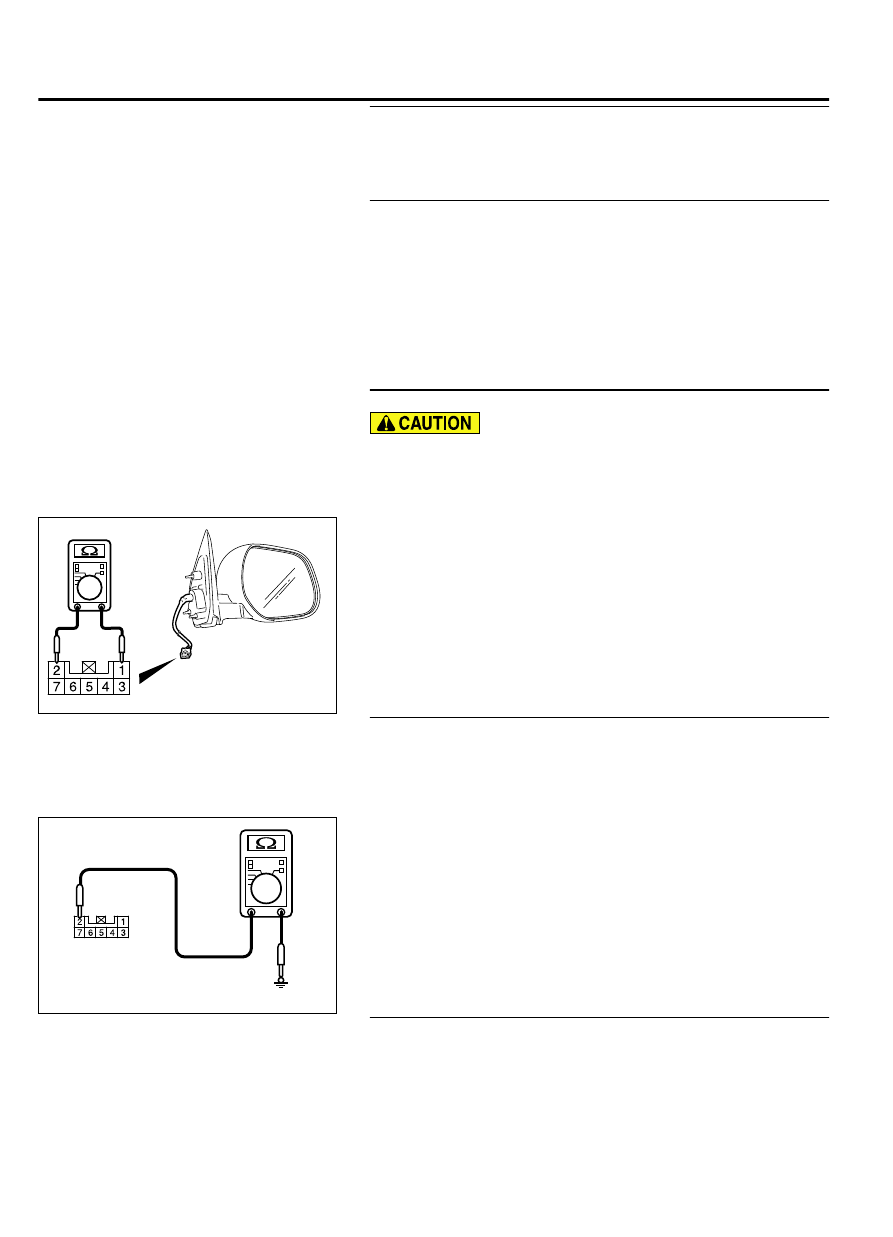

Check to see that the resistance between terminal 1 and 2 of the
door mirror (LH) connector E-15.

｠

The resistance should be 7.2 ± 1.4 Ω at 25°C (77°F).

Q:Is the resistance normal?

YES:

 Go to Step 4.

NO:

 Replace the door mirror (LH). And then check to see

that the heater function of the door mirror (LH) is
operating normally.

STEP 4. Check the ground circuit between door mirror (LH)
connector E-15 and ground for open circuit. Measure the
resistance at door mirror (LH) connector E-15.

(1)

Disconnect door mirror (LH) connector E-15 and check at the
wiring harness side connector.

ZC5007880019

Harness side: E-15

(2)

Measure  the  resistance  value  between  terminal  1  and
ground.

｠

The resistance should be 2Ω or less.

Q:Is the measured resistance 2Ω or less?

YES:

 Go to Step 6.

NO:

 Go to Step 5.

STEP 5. Check the wiring harness between door mirror (LH)
connector E-15 (terminal 1) and ground.

NOTE:

Also check intermediate connector C-126 and C-127 for

loose, corroded or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-126 and
