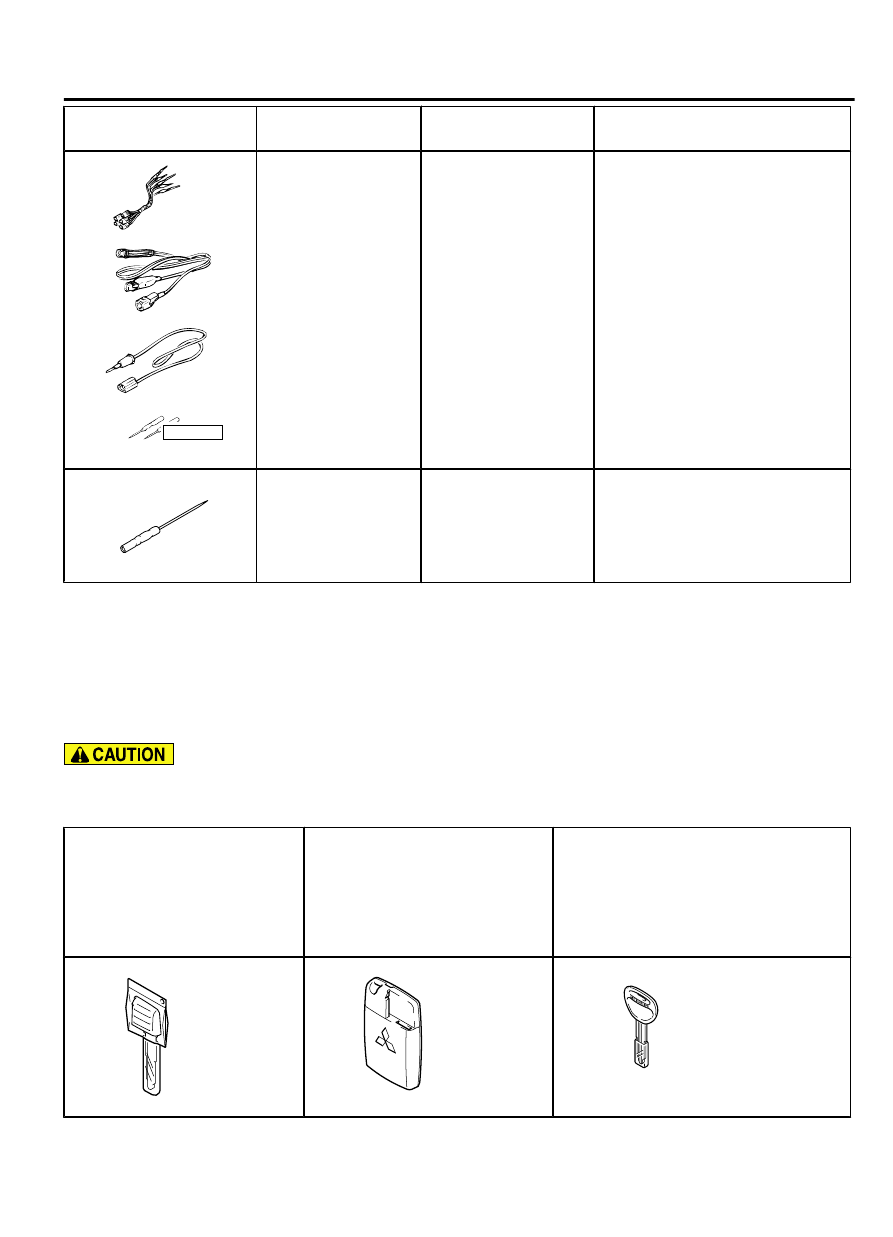

Tool

Tool  number  and
name

Supersession

Application

YB9912230000

Do not use

a

b

c

d

MB991223

a.

MB991219

b.

MB991220

c.

MB991221

d.

MB991222

Harness set

a.

Test harness

b.

LED harness

c.

LED

 harness

adaptor

d.

Probe

General service tools Continuity  check  and  voltage

measurement  at  harness  wire  or
connector  for  loose,  corroded  or
damaged  terminals,  or  terminals
pushed back in the connector.

a.

Connector

 pin

 contact

pressure inspection

b.

Power circuit inspection

c.

Power circuit inspection

d.

Commercial tester connection

MB992006

MB992006
Extra fine probe

-

Making  voltage  and  resistance
measurement

 during

troubleshooting

ON-VEHICLE SERVICE

ID CODES REGISTRATION PROCEDURE

M14209100117USA0000010000

By operating the M.U.T.-III, the ID codes registration
and antenna communication can be performed.

If  registered,  starting  the  engine  by  using  the
conventional key becomes impossible. The new

key  will  not  be  able  to  start  the  engine,  too,
because it has a different key groove.

SUPPLY UNIT LIST FOR INDIVIDUAL KEY

Emaregency key

Keyless operation key

NOTE:

Blank key (It is the key that

comes with the door service key set
and the glove box service key set. It
can only be used for locking and
unlocking, and it cannot start the
engine.)

ZC603741

ZC6037420000

ZC6044010001

Blank key

KEYLESS OPERATION SYSTEM (KOS)

42B-163

ON-VEHICLE SERVICE



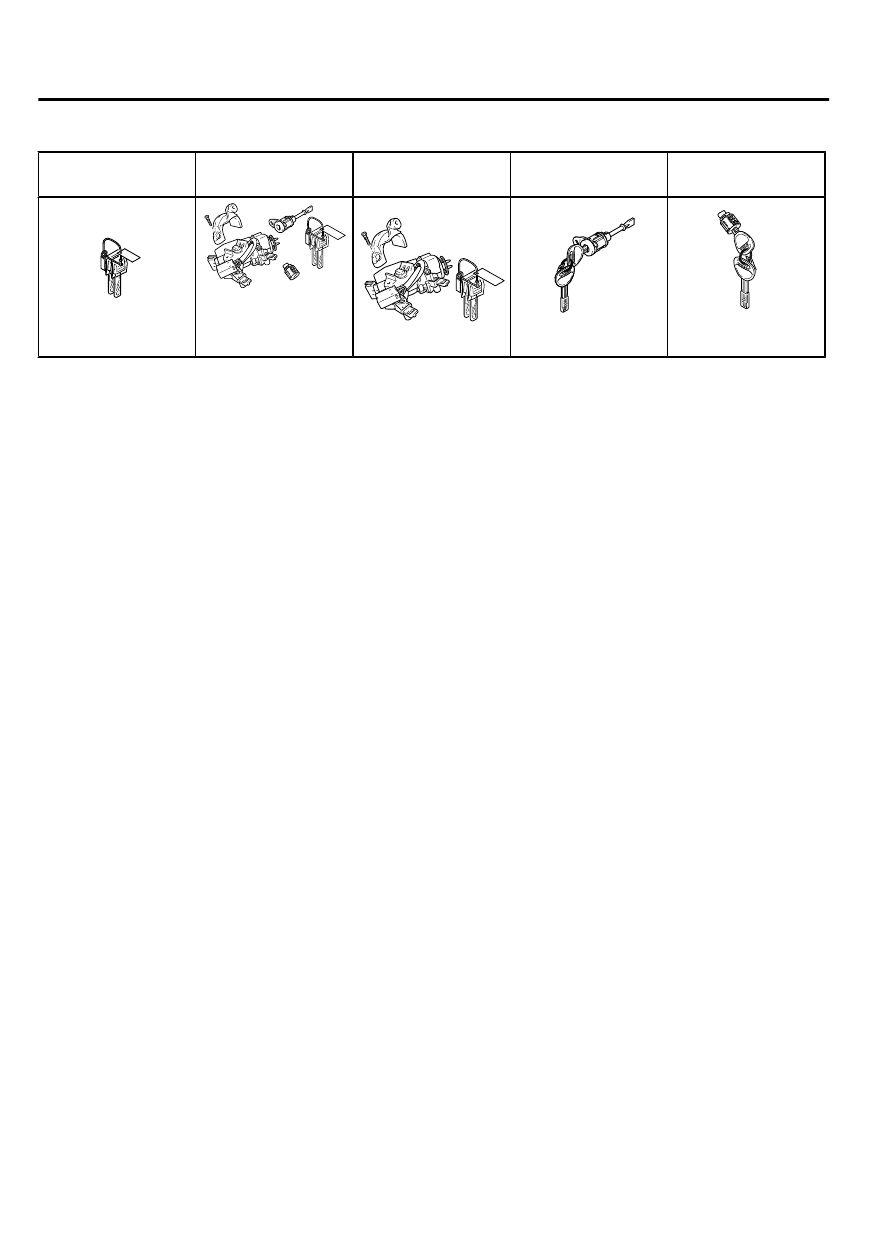

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

Service

 key

assembly

Full service key set Handle

 lock

service key set

Door  service  key
set

Glove  box  service
key set

ZC6045520000

ZC6045410000

ZC6045510000

ZC6045500000

ZC6045390000

NOTE:

｠

When re-registering the key (key ID), all the keys
(key  ID)  registered  before  must  be  re-registered
because all of them will be erased.

｠

When the key was replaced by the full service key
set or when the key was replaced by the handle lock

service key set separately, register the key (key ID)
using the barcode No. attached to the key.

｠

After  the  key  and  keyless  operation  key  is
registered,  start  the  engine  with  all  the  keys  and
keyless  operation  keys,  and  check  that  KOS
operates normally.

42B-164

KEYLESS OPERATION SYSTEM (KOS)

ON-VEHICLE SERVICE

ZC603754 0000

Screen flow of M.U.T.-III

Key Registration
(Barcode No.)*1

Key
Registration*1

Key &
KOS Key
Registration*2

Cancel

OK

OK

OK

OK

OK

OK

OK

OK

OK

Key ID input

Execution check

Barcode No.

registration

completed

Special Function

KOS key

registration

Executing

KOS key

registration

completed

Registration

result display

Key registration

Completion and

an addition?

Special Function

Special Function

Refer to GROUP 00,
How to Perform
VIN Writing.

ENG key code
Reg.*1*2

OK

Keyless ID
Reg.*1

OK

Keyless ID

registration

Executing

Keyless ID

registration

Completed

OK

OK

Steering lock
unit Reg.*2

OK

Password input

Steering lock

unit registration

Executing

OK

Antenna select

Antenna

communication

test Executing

NOTE:
*1 Show the menu displayed when the vehicles for WCM.
*2 Show the menu displayed when the vehicles for KOS.

Cancel

Steering lock

unit registration

Completed

Password input

Password input

Password input

Key registration

Completion and

an addition?

Password input

Registration

result display

Comm.
Test*2

Antenna

communication
test Completed

Additional key
registration*1

Key(Barcode No.) &
KOS Key Reg.*2

OK

OK

OK

OK

OK

OK

Key ID Input

Key registration
password

The completion of
barcode registration

KOS key
registration
password

KOS key registration
completed

Registration result
display

KOS key registration
Executing

KEYLESS OPERATION SYSTEM (KOS)

42B-165

ON-VEHICLE SERVICE

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

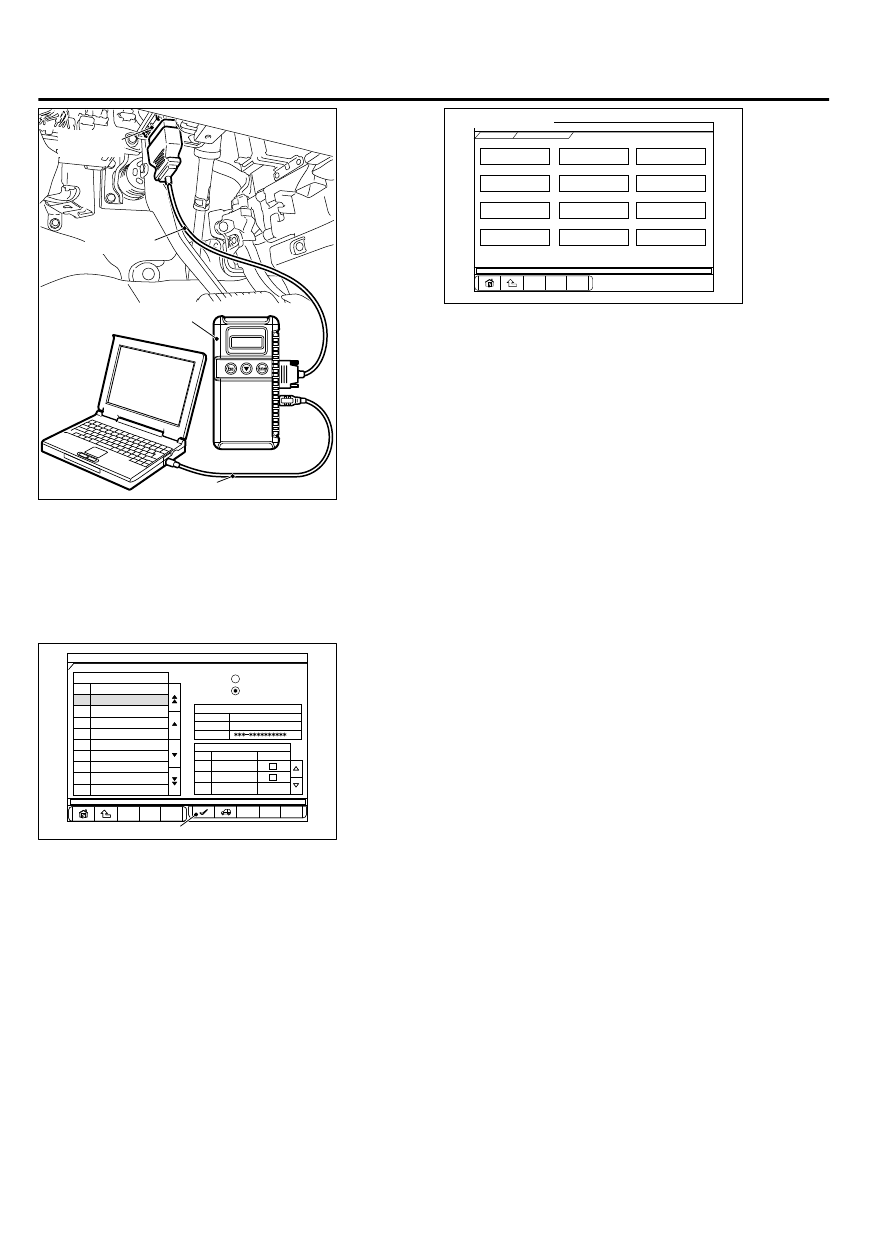

Connect  the  M.U.T.-III  to  the  16-pin  data  link
connector as follows.

NOTE:

For details on how to use the scan tool,

refer to the "M.U.T.-III User's Manual."

1.

Start the M.U.T.-III system on the PC and turn the
ignition switch to the "ON" position.

System Select

Select Model Year and System

System List

Model  Yea r

Vehicle In fo r matio n

Loading Option Setup

OPC

With Option

Option Name

Model Name

Model  Yea r

OUTLANDER

2007

Model Code

Up to 2005 MY

From to 2006 M

Y

1

2

3

4

5

6

7

8

9

10

MPI/GDI/Diesel

KOS/IMMOBI/ Keyless/TPM S

AT/CVT/A-M

T

ABS/ASC/ASTC

SAS

Multi Select 4WD

SRS Airbag

A/C

E TA C S

Meter

ZC6037850000

OK button

2.

Select  "KOS/IMMO//Keyless/TPMS"  button  from
the  "System  Select"  screen.  Then,  select  the
applicable  option  code  item  and  push  the  OK
button.

3.

Select "Special Function" on the next screen.

System Select

Please select function.

Special Function

Key &  KOS  Key Reg .

Stee ring lo ck unit Reg .

Comm . Tes t

ENG  Key Code Reg .

ZC6037860000

Vehicles for KOS

K OS/IMMO/

K e yless/TPM

S

Tire Pressure Sensor ID Che

ck

Tire Pressure Sensor ID Regist

ratio n

Tire Pressure Sensor Che

ck

Key (Barcode No) &

KOS  Key Reg .

4.

Select the button of the operation to be performed
from the "Special Function" screen.

｠

"Key  &  KOS  Key  Reg.":  When  the  keyless
operation  key  or  emergency  key  is  replaced  or
added as a single unit, when the emergency key
is replaced or added by a supply of service key
assembly.

｠

"Key(Barcode No.) & KOS Key Reg.": When the
emergency key is replaced by the full service key
set or the handle lock service key set is replaced
by the piece.

｠

"ENG key code Reg.": When the engine control
module is replaced.

｠

"Steering  lock  unit  Reg.":  When  KOS-ECU  is
replaced  but  the  steering  lock  assembly  is  not
replaced.

｠

"Comm.  Test":  When  the  KOS  antenna
communication status is checked.

｠

"Tire Pressure Sensor ID Registration": When the
TPMS transmitter is replaced.

｠

"Tire  Pressure  Sensor  Check":  When  the  tire
pressure sensor data is checked.

｠

"Tire Pressure Sensor ID Check": When the tire
pressure sensor ID is checked.

NOTE:

｠

For "Key Code Registration," refer to GROUP 00 -
Precautions before Service P.00-26.

｠

For  "Tire  Pressure  Sensor  ID  Registration,"  refer
to P.42B-172.

｠

For  "Tire  Pressure  Sensor  Check,"  refer  to  P.
42B-173.

｠

For  "Tire  Pressure  Sensor  ID  Check,"  refer  to  P.
42B-174.



"KEY & KOS KEY REG." METHOD

42B-166

KEYLESS OPERATION SYSTEM (KOS)

ON-VEHICLE SERVICE
