ZC600878

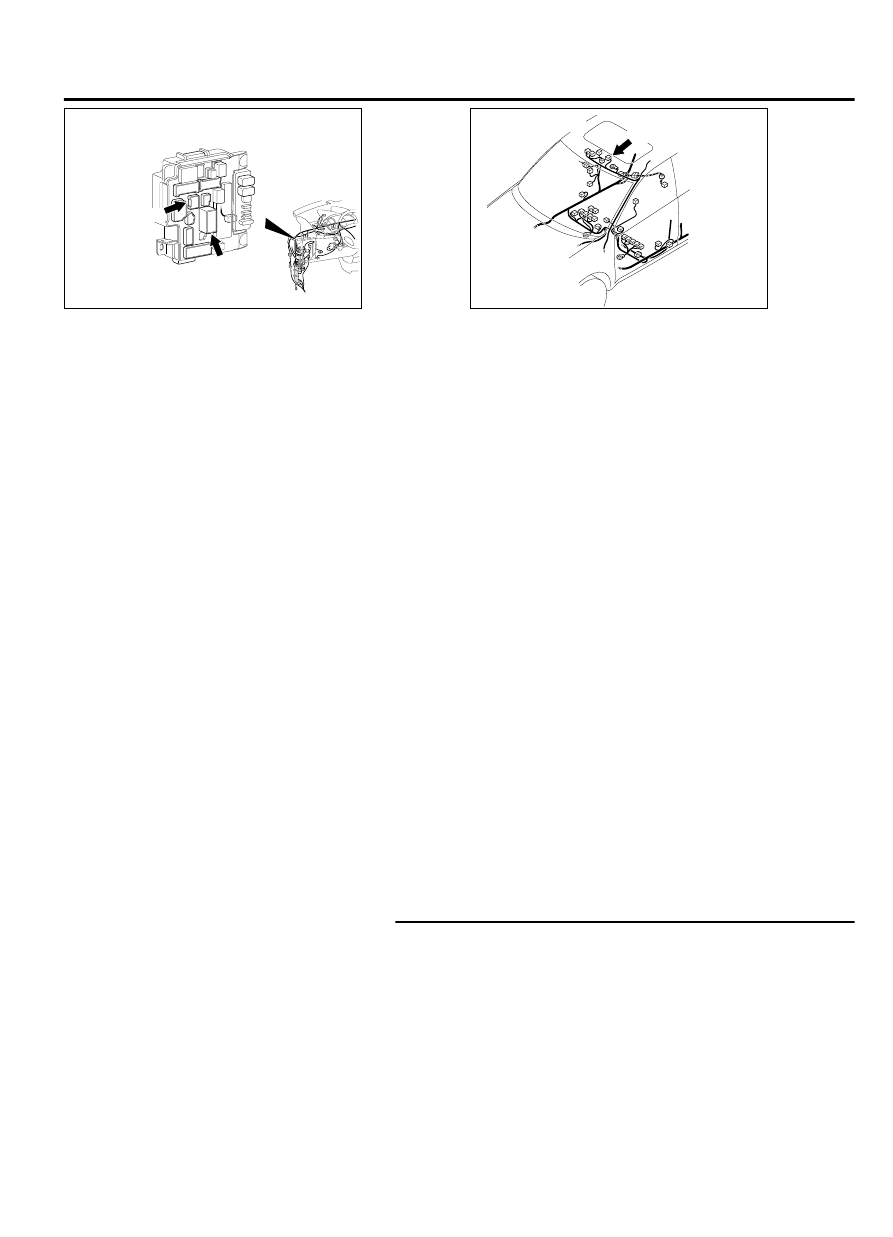

Connectors: C-309, C-316

C-309 (B)

0020

C-316

ZC6008790002

Connector: D-04

D-04 (GR)

COMMENTS ON TROUBLE SYMPTOM

Current trouble

｠

If the terminal voltage at the sunroof ECU has been 8 V or
lower, or 18V or higher for 60 seconds, sunroof ECU sets the
diagnostic trouble code No. L0630.

Past trouble

｠

If the diagnostic trouble code No. L0630 is set as past trouble,
carry  out  diagnosis  with  particular  emphasis  on  wiring  and
connector(s)  in  the  CAN  bus  communication  line.  For
diagnosis procedures, refer to How to treat past trouble (Refer
to  GROUP  00,  How  to  Use  Troubleshooting/Inspection
Service Points P.00-17).

NOTE:

For a past trouble, you cannot find it by the scan

tool (M.U.T.-III) CAN bus diagnostics even if there is any
failure in CAN bus lines. In this case, refer to GROUP 00,
How to Use Troubleshooting/Inspection Service Points P.
00-17and check the CAN bus lines. You can narrow down the
possible cause of the trouble by referring to the
diagnostic trouble code, which is set regarding the CAN
communication-linked ECUs (Refer to GROUP 54D, CAN Bus
Line Diagnostic Flow P.54D-10).

PROBABLE CAUSES

｠

Malfunction of the sunroof motor assembly

｠

Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

STEP 1. Check sunroof motor assembly connector D-04 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is sunroof switch connector D-04 in good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

SUNROOF

42Ad-7

SUNROOF DIAGNOSIS

STEP 2. Check the wiring harness between sunroof motor
assembly connector D-04 (terminal 6) and fusible link (34).

NOTE:

Also check ETACS-ECU connectors C-309 and C-316 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If ETACS-ECU connectors C-309 and
C-316 is damaged, repair or replace the damaged component
(s) as described in GROUP 00E, Harness Connector
Inspection P.00E-2.

Q:Is the wiring harness between sunroof motor assembly

connector D-04 (terminal 6) and fusible link (34) in good

condition?

YES:

 Go to Step 3.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the sunroof works
normally.

STEP 3. Diagnostic trouble code recheck
Recheck if the diagnostic trouble code is set.

(1)

Erase the diagnostic trouble code.

(2)

Turn the ignition switch from the LOCK (OFF) position to the
ON position.

(3)

Check if the diagnostic trouble code is set.

Q:Is the diagnostic trouble code set?

YES:

 Replace the sunroof motor assembly.

NO:

 The procedure is complete.

Code No. L0632 S/R Switch fall

M14206000902USA0000010000

Before replacing the ECU, ensure that the input and output
signal circuits are normal.

42Ad-8

SUNROOF

SUNROOF DIAGNOSIS

ZC600615

CPU

SUNROOF
SWITCH

INPUT CIRCUIT

INPUT CIRCUIT

DRIVE CIRCUIT

SUNROOF MOTOR

HALL SENSOR

SUNROOF
MOTOR
ASSEMBLY

BLA

CK

BLA

CK

BLUE

YELLO

W

GREEN

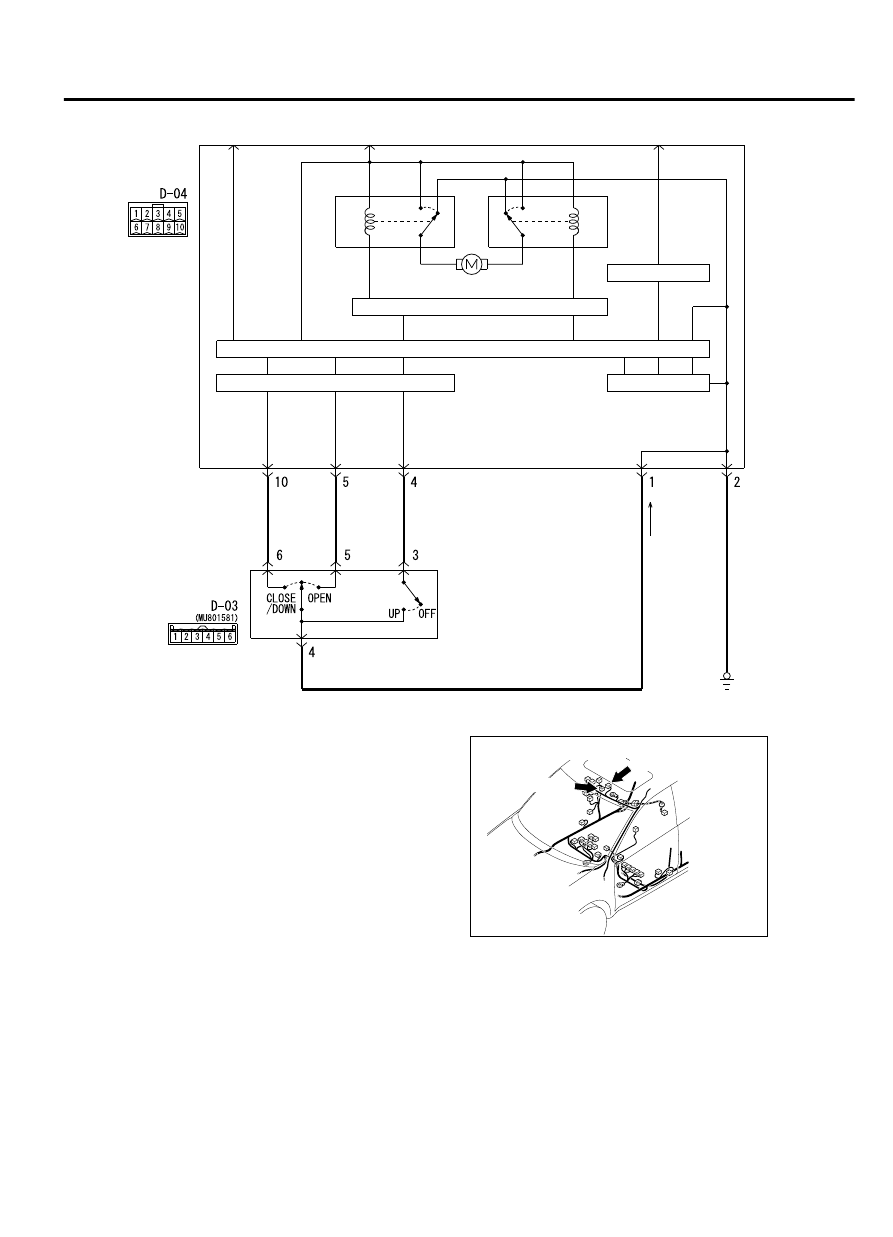

Sunroof Switch Circuit

0000

ZC600879

Connectors: D-03, D-04

D-04 (GR)

D-03 (B)

0007

COMMENTS ON TROUBLE SYMPTOM

Current trouble

｠

If each switch (up, open, close/down) of the sunroof switch has
been  ON  for  60  seconds,  sunroof  ECU  sets  the  diagnostic
trouble code No. L0632.

SUNROOF

42Ad-9

SUNROOF DIAGNOSIS

Past trouble

｠

If  diagnostic  trouble  code  No.  L0632  is  set  as  past  trouble,
carry  out  diagnosis  with  particular  emphasis  on  wiring  and
connector(s) in the CAN bus line. For diagnosis procedures,
refer to How to treat past trouble (Refer to GROUP 00, How
to Use Troubleshooting/Inspection Service Points P.00-17).

NOTE:

For a past trouble, you cannot find it by the can

tool (M.U.T.-III) CAN bus diagnostics even if there is any
failure in CAN bus lines. In this case, refer to GROUP 00,
How to Use Troubleshooting/Inspection Service Points P.
00-17and check the CAN bus lines. You can narrow down the
possible cause of the trouble by referring to the
diagnostic trouble code, which is set regarding the CAN
communication-linked ECUs (Refer to GROUP 54D, CAN Bus
Line Diagnostic Flow P.54D-10).

PROBABLE CAUSES

｠

Malfunction of the sunroof motor assembly

｠

Malfunction of the sunroof switch

｠

Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

STEP 1. Check sunroof switch connector D-03 and sunroof
motor assembly D-04 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

Q:Are  sunroof  switch  connector  D-03  and  sunroof  motor

assembly D-04 in good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

STEP 2. Check the wiring harness between sunroof switch
connector D-03 (terminals No. 3, 5, 6) and sunroof motor
assembly connector D-04 (terminals No. 4, 5, 10).

Q:Is the wiring harness between sunroof switch connector

D-03  (terminal  3,  5,  6)  and  sunroof  motor  assembly

connector D-04 (terminal No. 4, 5, 10) in good condition?

YES:

 Go to Step 3.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the sunroof works
normally.

STEP 3. Diagnostic trouble code recheck
Replace the sunroof switch. Recheck if the diagnostic trouble
code is set.

(1)

Erase the diagnostic trouble code.

42Ad-10

SUNROOF

SUNROOF DIAGNOSIS
