ZC601370

POWER
WIND OW
MAIN
SWITCH

FRONT
(RH)

LOCK
SWITCH

GREEN

GREEN

BL

A

C

K

BL

A

C

K

B

ULE

-

WHITE

GREEN

B

ULE

-

WHITE

B

ULE

-

WHITE

RED

B

UL

E

VIOLET

FRON T
POWE R
WIND OW
SUB SWITCH
(RH)

FRON T
POWE R
WIND OW
M OTOR (RH )

ETACS-ECU

POWER
WINDOW
RELAY

RED

RED

0000

Power Window (Passenger) Circuit

DOOR

42Ab-59

POWER WINDOW DIAGNOSIS

ZC601371

POWER WINDOW MAIN SWITCH

REAR

(LH)

REAR

(RH)

LOCK

SWITCH

BLA

CK

BLA

CK

B

ULE

GREY

YELLO

W

GREY

YELLO

W

GREY

BLUE

RED

YELLO

W

RED

BR

O

WN

BR

O

WN

BR

O

WN

BR

O

WN

YELLO

W

YELLO

W

GREY

B

ULE

WHITE

B

ULE

WHITE

B

ULE

WHITE

WHITE

REAR

POWER

WINDOW

SUB SWITCH

(RH)

REAR

POWER

WINDOW

MOTOR (RH)

REAR

POWER

WINDOW

SUB SWITCH

(LH)

REAR

POWER

WINDOW

MOTOR (LH)

0000

ETACS-ECU

POWER
WINDOW
RELAY

BR

O

WN

Power Window (Rear) Circuit

ZC600876

Connectors: C-20, C-112

C-20

0021

C-112

ZC6008750022

C-126

C-32

Connectors: C-32, C-126



42Ab-60

DOOR

POWER WINDOW DIAGNOSIS

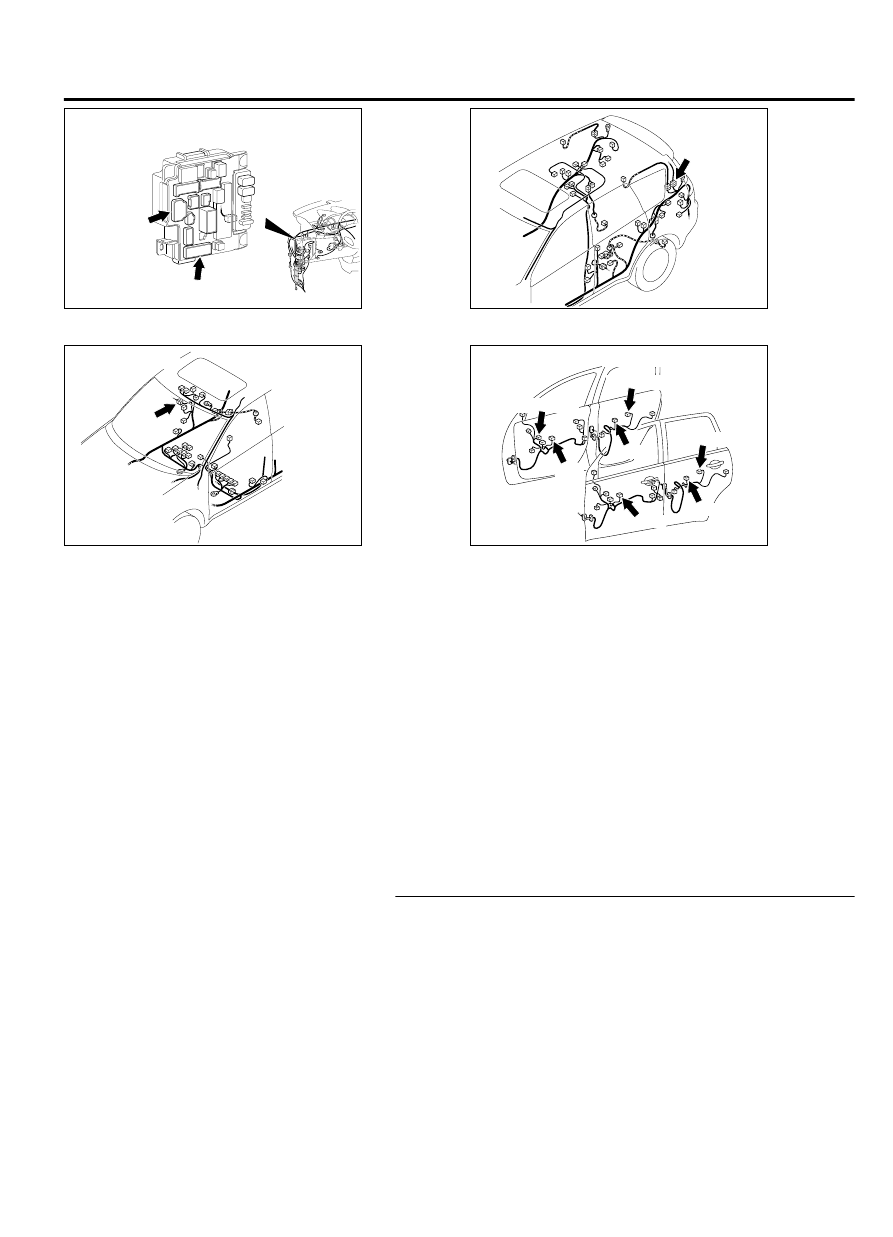

ZC600878

Connectors: C-311, C-315

C-311

0014

C-315

ZC600880

Connector: D-12

0006



ZC6008790006

Connector: D-36

ZC600881

E-19

E-06

0004

E-11

E-03 (GR)

E-12 (GR)

E-25

E-26 (GR)

Connectors: E-03, E-06, E-11, E-12, E-19,
E-25, E-26



CIRCUIT OPERATION
power  window  motors  raise  and  lower  the  door
windows  when  the  front  passenger's  or  rear
passenger's sub switch is moved to "UP" or "DOWN"
position.

TECHNICAL DESCRIPTION (COMMENT)
A power window sub switch or power window motor
may be defective. Or, the power window lock switch
(incorporated in the power window main switch in the
driver’s  door)  may  remain  pressed  in  the  "LOCK"
position.

TROUBLESHOOTING HINTS

｠

The power window main switch may be defective

｠

The  front  power  window  sub  switch  may  be
defective

｠

The  rear  power  window  sub  switches  may  be
defective

｠

The  front  power  window  motor  (RH)  may  be
defective

｠

The rear power window motors may be defective

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSTIC PROCEDURE

STEP 1. Check the power window lock switch.

Q:Is  the  power  window  lock  switch  in  the  "UNLOCK"

position?

YES:

 Go to Step 2.

NO:

 Operate the power window lock switch to the "UNLOCK"

position. When the power window sub switch is operated,
the power windows should raise and lower normally.

DOOR

42Ab-61

POWER WINDOW DIAGNOSIS

STEP 2. Check power window main switch connector E-19
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:Is  power  window  main  switch  connector  E-19  in  good

condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. When the
front power window sub switch (RH) is operated, the front
power window (RH) should raise and lower normally.

STEP 3. Check which door window does not move.

Q:Which door window does not move?

Front passenger's door:

 Go to Step 4.

Rear left door:

 Go to Step 13.

Rear right door:

 Go to Step 22.

STEP 4. Check front power window sub switch connector
E-06 and front power window motor (RH) connector E-03 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Are front power window sub switch connector E-06 and

front power window motor (RH) connector E-03 in good

condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. When the
front power window sub switch (RH) is operated, the front
power window (RH) should raise and lower normally.

STEP 5. Check the front power window sub switch for
continuity.

(1)

Remove the front power window sub switch. Refer to GROUP
42Ab, Door, Door Glass and Regulator P.42Ab-97.

ZC6013720000

8

3

4 5

1

2

6 7

<Front door>

(2)

Check continuity when the front power window sub switch is
operated to "UP" or "DOWN" position.

Switch
position

Tester
connection

Specified
condition

UP

4 - 5, 6 - 7

Continuity
exists  (2  Ω  or
less)

OFF

4 - 5, 7 - 8

DOWN

4 - 6, 7 - 8

Q:Is the front power window sub switch normal?

YES:

 Go to Step 6.

NO:

 Replace the front power window sub switch. When the

front power window sub switch is operated, the front power
window should raise and lower normally.

STEP 6. Check the front power window motor (RH).

(1)

Remove the front power regulator assembly (RH). Refer to
GROUP  42Ab,  Door,  Door  Glass  and  Regulator  P.
42Ab-97.

42Ab-62

DOOR

POWER WINDOW DIAGNOSIS
