Hood removal steps

5. Hood insulator
6. Hood weatherstrip
7. Hood weatherstrip front
8. Hood weatherstrip side
·

Washer  hose,  washer  nozzle  (Refer  to
GROUP  51B,  Windshield  Washer  P.
51B-55.)

Hood removal steps

9. Hood
10
.

Hood support rod

·

Front  deck  garnish  (Refer  to  GROUP
51A, Windshield wiper P.51B-49.)

11
.

Hood hinge

INSPECTION

M14201000017USA0000010000

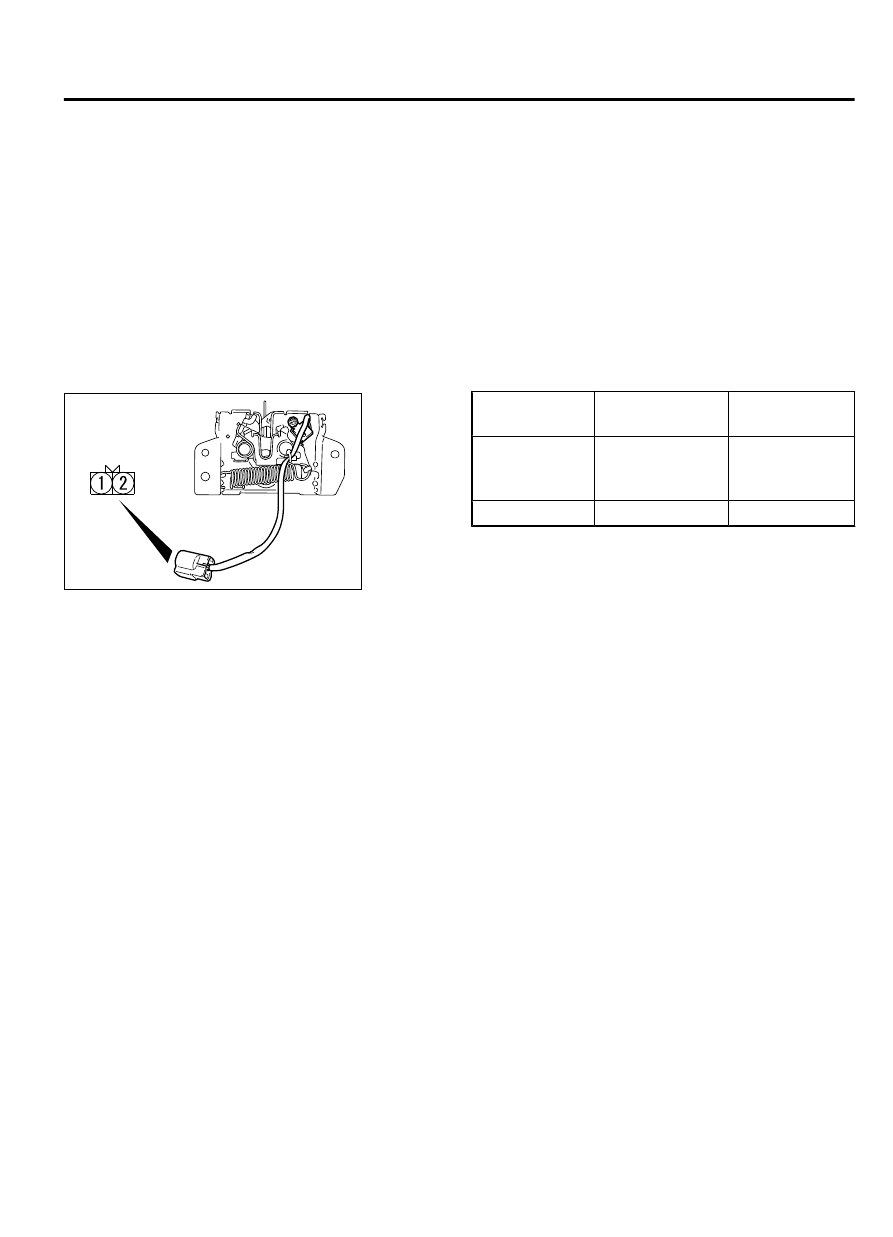

HOOD LATCH SWITCH CONTINUITY CHECK

ZC6000310000

Switch
position

Terminal
number

Normal value

Unlock (ON)

1 - 2

Continuity
exists  (2  Ω  or
less)

Lock (OFF)

1 - 2

Open circuit

FENDER

REMOVAL AND INSTALLATION

M14201000019USA0000010000

Pre-removal and post-installation operation

｠

Splash shield front removal and installation (Refer to P.42Aa-9).

｠

Front bumper side bracket removal and installation (Refer to GROUP 51A, Front Bumper Assembly P.51A-3).

｠

Headlight assembly removal and installation (Refer to GROUP 54Ac, Headlight P.54Ac-171).

｠

Front deck garnish removal and installation (Refer to GROUP 51B, Windshield Wiper P.51B-49).

｠

Side air dam removal and installation (Refer to GROUP 51A, Side Air Dams P.51A-15).

BODY

42Aa-7

HOOD

ZC600039

1

3

4

0000

2

5.0 ± 2.0 N·m
44 ± 18 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

4.0 ± 2.0 N·m
36 ± 18 in-lb

4.0 ± 2.0 N·m
36 ± 18 in-lb

Removal steps

<<A>>

>>A<<

1. Side turn signal light
2. Pad
·

Front  door  assembly  (Refer  to  P.
42Ab-95.)

Removal steps

3. Fender protector rear
4. Fender

REMOVAL SERVICE POINT

<<A>> SIDE TURN SIGNAL LIGHT REMOVAL

ZC600040

Side turn signal light

0000

Push

Forward of vehicle

Push the side turn-signal light toward the vehicle rear to bend
the  hook,  and  then  remove  by  disengaging  the  tab  from  the
fender panel.

42Aa-8

BODY

FENDER

INSTALLATION SERVICE POINT

>>A<< SIDE TURN SIGNAL LIGHT INSTALLATION

ZC600041

Hook

Claw

Fender
panel

0000

Forward of vehicle

Engage the claw to the fender panel to install the side turn signal
light.

SPLASH SHIELD

REMOVAL AND INSTALLATION

M14201000902USA0000010000

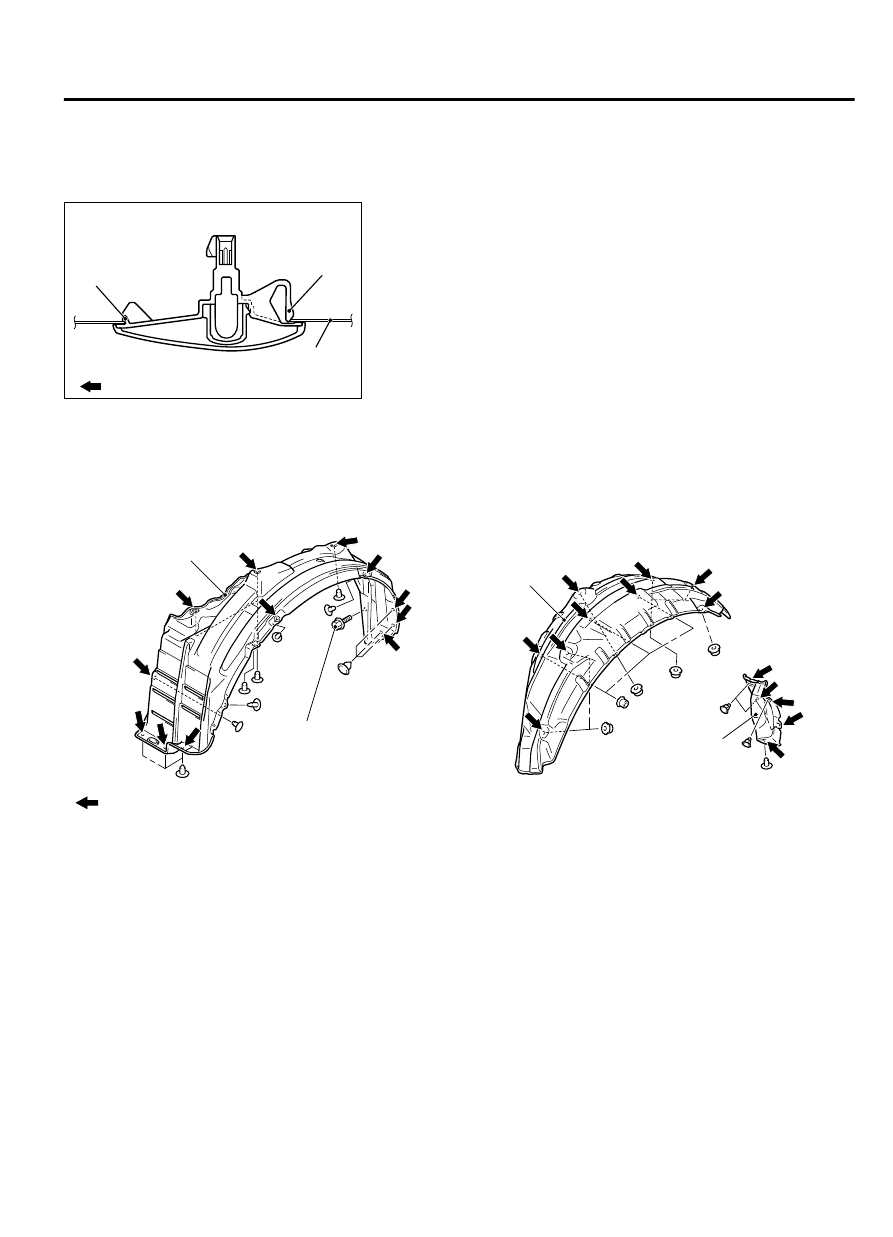

ZC600042

1

3

0000

2

Note



: Clip position

5.0 ± 2.0 N·m
44 ± 18 in-lb

Removal

1. Splash shield front
2. Splash shield (body side)

Removal

3. Splash shield (rear bumper side)

BODY

42Aa-9

SPLASH SHIELD

FUEL FILLER DOOR

REMOVAL AND INSTALLATION

M14201000025USA0000010000

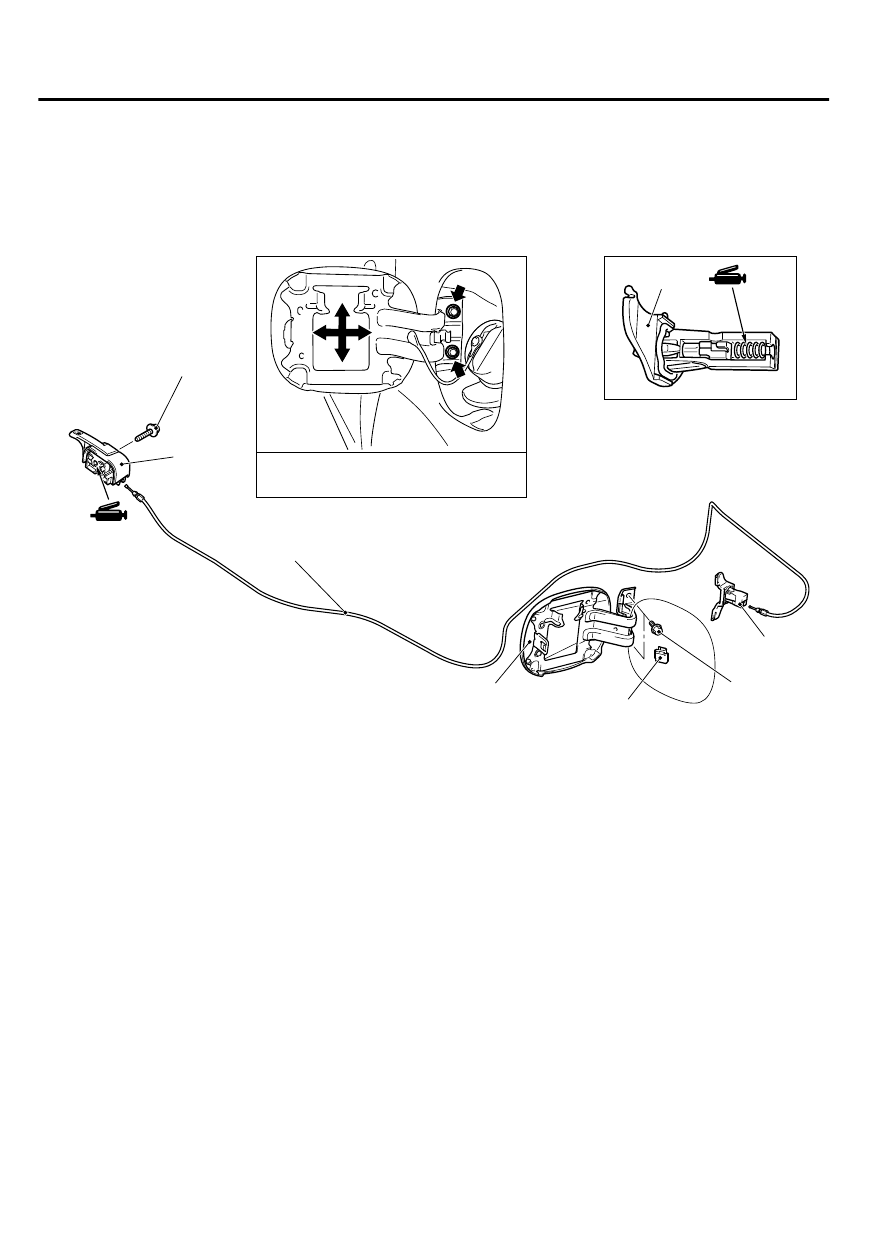

ZC600034

5.0 ± 1.0 N·m
44 ± 9 in-lb

4

4

2

1

5

7.0 ± 3.0 N·m
62 ± 26 in-lb

0001

3

Fuel filler door height and clearance
adjustment

Removal steps

1.

Fuel filler door

2.

Fuel filler door damper spring

3.

Fuel filler door lock release handle

·

Front scuff plate, rear scuff plate, and
center  pillar  trim  lower,  quarter  trim

Removal steps
lower  (Refer  to  GROUP  52A,  Interior
Trim P.52A-10.)

·

Rear seat assembly (Refer to GROUP
52A,  Rear  Seat  Assembly  P.
52A-21.)

4.

Fuel filler door hook

5.

Fuel filler door lock release cable
