Mitsubishi Outlander XL. Manual - part 593

ZC602507AA00

31 ± 4 N·m
23 ± 3 ft-lb

39 ± 6 N·m
29 ± 4 ft-lb

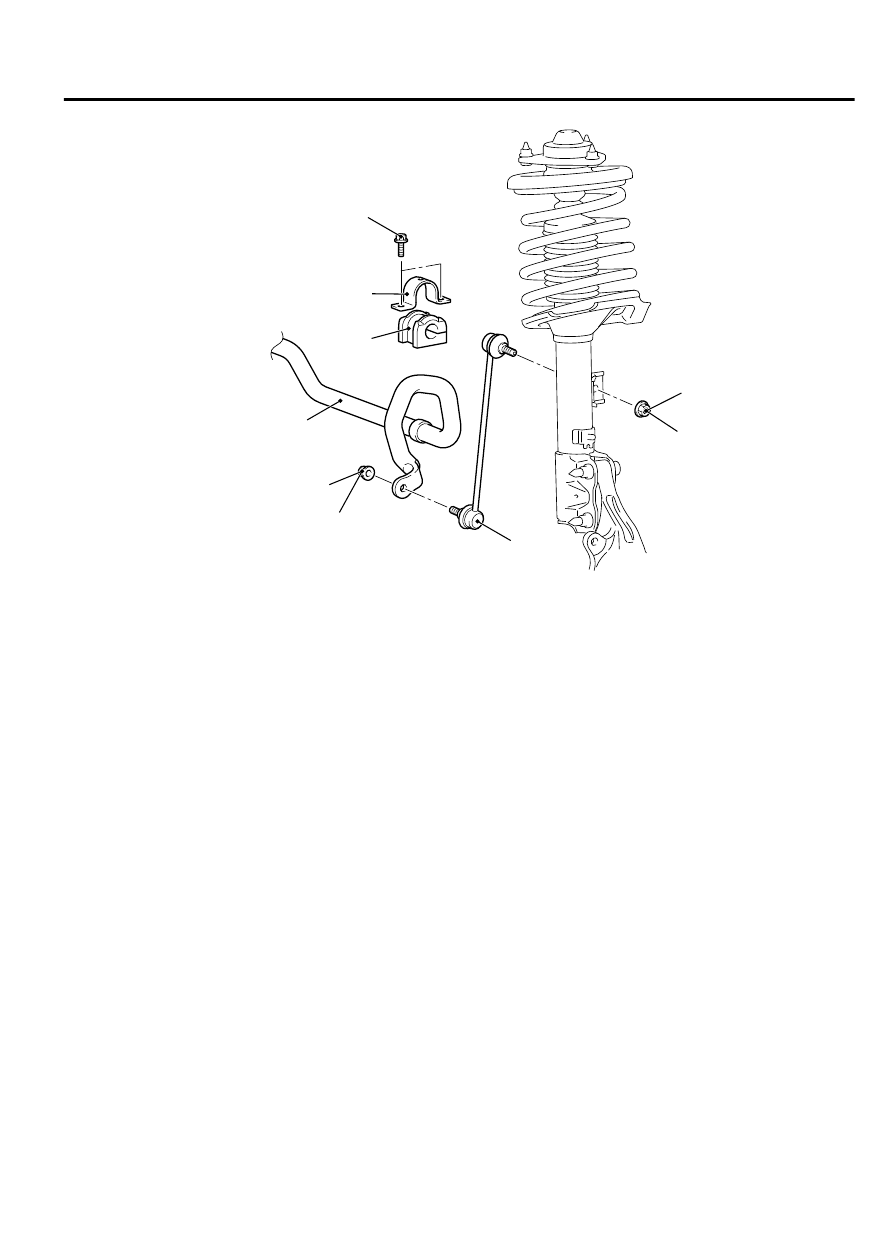

Stabilizer link removal steps

Stabilizer nut

Stabiliser link
Stabilizer bushing removal steps

Stabilizer nut

Stabilizer bar bracket

Stabilizer bushing

Stabilizer bar removal steps

Stabilizer nut

Front axle No.1 crossmember (Refer to
GROUP 32 - Crossmember P.32-7.)

Stabilizer bar bracket

Stabilizer bushing

Stabilizer bar

INSPECTION

M13302000020USA0000010000

｠

Check the bushings for wear and deterioration.

｠

Check the stabilizer bar for deterioration or damage.

｠

Check all bolts for condition and straightness.

FRONT SUSPENSION

33-17

STABILIZER BAR

STABILIZER LINK BALL JOINT ROTATION STARTING
TORQUE CHECK

ZC600895

MB990326

0000

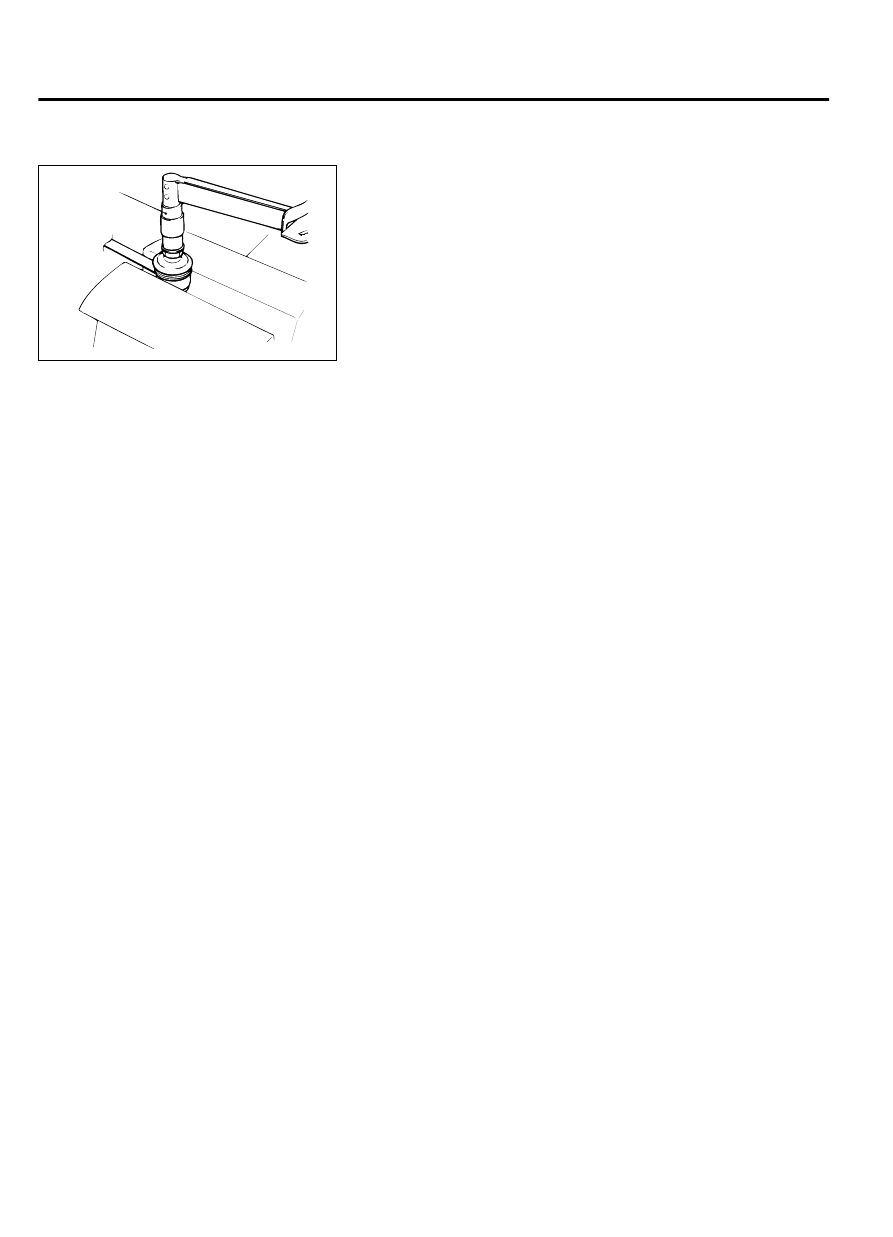

Move the stabilizer link ball joint stud back and forth for several
times, install the stud with nut, and measure the stabilizer link
ball joint rotation starting torque using the preload socket
(Special tool: MB990326).

Standard value: 0.5 to 2.9 N·m (4.4 to 26 in-lb)

When the measured value exceeds the standard range,
replace the stabilizer link.

If the measured value stays within the standard range, and
there is looseness or gritty feeling, the component is judged
as unusable and should be replaced.

STABILIZER LINK BALL JOINT DUST COVER CHECK

Using your fingers, press the dust cover to check for a crack
or damage.

If the dust cover has a crack or damage, replace the stabilizer
link.

NOTE:

If the dust cover has a crack or damage, the ball

joint could be damaged.

33-18

FRONT SUSPENSION

STABILIZER BAR
