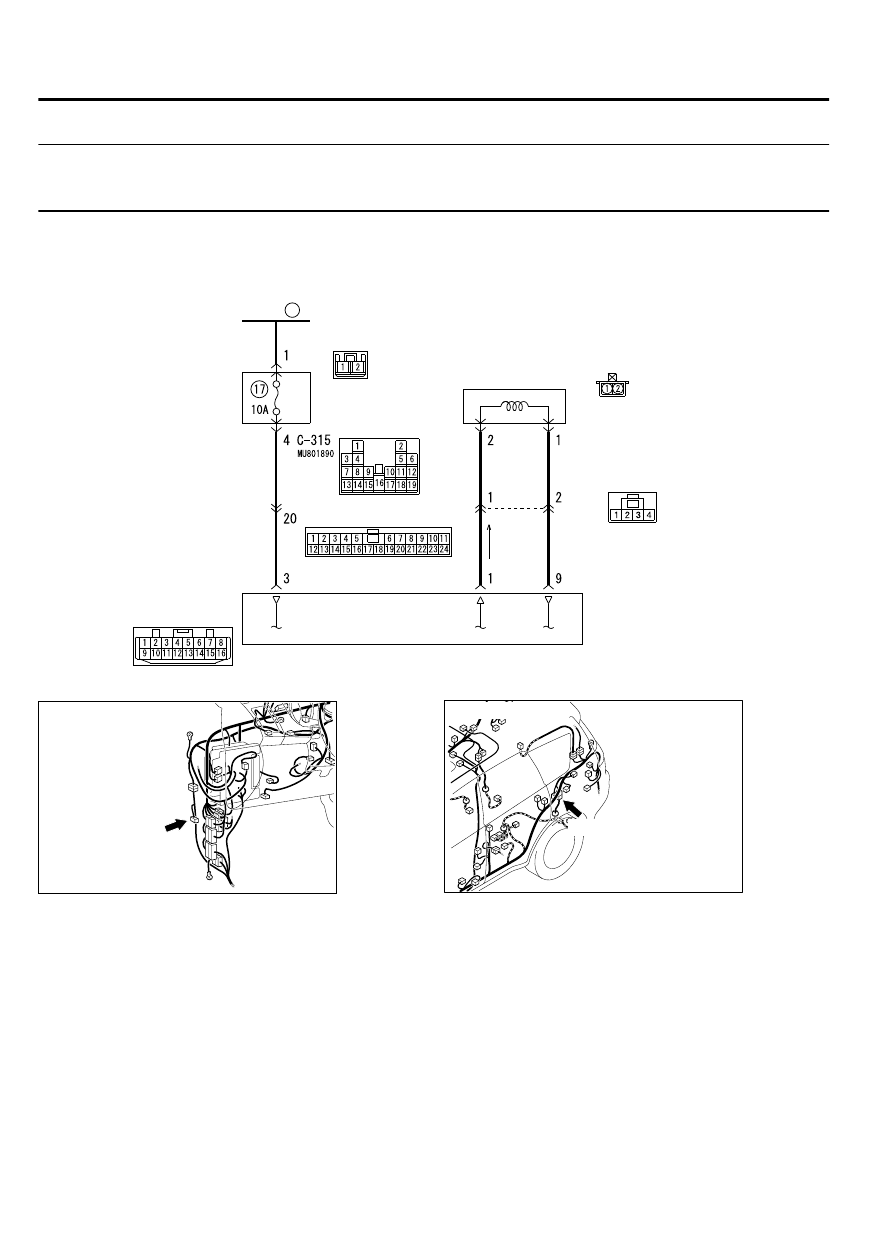

Mitsubishi Outlander XL. Manual - part 581

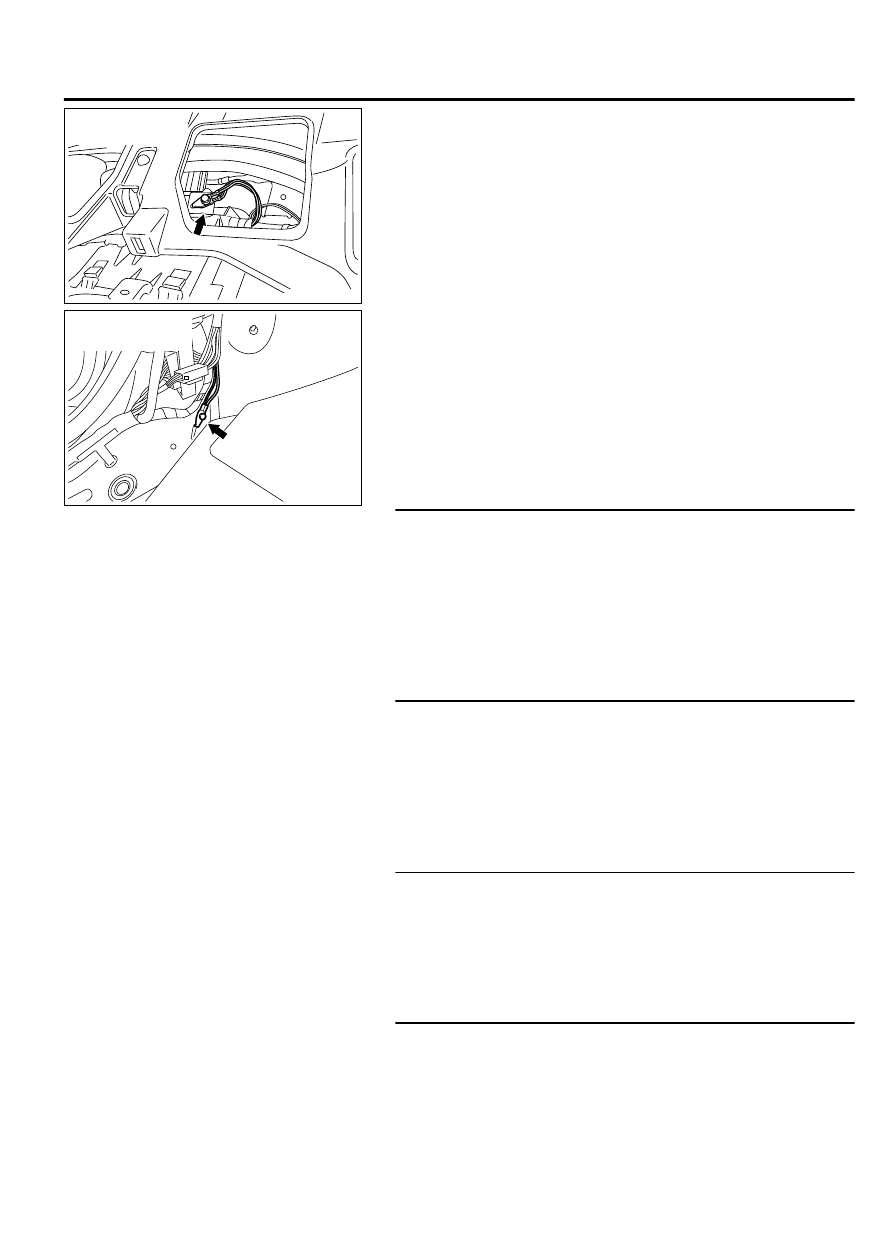

ZC3054640000
Body ground No.6
(Passenger’s side)
ZC3049790000
Body ground No.17
(Driver’s side)
Check the wiring harness between the C-23 drive mode selector
connector (terminal No. 2) and the body earth (No. 4 and No. 16)
for damage or other problem.
Q:Is the wiring harness in good condition?
YES:
Go to Step 6.
NO:
Repair the wiring harness. Then go to Step 9.
STEP 6. Check the following connector:
Check the connectors below for improper engagement, terminal
damage or terminal drawn in the connector case.
｠
C-128 AWD-ECU connector
｠
C-313, C-317 ETACS-ECU connector
Q:Are the connectors and terminals in good condition?
YES:
Go to Step 7.
NO:
Repair the connector(s) or terminal(s). Then go to
Step 9.
STEP 7. Wiring harness check
Check the wiring harness between the C-128 AWD-ECU
connector and the C-313 ETACS-ECU connector for damage or
other problem.
Q:Is the wiring harness in good condition?
YES:
Go to Step 8.
NO:
Repair damage or other problem in the wiring harness.
Then go to Step 9.
STEP 8. Retest the system.
Q:Does the malfunction occur again?
YES:
Replace AWD-ECU. (Refer to P.27C-92.) Then go to
Step 9.
NO:
The trouble can be an intermittent malfunction.
(Refer to GROUP 00 - How to Cope with Intermittent
Malfunction P.00-15.)
STEP 9. Check whether the DTC is reset.
Q:Does the malfunction occur again?
YES:
Diagnose again from Step 1.
NO:
This diagnosis is complete.
ELECTRONIC CONTROL AWD
27C-83
DIAGNOSIS
