AA00

D-116 Harness
connector:
component side

D-11 Harness
connector:
component side

(2)

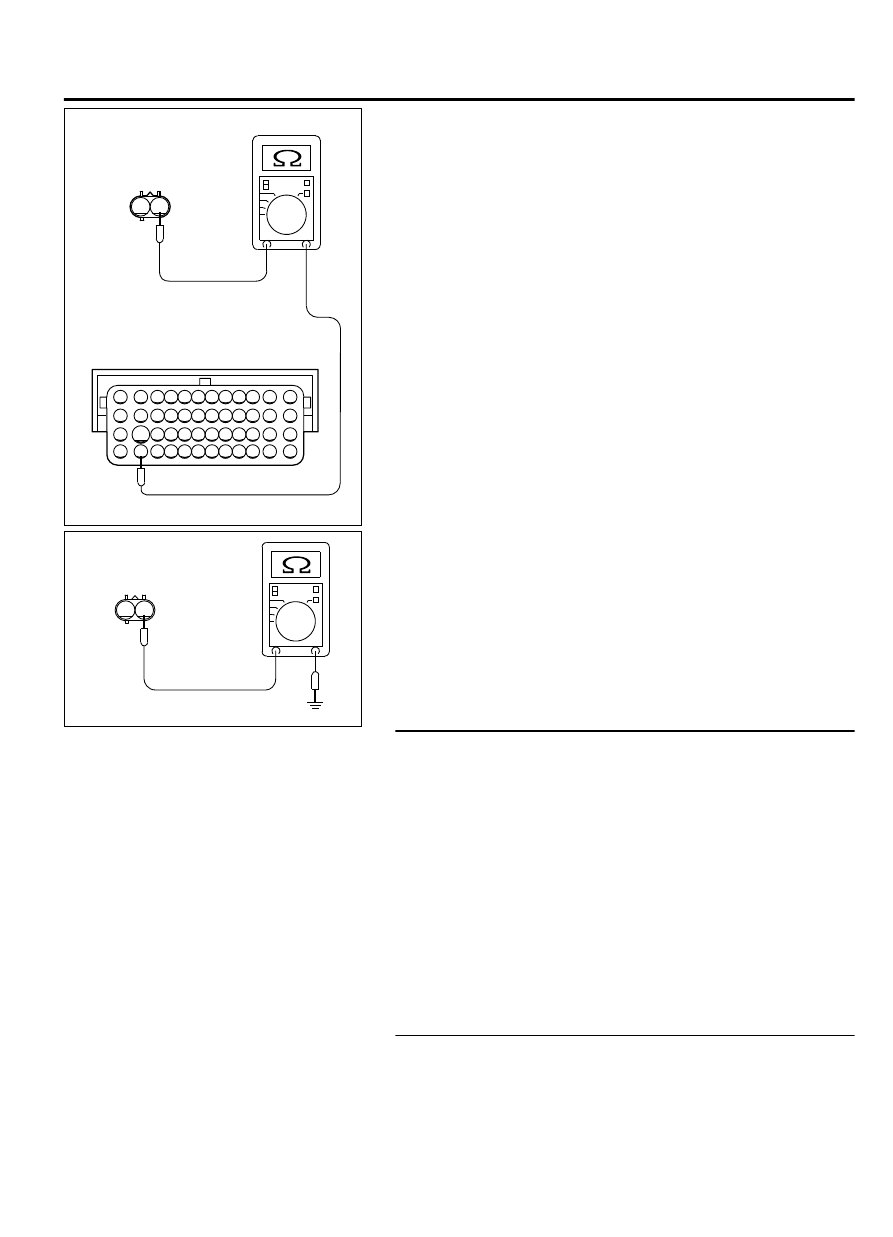

Measure  the  evaporative  emission  ventilation  solenoid
connector  D-116  (terminal  No.  1)  and  the  ECM  connector
B-11 (terminal No. 117).

｠

Should be less than 2 ohms.

2

1

ZK604095

D-116 Harness
connector:
component side

AA00

(3)

Check  for  the  evaporative  emission  ventilation  solenoid
connector D-116 (terminal No. 1) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Go to Step 6.

NO:

 Repair it. Then go to Step 7.

STEP 6. Check the trouble symptoms.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  24  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0446 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 7.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

STEP 7. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  24  P.
13Ab-8.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-487

DIAGNOSTIC TROUBLE CODE PROCEDURES

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0446 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

DTC P0450: Evaporative Emission Control System Pressure Sensor Malfunction

M11310100405USA0000010000

ZK603432

K

A

B

C

D

E

F

G

H

I

J

AA00

Intake manifold

Fuel tank

Evaporative emission
ventilation solenoid

Check valve

Evaporative emission
purge solenoid

Evaporative
emission canister

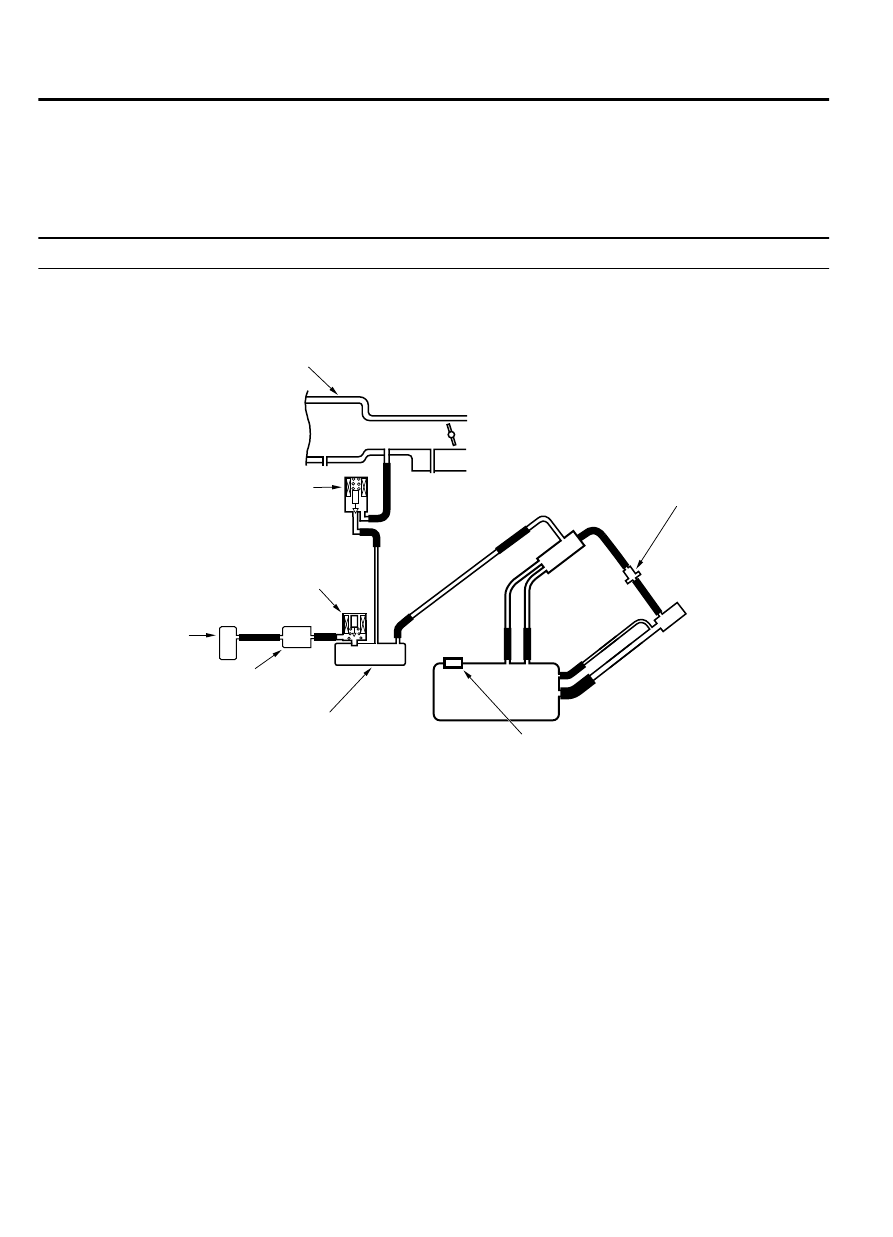

System diagram

Air filter

Vent pipe

Fuel tank differential
pressure sensor



13Ab-488

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

2

8

7

6

5

4

3

11

21

20

19

18

17

16

15

14

13

12

9

22

1

10

3

2

1

ZK603433

3

2

1

4

2

3

114

113

112

5 V

Y

ello

w-b

lac

k

Y

ello

w-b

lac

k

Bro

wn

Red-g

reen

Red-g

reen

Bro

wn

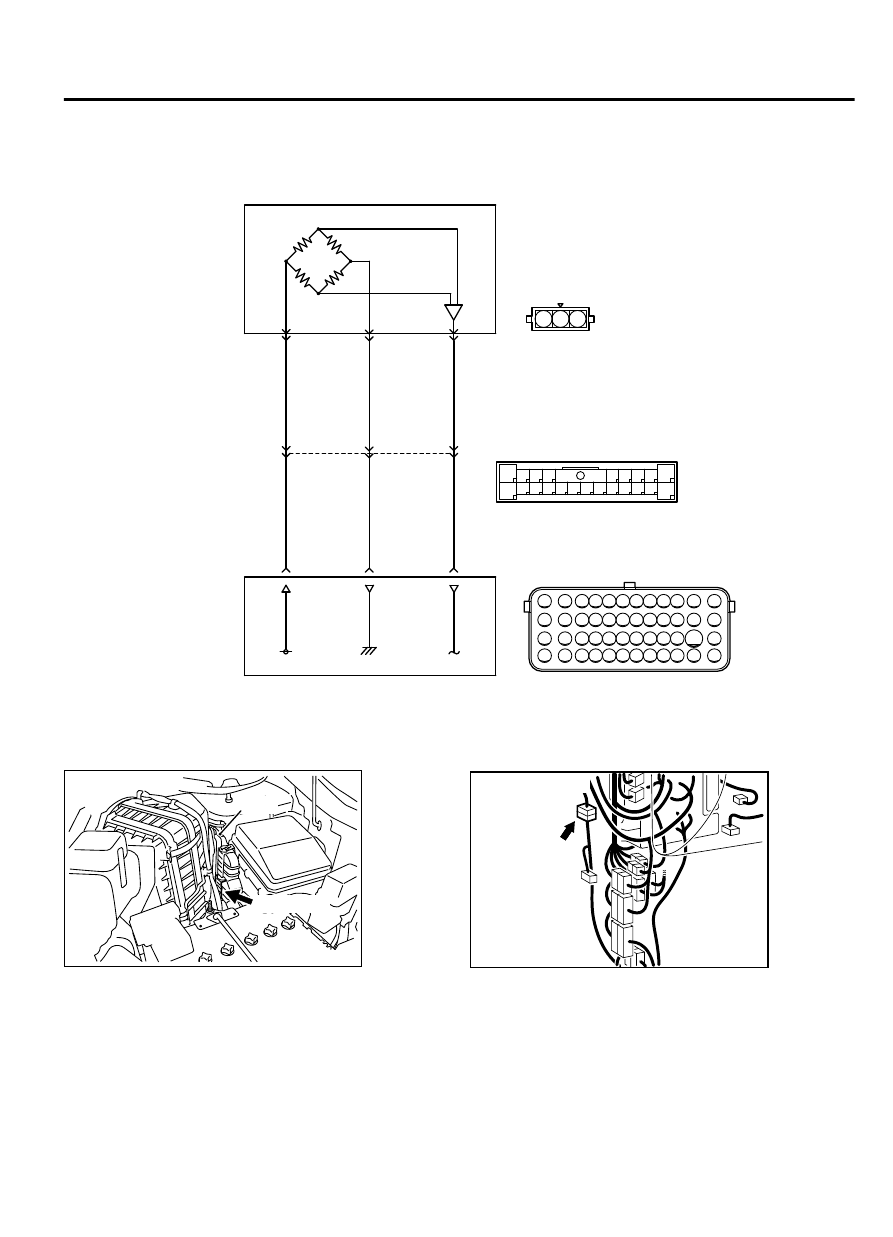

Fuel Tank Differential Pressure Sensor Circuit

AA00

Fuel tank
differential
pressure
sensor

D-19

(MU802723)

C-129

B-11

Engine
control
module



ZK603592

ECM

B-11 (GR)

Connector: B-11

AA00

ZK603651AA00

C-129

Connector: C-129



MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-489

DIAGNOSTIC TROUBLE CODE PROCEDURES

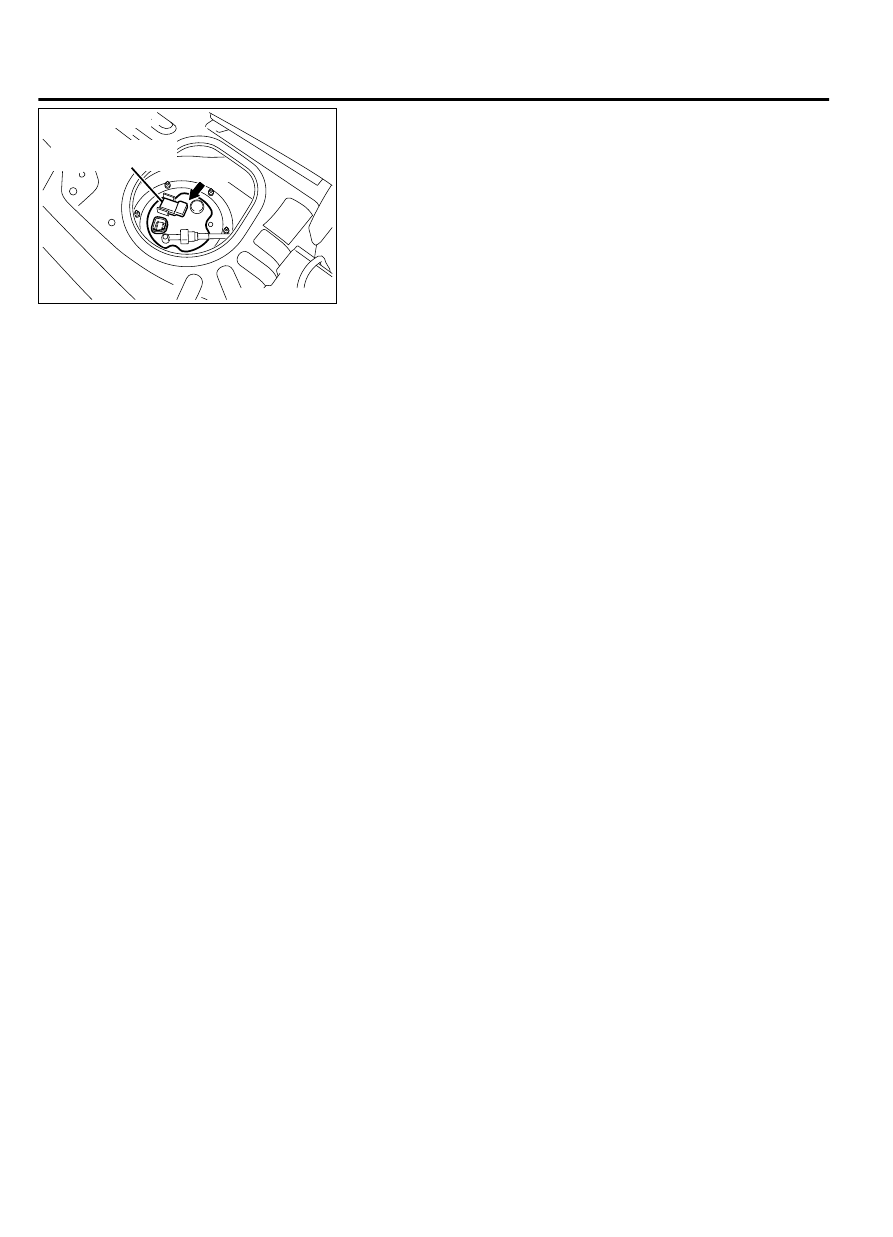

ZK603517

Fuel tank differential
pressure sensor

D-19

Connector: D-19

AA00



CIRCUIT OPERATION

｠

The  ECM  (terminal  No.  114)  supplies  a  5-volt
reference signal to the fuel tank differential pressure
sensor  (terminal  No.  3).  The  fuel  tank  differential
pressure  sensor  (terminal  No.  2)  is  grounded
through the ECM (terminal No. 113).

｠

The fuel tank differential pressure sensor (terminal
No. 1) returns a voltage signal to the ECM (terminal
No. 112) that is proportional to the pressure in the
fuel tank.

TECHNICAL DESCRIPTION

｠

The  ECM  monitors  the  fuel  tank  differential
pressure sensor output voltage.

｠

The  ECM  determines  whether  the  fuel  tank
differential pressure sensor signal voltage is within
normal operating parameters.

DESCRIPTIONS OF MONITOR METHODS

｠

Compare  purge  solenoid  status  with  fuel  tank
differential pressure sensor output voltage.

MONITOR EXECUTION

｠

Continuous.

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Evaporative emission purge solenoid monitor

｠

Evaporative emission ventilation solenoid monitor

Sensor (The sensors below are determined to be
normal)

｠

Mass airflow sensor

｠

Barometric pressure sensor

｠

Intake air temperature sensor

｠

Engine coolant temperature sensor

｠

Accelerator pedal position sensor

13Ab-490

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
