Mitsubishi Outlander XL. Manual - part 139

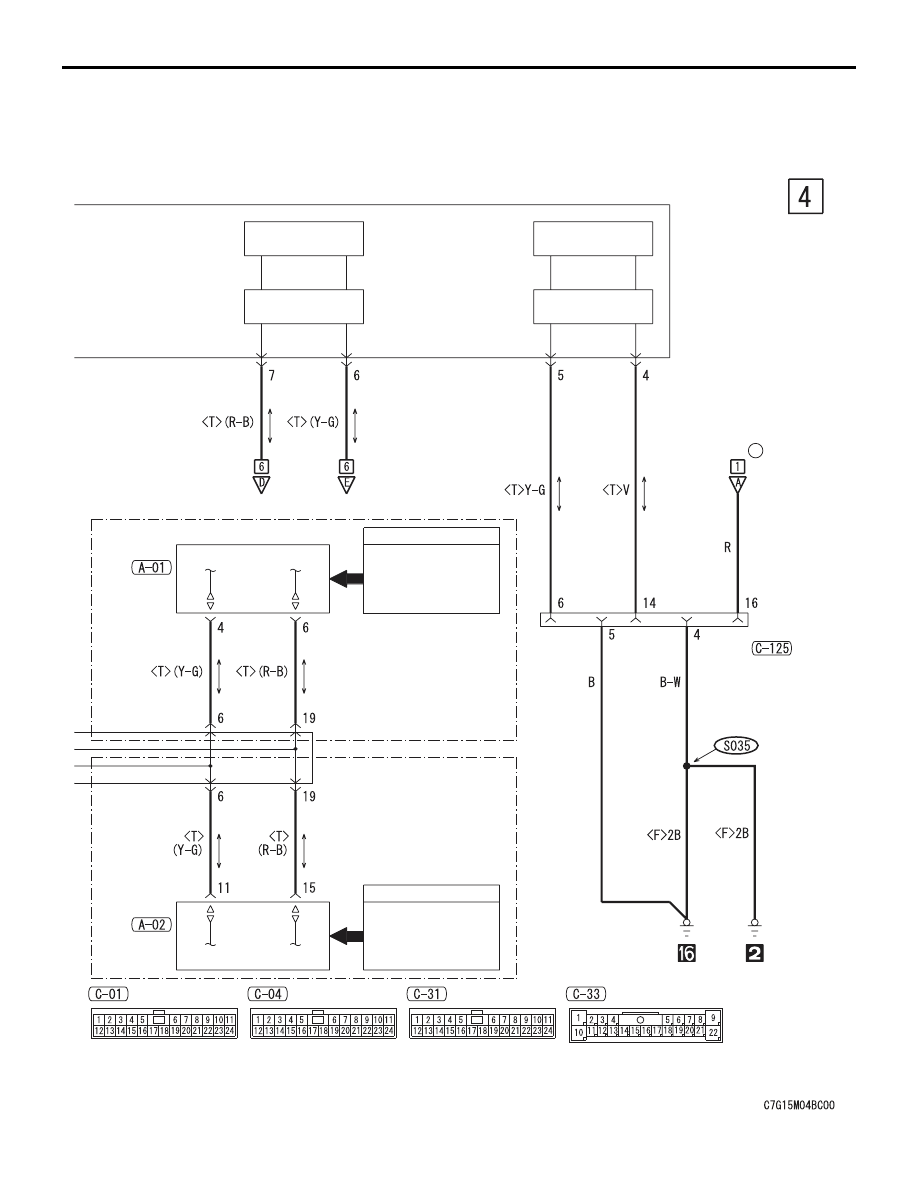

ELECTRIC CONTROLLED AWD

CIRCUIT DIAGRAMS

90-253

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

DATA LINK
CONNECTOR

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ASC-ECU

ABS-ECU

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

ETACS-ECU

(FUSE    )

5

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

<VEHICLES WITHOUT ASC>

<VEHICLES WITH ASC>

ELECTRIC CONTROLLED AWD

CIRCUIT DIAGRAMS

90-254

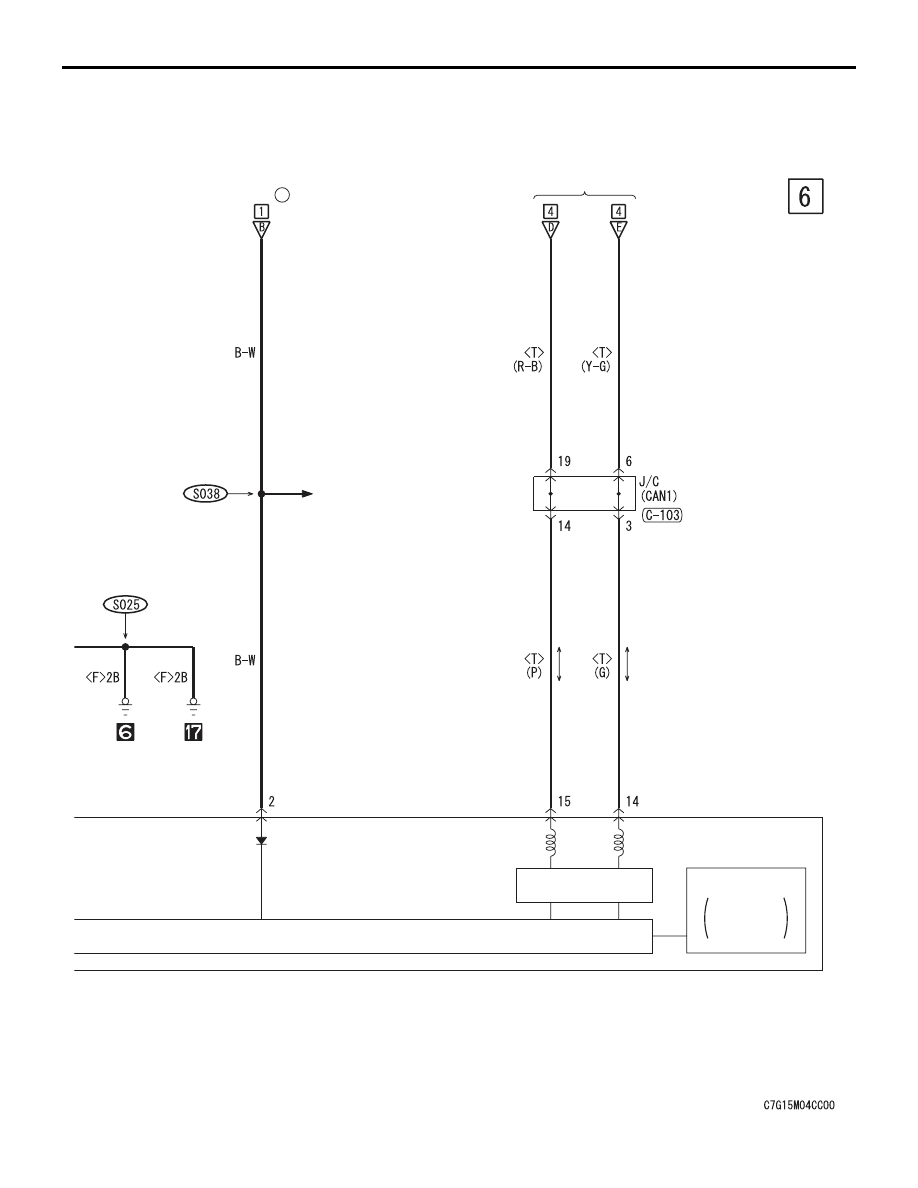

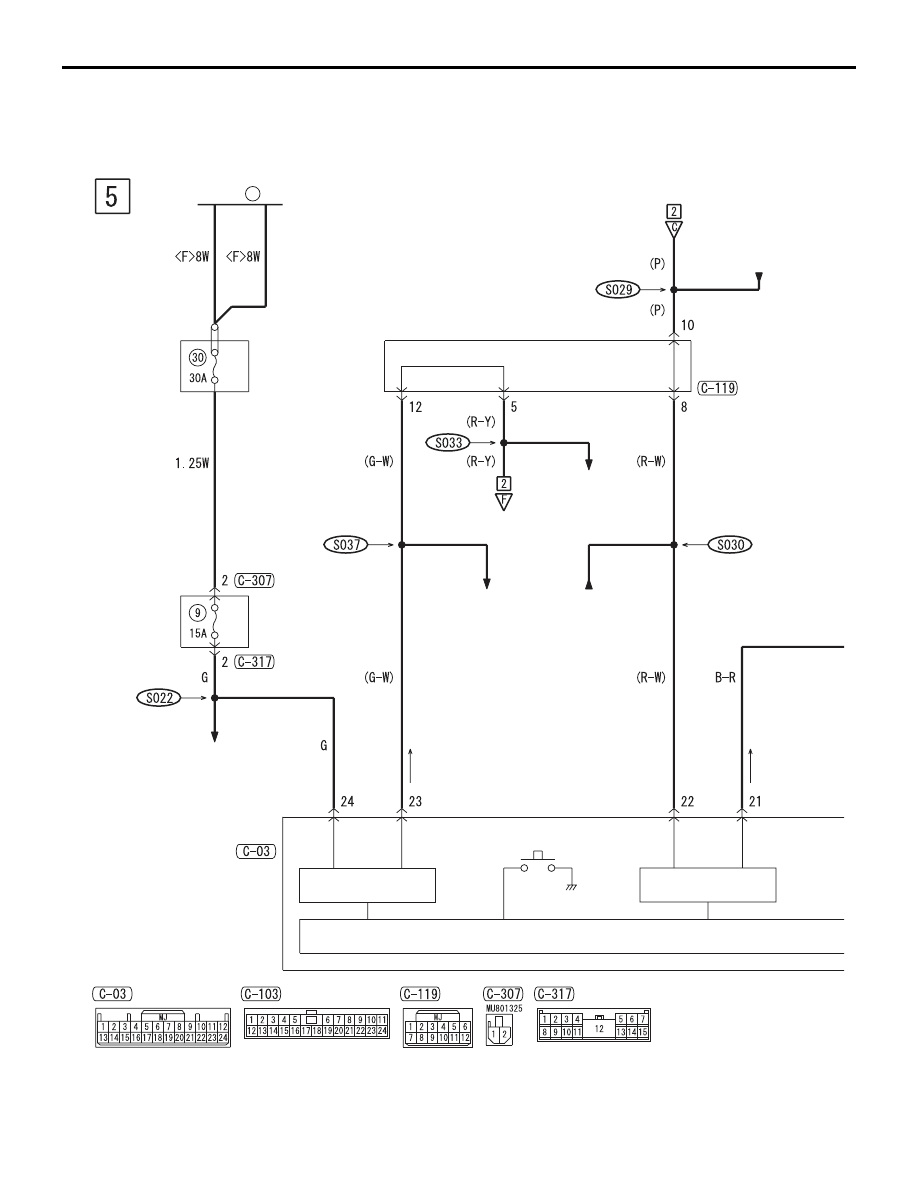

ELECTRIC CONTROLLED AWD (CONTINUED)

ETACS-
ECU

COMBINATION
METER

FUSIBLE
LINK

36

DRIVE MODE
SELECTOR

A/C
CONTROL
PANEL

TURN-SIGNAL LIGHT
AND HAZARD
WARNING LIGHT

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

RHEOSTAT

RELAY
BOX

TURN-SIGNAL LIGHT
AND HAZARD
WARNING LIGHT

·ANTI-LOCK
 BRAKING SYSTEM
 (ABS) AND ACTIVE
 SKID CONTROL
 SYSTEM (ASC)
·AUDIO SYSTEM
·AUTO-CRUISE
 CONTROL SYSTEM
·HANDS FREE SYSTEM
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)
·REAR SEAT
 ENTERTAINMENT
 SYSTEM
·SPARE CONNECTOR
 (FOR REAR DISPLAY)

·ANTI-LOCK
 BRAKING SYSTEM
 (ABS) AND ACTIVE
 SKID CONTROL
 SYSTEM (ASC)
·INVECS-II 6A/T

THEFT-ALARM
SYSTEM

ELECTRIC CONTROLLED AWD

CIRCUIT DIAGRAMS

90-255

CPU

ETACS-ECU

CAN TRANSCEIVER
CIRCUIT

LCD

·2WD
·4WD AUTO
·4WD LOCK

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

·AIR CONDITIONING SYSTEM
·AUTO-CRUISE CONTROL SYSTEM
·BRAKE WARNING LIGHT
·CENTRAL DOOR LOCKING SYSTEM
·CONTROLLER AREA NETWORK
 (CAN)
·DAYTIME RUNNING LIGHT
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEADLIGHT AUTOMATIC LEVELING
 SYSTEM
·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE ALARM
·IMMOBILIZER SYSTEM
·INVECS-II 6A/T
·KEYLESS OPERATING SYSTEM (KOS)
·POWER WINDOWS
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM
 (SRS)
·TAILLIGHT, POSITION LIGHT, LICENSE
 PLATE LIGHT AND LIGHTING MONITOR
 TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING SYSTEM
 (TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
 WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

ETACS-ECU

(FUSE     )

12

AUTO-CRUISE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-256

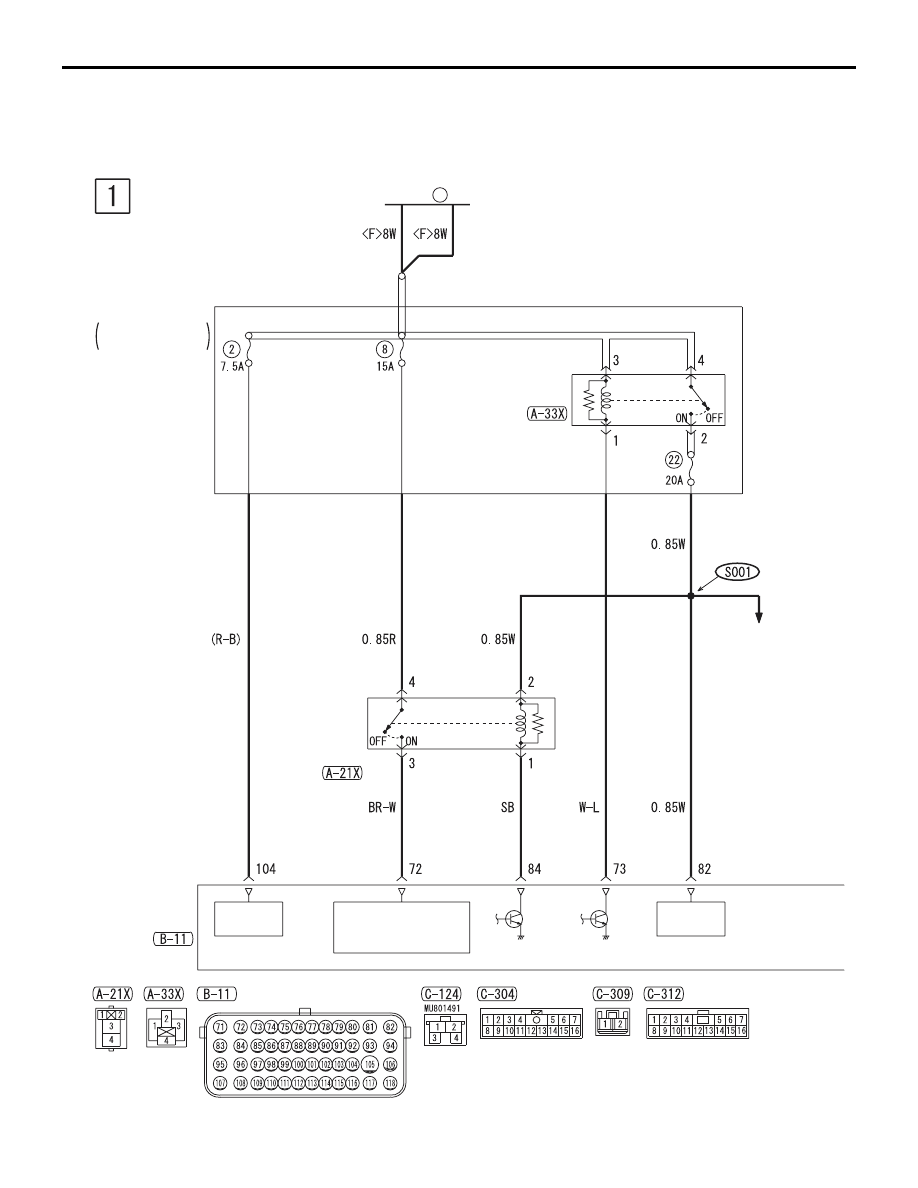

AUTO-CRUISE CONTROL SYSTEM

36

FUSIBLE
LINK

RELAY BOX

ENGINE
COMPARTMENT

MFI
RELAY

THROTTLE
VALVE
CONTROL
SERVO
RELAY

ENGINE
CONTROL
MODULE

BATTERY
BACKUP

THROTTLE VALVE
DRIVE POWER
SUPPLY

POWER
SUPPLY

·COOLING
 SYSTEM
·MFI SYSTEM
