COMMUNICATION

ZC600339

ETACS-ECU

Heater control panel

SRS-ECU

ECM

Combination meter

A/C-ECU

: Interactive communication

CAN communication

SERIAL communication

0000

A/C-ECU  performs  the  signal  transmission  and
reception  with  each  ECU  via  CAN  (Controller  Area
Network)*1.  Also,  with  the  heater  control  panel,  it

transmits

 and

 receives

 signals

 via

 serial

communication.

NOTE:

: For details of CAN communication, refer

to GROUP 54D - Controller Area Network P.54D-2.

CAN COMMUNICATION INPUT SIGNALS TABLE

Signal

Transmitter ECU

Engine coolant temperature signal

ECM

Vehicle speed signal
Engine speed signal
Ambient temperature signal

ETACS-ECU

Wiper signal
Ignition key signal
Average ambient temperature signal

COMBINATION METER

DIAGNOSTIC FUNCTION

A/C-ECU has the following functions for easier system
checks.

｠

Diagnostic function

｠

Service data output

｠

Actuator test

NOTE:

For each item, refer to the Service Manual.

HEATER, AIR CONDITIONING AND VENTILATION

55-9

DUCT

DUCT

M25501000013USA0000010000

ZC600340 0000

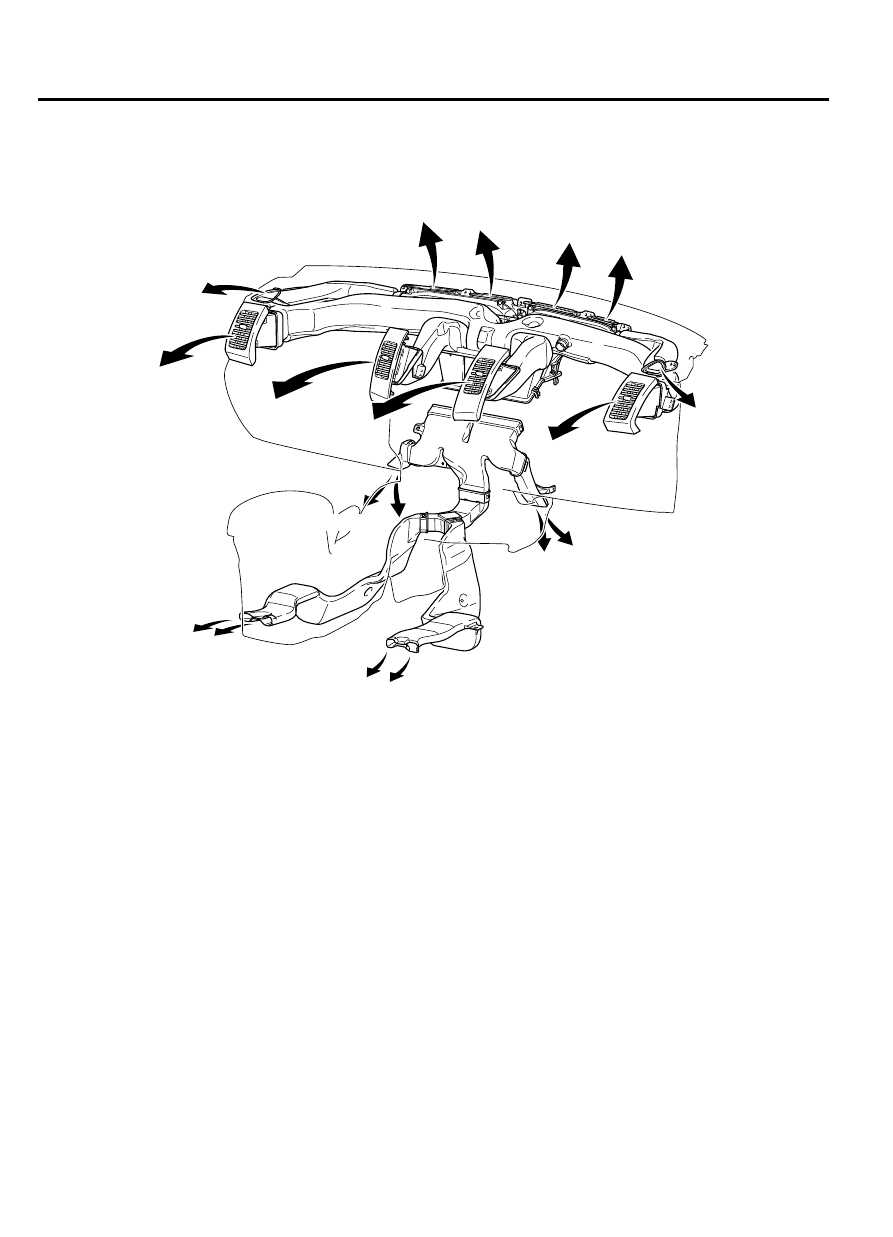

To front door window
(Side defroster)

To passenger seat footwell

To windshield (Defroster)

To front door window
(Side defroster)

To second seat footwell

To second seat footwell

To driver seat footwell

Center ventilator

Side ventilator

Side ventilator

The rear heater duct for the 2nd row seats has been
introduced as standard, and the air distribution ratio
to front and 2nd row has been optimized in order to

enhance the air heating performance for the 2nd row,
and to reduce the circulation of cooled air back to the
front row.

55-10

HEATER, AIR CONDITIONING AND VENTILATION

VENTILATION SYSTEM

VENTILATION SYSTEM

M25501000020USA0000010000

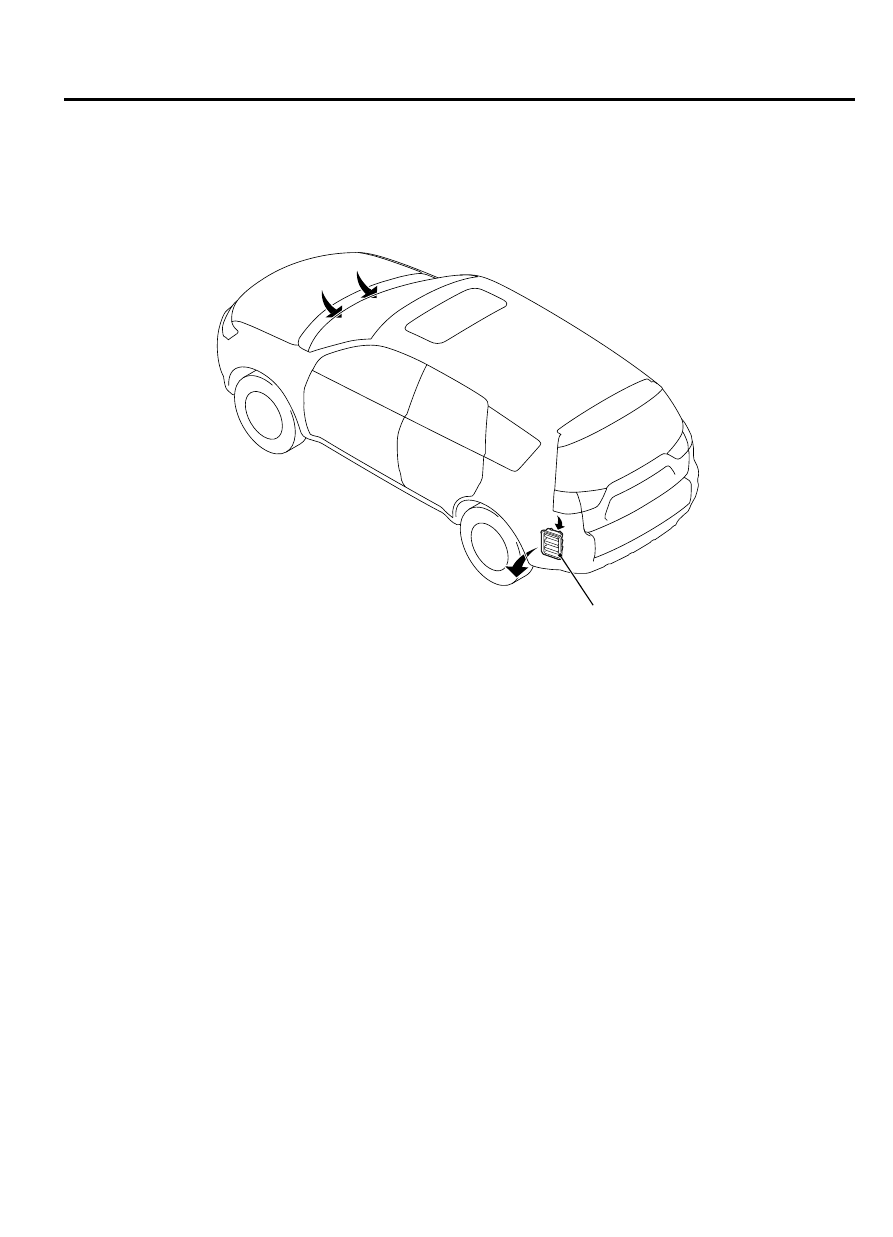

REAR VENTILATION

ZC6003410000

Air outlet

Fresh  air  is  introduced  from  the  front  deck,  and
emitted  from  the  air  outlet  behind  the  back  of  rear
bumper. Areas of fresh air intake hole and air outlet
ventilation have been optimized in order to improve air
volume  (ventilation  performance)  while  securing
cabin quietness.

HEATER, AIR CONDITIONING AND VENTILATION

55-11

VENTILATION SYSTEM

MEMO

55-12

HEATER, AIR CONDITIONING AND VENTILATION
