Adjustment
item (scan tool
MB991958
display)

Adjustment item

Adjusting

 contents

(scan  tool  MB991958
display)

Adjusting contents

Horn  chirp  by
RKE

Horn chirp by RKE

Not sound horn

No horn answerback function

Lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed once.

W lock any time

The horn sounds when the lock button of
keyless entry transmitter is pressed twice.
(default)

Tone

 alarm

answer back

Adjusts  the  tone
alarm  answer  back
function.

Not sound tone alarm

No function

At keyless key

Sounds when the keyless entry system is
activated.

At keyless

Sounds when KOS is activated (default).

At Both

Sounds when the keyless entry system or
KOS is activated.

Timer lock timer Timer  lock  period

adjustment

30sec

30 seconds (default)

60sec

60 seconds

120sec

120 seconds

180sec

180 seconds

Duration

 pre-

alarm

Adjustment  of  pre-
alarm continue time

10 sec

10 seconds (default)

6 sec

6 seconds

Alarm

With/without  theft-
alarm function

Disable

No function

Enable

With function (default)

Panic

 alarm

switch

With/without  panic
alarm function

Disable

No function

Enable

With function (default)

KOS auto lock

With/without  KOS
auto lock function

Enable

No function (default)

Disable

With function

Fob out of car

With/without  KOS
key

 exterior

detection function

Enable

No function

Disable

With function (default)

KOS feature

KOS

 function

adjustment

Both enable

All KOS functions are enabled (default).

DoorEntry enable

Only door entry function is enabled.

ENG strt enable

Only engine starting function is enabled.

Both disabled

All KOS functions are disabled.

KOS

 unlock

disable time

Adjusts  the  door
unlock

 inhibition

period  after  door
lock is activated.

0sec

0 seconds

3sec

3 seconds (default)

5sec

5 seconds

42B-30

KEYLESS OPERATION SYSTEM (KOS)

CONFIGURATION FUNCTION

GROUP 42C

WIRELESS CONTROL MODULE

(WCM)

CONTENTS

GENERAL INFORMATION............

42C-2

SYSTEM OPERATION...............

42C-5

KEYLESS ENTRY FUNCTION.........

42C-5

IMMOBILIZER FUNCTION...........

42C-9

TIRE PRESSURE MONITORING SYSTEM
(TPMS) FUNCTION...............

42C-10

WARNINGS......................

42C-12

CONFIGURATION FUNCTION........

42C-13

42C-1

GENERAL INFORMATION

M24200200001USA0000010000

The wireless control module (WCM) is a system that
integrates  the  keyless  entry  function,  immobilizer
function,  and  the  TPMS  function,  and  it  has  the
following features:

｠

The  ignition  key  (transmitter)  incorporates  a  lock/
unlock switch and a panic alarm switch, and can be
operated by remote control. The ignition key also
incorporates  an  indicator  light  that  enables  the
driver to check if the signal is transmitted correctly

or  if  the  battery  in  the  key  is  discharged.  (Refer
to P.42C-5.)

｠

The  ignition  key  incorporates  the  immobilizer
function that inhibits starting the engine by using an
unauthorized key.

｠

The  incorporated  TPMS  function  monitors  the  air
pressure of all the tires.

｠

Each  vehicle  is  provided  with  two  ignition  keys
(transmitter), and up to eight ignition keys can be
registered.

｠

Settings  of  the  keyless  entry  function  can  be
adjusted using a customization function.

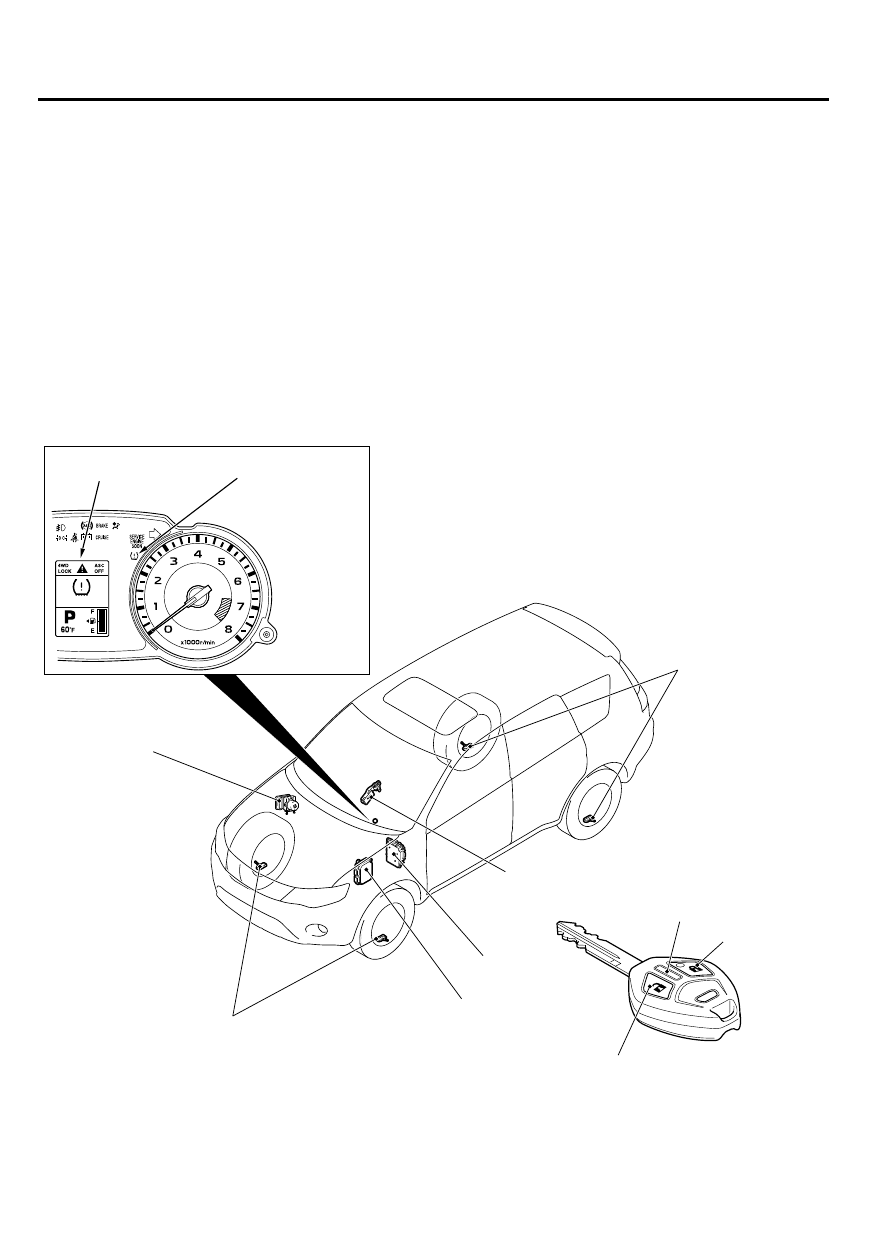

CONSTRUCTION DIAGRAM

PANI

C

ZC6009620000

ETACS-ECU

WCM

Lock switch

Unlock switch

Ignition key
(Transmitter)

Engine control module

Indicator light

TPMS transmitter
(Tire pressure sensor)

TPMS transmitter
(Tire pressure sensor)

L O W
  TIRE PRESSURE

Multi information display
(Built in combination meter)

TPMS
warning light

ABS or ASC-ECU

42C-2

WIRELESS CONTROL MODULE (WCM)

GENERAL INFORMATION

Main components and functions

Parts name

Functional description

WCM

Controls the keyless entry functions, TPMS functions and starting of the engine
by using the following communications.

｠

Communications with ETACS-ECU, ECK, ABS or ASC-ECU and combination
meter via CAN

｠

Wireless communication with the ignition key (transmitter)

｠

Wireless communication with the TPMS transmitter

Ignition key (transmitter)

The  ignition  key  (transmitter)  receives  signals  sent  from  WCM,  certifies  the
transponder ID code, calculates the encrypted code, and sends the reply data
signal to WCM. The ignition key (transmitter) also sends signals to WCM when
the lock/unlock switches on it are operated. Warning symbol and message is
additionally displayed on the Multi information display.

Combination  meter  (Multi
information display, TPMS
warning light)

Communicates with WCM via CAN. Send ignition switch status. Receives the
warning request or warning information from WCM, activates*the TPMS warning
iight.

ETACS-ECU

Communicates with WCM via CAN. Receives the door lock/unlock request from
WCM, outputs the lock/unlock signal and flashes the turn signal light to inform
the driver that the doors are locked/unlocked.

ABS or ASC-ECU

Communicates with WCM via CAN. Sends the vehicle speed data.

ECM

Communication with WCM via CAN. Send atmospheric pressure data.

TPMS transmitter

Measure tire pressure directly, then send radio frequency signal to WCM.

NOTE:

 *:

｠

Illuminates for tire pressure warning.

｠

Flashes for about 1 minute and then continuously
illuminated for TPMS malfunction warning.

WIRELESS CONTROL MODULE (WCM)

42C-3

GENERAL INFORMATION
