When the door is locked by the driver’s or passenger’s
door lock switch, the ETACS-ECU operates its door
lock relay and passes a current through the door lock
actuators of all the doors (including the liftgate) for
0.25 second to lock all the doors (including the
liftgate).
When the door is unlocked by the driver’s or
passenger's door lock switch, the ETACS-ECU
operates its door unlock relay and passes a current
through the door lock actuators of all the doors
(including the liftgate) for 0.25 second to unlock all the
doors (including the liftgate).
When the door is locked and unlocked by driver’s or
passenger's door lock switch consecutively, the
ETACS-ECU operates its door lock relay and passes
a current through the door lock actuators of all the
doors (including the liftgate) for 0.25 second to lock all
the doors (including the liftgate). Then, the ETACS-
ECU operates its door unlock relay and passes a
current through the door lock actuators of all the doors
(including the liftgate) for 0.25 second to unlock all the
doors (including the liftgate). Due to this, there may be
a time lag between the driver’s or passenger's door
lock switch actuation and the time when all the doors
(including the liftgate) are unlocked.
KEY-IN PREVENTION FUNCTION
When the driver's door inside lock knob is operated to
the lock position with the driver's door opened, the
driver's door cannot be locked, preventing it from
being locked with the key inside the vehicle.
SELECTOR "P" POSITION-LINKED DOOR
UNLOCKING FUNCTION
When the selector lever is shifted to the "P" (parking)
position with the ignition switch turned ON, all the
doors (including the liftgate) will be unlocked
automatically, improving passengers' convenience for
getting out. Using a customization feature, the
selector "P" position-linked door unlocking function
can be switched (Refer to P.42A-23).

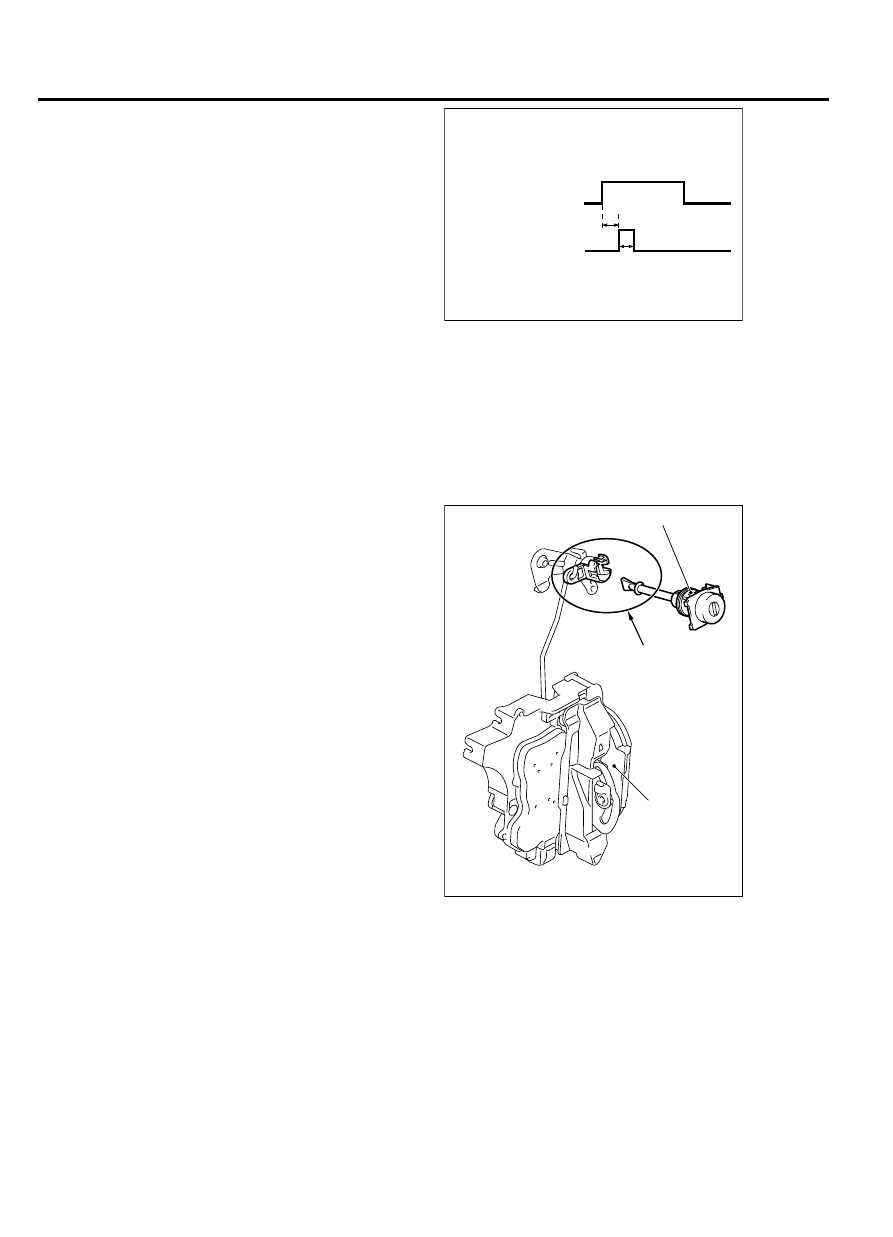

ZC6001360000
t
T
ON
OFF
ON
OFF
Inhibitor switch "P"
Unlock relay output
t: 0.25 second
T: 0.3 second
When the selector lever is shifted to the P position with
the ignition switch turned ON, the transmission range
switch "P" turns ON, ETACS-ECU turns the unlock
relay output ON for 0.25 seconds to unlock all the
doors (including the liftgate).
DIRECT COMBINATION KEY CYLINDER
MECHANISM
ZC6001370000
Key cylinder
Door latch
Direct combination
key cylinder mechanism
The impact of a side collision is not easily transferred
to the door latch with the doors unlocked (to prevent
passengers from falling out of the vehicle).
Even if any door key cylinder is attempted to be
tampered with the doors locked, the tampering force
is not easily transferred to the door latch, to deter
thieves.
