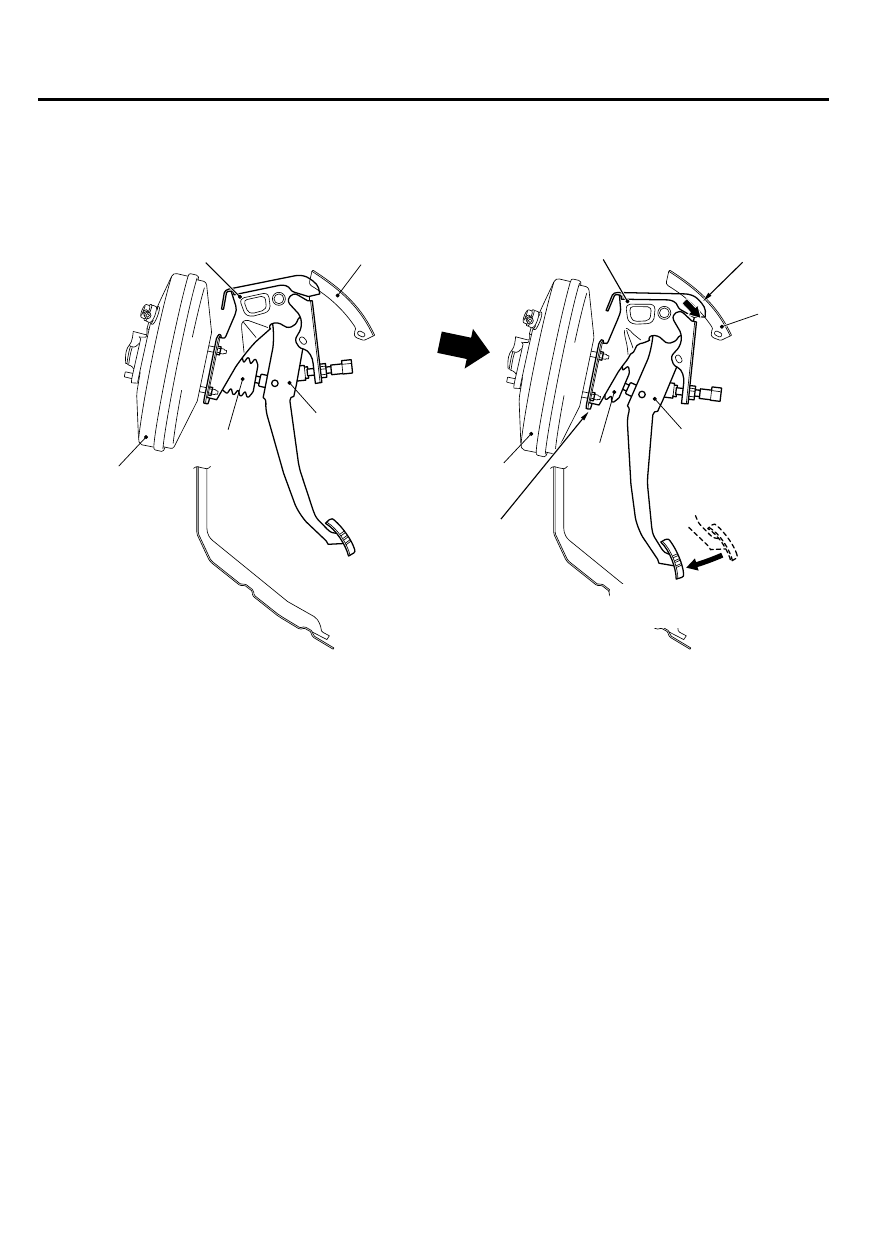

BRAKE PEDAL

M23500000070USA0000010000

ZC600995 0000

Pedal support frame
position before collision

Collision load

Pedal retreat
path in collision

Brake booster

Brake pedal and support
member

Slope

Brake pedal and support
member

Slope

After the breakage
mechanism operates

Pedal support frame position after
collision

Brake booster

Pedal arm

Push
rod

Pedal arm

The brake pedal retreat suppression mechanism
restrains the retraction of the brake pedal surface
during a frontal collision, to reduce the shock to the
driver's feet.
When the brake booster is crushed rearward by the
engine retreat during a frontal collision, the installation

surface of the brake pedal is retreated. In this case,
the end of the pedal support is forcibly slid down and
back by the interference with the slope mounted on
the front deck crossmember assembly. At the same
time, the linkage (comprised of the pedal support,
pedal arm, and push rod) moves the brake pedal
surface forward.

35A-6

BASIC BRAKE SYSTEM

CONSTRUCTION DESCRIPTION

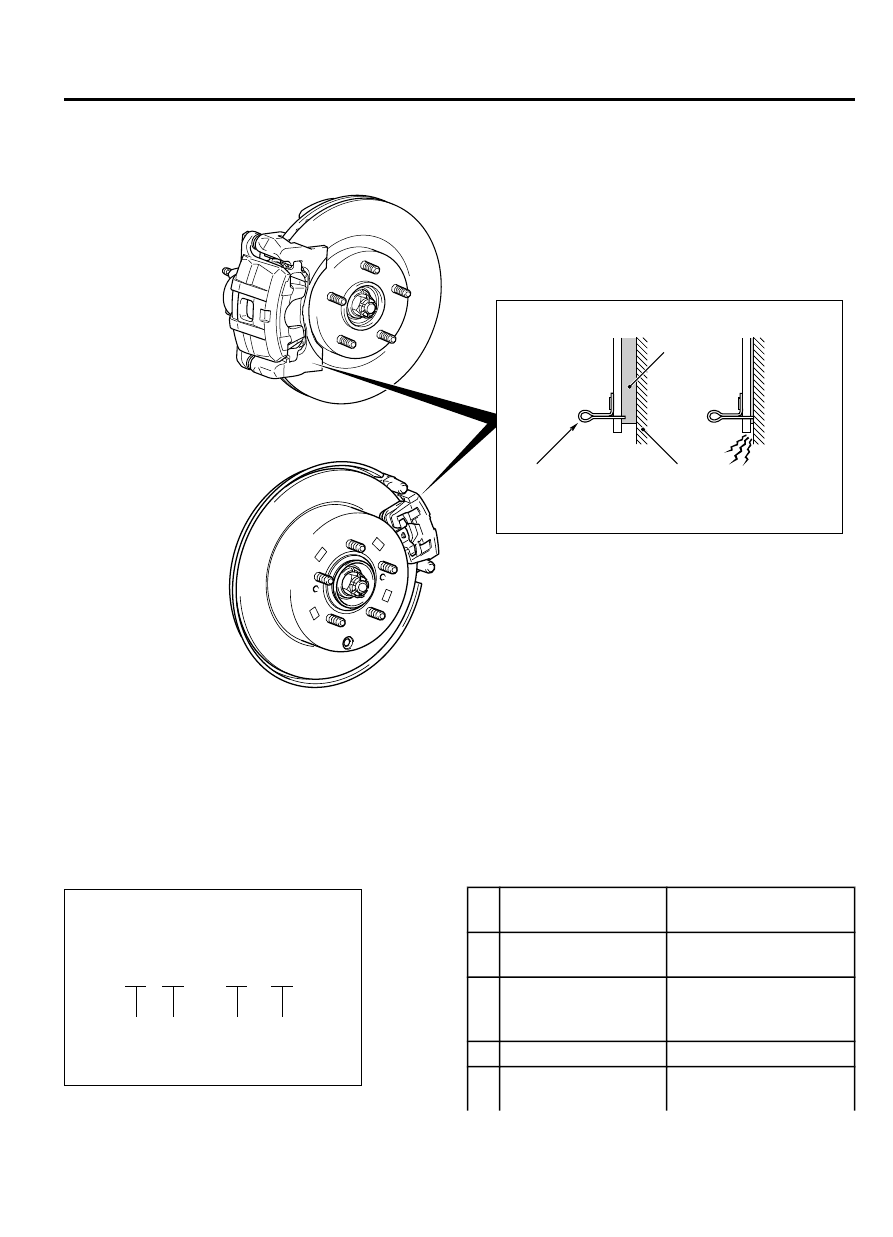

DISC BRAKE

M23500000071USA0000010000

ZC6024420000

AC201769

<Front disc brake>

<Rear disc brake>

Wear indicator

Brake disc

Pad

Normal

At wear limit

1-piston ventilated disc brake (V6-S57) has been
installed to the front brake, and 1-piston solid disc
brake (S6-S38) has been installed to the rear brake.

An audible wear indicator has been adopted to the
front brake LH pads and rear brake LH/RH pads to
warn the driver of the wear limit.
The outer disc type brake disc which can be tightened
together with the wheel has been introduced for better
serviceability.

DISC BRAKE DESIGNATION

V 6 - S 57

1 2 3 4

ZC600997 0000

N
o.

Item

Contents

Brake disc type

V: Ventilated
S: Solid

Brake size
(Minimum applicable
disc wheel)

6: 16-inch

Number of pistons
