5.

Manual plate

6.

Detent spring

7.

Manual shaft

SHIFT MECHANISM

M22301000210USA0000010000

When three elements (sun gear, carrier, internal gear)
of planetary gear are selected as input, output, and
fixing  for  each  element,  the  gear  ratio  and  rotation
direction  are  determined.  Each  clutch  and  brake

perform  the  input,  output,  and  fixing.  The  following
tables  "Clutch  and  brake,  and  their  actions"  and
"Clutch and brake, and their operations" indicate the
relation of planetary gear with the clutch and brake.

Clutch and brake, and their actions

Parts name

Function

Low clutch

Works with 1st, 2nd, 3rd, and 4th gears, and transfers the input from 3-5 reverse
clutch drum to the front internal gear.

3-5 reverse clutch

Works with 3rd, 5th, and reverse gears, and transfers the reduction internal gear
input to the front sun gear.

High clutch

Works with 4th, 5th, and 6th gears, and transfers the input shaft input to the rear
carrier.

Low and reverse brake Works with engine brake, 1st and reverse gears, and fixes the rear carrier.
2-6 brake

Works with 2nd and 6th, and fixes the rear sun gear rotation.

One-way clutch

Works when in 1st gear under acceleration status, and fixes the rear carrier.

Clutch and brake, and their operations

Transmission range

Low clutch 3-5  reverse

clutch

High clutch Low

 and

reverse
brake

2-6 brake

One-way
clutch

P

-

-

-

-

-

-

R

-

×

-

×

-

-

N

-

-

-

-

-

-

D

1st

×

-

-

-

-

×

1st

 gear

engine brake

×

-

-

×

-

-

2nd

×

-

-

-

×

-

3rd

×

×

-

-

-

-

4th

×

-

×

-

-

-

5th

-

×

×

-

-

-

6th

-

-

×

-

×

-

×: Function element -: Not applicable

POWER FLOW

The following skeleton diagram (simplified drawing of
unit structure used for the locations which indicates
the power flow passage) describes at the time of 1st
to 6th and reverse.

23-12

AUTOMATIC TRANSAXLE

CONSTRUCTION AND OPERATION

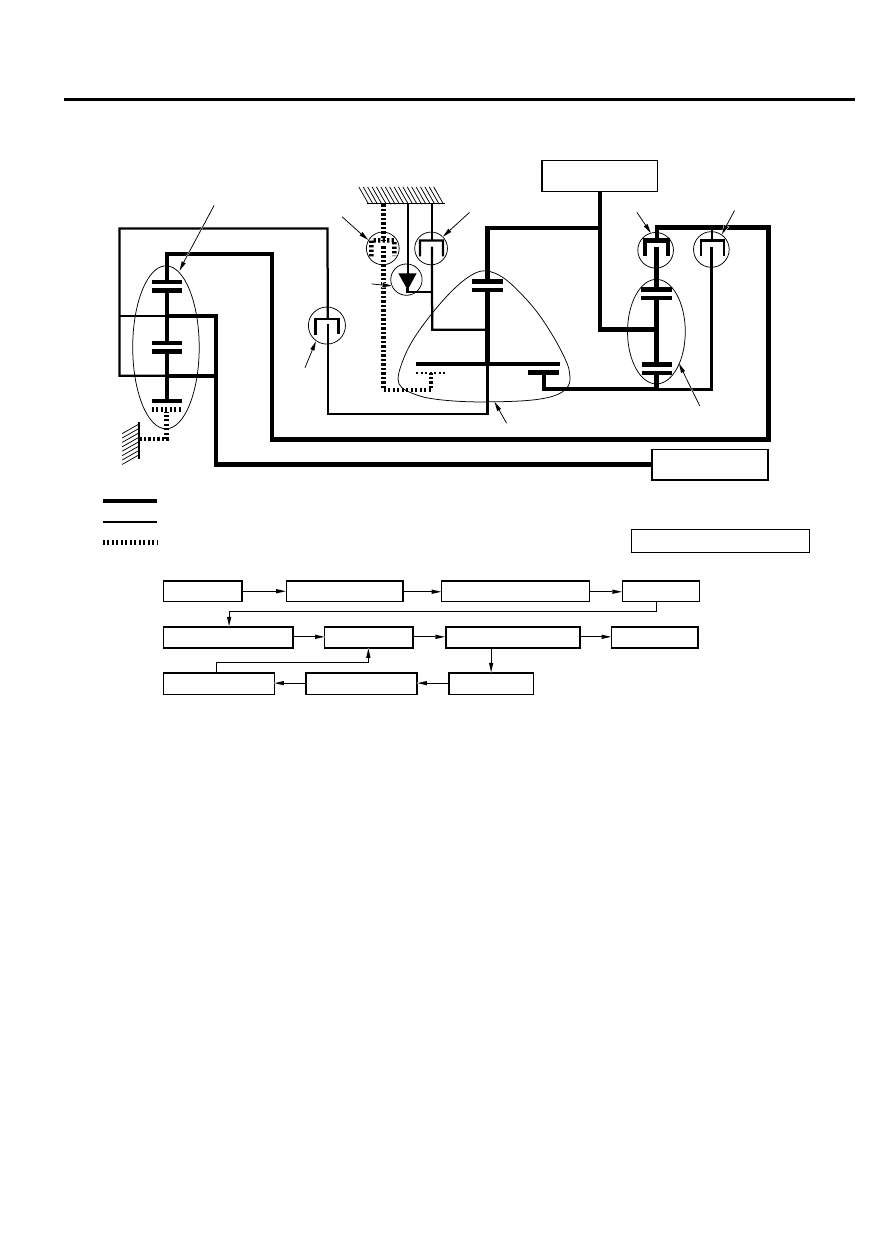

1st

ZC6008400000

:

:

:

INPUT

OUTPUT

Low clutch

3-5 reverse clutch

Front planetary gear

Rear planetary gear

Low-reverse brake

2-6 brake

Reduction planetary gear

One-way
clutch

High
clutch

Torque-transfer state

Free state

Fixed state

Front internal gear

Input shaft

Rear internal gear

Reduction carrier

Reduction internal gear

Low clutch

Front carrier

Output gear

Front sun gear

Rear sun gear

Rear carrier (fixed by one-way clutch)

Based on lepelletier system

AUTOMATIC TRANSAXLE

23-13

CONSTRUCTION AND OPERATION

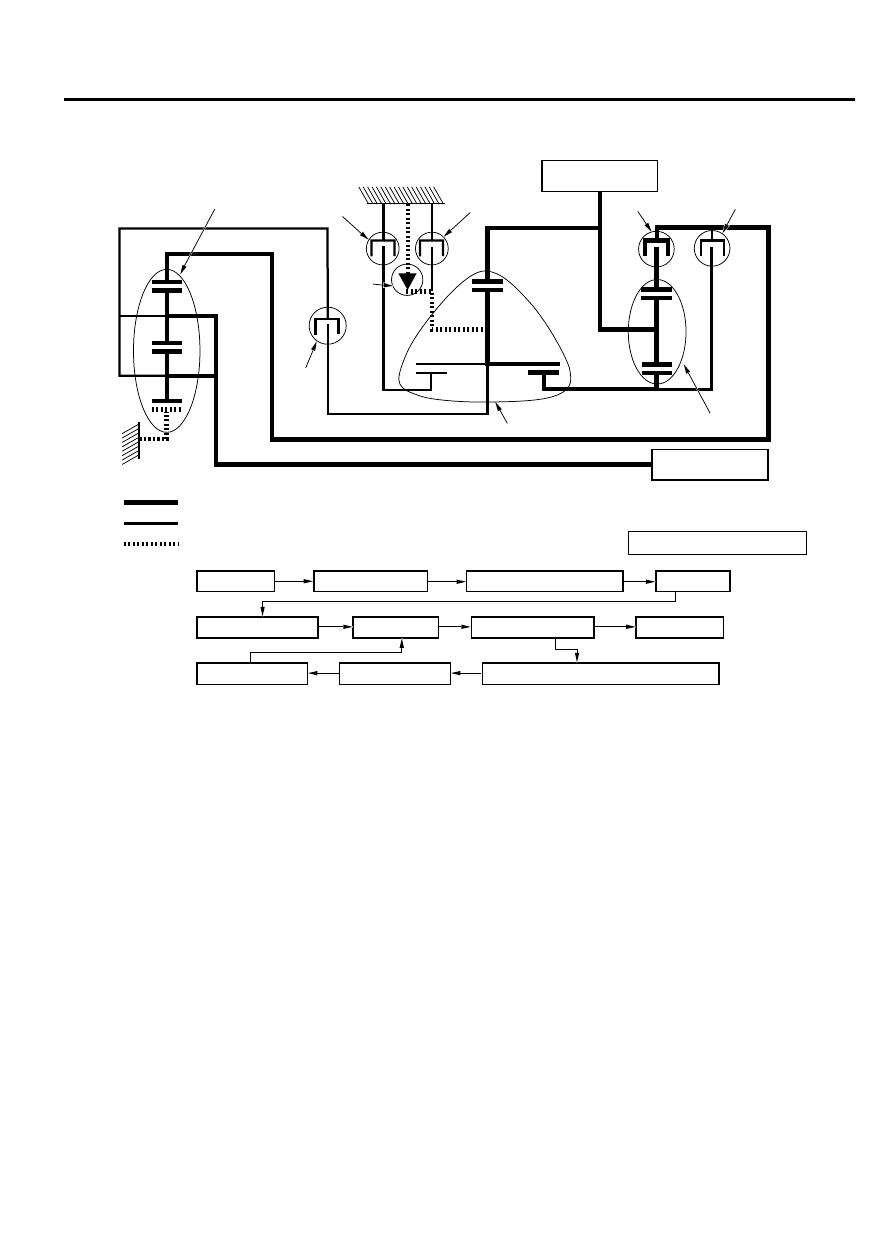

1st gear engine brake

ZC6008410000

:

:

:

INPUT

OUTPUT

Low clutch

3-5 reverse clutch

Front planetary gear

Rear planetary gear

Low-reverse brake

2-6 brake

Reduction planetary gear

One-way
clutch

High
clutch

Torque-transfer state

Free state

Fixed state

Front internal gear

Input shaft

Rear internal gear

Reduction carrier

Reduction internal gear

Low clutch

Front carrier

Output gear

Front sun gear

Rear sun gear

Rear carrier (fixed by low-reverse brake)

Based on lepelletier system

23-14

AUTOMATIC TRANSAXLE

CONSTRUCTION AND OPERATION

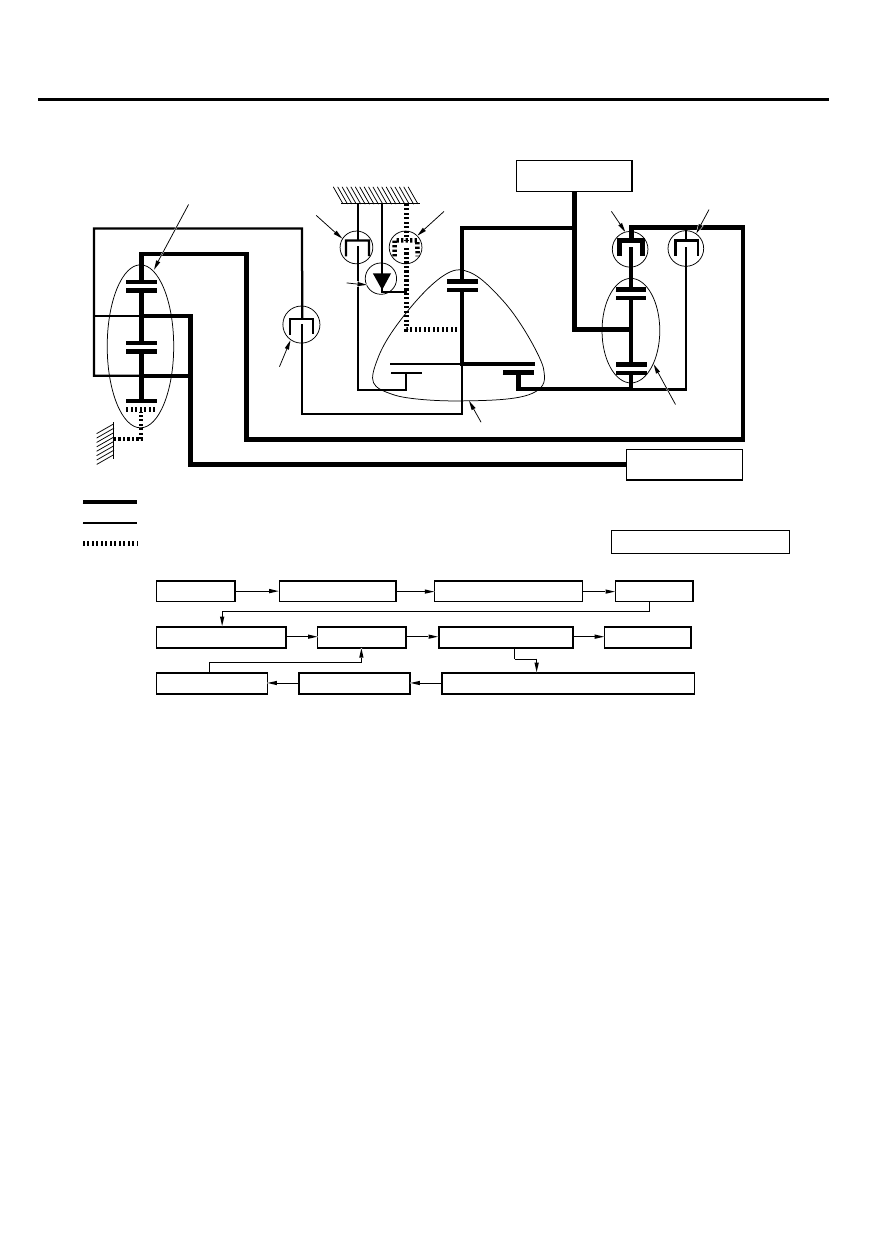

2nd

ZC6008420000

:

:

:

INPUT

OUTPUT

Low clutch

3-5 reverse clutch

Front planetary gear

Rear planetary gear

Low-reverse brake

2-6 brake

Reduction planetary gear

One-way
clutch

High
clutch

Torque-transfer state

Free state

Fixed state

Front internal gear

Input shaft

Rear internal gear

Reduction carrier

Reduction internal gear

Low clutch

Front carrier

Output gear

Front sun gear

Rear sun gear

Rear carrier

Based on lepelletier system

AUTOMATIC TRANSAXLE

23-15

CONSTRUCTION AND OPERATION
