1.

Good stance which combines wide tread with 18-
inch tire <XLS model>

2.

Progressive diamond-cut nose with neat corners

3.

Aggressive and handsome face design with sharp
styling

4.

Headlights  with  mechanical  styling  emphasizing
aggressiveness

5.

Tough lower body with the overfender covering a
large  size  tire,  the  undercover,  and  black
underbody parts

6.

Dynamic cabin which consists of the roof line with
uplifting feeling and sharp window graphic

7.

Stylish rear end which comfortably integrates the
unique horizontally split upper/lower tailgates

8.

Rear combination lights with a sense of integrity
with the glass area, presenting a high-tech image

INTERIOR

M20000000180USA0000010000

DESIGN PURPOSE

｠

Presenting well-trimmed interior space with a sporty
feel

｠

Combining high functionality with stylish design

｠

Neat and carefully established details

MAIN FEATURES

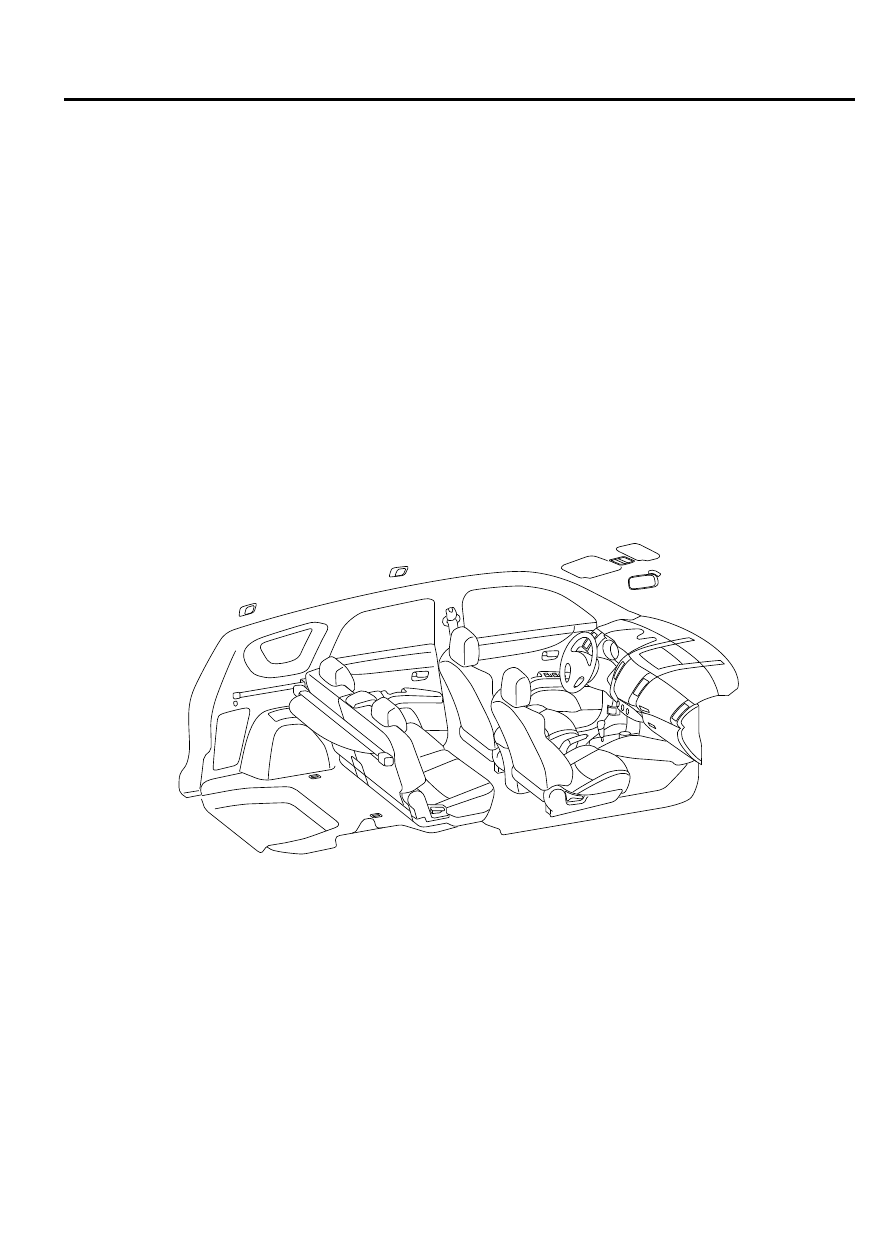

ZC6022030000

｠

Sporty  and  dynamic  styled  instrument  panel  with
uplifting feeling

｠

Unique  audio  panel  integrated  in  the  instrument
panel, representing high quality

｠

Door  trim,  floor  console,  and  air  outlet  panel  with
powerful  silver  accent  parts  in  the  sculpturesque
styling

｠

Drive mode selector dial in mechanical design

｠

Bucket-type front seats in sporty three dimensional
shape

｠

Functional luggage area equipped with the tonneau
cover, luggage hook, and utility bar

GENERAL

00-3

TECHNICAL FEATURES

ENGINE

M20000000200USA0000010000

The 6B31 engine has been developed to achieve high
performance, better fuel economy, smaller size, and
weight reduction.

TRANSAXLE

M20000000210USA0000010001

The F6AJA-type <FWD> or the W6AJA-type <AWD>
6-speed  sport  mode  automatic  transaxle  has  been

developed to achieve excellent fuel economy, further
improved operation, and driving pleasure.

SUSPENSION

M20000000230USA0000010000

ZC601177

<Front suspension>

0000

Stabilizer bar

Coil spring

Shock absorber

Stabilizer link

Lower arm

Front axle crossmember
(Flat crossmember)

00-4

GENERAL

TECHNICAL FEATURES

ZC601183

<Rear suspension>

<FWD>

Trailing arm

Toe control arm

Rear crossmember

Stabilizer bar

Coil spring

Shock absorber

<AWD>

Shock absorber

Stabilizer bar

Rear crossmember

Coil spring

Trailing arm

Toe control arm

Upper arm

0000

The well-proven McPherson strut suspension (front)
and trailing arm type multi-link suspension (rear) have
been adopted.

GENERAL

00-5

TECHNICAL FEATURES

ACTIVE SAFETY

M20000000310USA0000010000

ZC600661

CHECK

SE R VIC E
         RE

Q UIRE D

ASC
OFF

<Except vehicles for CANADA>

<Vehicles for CANADA>

ABS warning
light

Brake warning
light

ABS warning
light

Brake warning
light

ABS warning light

Brake warning light

Stoplight switch

G-sensor <AWD>,
hydraulic unit, ABS-ECU

AWD-ECU <AWD>

Wheel speed sensor

Magnetic encoder for wheel speed detection

Data link connector

Wheel speed sensor

Magnetic
encoder for
wheel speed
detection

0001

The ABS*1has been installed as standard equipment
to prevent the wheels from locking and optimize the
longitudinal brake force distribution depending on the
road surface and loading conditions. In addition, the
ASC*2has  also  been  installed  to  suppress  side  slip
and wheel spin during steep steering or on a slippery
road  surface,  ensuring  the  ideal  brake  force  and

braking  stability  through  the  integrated  control  of
brake  and  engine  output  <standard:  LS,  optional:
XLS>.

NOTE:

*1: Electronic Brake-force Distribution
*2: Active Stability Control
