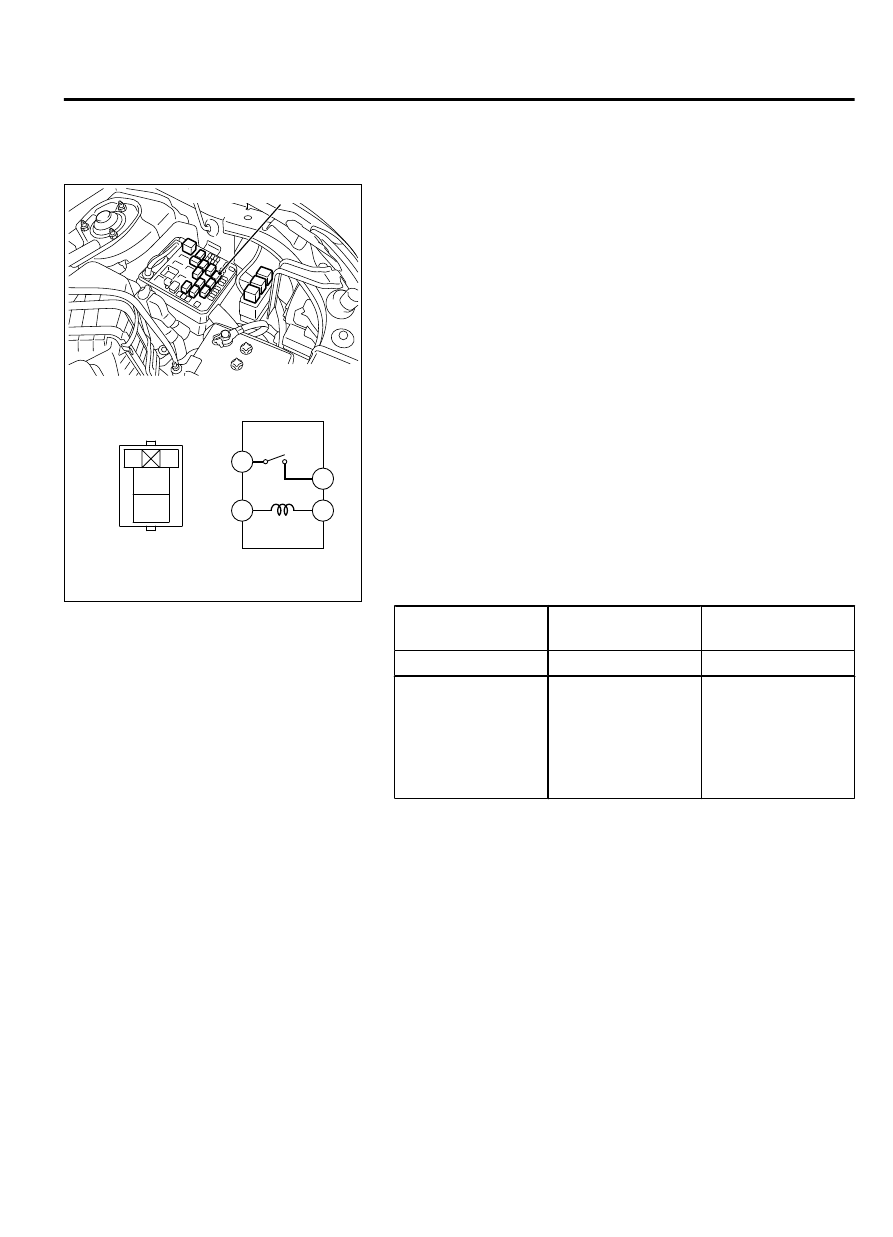

A/C COMPRESSOR CLUTCH RELAY CONTINUITY

CHECK

ZC603579

4

1

2

3

3

1

4

2

A/C compressor clutch relay

Battery voltage

Tester connection Specified

condition

Not applied

3 - 4

Open circuit

｠

Connect  terminal
2  to  the  positive
battery terminal

｠

Connect  terminal
1  to  the  negative
battery terminal

3 - 4

Less than 2 ohms

AIR CONDITIONING

55A-107

ON-VEHICLE SERVICE

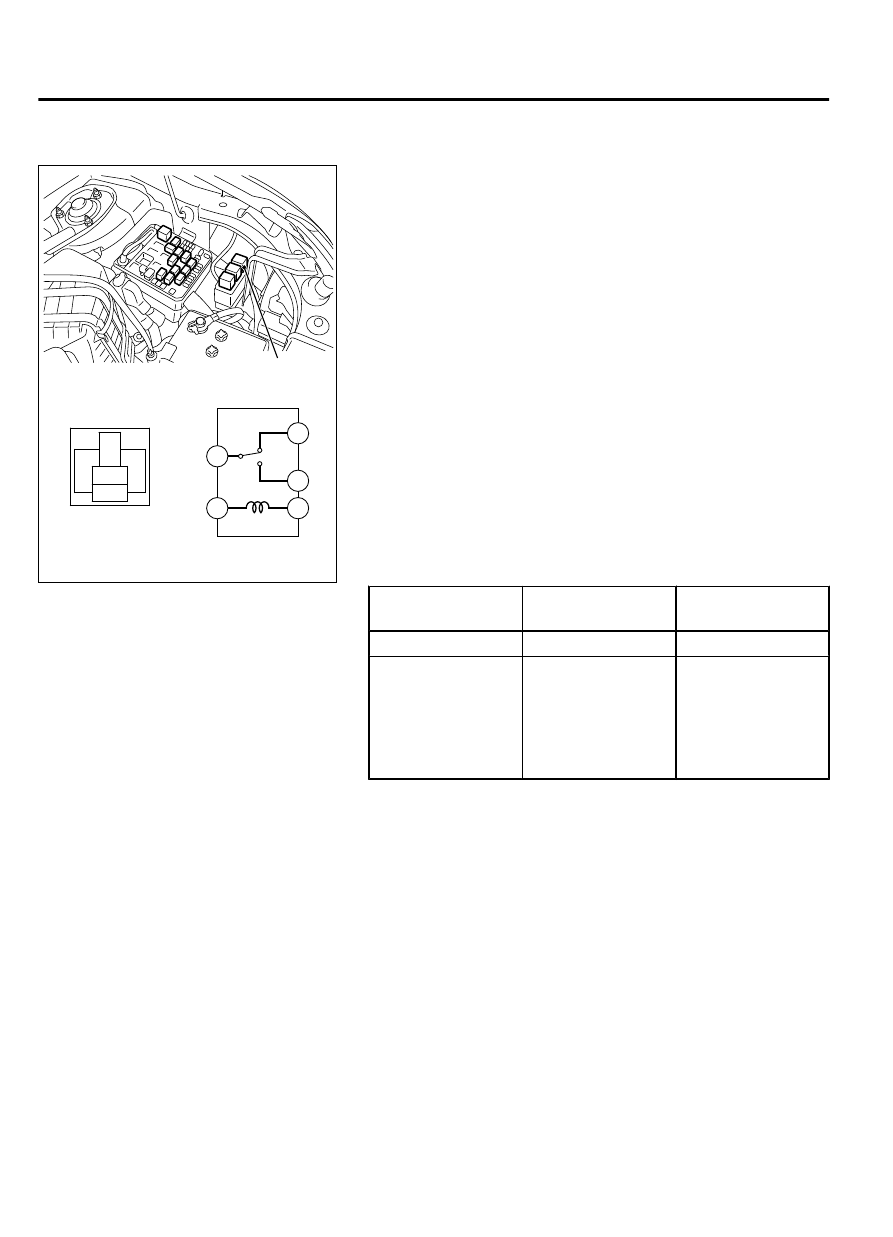

FAN CONTROL RELAY CONTINUITY CHECK

ZC603579

2

1

5

4

3

3

1

5

4

2

Fan control relay

Battery voltage

Tester connection Specified

condition

Not applied

2 - 4

Open circuit

｠

Connect  terminal
1  to  the  positive
battery terminal

｠

Connect  terminal
3  to  the  negative
battery terminal

2 - 5

Less than 2 ohms

55A-108

AIR CONDITIONING

ON-VEHICLE SERVICE

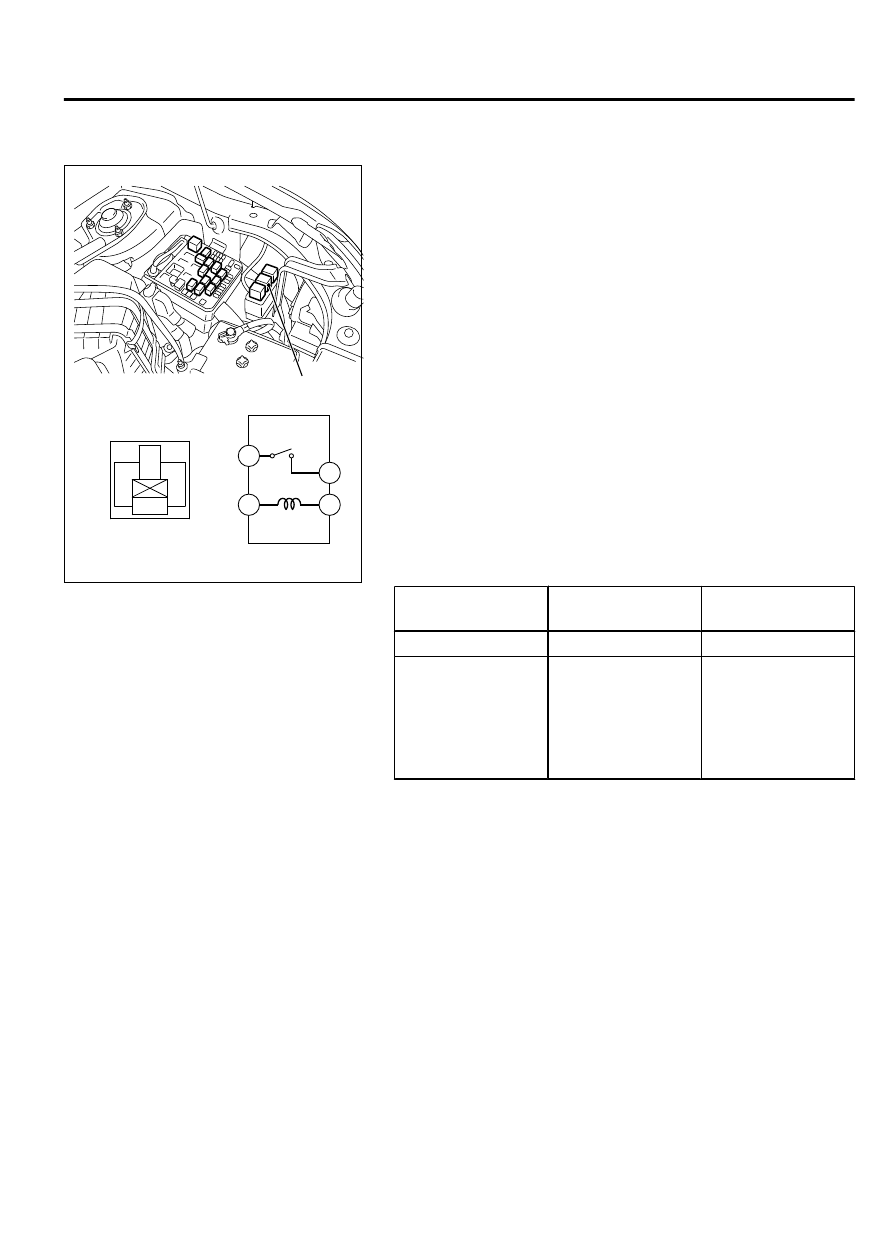

CONDENSER FAN RELAY CONTINUITY CHECK

ZC603579

3

1

4

2

2

1

4

3

Condenser fan relay

Battery voltage

Tester connection Specified

condition

Not applied

2 - 4

Open circuit

｠

Connect  terminal
3  to  the  positive
battery terminal

｠

Connect  terminal
1  to  the  negative
battery terminal

2 - 4

Less than 2 ohms

IDLE-UP OPERATION CHECK

M15502000016USA0000010000

1.

Before inspection and adjustment, set vehicle in the following
condition:

｠

Engine coolant temperature: 80 - 90 °C (176.0 - 194.0 °F)

｠

Lights, electric cooling fan and accessories: OFF

｠

Transaxle: Neutral ("N" or "P" position)

｠

Steering wheel: Straightforward

2.

Check whether or not the idle speed is the standard value.
Refer  to  GROUP  11A,  On-vehicle  Service  -  Idle  Speed
Check P.11A-16.

Standard value: 650 ± 50 r/min

3.

Turn on the A/C switch and the blower speed selection dial.
Engine idling speed should be within the standard value:

AIR CONDITIONING

55A-109

ON-VEHICLE SERVICE

Standard value: 800 ± 50 r/min

NOTE:

The powertrain control module determines whether

the A/C load is low or high according to the output signal
from the A/C-ECU.

NOTE:

It is not necessary to make an adjustment, because

the idling speed is automatically adjusted by the ISC
system. If, however, a deviation from the standard value
occurs for some reason, check the ISC system. (Refer to
GROUP 11A, On-vehicle Service - Idle Speed Check P.
11A-16)

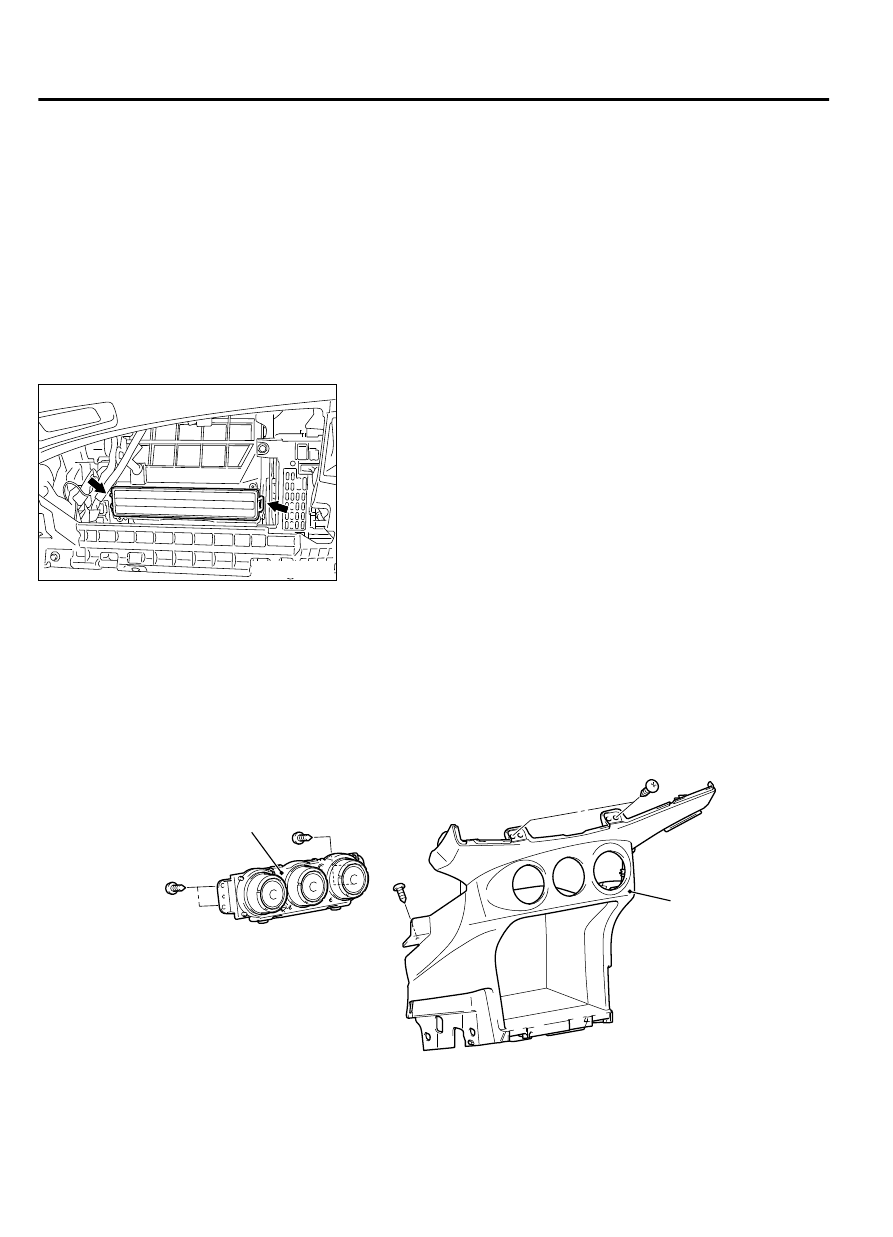

REPLACE THE CLEAN AIR FILTER

M15502000201USA0000010000

ZC6039050000

1.

Remove the glove box (Refer to GROUP 52A - Instrumental
Panel, P.52A-2).

2.

Loosen the two lugs as shown to replace the clean air filter.

3.

Install the glove box.

A/C CONTROL PANEL ASSEMBLY

REMOVAL AND INSTALLATION

M15502000018USA0000010001

Pre-removal and Post-installation Operation

｠

Center Panel Assembly Removal and Installation (Refer to GROUP 52A - Instrument Panel P.52A-2).

｠

Lower Side Cover Removal and Installation (Refer to GROUP 52A - Floor Console P.52A-8.)

ZC600424

2

1

0000

Removal steps

1.

Lower panel

Removal steps

2.

A/C control panel

55A-110

AIR CONDITIONING

ON-VEHICLE SERVICE
