STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the ETACS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the SRS-ECU and the ETACS-ECU. (Refer to GROUP 00,
How to Cope with Intermittent Malfunction P.00-15)

DTC U0154: Occupant classification-ECU CAN timeout

M15410600077USA0000010000

｠

If DTC U0154 is set to the ETACS-ECU, always
diagnose the CAN bus line.

｠

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

TROUBLE JUDGMENT
If the signal from occupant classification-ECU cannot
be received, the ETACS-ECU sets DTC U0154.

JUDGMENT CRITERIA
After the following statuses continue to be true for 5
seconds,  if  the  communication  with  the  occupant
classification-ECU  cannot  be  established  for  0.6

second or more, the ETACS-ECU determines that a
problem has occurred.

｠

No abnormality is present to the network.

｠

Ignition switch is in the ON position.

｠

No abnormality is present to the power supply fuse,
or the odometer value is at 80.5 km (50.0 miles) or
more.

｠

ETACS-ECU system voltage is at 10-16 volts.

TROUBLESHOOTING HINTS

｠

The occupant classification-ECU may be defective.

｠

The ETACS-ECU may be defective.

｠

The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ETACS

54Ad-23

DIAGNOSIS

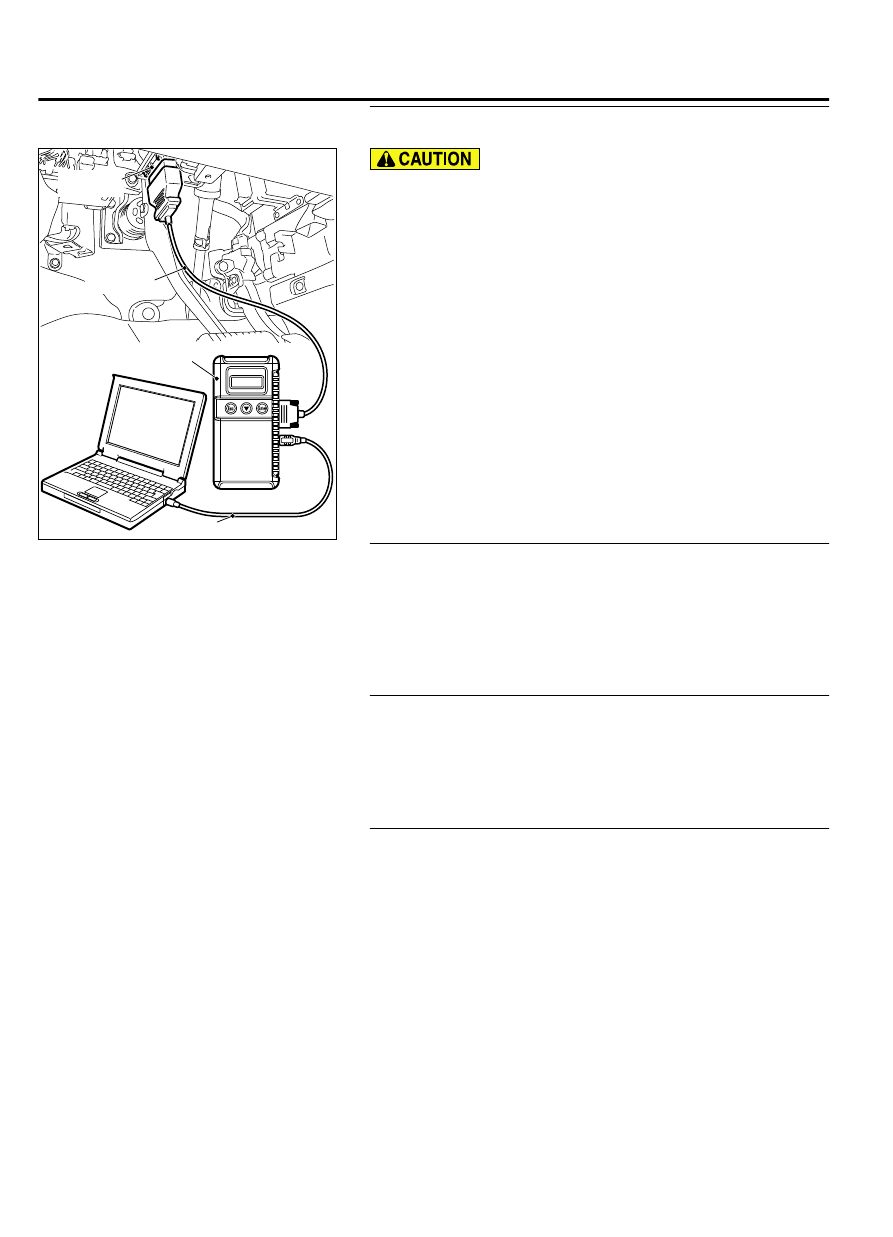

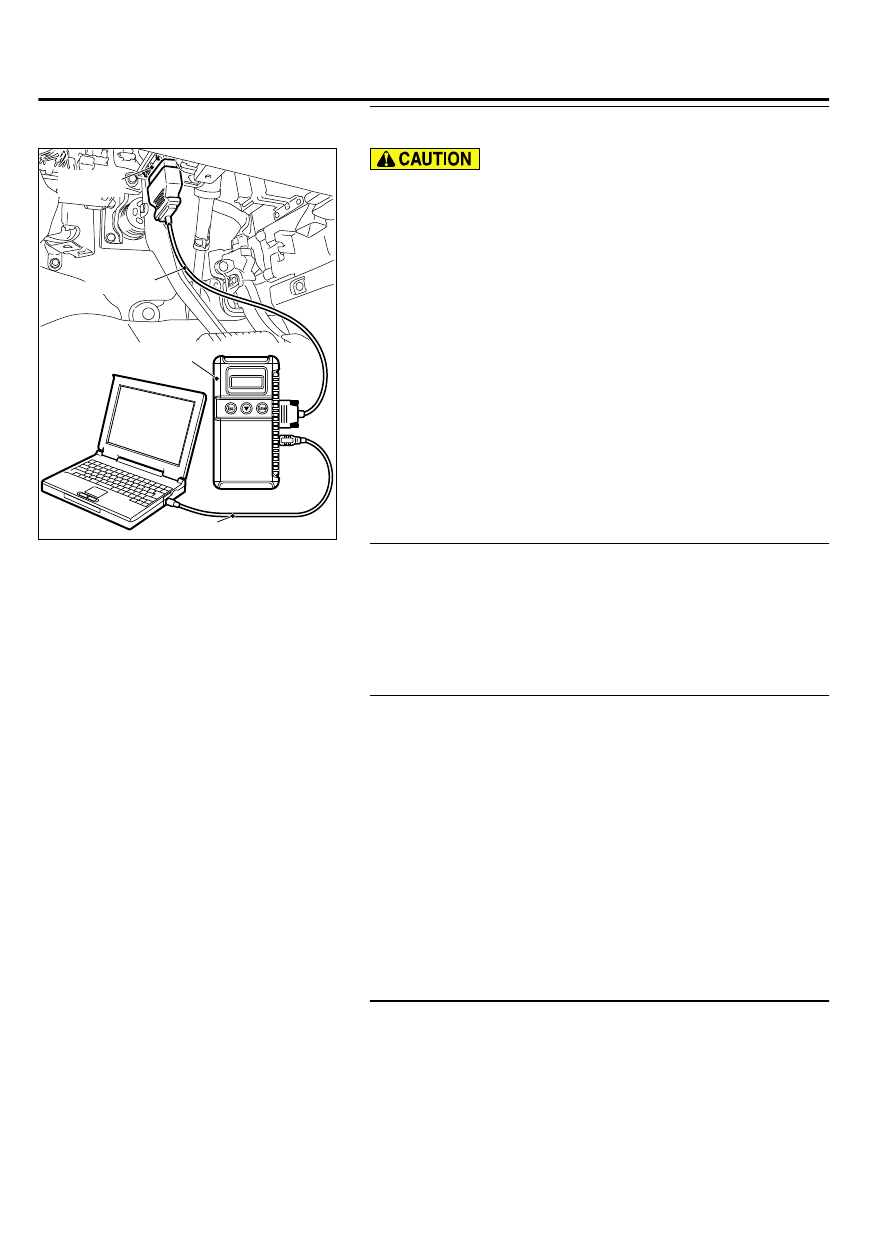

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the SRS-ECU
diagnostic trouble code.
Check if DTC is set to the SRS.

Q:Is the DTC set?

YES:

 Troubleshoot the SRS. (Refer to GROUP 52B,

Diagnosis P.52B-33.)

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the occupant classification-ECU, then go to

Step 4.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the occupant classification-ECU and the ETACS-
ECU. (Refer to GROUP 00, How to Cope with Intermittent
Malfunction P.00-15)

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

54Ad-24

ETACS

DIAGNOSIS

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the ETACS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the occupant classification-ECU and the ETACS-
ECU. (Refer to GROUP 00, How to Cope with Intermittent
Malfunction P.00-15)

DTC U0155: Combination meter CAN timeout

M15410600056USA0000010000

｠

If DTC U0155 is set to the ETACS-ECU, always
diagnose the CAN bus line.

｠

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

TROUBLE JUDGMENT
If  the  signal  from  combination  meter  cannot  be
received, the ETACS-ECU sets DTC U0155.

JUDGMENT CRITERIA
After the following statuses continue to be true for 5
seconds, if the communication with the combination
meter cannot be established for 0.6 second or more,

the  ETACS-ECU  determines  that  a  problem  has
occurred.

｠

No abnormality is present to the network.

｠

Ignition switch is in the ON position.

｠

No abnormality is present to the power supply fuse,
or the odometer value is at 80.5 km (50.0 miles) or
more.

｠

ETACS-ECU system voltage is at 10-16 volts.

TROUBLESHOOTING HINTS

｠

The combination meter may be defective.

｠

The ETACS-ECU may be defective.

｠

The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ETACS

54Ad-25

DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

Q:Is the DTC set?

YES:

 Troubleshoot the combination meter. (Refer to GROUP

54Ab, Diagnosis P.54Ab-7.)

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/C-ECU
diagnostic trouble code.
Check if the DTC U0155 is set to the A/C-ECU.

Q:Is the DTC set?

YES:

 Go to Step 4.

NO:

 Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the combination meter.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the combination meter and the ETACS-ECU. (Refer
to GROUP 00, How to Cope with Intermittent Malfunction P.
00-15)

54Ad-26

ETACS

DIAGNOSIS
