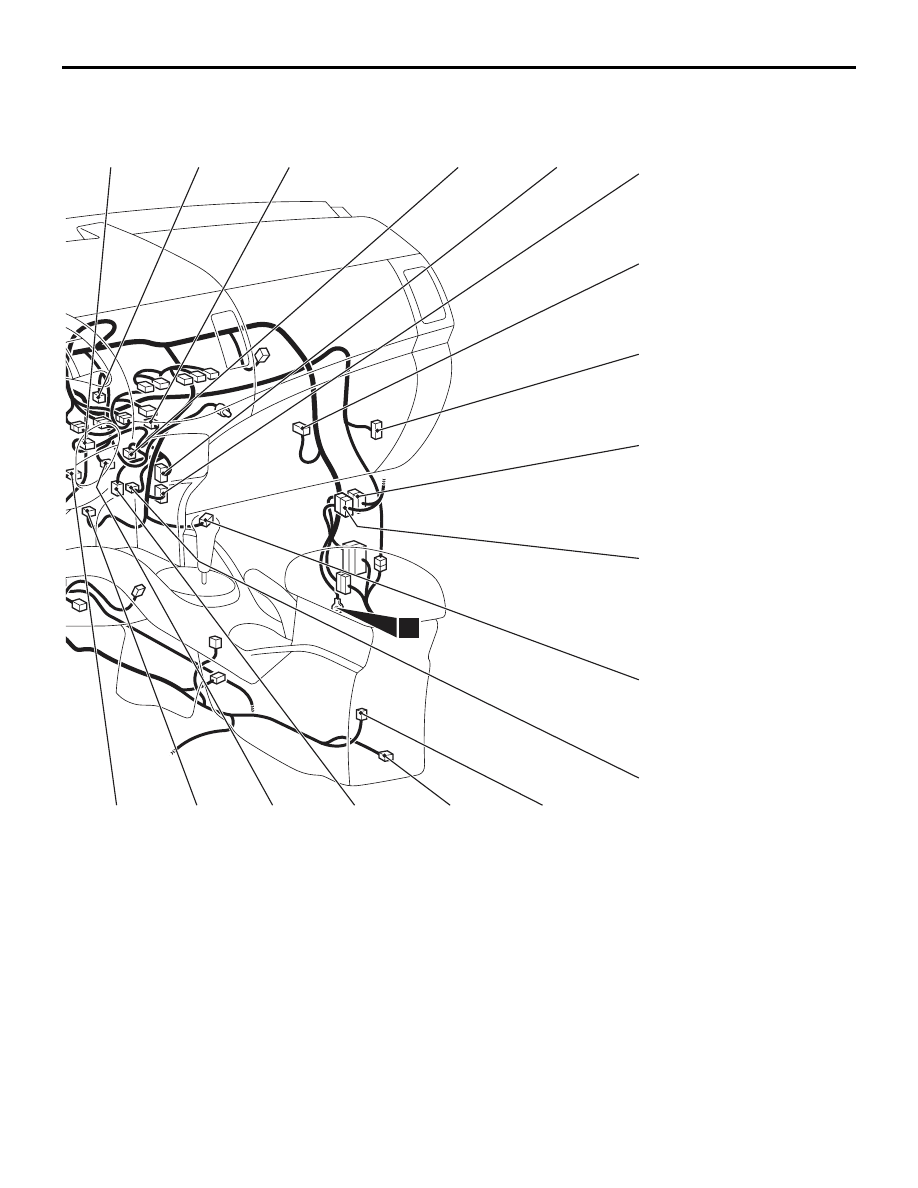

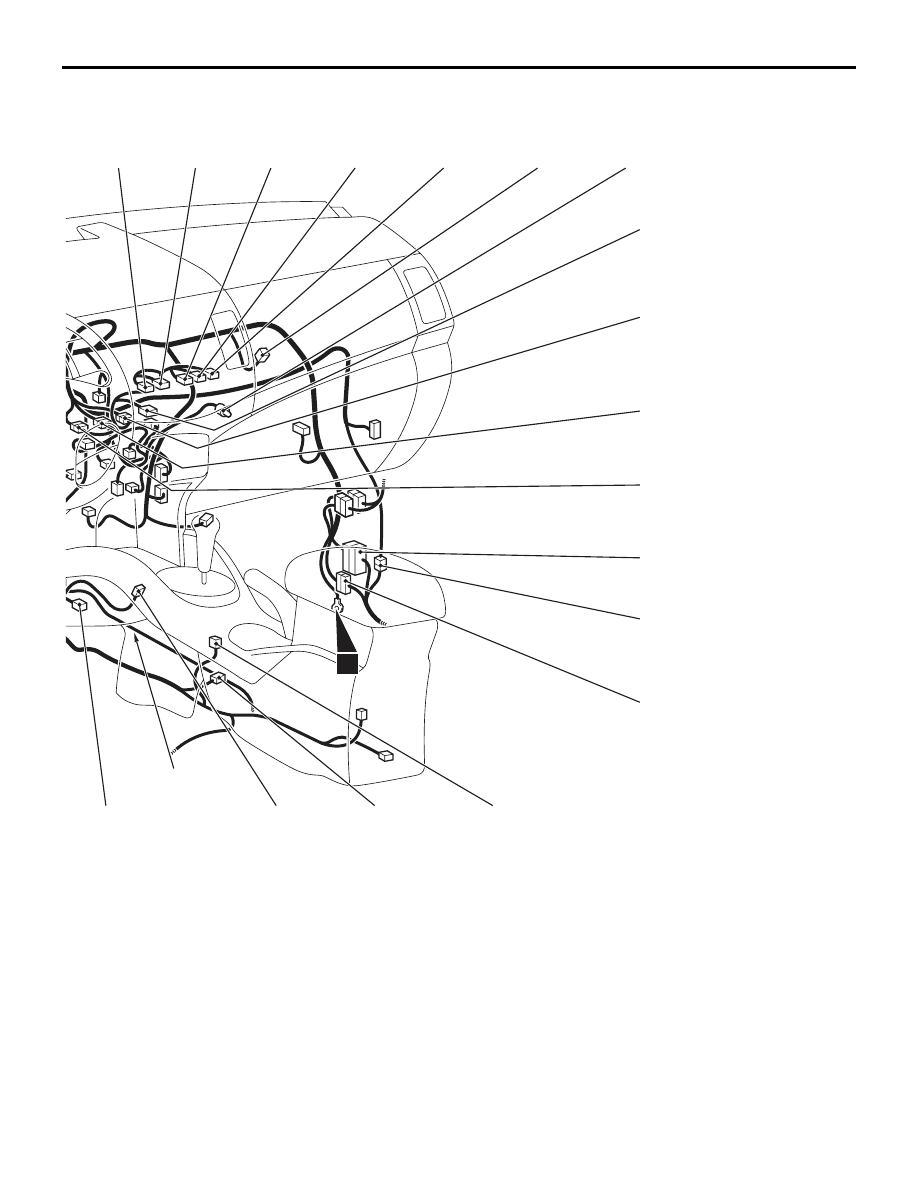

DASH PANEL

CONFIGURATION DIAGRAMS

80A-11

ZC6003250000

C-06

C-07

C-08

C-09

C-10

C-11

C-12

C-13

C-14
C-15

C-16
C-17

C-18
C-19

C-20

C-21

C-22

C-23

C-24

C-25

C-26

Floor wiring
harness

2

C-22

(24)

Instrument panel wiring harness and
floor wiring harness combination

C-23

(5)

Drive mode selector

C-24

(10)

Shift switch assembly

C-25

(2)

Accessory socket 2

C-26

(6-B)

G and yaw rate sensor

C-27

(32-Y)

SRS-ECU

C-28

(24-Y)

SRS-ECU

C-29

(12)

Wireless control module <Vehicles
without KOS>

C-30

(12)

Receiver antenna module <Vehicles
with KOS>

C-31

(24)

Instrument panel wiring harness and
floor wiring harness combination

C-32

(20)

Instrument panel wiring harness and
floor wiring harness combination

C-33

(22)

Instrument panel wiring harness and
front wiring harness combination

C-34

(16-BR) Instrument panel wiring harness and

front wiring harness combination

C-35

(2)

Instrument panel wiring harness and
front wiring harness combination

C-36

(12)

Instrument panel wiring harness and
roof wiring harness combination

C-37

(22)

Transmission control module

C-38

(26)

Transmission control module

DASH PANEL

CONFIGURATION DIAGRAMS

80A-12

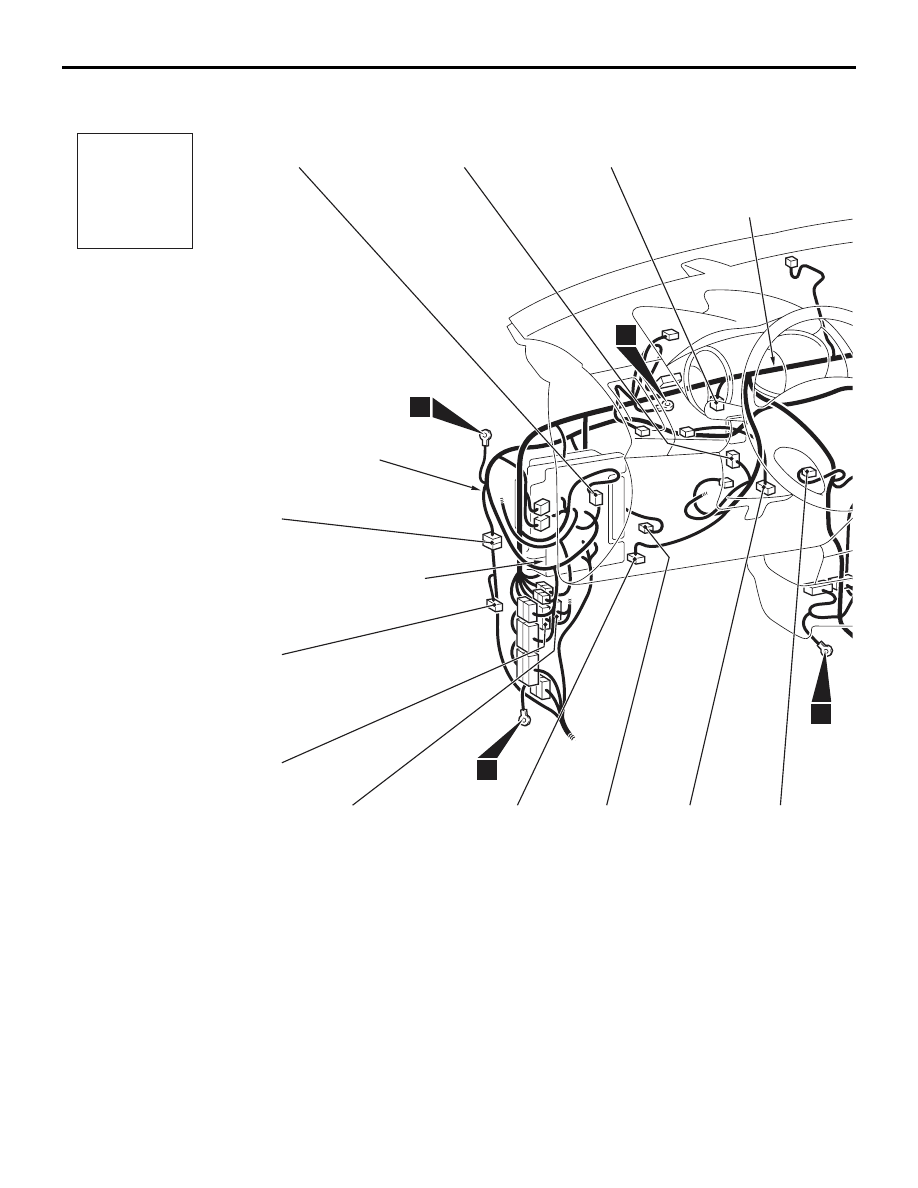

DASH PANEL (CONTINUED)

Connector
symbol

-101
thru
-129

C

C-101

C-102

C-103

C-122

C-123

C-124

C-125

C-126

C-127

C-128

C-129

Front
wiring
harness

ETACS-ECU

Instrument panel
wiring harness

6

16

17

19

Connector color
code
B : Black
BR : Brown
G : Green
GR : Gray
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-101 (6)

ASC off switch

C-102 (40)

KOS-ECU

C-103 (24)

J/C (CAN 1)

C-104 (16)

Center panel unit

C-105 (2)

Radio antenna

C-106 (5)

Outside/inside air selection damper
control motor

C-107 (5)

Mode selection damper control motor

C-108 (16-B)

A/C-ECU

C-109 (20-B)

A/C-ECU

C-110 (24)

Headlight automatic leveling-ECU

C-111 (14)

Satellite radio tuner

C-112 (12)

Instrument panel wiring harness and
front door wiring harness (RH)
combination

C-113 (24-BR) Instrument panel wiring harness and

front door wiring harness (RH)
combination

C-114 (2)

Blower motor

C-115 (5)

Air mixing damper control motor

DASH PANEL

CONFIGURATION DIAGRAMS

80A-13

ZC6003250001

C-104

C-105

C-106

C-107

C-108

C-109

C-110

C-111

C-112

C-113

C-114

C-115

C-116

C-117

C-118

C-119

C-120

C-121

2

C-116 (2)

Accessory socket 3

C-117 (6-B)

Audio and video adapter

C-118 (2)

Air thermo sensor

C-119 (12)

A/C control panel

C-120 (4)

Power transistor

C-121 (24)

Hands free module

C-122 (2)

Interior temperature sensor

C-123 (6-B)

Accelerator pedal position sensor

C-124 (4)

Stoplight switch

C-125 (16-B)

Data link connector

C-126 (12)

Instrument panel wiring harness and
front door wiring harness (LH)
combination

C-127 (24-BR) Instrument panel wiring harness and

front door wiring harness (LH)
combination

C-128 (16)

AWD-ECU

C-129 (22)

Front wiring harness and floor wiring
harness combination

DASH PANEL

CONFIGURATION DIAGRAMS

80A-14

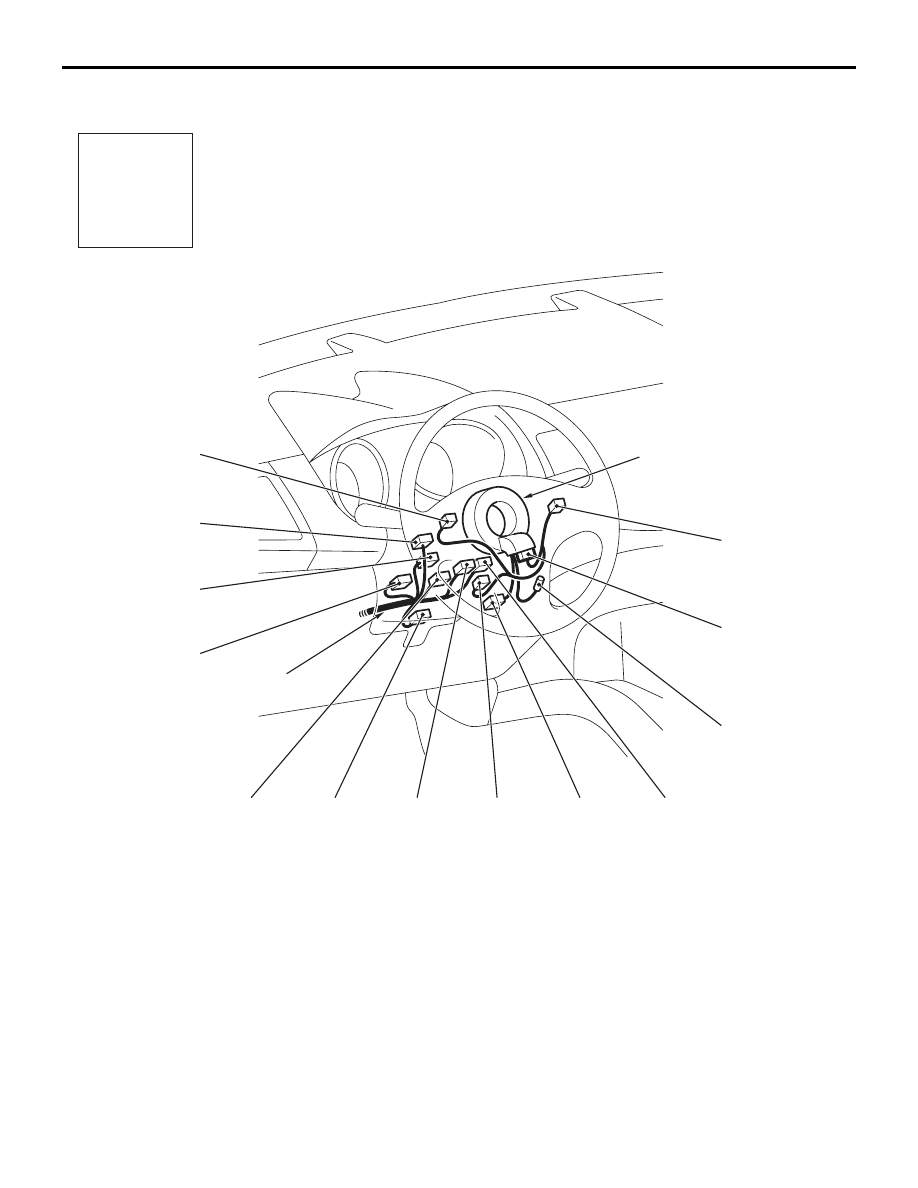

DASH PANEL (CONTINUED)

ZC6003260000

Connector
symbol

-201
thru
-213

C

Steering column

Clock
spring

Instrument panel
wiring harness

C-201

C-202

C-203

C-204

C-205

C-206

C-207

C-208

C-209

C-210

C-211

C-212

C-213

C-201 (4-L)

Auto-cruise control switch

C-202 (5)

Clock spring and steering sub wiring
harness combination

C-203 (1)

Horn switch

C-204 (6)

Clock spring

C-205 (4-Y)

Driver's air bag module (squib)

C-206 (4-Y)

Steering voice control switch

C-207 (4-Y)

Clock spring

C-208 (3)

Paddle shift switch

C-209 (5)

Steering wheel sensor

C-210 (6)

Ignition switch

C-211 (12)

Key reminder switch

C-212 (10)

Column switch

C-213 (5-R)

Steering audio switch
