Mitsubishi Outlander GS45X. Manual - part 906





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-557

DTC SET CONDITIONS

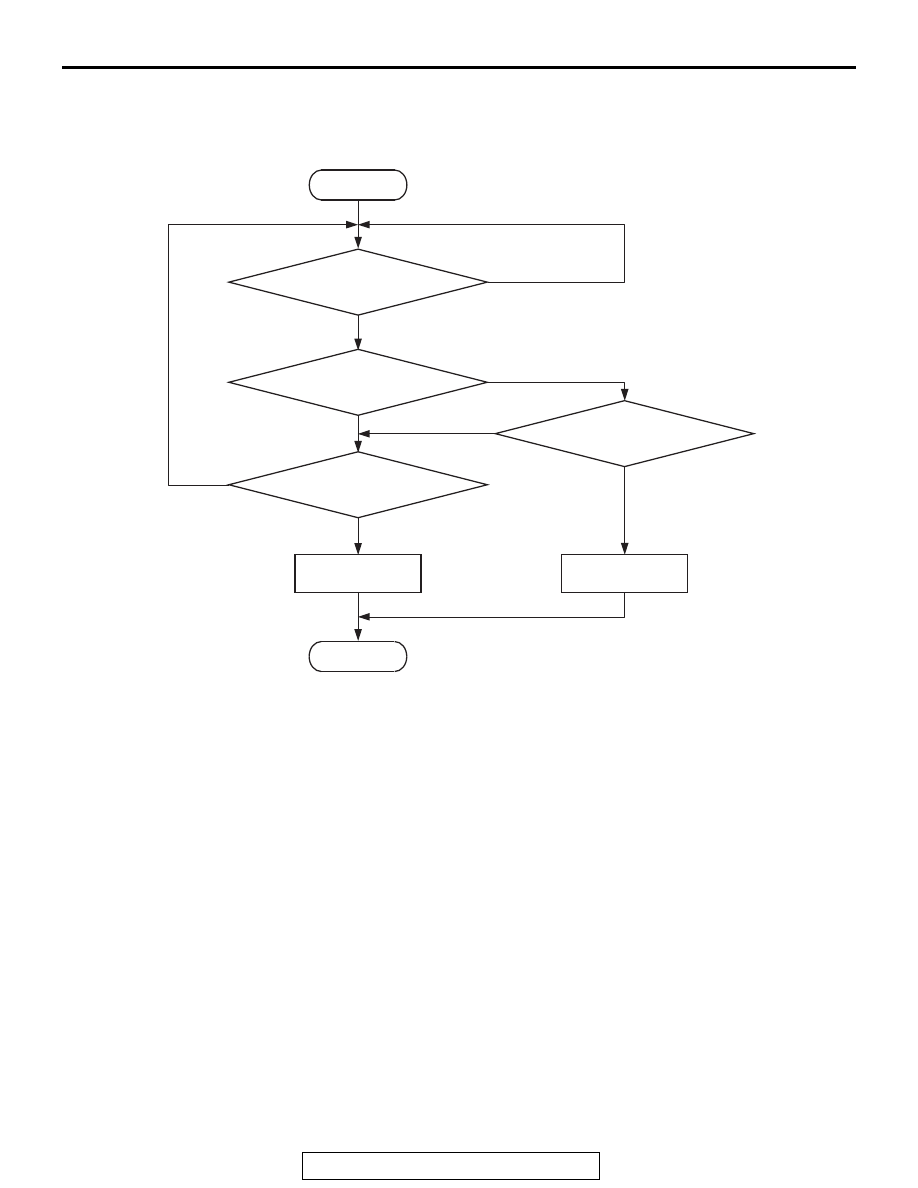

Logic Flow Chart

.

Check Condition, Judgement Criterion

• When the fuel consumption calculated from the

operation time of the injector amounts to 20 liters
(5.2 gal) <FWD> or 30 liters (7.8 gal) <AWD>, the
diversity of the amount of fuel in tank calculated
from the fuel level sensor is 2 liters (0.5 gal) or
less.

.

OBD-II DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Combination meters assembly failed.

• Fuel level sensor failed.

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

AK604341

Good

Malfunction

End

No

No

No

Indicated fuel level

change < 2L (0.5gal)

Reset fuel consumption accumulator

Start

Yes

Yes

Yes

Monitoring
conditions

Accumulate fuel consumption

through fuel injectors

Accumulated fuel consumption

will not reset when key-off/on.

Accumulated fuel >= specified

consumption value

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-558

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P2066 set?

YES : Go to Step 2.
NO :  Go to Step 4.

STEP 2. Check fuel gauge.
Q: Is the fuel gauge functioning?

YES : Go to Step 3.
NO :  Refer to GROUP 54A, Combination Meter

− Trouble

Symptom Chart

P.54A-69

.

STEP 3. Check the trouble symptoms.
Check that the fuel gauge operates correctly.
Q: Does the fuel gauge operate correctly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 6.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-559

STEP 4. Check the fuel pump module.
Check to see if the fuel pump module is normal. Refer to
GROUP 54A, Combination Meter

− On-vehicle Service − Fuel

Level Sensor Check

P.54A-107

.

Q:  Is the fuel pump module normal?

YES : Go to Step 5.
NO :  Replace the fuel pump module. Then go to Step 6.

STEP 5. Check the trouble symptoms.
Check that the fuel gauge operates correctly.
Q: Does the fuel gauge operate correctly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 6.

STEP 6. Check the trouble symptoms.
Check that the fuel gauge operates correctly.
Q: Does the fuel gauge operate correctly?

YES : The inspection is complete.
NO :  Retry the troubleshooting.

DTC P0462: Fuel Level Sensor <FWD> or Fuel Level Sensor (main) <AWD> Circuit Low Input

.

TECHNICAL DESCRIPTION

• The fuel level sensor converts the rest of the fuel

to a voltage and sends it to the combination
meter.

• The combination meter sends the data regarding

the rest of the fuel to the ECM.

• The ECM checks whether this data is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS

A short circuit is detected while monitoring the fuel
level sensor output.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-560

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• Battery positive voltage is between 11 and 16.5

volts.

• 2 seconds or more have passed since the engine

staring sequence was completed.

Judgement Criterion

• Fuel level sensor resistance has continued to be

lower than 2 ohms for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 22

P.13B-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Fuel level sensor failed.

• Combination meters assembly failed.

• Connector damage

• Harness damage

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

AK604342

Good

Malfunction

End

No

No

No

No

Fuel level sensor

resistance <= 2 ohms

Fuel level sensor

resistance >= 186 ohms

Start

Continuous

failure for 2secs

Monitoring
conditions

Yes

Yes

Yes

Yes
