MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-401

.

CIRCUIT OPERATION

• A 5-volt power supply is applied on the throttle

position sensor (sub) power terminal (terminal
No. 5) from the ECM (terminal No. 12).

• A voltage that is according to the throttle opening

angle is sent to the ECM (terminal No. 11) from
the throttle position sensor (sub) output terminal
(terminal No. 6).

• The ground terminal (terminal No. 3) is grounded

with ECM (terminal No. 13).

.

TECHNICAL DESCRIPTION

• The throttle position sensor (sub) outputs voltage

which corresponds to the throttle valve opening
angle.

• The ECM checks whether the voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS

Throttle position sensor (sub) output voltage is out of
specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AK900133 AD

B-08 (B)

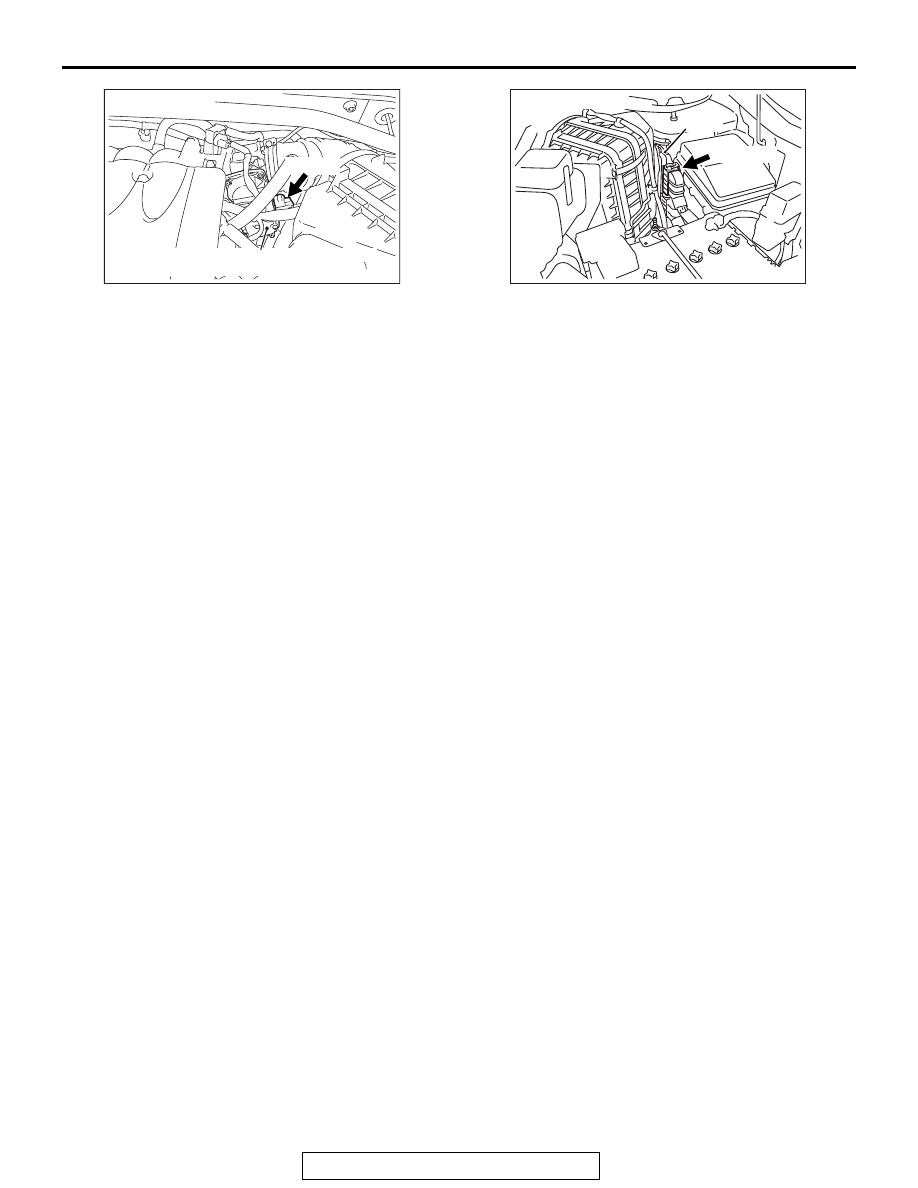

Connector: B-08

Throttle body assembly (incorporating
throttle position sensor)

AK700401AB

ECM

B-10 (GR)

Connector: B-10

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-402

DTC SET CONDITIONS

Logic Flow Chart

.

Check Condition

• Ignition switch is "ON" position.

Judgement Criterion

• Throttle position sensor (sub) output voltage

should be 4.8 volts or more for 0.3 second.

.

OBD-II DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Throttle position sensor failed.

• Harness damage

• Connector damage

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991658: Test Harness

No

No

No

Malfunction

End

Good

Output voltage <= 0.2V

Output voltage >= 4.8V

AK604318

Start

Yes

Yes

Yes

Continuous

failure for 0.3sec

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-403

STEP 1. Using scan tool MB991958, check data list item 15:
Throttle Position Sensor (sub).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Detach the intake air hose at the throttle body.
(4) Disconnect the connector of the throttle position sensor.
(5) Use test harness special tool (MB991658) to connect only

terminals No. 3, No. 4, No. 5, and No. 6.

(6) Set scan tool MB991958 to the data reading mode for item

15, Throttle Position Sensor (sub).

• Output voltage should be 4.0 volts or more when the

throttle valve is fully closed with your finger.

• Output voltage should be 1.0 volt or less when the throt-

tle valve is fully open with your finger.

(7) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

NO :  Go to Step 2.

STEP 2. Check harness connector B-08 at the throttle
position sensor and harness connector B-10 at the ECM
for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair it. Refer to GROUP 00E, Harness Connector

Inspection

P.00E-2

. Then go to Step 6.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-404

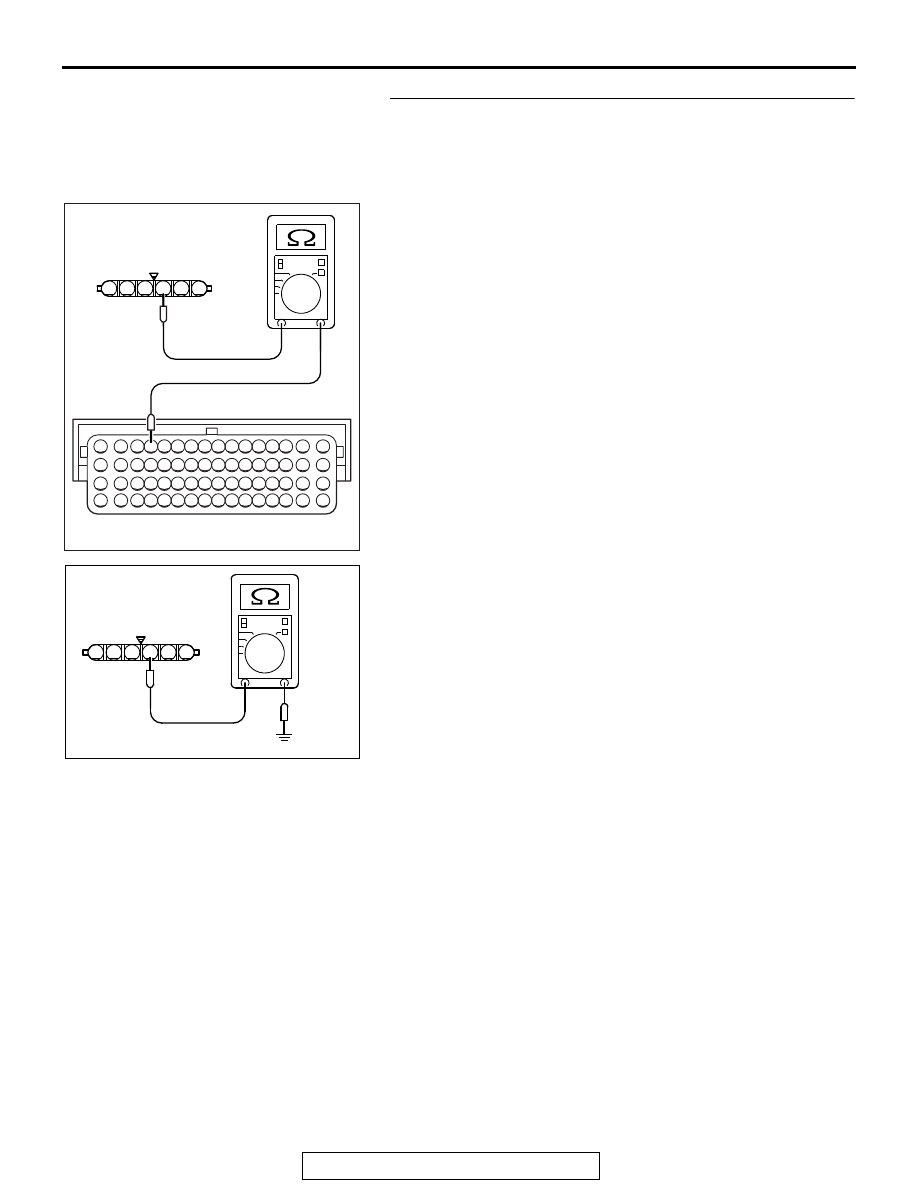

STEP 3. Check for open circuit and harness damage
between the throttle position sensor connector B-08 and
ECM connector B-10.
(1) Disconnect the throttle position sensor connector B-08 and

the ECM connector B-10.

(2) Measure the resistance between the throttle position sensor

connector B-08 (terminal No. 3) and the ECM connector
B-10 (terminal No. 13).

• Should be less than 2 ohms.

(3) Check for the throttle position sensor connector B-08

(terminal No. 3) and ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Go to Step 4.
NO :  Repair it. Then go to Step 6.

AK700239

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

1

6 5 4 3 2

B-08 harness connector:
component side

B-10 harness connector:
component side

AB

AK700240

1

6 5 4 3 2

B-08 harness
connector:
component side

AB
