Mitsubishi Outlander GS45X. Manual - part 717

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-691

STEP 7. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 23

P.13A-11

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P2252 set?

YES : Retry the troubleshooting.
NO : The inspection is complete.

DTC P2253: Heated Oxygen Sensor Offset Circuit High Voltage

HEATED OXYGEN SENSOR OFFSET
CIRCUIT HIGH VOLTAGE CIRCUIT

Refer to DTC P0137

− Heated Oxygen Sensor (rear)

Circuit Low Voltage

P.13A-241

CIRCUIT OPERATION

Refer to DTC P0137

− Heated Oxygen Sensor (rear)

Circuit Low Voltage

P.13A-241

TECHNICAL DESCRIPTION

• The ECM applies an offset voltage of 0.5 volt to

the heated oxygen sensor.

• The ECM checks for heated oxygen sensor offset

voltage.

AK704087AB

Connector: A-13

A-13

AK704090AB

Connector: B-10

B-10 (GR)

AK900595

Connector: C-129

C-129

AK900665

D-37 (B)

Rear heater duct (RH)

Heated oxygen
sensor (rear)

Connector: D-37

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-692

DESCRIPTIONS OF MONITOR METHODS

Heated oxygen sensor offset voltage is over speci-

fied range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

DTC SET CONDITION
Logic Flow Chart

Check Condition

• More than 2 seconds have passed since the

engine starting sequence was completed.

Judgement Criterion

• Heated oxygen sensor offset voltage is more than

0.6 volt for 2 seconds.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnosis Function

− OBD-II Drive Cycle −

Pattern 23

P.13A-11

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Heated oxygen sensor (rear) failed.

• Shorted heated oxygen sensor (rear) circuit or

connector damage.

• ECM failed.

AK704300

Good

Malfunction

End

2secs have passed?

Heated oxygen

sensor offset voltage

< 0.4V or > 0.6V?

Start

Yes

Monitoring
conditions

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-693

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991658: Test Harness

• MB992110: Power Plant ECU Check Harness

STEP 1. Check harness connector D-37 at heated oxygen
sensor (rear) for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO : Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

. Then go to

Step 8.

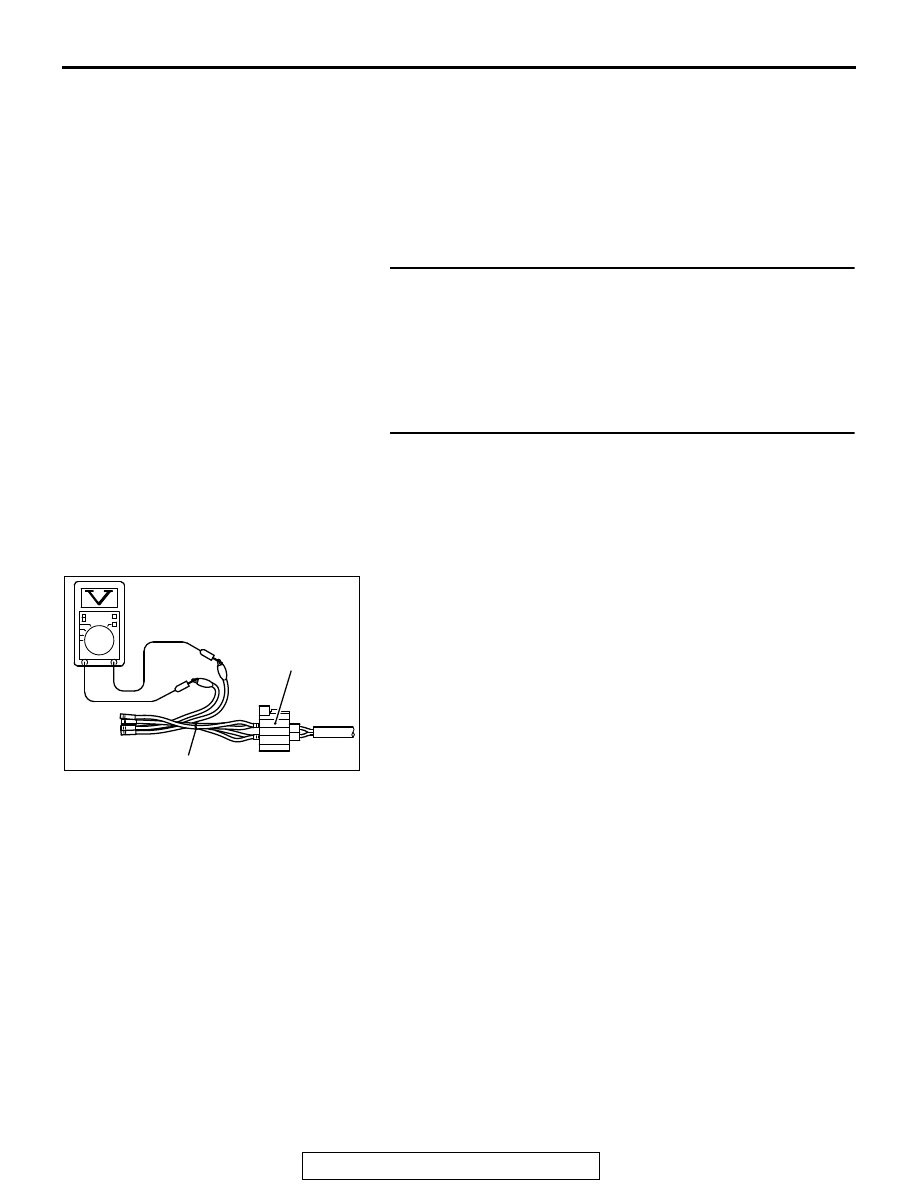

STEP 2. Check the heated oxygen sensor (rear).
(1) Disconnect the heated oxygen sensor (rear) connector

D-37 and connect test harness special tool MB991658 to
the connector on the heated oxygen sensor (rear) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Drive at 50 km/h (31mph) or more for 10 minutes.
(4) Connect a digital voltage meter between terminal No. 3 and

terminal No. 4.

(5) Measure the output voltage of heated oxygen sensor under

the following driving.

• Transaxle: 2nd

• Drive with wide open throttle

• Engine: 3,500 r/min or more

Standard value: 0.6

− 1.0 V

NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

C (752

F) or

more] even though the heated oxygen sensor is normal, the
output voltage would be possibly low in spite of the rich
air-fuel ratio.
NOTE: When the vehicle is driven with high loads, the tem-
perature of the sensing area of the heated oxygen sensor is
sufficiently high. Thus, it is not necessary to apply the volt-
age to the heater.

Q: Is the measured voltage between 0.6 and 1.0 volt?

YES : Go to Step 3.
NO : Replace the heated oxygen sensor (rear). Then go to

Step 8.

AK604493AB

MB991658

Heated oxygen
sensor component
side connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-694

STEP 3. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 8.

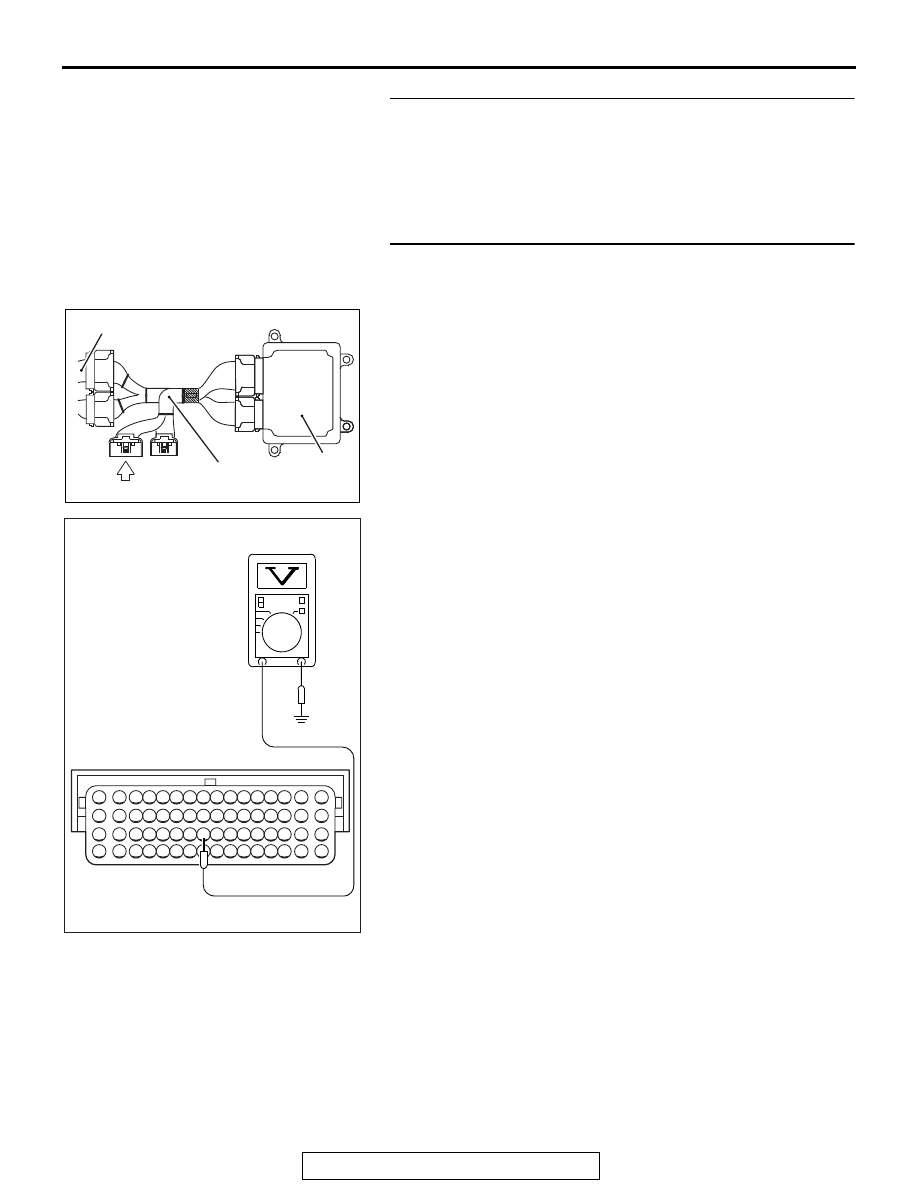

STEP 4. Measure the sensor offset voltage at ECM
connector B-10 by using power plant ECU check harness
special tool MB992110.
(1) Disconnect all ECM connectors. Connect the power plant

ECU check harness special tool MB992110 between the
separated connectors.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 41 and ground.

• Voltage should be between 0.4 and 0.6 volt.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 0.4 and 0.6 volt?

YES : Go to Step 7.
NO : Go to Step 5.

AK604040

ECM

Body side harness

MB992110

AK604187

16 15 14 13 12 11 10 9 8 7 6 5 4 3

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

Power plant ECU
check harness connector
