MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS
TSB Revision
MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>
13A-631

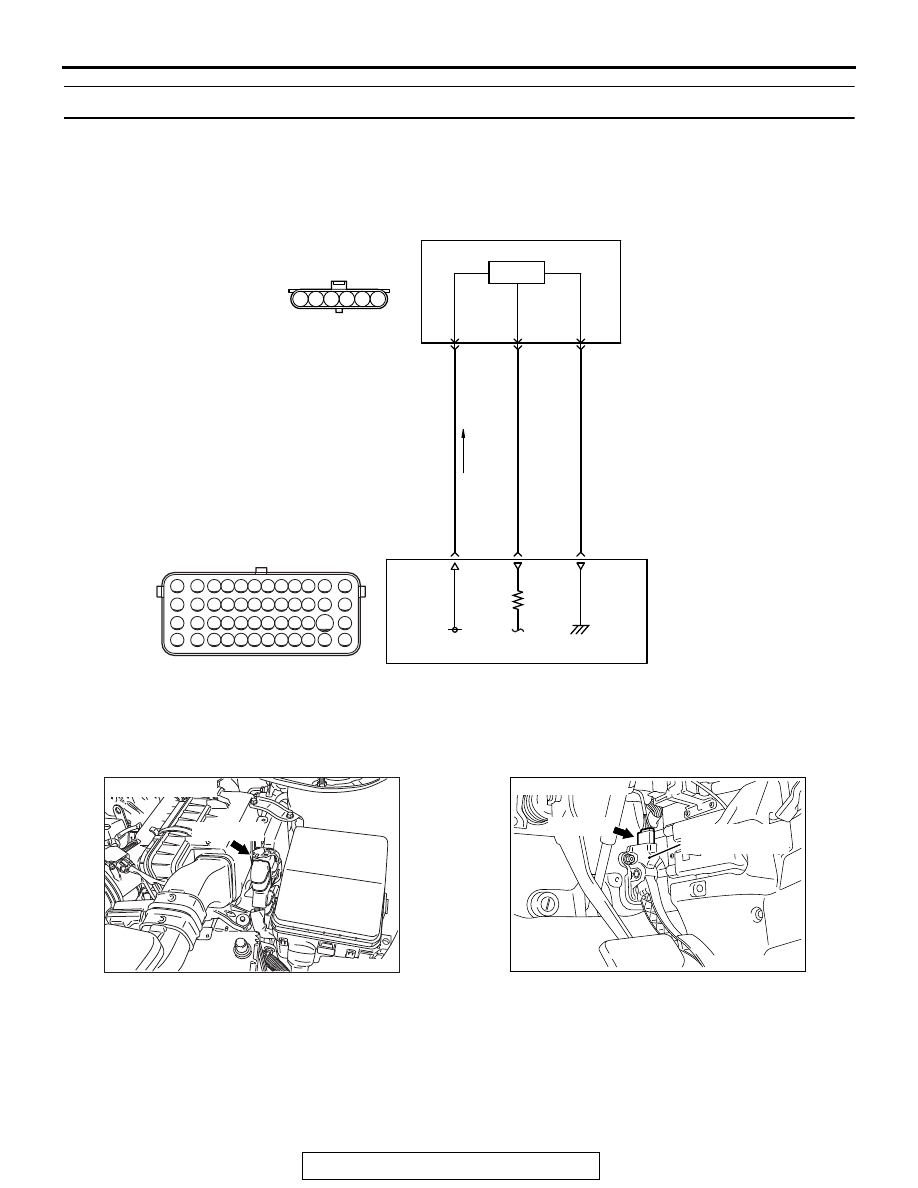

STEP 4. Check for short circuit to ground between throttle
actuator control motor connector B-08 (terminal No. 1) and
ECM connector B-10 (terminal No. 15).
Q: Is the harness wire in good condition?
YES : Go to Step 5.
NO : Repair it. Then go to Step 7.
STEP 5. Check for short circuit to ground between throttle
actuator control motor connector B-08 (terminal No. 2) and
ECM connector B-10 (terminal No. 16).
Q: Is the harness wire in good condition?
YES : Go to Step 6.
NO : Repair it. Then go to Step 7.
STEP 6. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
CAUTION
To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

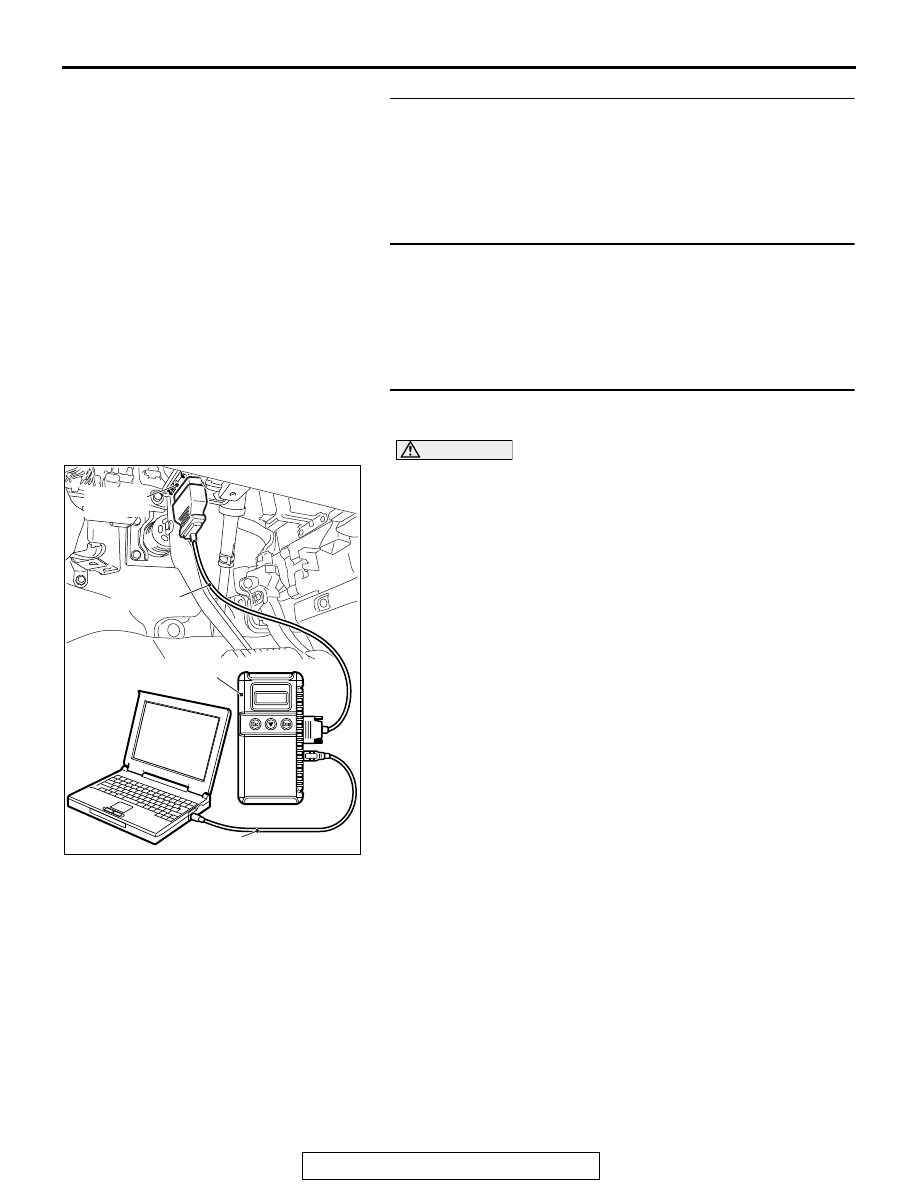

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P2101 set?
YES : Replace the ECM. When the ECM is replaced,
register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles
with KOS>
P.42B-15
or GROUP 42C, Diagnosis
− ID
Codes Registration Judgment Table <Vehicles with
WCM>
P.42C-10
. Then go to Step 7.
NO : It can be assumed that this malfunction is intermittent.
Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points
− How to
Cope with Intermittent Malfunctions
P.00-15
.
