MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-387

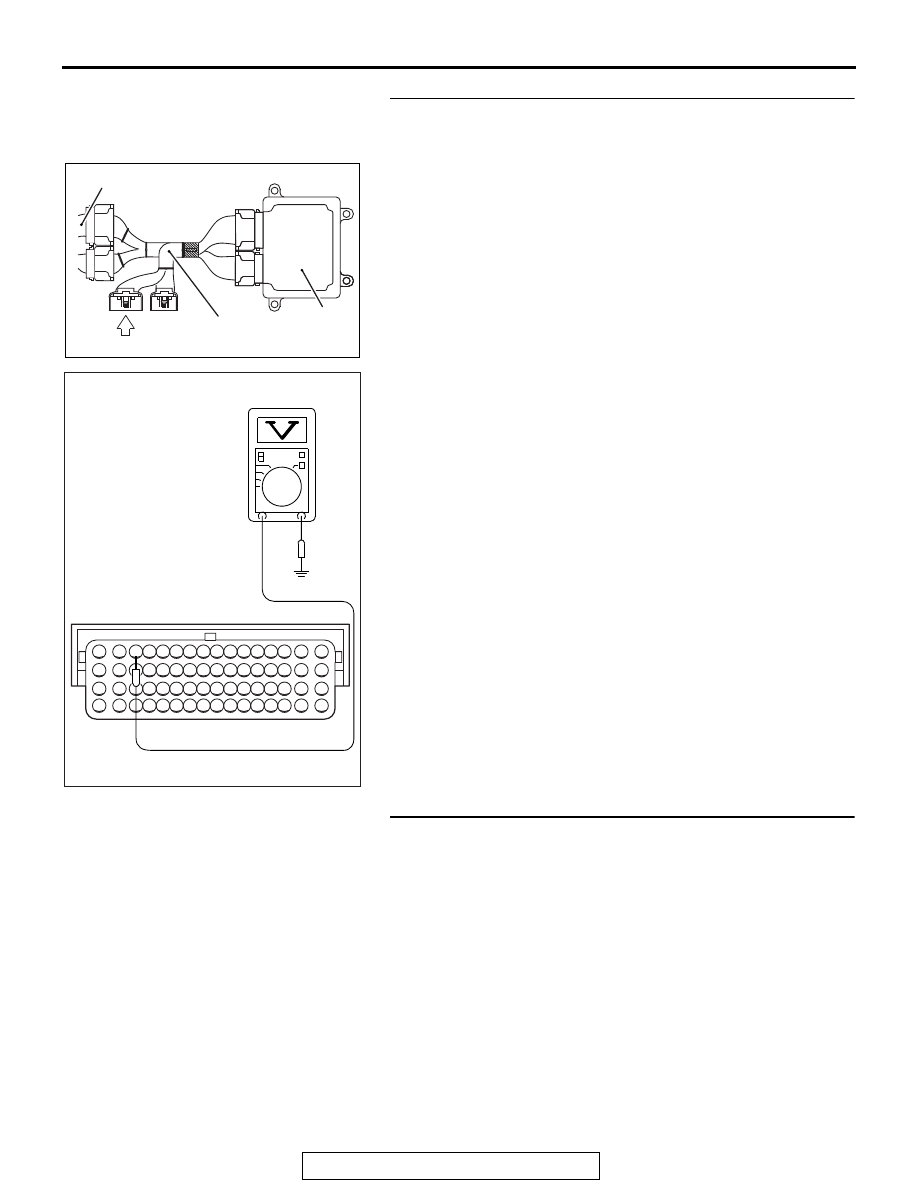

STEP 7. Measure the sensor supply voltage at ECM
connector B-10 by using power plant ECU check harness
special tool MB992110.
(1) Disconnect the all ECM connectors. Connect the power

plant ECU check harness special tool MB992110 between
the separated connectors.

(2) Disconnect the intake camshaft position sensor connector

B-123.

(3) Turn the ignition switch to the "ON" position.

(4) Measure the voltage between terminal No. 14 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Repair harness wire between intake camshaft

position sensor connector B-123 (terminal No. 3) and
ECM connector B-10 (terminal No. 14) because of
open circuit. Then go to Step 19.

NO :  Go to Step 8.

STEP 8. Check for short circuit to ground between intake
camshaft position sensor connector B-123 (terminal No. 3)
and ECM connector B-10 (terminal No. 14).
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 19.

NO :  Repair it. Then go to Step 19.

AK604040

ECM

AB

Body side harness

MB992110

AK604202

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

Power plant ECU
check harness connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-388

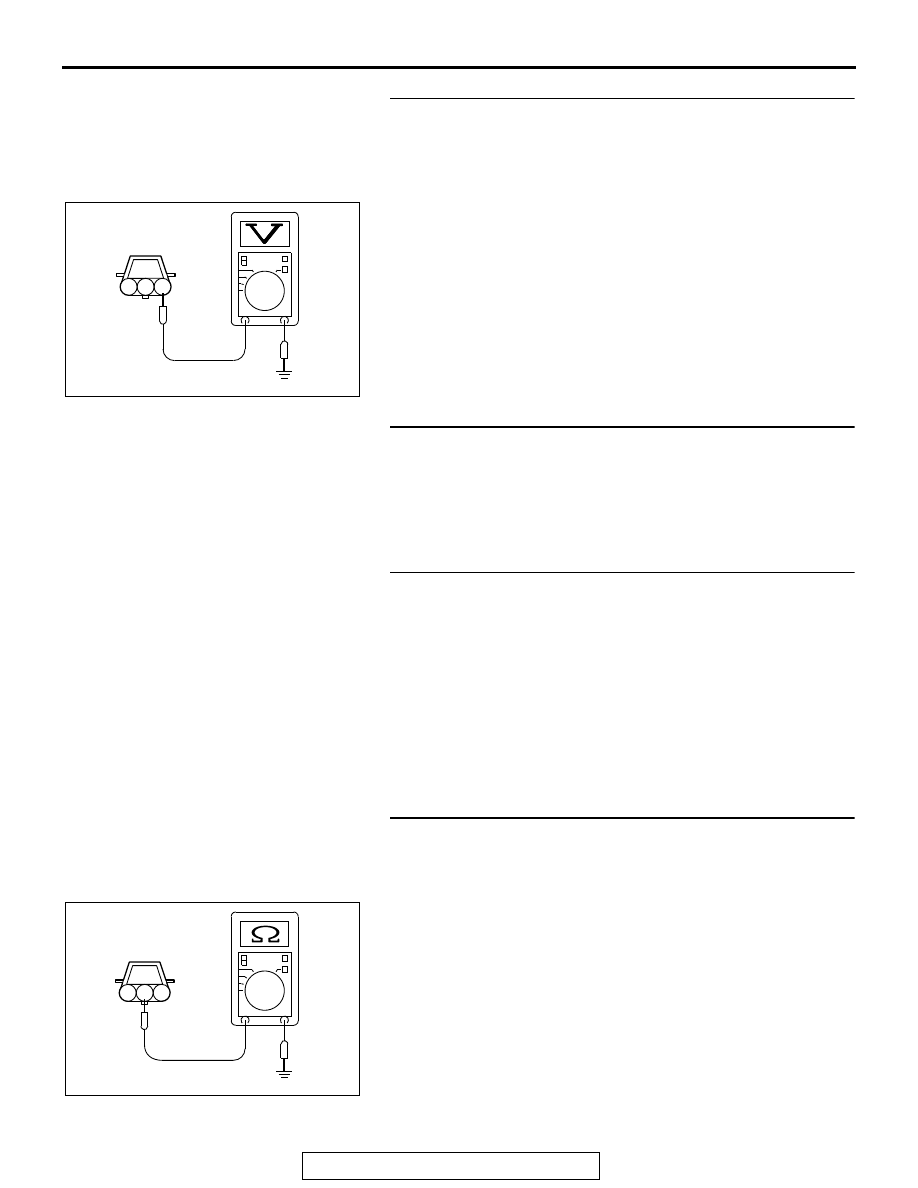

STEP 9. Measure the power supply voltage at intake
camshaft position sensor connector B-123.
(1) Disconnect the connector B-123 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 12.
NO :  Go to Step 10.

STEP 10. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 19.

STEP 11. Check for open circuit and short circuit to ground
between intake camshaft position sensor connector B-123
(terminal No. 1) and ECM connector B-10 (terminal No. 9).
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 19.

NO :  Repair it. Then go to Step 19.

STEP 12. Check the continuity at intake camshaft position
sensor connector B-123.
(1) Disconnect the connector B-123 and measure at the

harness side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Continuity (2 ohms or less).

Q: Does continuity exist?

YES : Go to Step 15.
NO :  Go to Step 13.

AK604203

1

2

3

AC

B-123 harness
connector:
component side

AK604204

1

2

3

AC

B-123 harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-389

STEP 13. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 19.

STEP 14. Check for open circuit and harness damage
between intake camshaft position sensor connector B-123
(terminal No. 2) and ECM connector B-10 (terminal No. 30).
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 19.

NO :  Repair it. Then go to Step 19.

STEP 15. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 16.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 19.

STEP 16. Check for harness damage between ECM
connector B-10 (terminal No. 9) and intake camshaft
position sensor connector B-123 (terminal No. 1).
Q: Is the harness wire in good condition?

YES : Go to Step 17.
NO :  Repair it. Then go to Step 19.

STEP 17. Check for harness damage between intake
camshaft position sensor connector B-123 (terminal No. 3)
and ECM connector B-10 (terminal No. 14).
Q: Is the harness wire in good condition?

YES : Go to Step 18.
NO :  Repair it. Then go to Step 19.

STEP 18. Check the intake camshaft position sensing
portion.
Q: Is the intake camshaft position sensing portion in good

condition?
YES : Replace the intake camshaft position sensor. Then go

to Step 19.

NO :  Replace the intake camshaft. Then go to Step 19.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-390

STEP 19. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 23

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0340 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

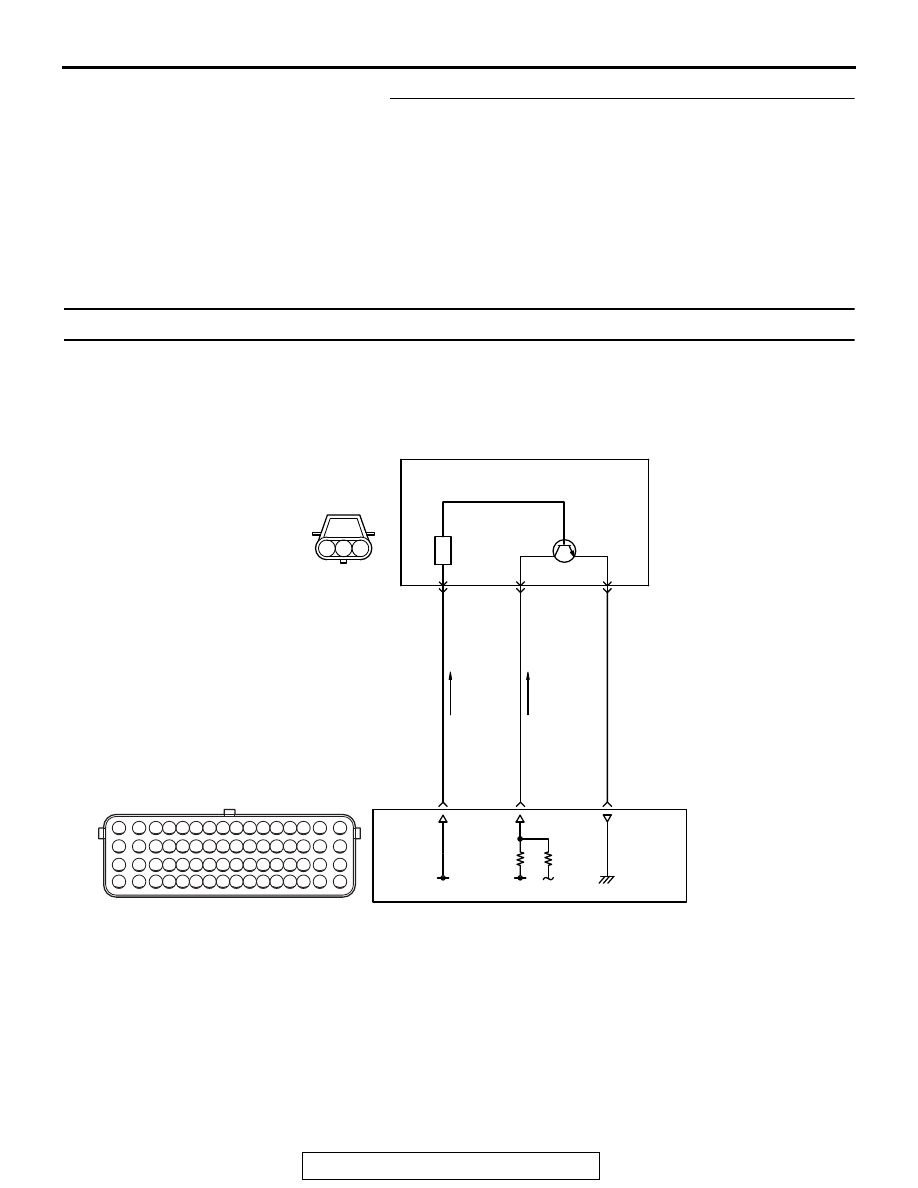

DTC P0365: Exhaust Camshaft Position Sensor Circuit

AK604247

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

3

2

1

EXHAUST CAMSHAFT POSITION SENSOR CIRCUIT

B-22

(MU802348)

B-10

9

1

BR

O

WN-WHITE

7

3

RED-WHITE

RED-BLUE

23

2

5 V

AF

EXHAUST CAMSHAFT
POSITION SENSOR

ENGINE
CONTROL
MODULE
