MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-227

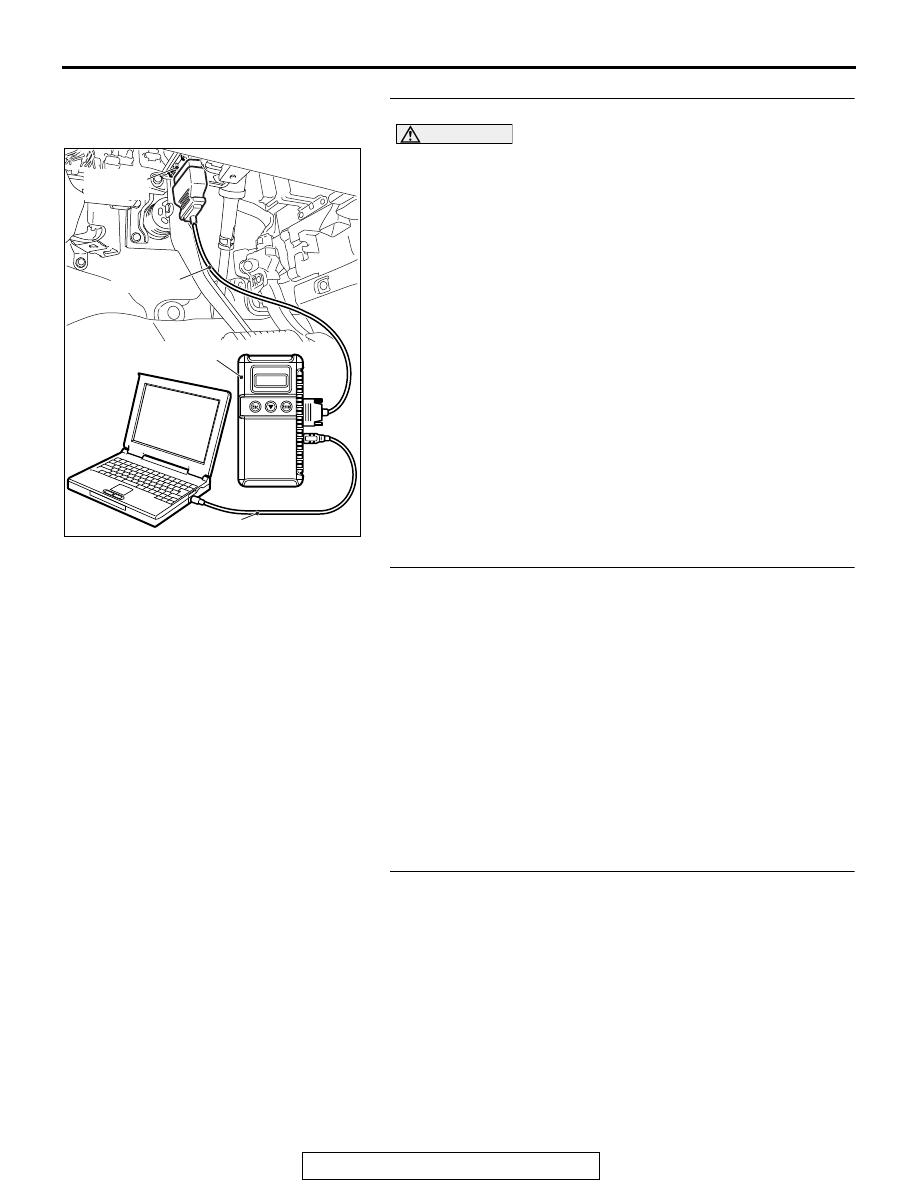

STEP 5. Test the OBD-II drive cycle.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position and delete the

DTC.

(3) Carry out the test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13A-11

.

(4) Check the diagnostic trouble code (DTC).
Q: Is DTC P0131 set?

YES : Then go to Step 6.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunctions

P.00-15

.

STEP 6. Replace the linear air-fuel ratio sensor.
(1) Replace the linear air-fuel ratio sensor.
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13A-11

.

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P0131 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 7.

NO :  The inspection is complete.

STEP 7. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0131 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

Next>>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-228

13A

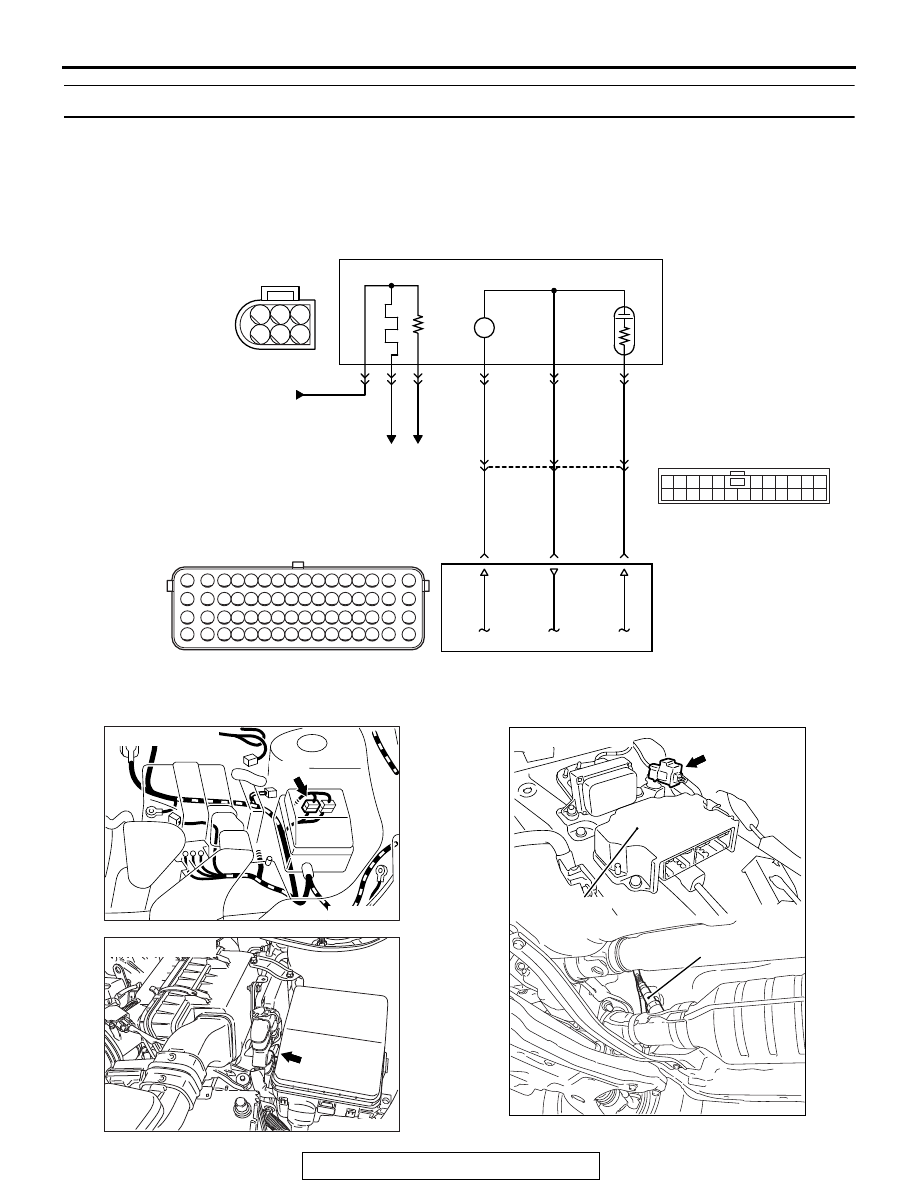

DTC P0132: Linear Air-Fuel Ratio Sensor Circuit High Voltage

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

P

3

2

1

6

5

4

AKA00449

1

12 13 14 15 16 1718 19 20 2122 2324

2 3 4 5

6 7 8 9 10 11

LINEAR AIR-FUEL RATIO SENSOR CIRCUIT

LINEAR
AIR-FUEL
RATIO
SENSOR

FROM
MFI RELAY

WHITE

BLA

CK

RED

WHITE

BLA

CK

RED

C-142

ENGINE
CONTROL
MODULE

38

39

56

4

5

1

14

20

21

2

6

3

B-10

A-12

AC

TO ECM TO ECM

AKA00842 AB

Connector: A-12

A-12

AK704090AB

Connector: B-10

B-10 (GR)

AK704089AD

Linear air-fuel
ratio sensor

SRS-ECU

Connector: C-142

C-142 (B)

<< Previous

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-229

.

CIRCUIT OPERATION

The linear air-fuel ratio sensor and the ECM are con-
nected by the following three lines to detect the
air-fuel ratio.

• The line between the linear air-fuel ratio sensor

(terminal No. 1) and the ECM (terminal No. 56)
detects the air-fuel ratio.

• The auxiliary line between the linear air-fuel ratio

sensor (terminal No. 4) and the ECM (terminal
No. 38) detects the air-fuel ratio.

• The line between the linear air-fuel ratio sensor

(terminal No. 5) and the ECM (terminal No. 39) is
connected to ground.

.

TECHNICAL DESCRIPTION

• The ECM effects air/fuel ratio feedback control in

accordance with the signals from the linear
air-fuel ratio sensor.

• If the linear air-fuel ratio sensor has deteriorated,

corrections will be made by the heated oxygen
sensor (rear).

.

DESCRIPTIONS OF MONITOR METHODS

• If one of the three line voltages is excessively

high or if all the three line voltages are exces-
sively high, the DTC is stored as a malfunction.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Linear air-fuel ratio sensor heater monitor

• Misfire monitor

• Fuel system monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

• Throttle position sensor

• Accelerator pedal position sensor

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-230

DTC SET CONDITIONS

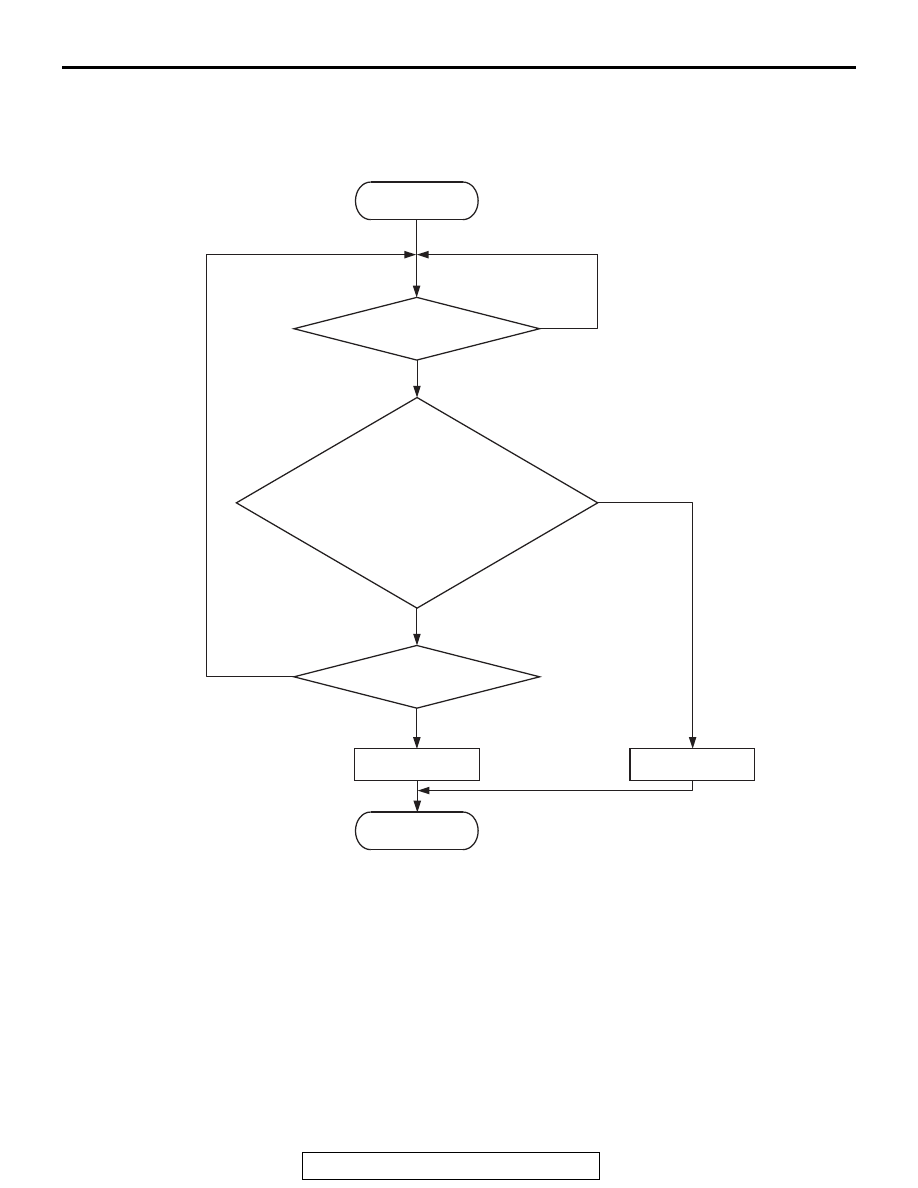

Logic Flow Chart

.

Check Conditions

• Battery positive voltage is between 10 and 16.5

volts.

• More than 40 seconds have passed since the

engine starting sequence was completed.

Judgement Criterion

• The pumping circuit voltage is higher than the

battery positive voltage from which you subtract
1.2 volt for 2 seconds.

or

• The reference circuit voltage is higher than bat-

tery positive voltage from which you subtract 1.2
volt for 2 seconds.

or

• The negative circuit voltage is be higher than 6.2

volts for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnosis Function

− OBD-II Drive Cycle −

Pattern 22

P.13A-11

.

.

End

Malfunction

No

No

No

2secs have passed?

Pumping circuit voltage > Battery voltage -1.2 V

or

Reference circuit voltage > Battery voltage -1.2 V

or

Negative circuit voltage > 6.2 V

Good

AK900358

Start

Yes

Yes

Yes

Monitoring
conditions
