DOOR AJAR WARNING TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-385

NOTES

SEAT BELT WARNING TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-386

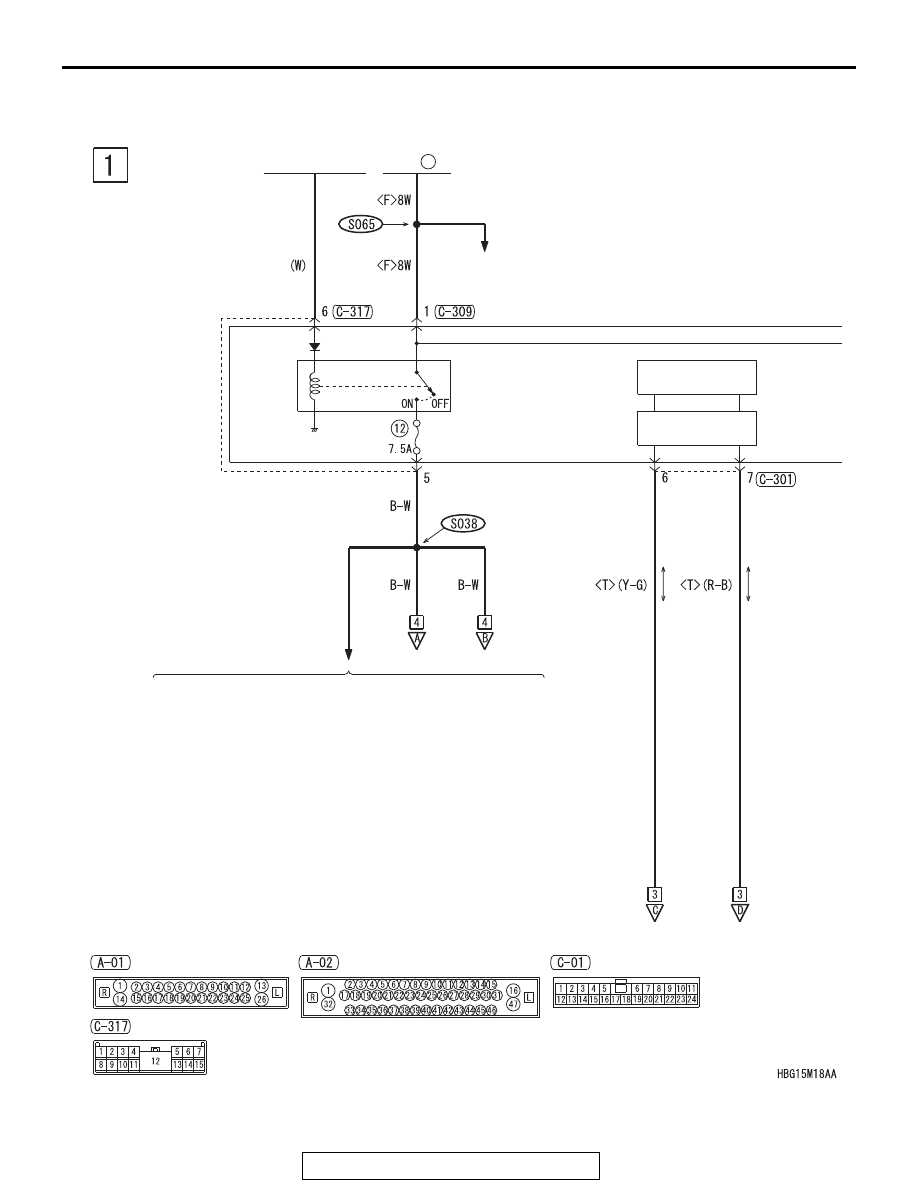

SEAT BELT WARNING TONE ALARM

M1901011202370

ETACS-
ECU

POWER
DISTRIBUTION
SYSTEM

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
 AND ACTIVE STABILITY CONTROL
 SYSTEM (ASC)
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE
 ALARM <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM

·INVECS-II 6A/T
·INVECS-III CVT
·KEYLESS OPERATING SYSTEM
 (KOS)
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SHIFT LOCK MECHANISM
·SUNROOF
·TAILLIGHT, POSITION LIGHT,
 REAR SIDE MARKER LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
 SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
 WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

SEAT BELT WARNING TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-387

FRONT SIDE

CAN DRIVE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

ABS-ECU

ASC-ECU

DATA LINK
CONNECTOR

NOTE

INPUT SIGNAL

ANALOG
INTERFACE
CIRCUIT

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

: VEHICLES WITHOUT ASC
: VEHICLES WITH ASC

JOINT
CONNECTOR
(CAN2)

JOINT
CONNECTOR
(CAN3)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

SEAT BELT WARNING TONE ALARM

TSB Revision

CIRCUIT DIAGRAMS

90-388

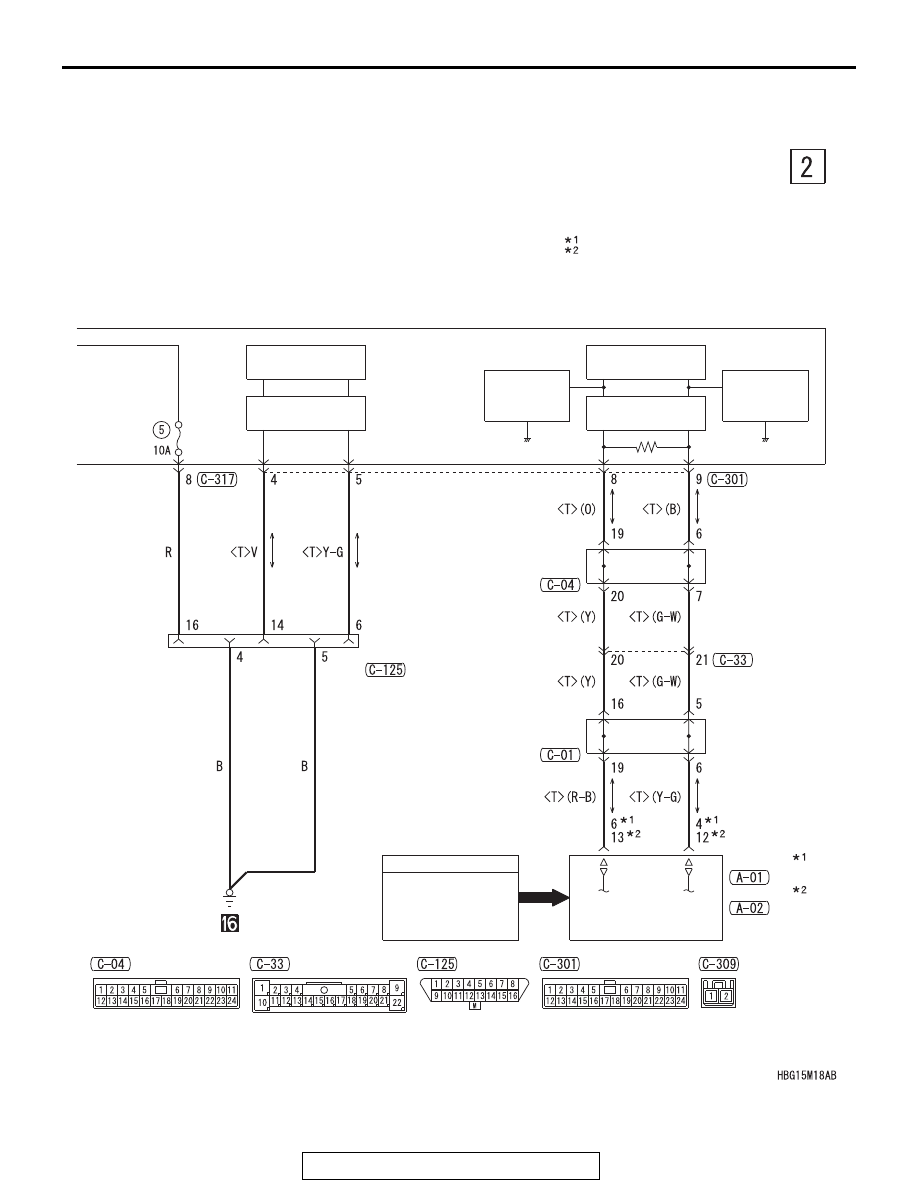

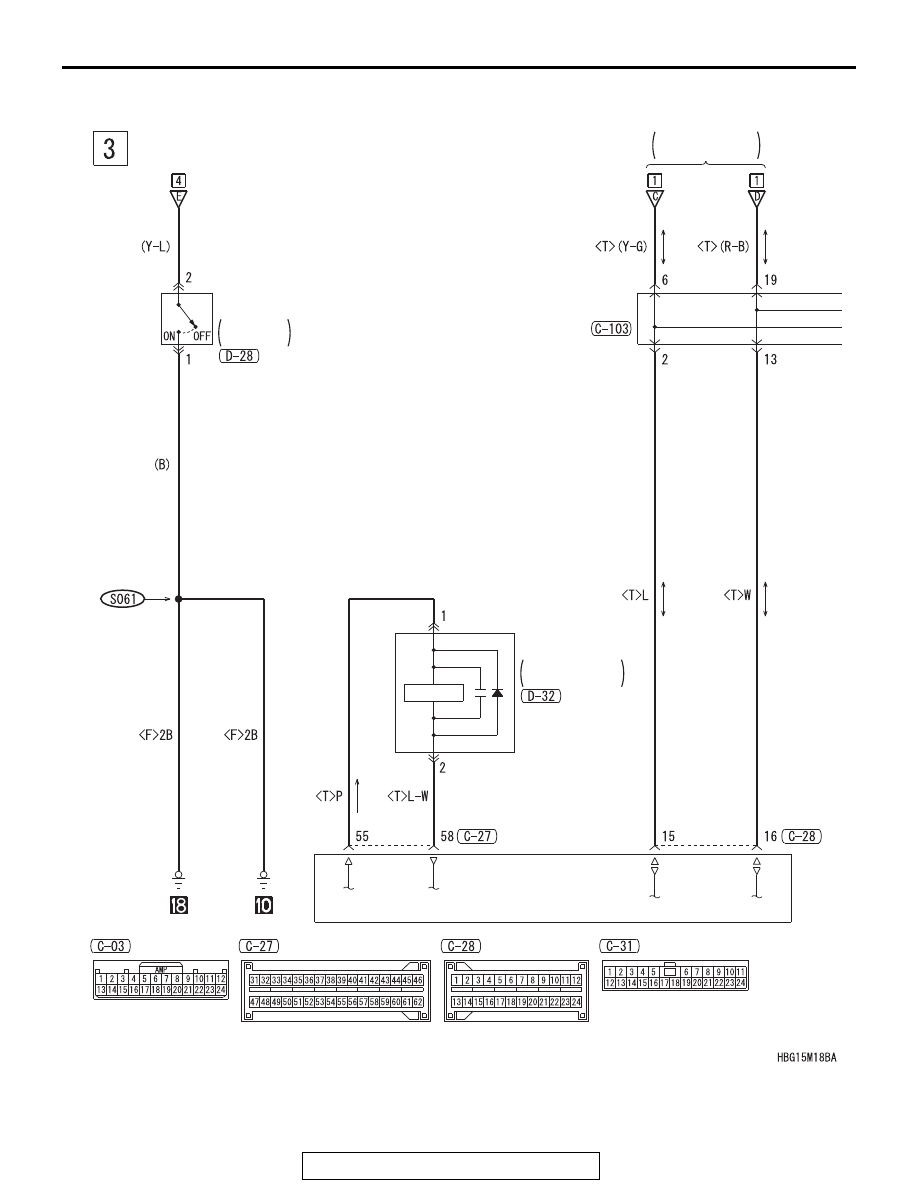

SEAT BELT WARNING TONE ALARM (CONTINUED)

ETACS-ECU

CAN
DRIVE CIRCUIT

JOINT
CONNECTOR
(CAN1)

COMBINATION
METER

SRS-
ECU

HALL IC

DRIVER'S
SIDE

SEAT BELT
SWITCH

PASSENGER'S
SIDE

SEAT BELT
SWITCH
