KEYLESS OPERATING SYSTEM (KOS)

TSB Revision

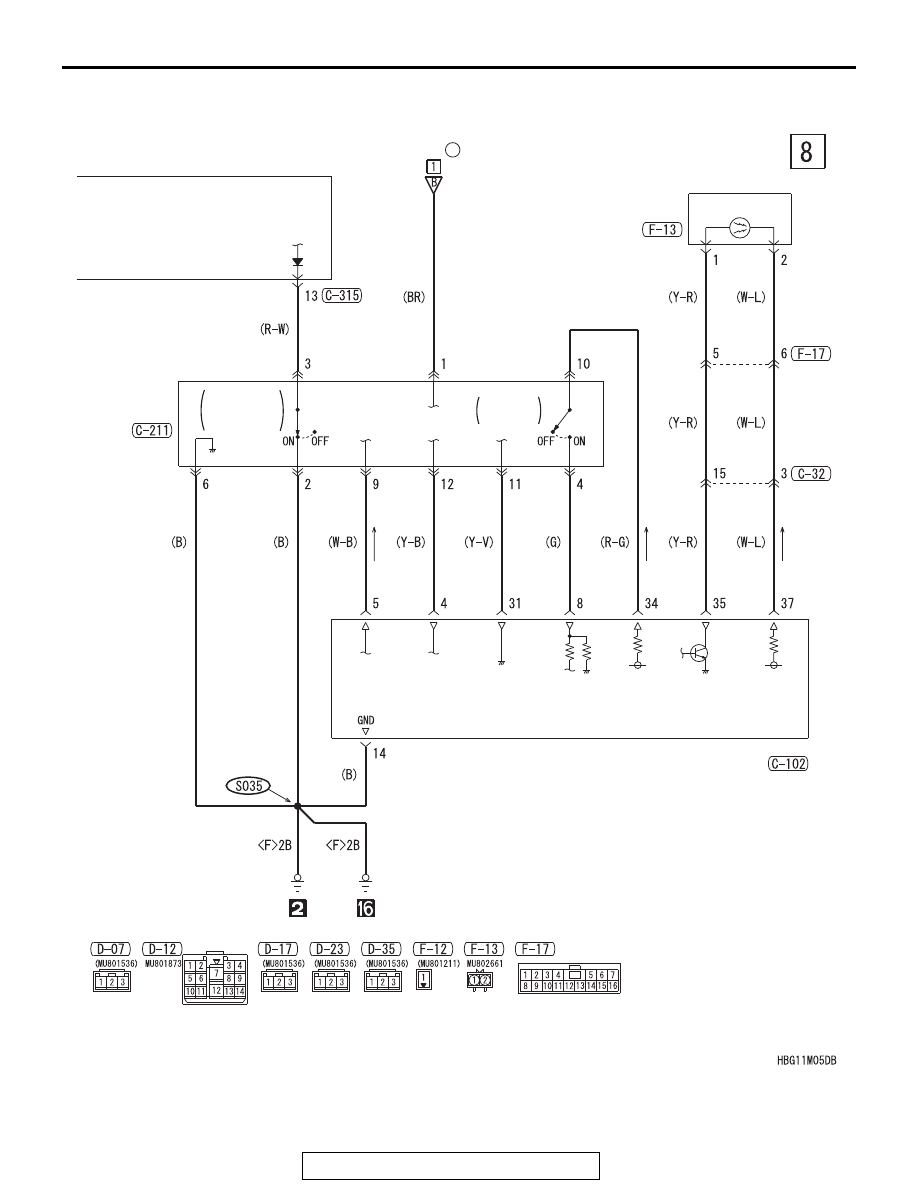

CIRCUIT DIAGRAMS

90-193

ETACS-ECU

(FUSE     )

8

ETACS-ECU

KEY
REMINDER
SWITCH

WHEN
REMOVING
KEY: ON

PUSH
SWITCH

OUTER TONE
ALARM

KOS-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

KEYLESS OPERATING SYSTEM (KOS)

TSB Revision

CIRCUIT DIAGRAMS

90-194

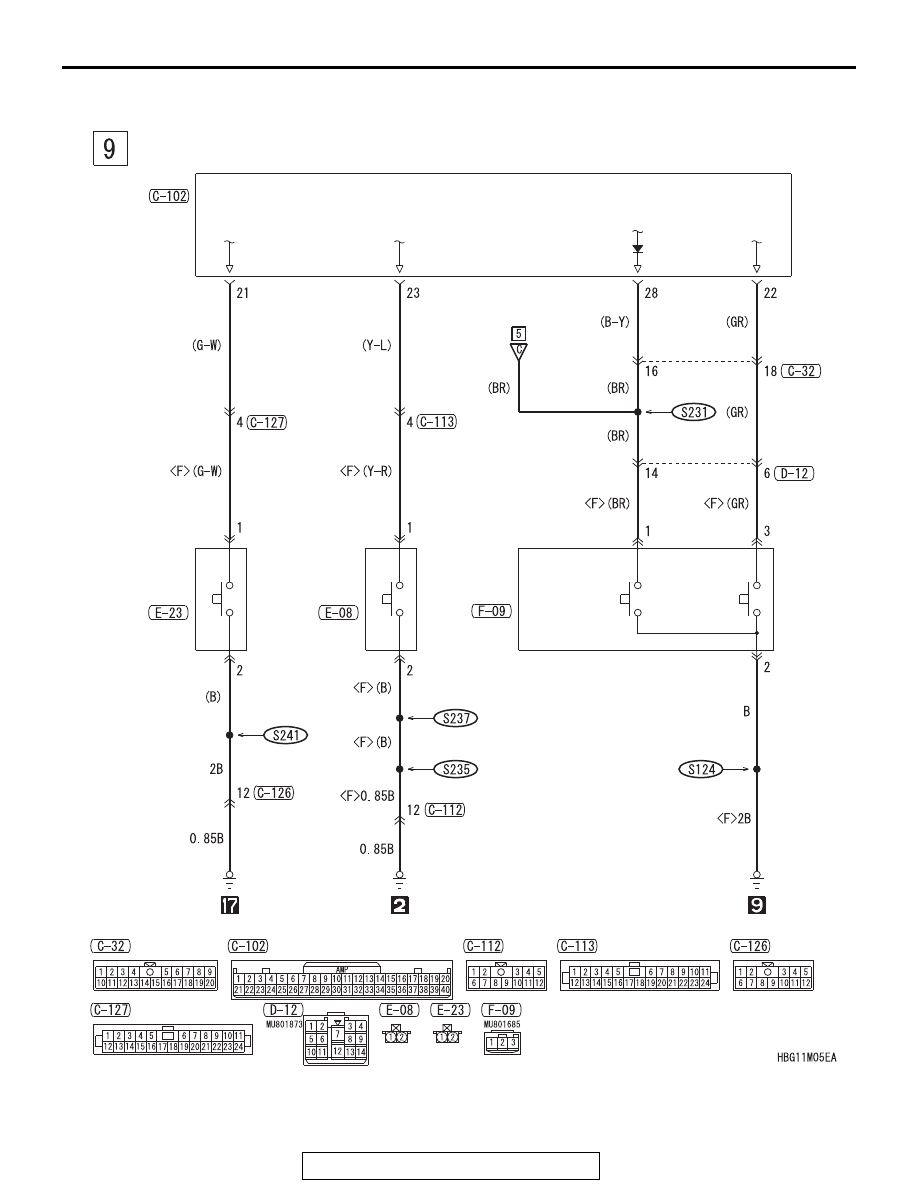

KEYLESS OPERATING SYSTEM (KOS) (CONTINUED)

LOCK/UNLOCK
SWITCH
(FRONT
DOOR: LH)

LOCK/UNLOCK
SWITCH
(FRONT
DOOR: RH)

LIFTGATE
LOCK
RELEASE
HANDLE

KOS-ECU

ETACS-ECU

OPEN
SWITCH

LOCK
SWITCH

KEYLESS OPERATING SYSTEM (KOS)

TSB Revision

CIRCUIT DIAGRAMS

90-195

NOTES

AIR CONDITIONING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-196

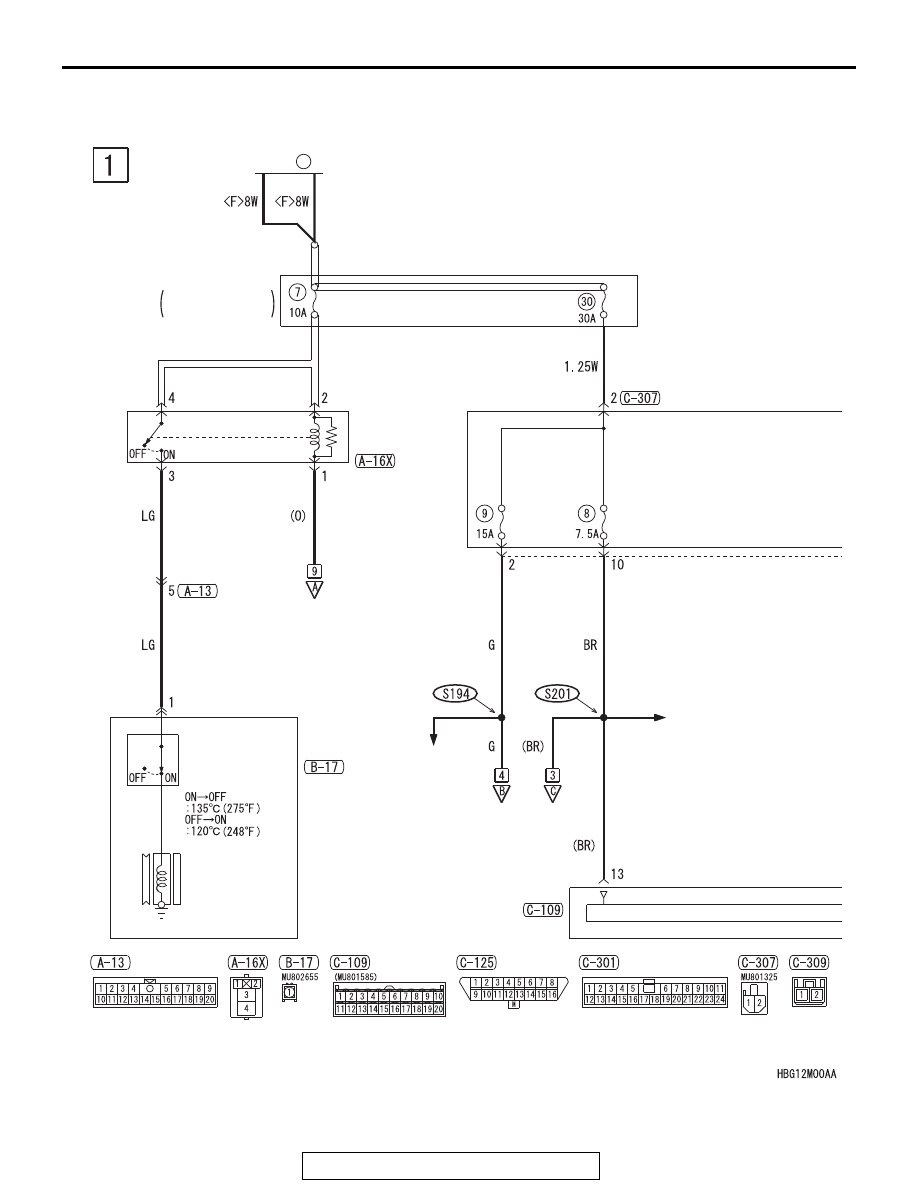

AIR CONDITIONING SYSTEM

M1901032100930

A/C
COMPRESSOR
RELAY

ETACS-ECU

A/C
REFRIGERANT
TEMPERATURE
SWITCH

A/C
COMPRESSOR
CLUTCH

FRONT SIDE

POWER SUPPLY

FUSIBLE
LINK

36

A/C-ECU

RELAY BOX

ENGINE
COMPARTMENT

A/C
COMPRESSOR
ASSEMBLY

·CENTRAL DOOR
 LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT
 AND IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER
 TONE ALARM
 <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING
 SYSTEM (KOS)
·REAR WIPER AND WASHER
·TAILLIGHT, POSITION LIGHT,
 REAR SIDE MARKER LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR
 TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
 SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND
 WASHER

THEFT-ALARM
SYSTEM
