POWER DISTRIBUTION SYSTEM
TSB Revision

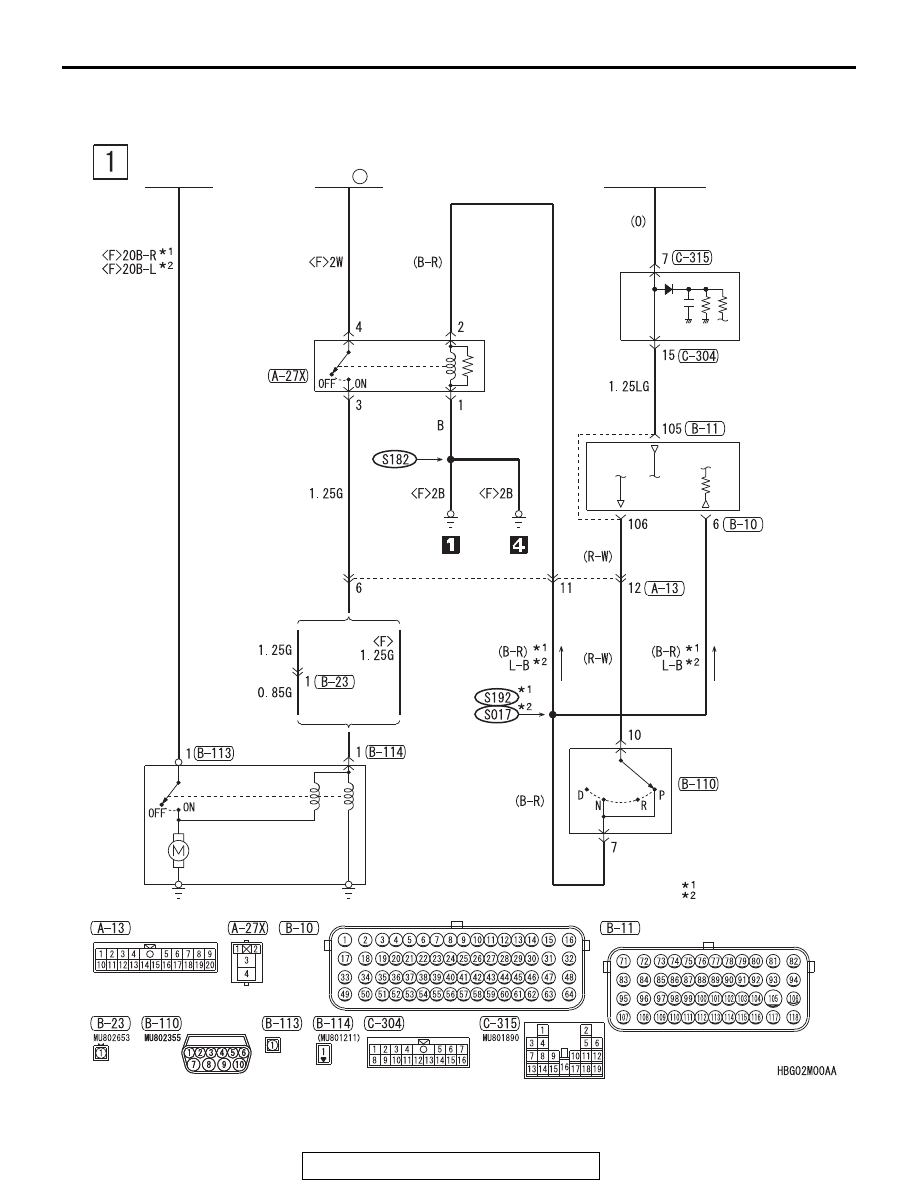

CIRCUIT DIAGRAMS
90-29
ACC
RELAY 3
·REAR WIPER
AND WASHER
·WINDSHIELD
WIPER AND
WASHER
REAR WIPER
AND WASHER
·CENTRAL DOOR
LOCKING SYSTEM
·SPARE CONNECTOR
(FOR TRAILER LIGHTS)
·TURN-SIGNAL LIGHT
AND HAZARD
WARNING LIGHT
SUNROOF
·ANTI-LOCK BRAKING SYSTEM (ABS)
AND ACTIVE STABILITY CONTROL
SYSTEM (ASC)
·ELECTRONIC CONTROLLED AWD
·S-AWC
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
POWER WINDOWS
FUSIBLE
LINK
34
·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
AND ACTIVE STABILITY CONTROL
SYSTEM (ASC)
·AUDIO SYSTEM
·BACKUP LIGHT
·BRAKE WARNING LIGHT, FUEL
WARNING LIGHT AND OIL PRESSURE
WARNING LIGHT
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·CONTROLLER AREA NETWORK (CAN)
·COOLING SYSTEM
·CRUISE CONTROL SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
COMPARTMENT LIGHT AND IGNITION
KEY HOLE ILLUMINATION LIGHT
·DOOR AJAR WARNING TONE ALARM
·ELECTRONIC CONTROLLED AWD
·FOG LIGHT
·HEADLIGHT
·HEADLIGHT MANUAL
LEVELING SYSTEM
·IGNITION KEY REMINDER
TONE ALARM
·IMMOBILIZER SYSTEM
·INVECS-II 6A/T
·INVECS-III CVT
·KEYLESS OPERATING SYSTEM (KOS)
·METER AND GAUGE
·MFI SYSTEM
·MITSUBISHI MULTI-COMMUNICATION
SYSTEM (MMCS)
·PARKING BRAKE REMINDER TONE ALARM
·POWER WINDOWS
·REAR SEAT ENTERTAINMENT SYSTEM
·REAR WIPER AND WASHER
·S-AWC
·SEAT BELT WARNING TONE ALARM
·SPARE CONNECTOR (FOR REAR DISPLAY)
·SPARE CONNECTOR
(FOR SATELLITE RADIO)
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
·TAILLIGHT, POSITION LIGHT, REAR SIDE
MARKER LIGHT, LICENSE PLATE LIGHT
AND LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING SYSTEM
(TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
·ANTI-LOCK BRAKING
SYSTEM (ABS)
·ANTI-LOCK BRAKING
SYSTEM (ABS)
AND ACTIVE STABILITY
CONTROL SYSTEM (ASC)
·CRUISE CONTROL
SYSTEM
·INVECS-II 6A/T
·INVECS-III CVT
·MFI SYSTEM
·SHIFT LOCK MECHANISM
·SPARE CONNECTOR
(FOR TRAILER LIGHTS)
·STOPLIGHT
·GLOVE BOX LIGHT
·SPARE CONNECTOR
(FOR TRAILER LIGHTS)
·TAILLIGHT, POSITION LIGHT,
REAR SIDE MARKER LIGHT,
LICENSE PLATE LIGHT AND
LIGHTING MONITOR
TONE ALARM
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
