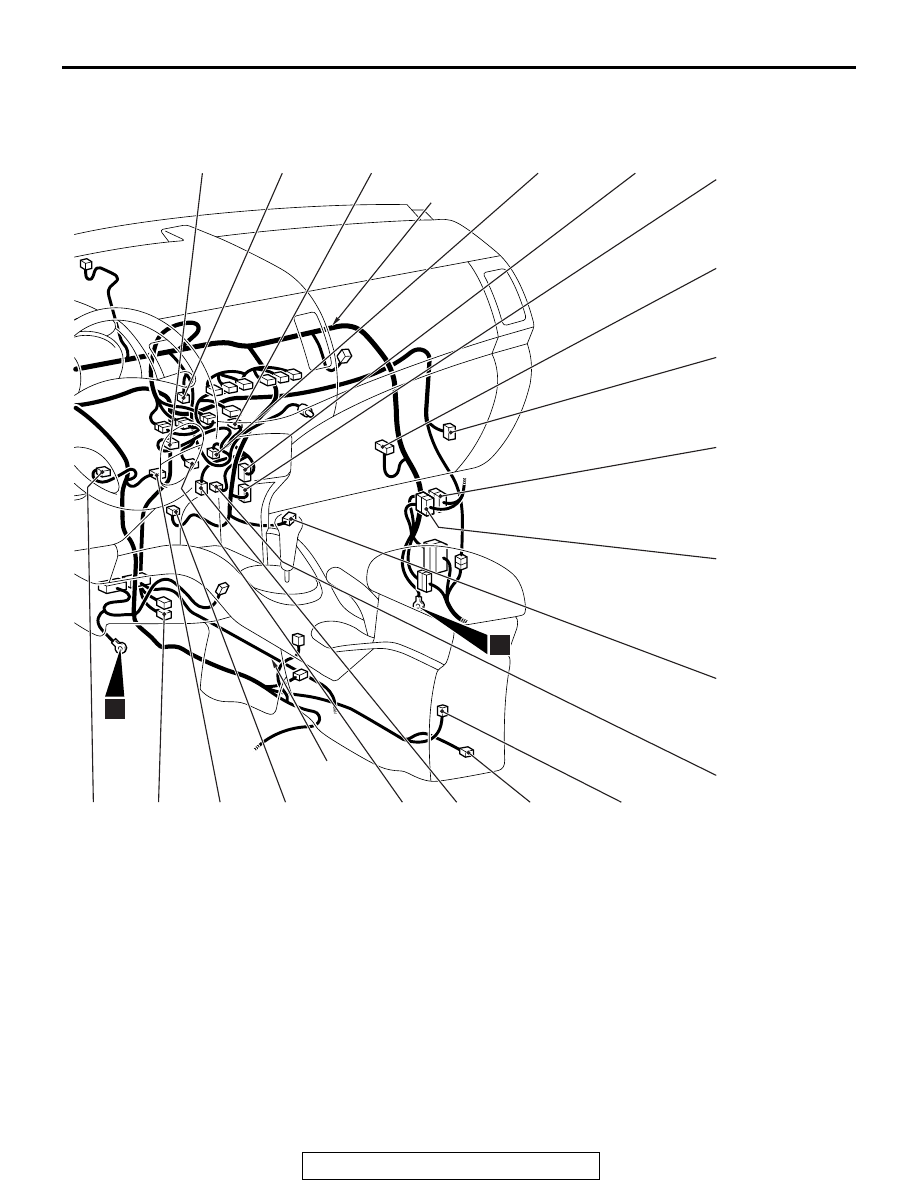

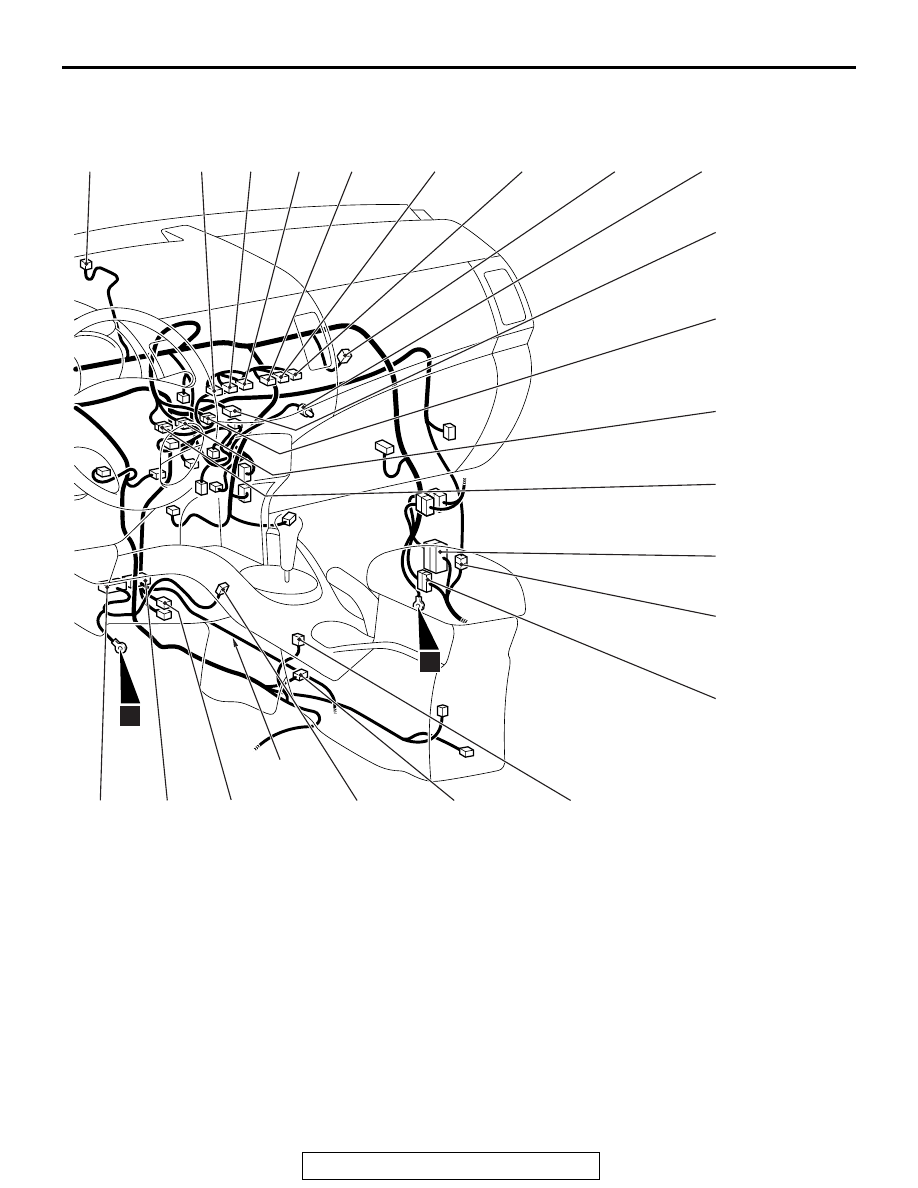

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-19

ACA01904AB

C-05

C-39

C-06

C-07

C-08

C-09

C-10

C-11

C-12

C-13

C-14
C-15

C-16
C-17

C-18
C-19

C-20

C-21

C-22

C-23
C-41

C-24

C-25

C-26

C-27

C-28

Floor wiring
harness

2

16

C-24

(10)

Selector lever assembly

C-25

(2)

Accessory socket (Front floor console)

C-26

(4-B)

G and yaw rate sensor <Vehicles with
ASC>

C-27

(32-Y)

SRS-ECU

C-28

(24-Y)

SRS-ECU

C-29

(12)

Wireless control module <Vehicles
without KOS>

C-30

(12)

Receiver antenna module <Vehicles
with KOS>

C-31

(24)

Instrument panel wiring harness and
floor wiring harness combination

C-32

(20)

Instrument panel wiring harness and
floor wiring harness combination

C-33

(22)

Instrument panel wiring harness and
front wiring harness combination

C-34

(16-BR) Instrument panel wiring harness and

front wiring harness combination

C-35

(2)

Instrument panel wiring harness and
front wiring harness combination

C-36

(12)

Instrument panel wiring harness and
roof wiring harness combination

C-37

(22)

Transaxle control module

C-38

(26)

Transaxle control module

C-39

(12-GR) Multivision display

C-40

(8)

LIN cut off control unit <Vehicles with
theft-alarm sensor>

C-41

(5)

S-AWC control mode selector
<S-AWC>

C-42

(12)

Front wiring harness and AWD sub
wiring harness combination <S-AWC>

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-20

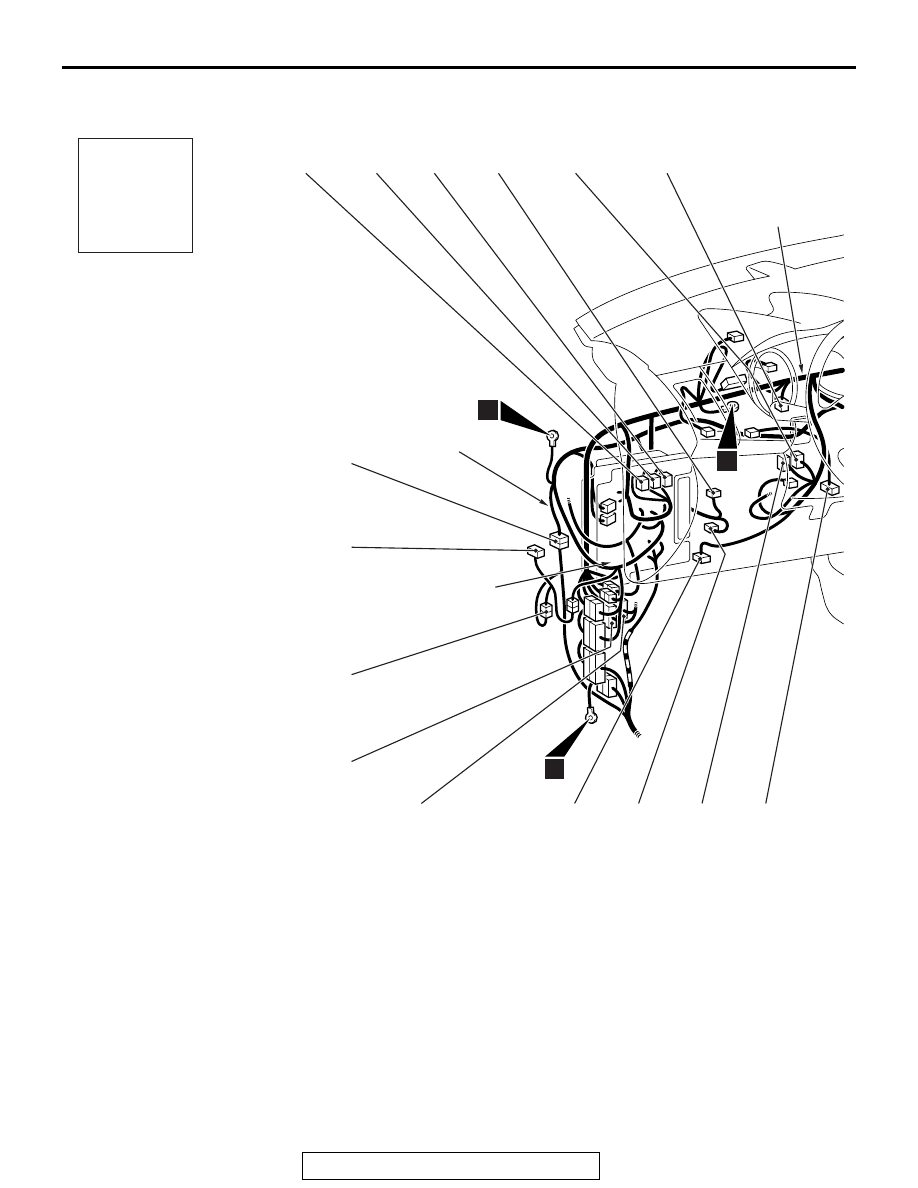

DASH PANEL (CONTINUED)

ACA01903AC

Connector
symbol

-101
thru
-142

C

C-101

C-131

C-132

C-133

C-102

C-103

C-123

C-137

C-124

C-125

C-126

C-127

C-138

C-129

C-128
C-139

17

19

Front wiring
harness

Instrument panel
wiring harness

ETACS-
ECU

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

6

C-101 (6)

ASC off switch

C-102 (40)

KOS-ECU

C-103 (24)

Joint connector (CAN 1)

C-104 (16)

Center panel unit

C-105 (2)

Radio antenna

C-106 (5-G)

Outside/inside air selection damper

control motor

C-107 (5-G)

Mode selection damper control motor

C-108 (16-B) A/C-ECU
C-109 (20-B) A/C-ECU
C-110 (26)

No connection <3.0L engine (Vehicles with

ASC)>

C-111 (14)

Satellite radio tuner or spare connector

(for satellite radio)

C-112 (12)

Instrument panel wiring harness and front

door wiring harness (RH) combination

C-113 (24-BR)Instrument panel wiring harness and front

door wiring harness (RH) combination

C-114 (2)

Blower motor

C-115 (5-G)

Air mixing damper control motor

C-116 (2)

Accessory socket (Rear floor console)

C-117 (6-B)

Audio or audio/video adapter

C-118 (2)

Air thermo sensor

C-119 (12)

A/C control panel

C-120 (4)

Power transistor

C-122 (2)

Interior temperature sensor <Vehicles with

automatic air conditioning system>

C-123 (6-B)

Accelerator pedal position sensor

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-21

ACA01904AC

C-104

C-105

C-106

C-107

C-108

C-109

C-110

C-111

C-112

C-113

C-114

C-115

C-116

C-117

C-118

C-119

C-120

C-142

C-135
C-141

C-122

2

16

Floor wiring
harness

Instrument panel
wiring harness

C-124 (4)

Stop lamp switch

C-125 (16-B)

Data link connector

C-126 (12)

Instrument panel wiring harness and

front door wiring harness (LH)

combination

C-127 (24-BR) Instrument panel wiring harness and

front door wiring harness (LH)

combination

C-128 (16)

AWD-ECU <Electronic controlled AWD>

C-129 (22)

Front wiring harness and floor wiring

harness combination

C-131 (6-GR)

Headlight leveling switch <Vehicles with

discharge type headlight>

C-132 (6-L)

No connection

C-133 (8)

Stoplight relay

C-135 (28)

USB box

C-137 (24)

No connection

C-138 (16-BR) Floor wiring harness and AWD sub

wiring harness combination

C-139 (26)

AWC-ECU <S-AWC>

C-141 (28)

Hands-free module

C-142 (6-B)

Linear air-fuel ratio sensor <2.4L
engine>

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-22

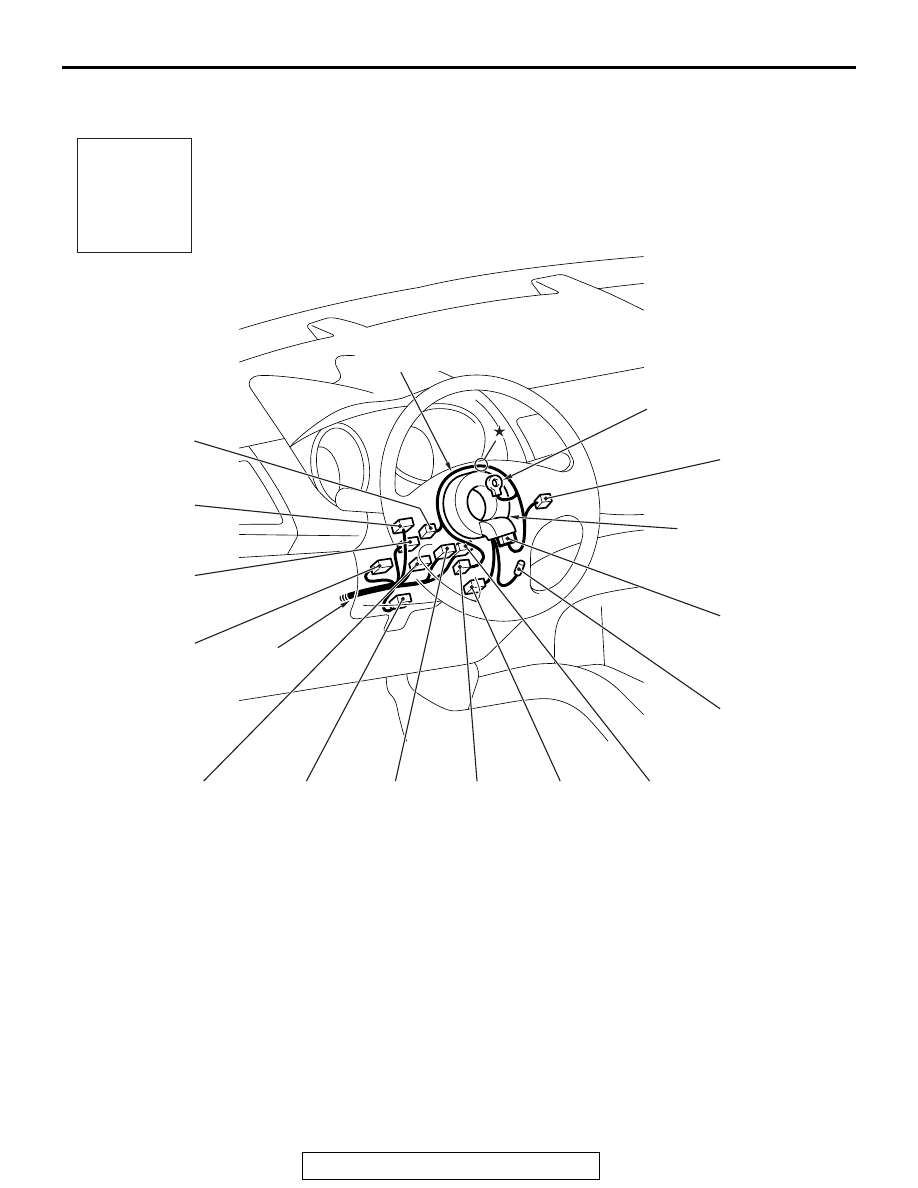

DASH PANEL (CONTINUED)

AC900147

AF

Instrument panel
wiring harness

Connector
symbol

-201
thru
-213

C

Steering column

Clock
spring

C-201

C-202

C-203

C-204

C-205

C-206

C-207

C-208

C-209

C-210

C-211

C-212

C-213

Steering
switch earth

Steering sub
wiring harness

C-201 (4-L)

Cruise control switch

C-202 (5)

Clock spring and steering sub wiring
harness combination

C-203 (1)

Horn switch

C-204 (6)

Clock spring

C-205 (4-Y)

Driver's air bag module (squib)

C-206 (4-Y)

Steering wheel voice control switch

C-207 (4-Y)

Clock spring

C-208 (3)

Paddle shift switch

C-209 (5)

Steering wheel sensor <Vehicles with
ASC>

C-210 (6)

Ignition switch

C-211 (12)

Key reminder switch

C-212 (10)

Column switch

C-213 (5-R)

Steering wheel audio remote control
switch
