DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-209

STEP 2. M.U.T.-III diagnostic trouble code.
Check the ETACS diagnostic trouble code. (Refer to GROUP
54A

− Troubleshooting

P.54A-732

).

Q: Is the diagnostic trouble code set?

YES : Perform the relevant troubleshooting.
NO :  Go to Step 3.

STEP 3. Check whether the diagnostic trouble code is
reset.
Q: Is diagnostic trouble code No.C1631 set?

YES : Replace the AWC-ECU. (Refer to

P.23C-295

). Then

go to Step 4.

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

).

STEP 4. Check whether the diagnostic trouble code is
reset.
Q: Is diagnostic trouble code No.C1631 set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

Code No. C1632: Engine CAN Data (not received)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

AWC-ECU communicates with the engine control
module via the CAN bus lines.

.

DIAGNOSTIC TROUBLE CODE SET
CONDITIONS

This diagnostic trouble code is set when the CAN
signal of the engine control module cannot be
received.

.

PROBABLE CAUSES

• Malfunction of the CAN bus line

• Damaged connectors (Engine control module)

• Malfunction of engine control module

• Malfunction of AWC-ECU

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use scan tool to perform the CAN bus diagnosis.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-17

). After repairing the CAN

bus line, go to Step 2.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-210

STEP 2. M.U.T.-III diagnostic trouble code.
Check the engine diagnostic trouble code. (Refer to GROUP
13B

−Troubleshooting

P.13B-50

).

Q: Is the diagnostic trouble code set?

YES : Perform the relevant troubleshooting.
NO :  Go to Step 3.

STEP 3. Check whether the diagnostic trouble code is
reset.
Q: Is diagnostic trouble code No.C1632 set?

YES : Replace the AWC-ECU. (Refer to

P.23C-295

). Then

go to Step 4.

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

).

STEP 4. Check whether the diagnostic trouble code is
reset.
Q: Is diagnostic trouble code No.C1632 set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

Code No. C1633: A/T CAN Data (not received)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnostic trouble code may be
set. Prior to this diagnosis, diagnose the CAN
bus lines.

• Whenever the ECU is replaced, ensure that

the CAN bus lines are normal.

.

OPERATION

AWC-ECU communicates with A/T-ECU via the CAN
bus lines.

.

DIAGNOSTIC TROUBLE CODE SET
CONDITIONS

This diagnostic trouble code is set when the CAN
signal of the A/T-ECU cannot be received.

.

PROBABLE CAUSES

• Malfunction of the CAN bus line

• Damaged connectors (A/T-ECU)

• Malfunction of A/T-ECU

• Malfunction of AWC-ECU

• Coding failure (installation of M/T for a vehicle

with A/T specification, failure coding of A/T for a
vehicle with M/T specification)

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics.
Use scan tool to perform the CAN bus diagnosis.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C

−

Troubleshooting

P.54C-17

).

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-211

STEP 2. M.U.T.-III diagnostic trouble code.
Check the A/T diagnostic trouble code. (Refer to

P.23C-164

).

Q: Is the diagnostic trouble code set?

YES : Perform the relevant troubleshooting.
NO :  Go to Step 3.

STEP 3. ETACS-ECU coding data check.
Check the Transaxle coding data stored in ETACS-ECU for any
abnormality. (Refer to GROUP 00

− Coding Reference Table

P.00-44

).

Q: Is the check result normal?

YES : Go to Step 4.
NO :  Replace the ETACS-ECU. (Refer to GROUP 54A

−

ETACS-ECU

P.54A-825

). Then go to Step 5.

STEP 4. Check whether the diagnostic trouble code is
reset.
Q: Is diagnostic trouble code No.U0101 set?

YES : Replace the AWC-ECU. (Refer to

P.23C-295

). Then

go to Step 5.

NO :  Intermittent malfunction. (Refer to GROUP 00

− How

to Cope with Intermittent Malfunction

P.00-15

).

STEP 5. Check whether the diagnostic trouble code is
reset.
Q: Is diagnostic trouble code No.U0101 set?

YES : Return to Step 1.
NO :  This diagnosis is complete.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-212

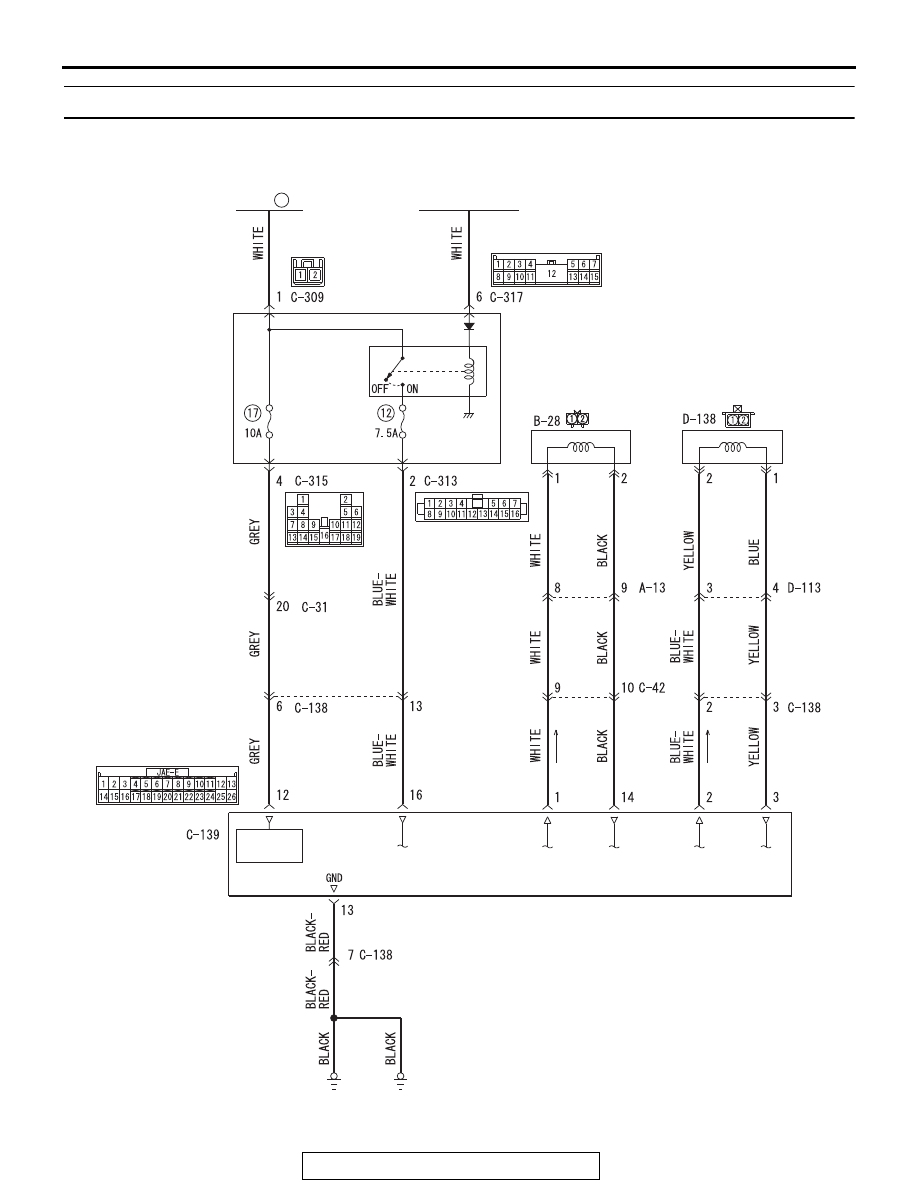

Code No.C2100: Battery Voltage Malfunction (Low Voltage)

AC902491

Power supply system circuit

ETACS-
ECU

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

AWC-ECU

POWER
SUPPLY

ELECTRONIC
CONTROL
COUPLING
SOLENOID
(CENTER)

ELECTRONIC
CONTROL
COUPLING
SOLENOID
(FRONT)

AB
