AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-37

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the transmission range switch sys-

tem circuit

• Damaged harness or connector

• Improper installation angle of transmission range

switch

• Malfunction of the transmission range switch

• Malfunction of the TCM

DIAGNOSIS

STEP 1. Check the TCM terminal voltage.
[C-38 TCM connector (vehicle side, connected)]
Turn ON the ignition switch, and check by shifting to each
range.

• "P" range: Terminal No. 6 to body ground → Battery positive

voltage

• "R" range: Terminal No. 7 to body ground → Battery posi-

tive voltage

• "N" range: Terminal No. 21 to body ground → Battery posi-

tive voltage

• "D" range: Terminal No. 8 to body ground → Battery posi-

tive voltage

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Go to Step 2.

STEP 2. Check the path between the ignition switch and
the transmission range switch.
Turn OFF the ignition switch, and check the following items.

• Open/short circuit of wiring harness between the ignition

switch and B-110 transmission range switch connector ter-
minal No. 3.

• Blown fuse

Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair or replace the failure section.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-38

STEP 3. Check the wiring harness between the
transmission range switch and TCM.
Check for continuity between B-110 transmission range switch
terminals and C-38 TCM terminals.
NOTE: Prior to the wiring harness inspection, check the inter-
mediate connectors A-12 and A-13, and repair that if neces-
sary.

• Between B-110 terminal No. 2 and C-38 terminal No. 6: At

the "P" range, continuity exists.

• Between B-110 terminal No. 9 and C-38 terminal No. 7: At

the "R" range, continuity exists.

• Between B-110 terminal No. 8 and C-38 terminal No. 21: At

the "N" range, continuity exists.

• Between B-110 terminal No. 5 and C-38 terminal No. 8: At

the "D" range, continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair or replace the failure section.

STEP 4. Check the transmission range switch as a single
unit.
Refer to

P.23C-269

.

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Go to Step 7.

STEP 5. Check the TCM connector pin terminal and the
connection status.
Q: Is there a failure point?

YES : Repair or replace the failure section.
NO :  Replace the TCM.

STEP 6. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Replace the TCM.

STEP 7. Adjust the transmission range switch.
Refer to

P.23C-269

.

After adjustment, check the continuity between the terminals
again.
Q: Is the check result normal?

YES : Go to Step 8.
NO :  Replace the transmission range switch.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-39

STEP 8. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Return to START.

DTC P0712: Transmission Fluid Temperature Sensor System (Short Circuit)

TRANSMISSION
FLUID
TEMPERATURE
SENSOR

A/T CONTROL
SOLENOID
VALVE
ASSEMBLY

TRANSMISSION
CONTROL
MODULE

AC702728

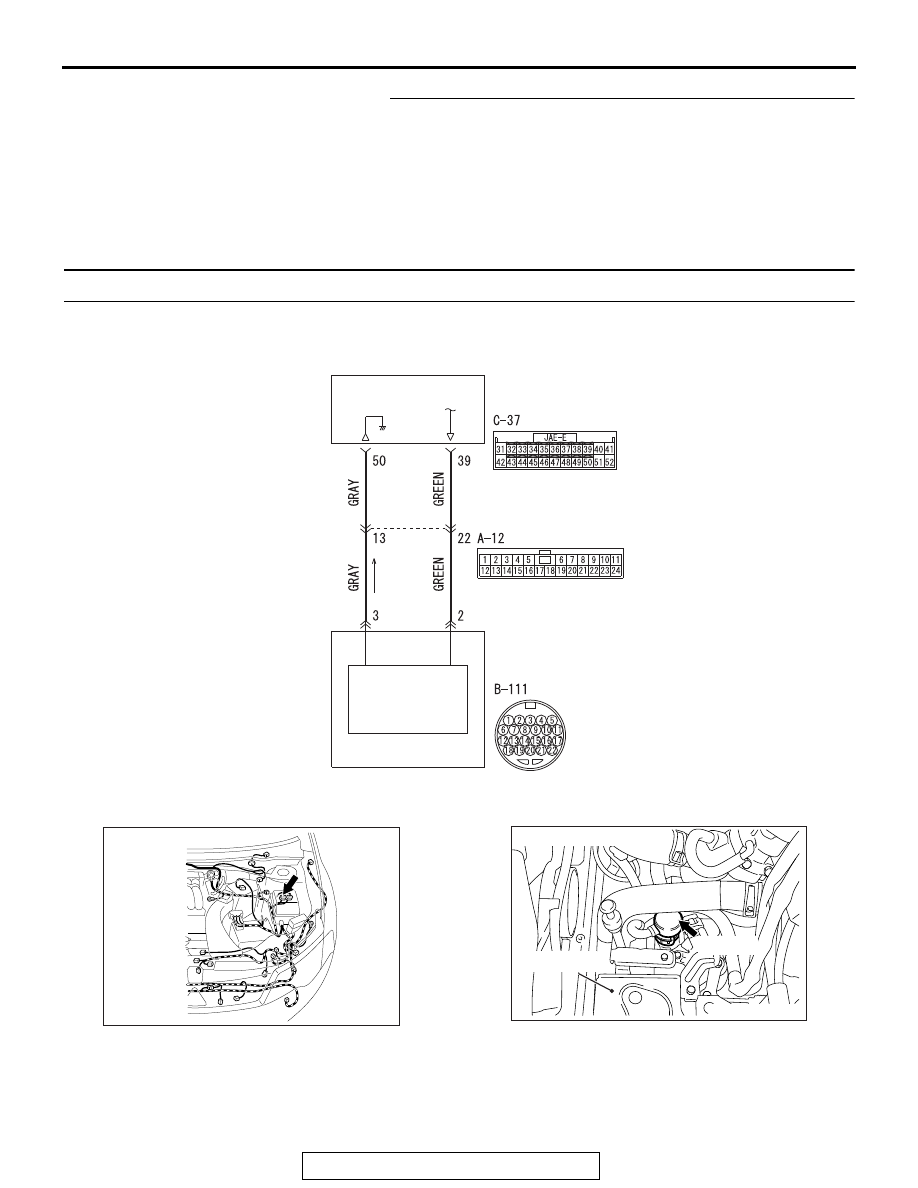

Transmission fluid temperature sensor circuit

AB

AC702932

Connector: A-12

AH

AC703256

B-111 (B)

Connector: B-111

Battery tray

AB

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-40

.

DESCRIPTIONS OF MONITOR METHODS

• When the status of transmission fluid tempera-

ture 180

°C (356°F) or more is detected for 10

minutes continuously with the conditions as fol-
lows; Vehicle speed: 10 km/h (6.2 mph) or more,
transmission range switch position: D, accelera-
tor pedal position: 12.5% or more, engine speed:
more than 500 r/min

.

MONITOR EXECUTION

• transmission range:D

• Vehicle speed: more than 10 km/h (6.2 mph)

• Throttle valve opening: more than 1/8

• Engine speed: more than 305 r/min

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

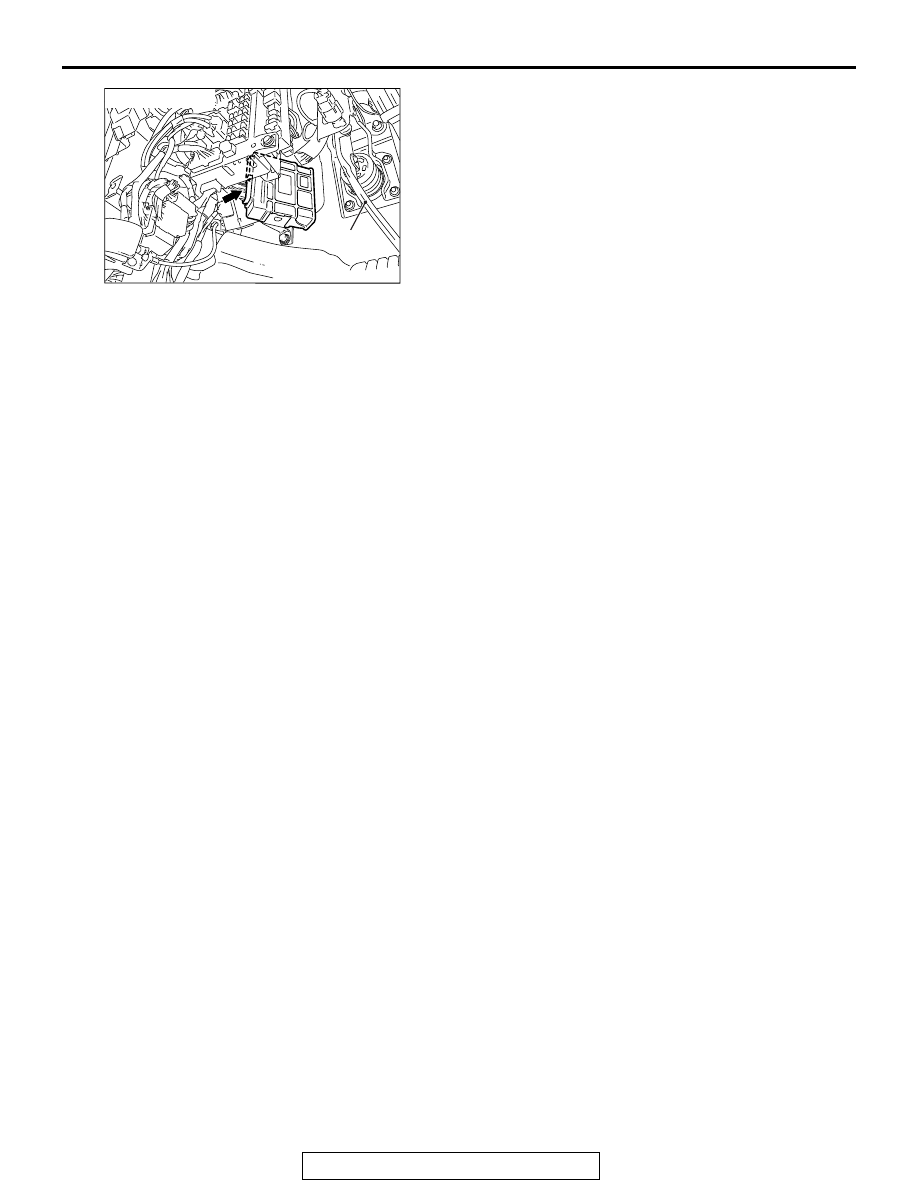

AC703253

Connector: C-37

Brake pedal

AC
