TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-45

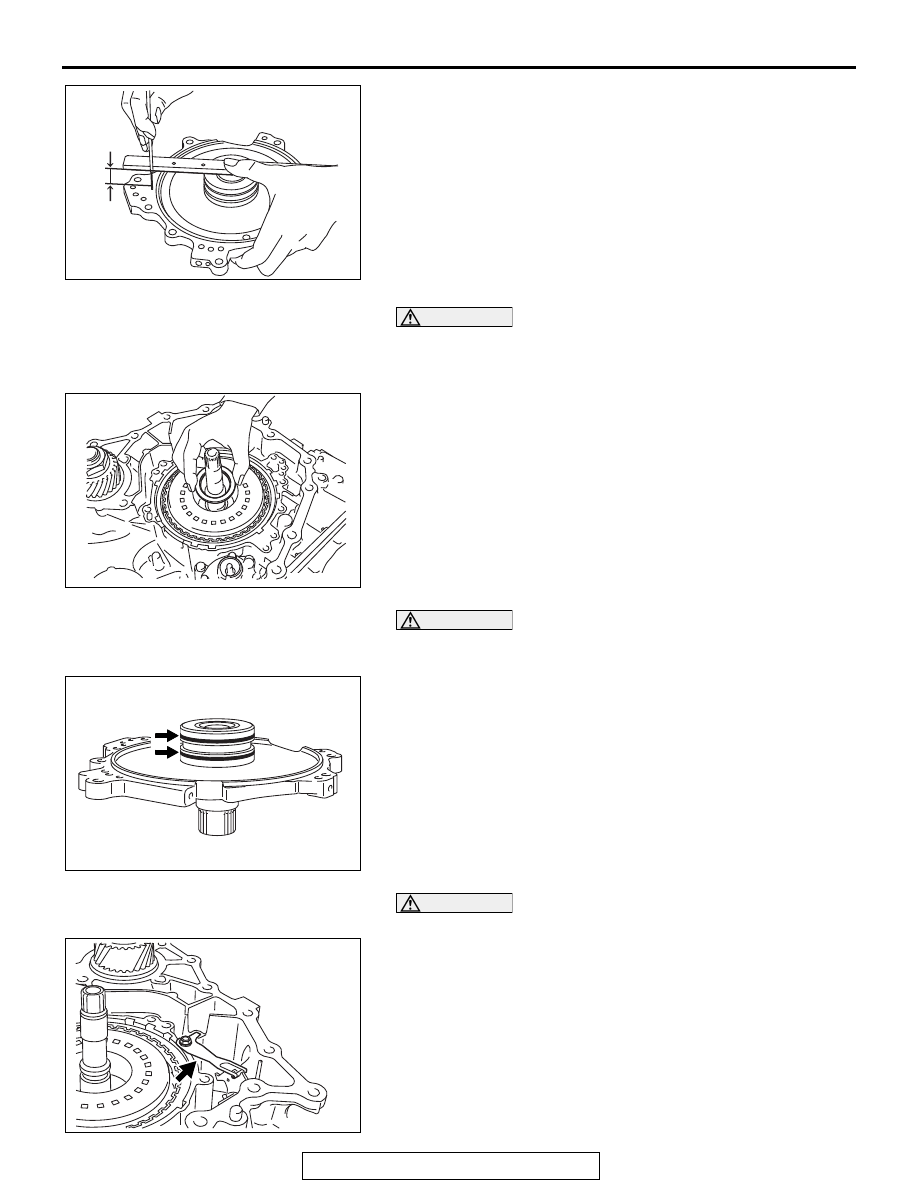

(2) Measure the distance M2 from the edge of oil pump cover

to the mounting surface on the transaxle case.

(3) Calculate the total end play by the following expression.

Select the needle bearing so that the total end play meets
its standard value.

Total end play = M1

− M2 − bearing thickness

Standard value: 0.25

− 0.55 mm (0.010 − 0.022 in)

(For total end play)

CAUTION

• Apply vaseline when installing the needle bearing.
• Be careful to attach the needle bearing in right direc-

tion.

14.Install the selected needle bearing on the forward clutch

assembly. Refer to D in the "IDENTIFICATION OF NEEDLE
BEARINGS" for right direction.

CAUTION

• Do not re-use the seal rings.
• Apply vaseline when installing the seal rings.

15.Install the seal rings on the oil pump cover.

CAUTION

Do not re-use the bolt.
16.Install the detent spring on the transaxle case and tighten

the bolt to the specified torque.

Tightening torque: 6.9 N

⋅m (61 in-lb)

AK502261

M2

AD

AK502219

AK502218AD

AK502243AD

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-46

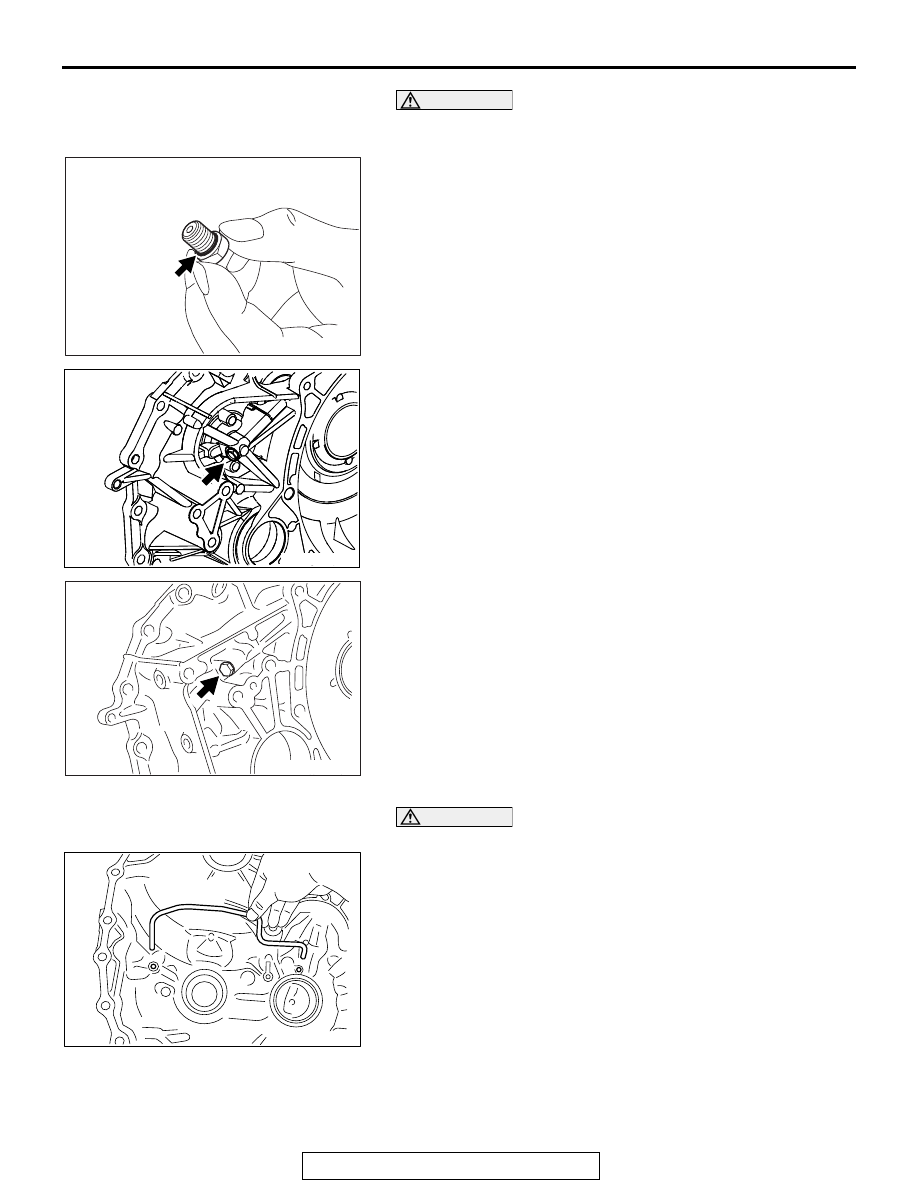

CAUTION

• Do not re-use the O-ring.
• Apply transmission fluid when installing the O-ring.

17.Install the O-ring on the plug.

18.Install the plug on the converter housing to the specified

torque.

Tightening torque: 7.5 N

⋅m (66 in-lb)

CAUTION

Do not bend the pipe when attaching it.
19.Install the pipe on the converter housing.

AK502774AD

AK603125

<F1CJA>

AF

AK502977

<W1CJA>

AF

AK502976

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-47

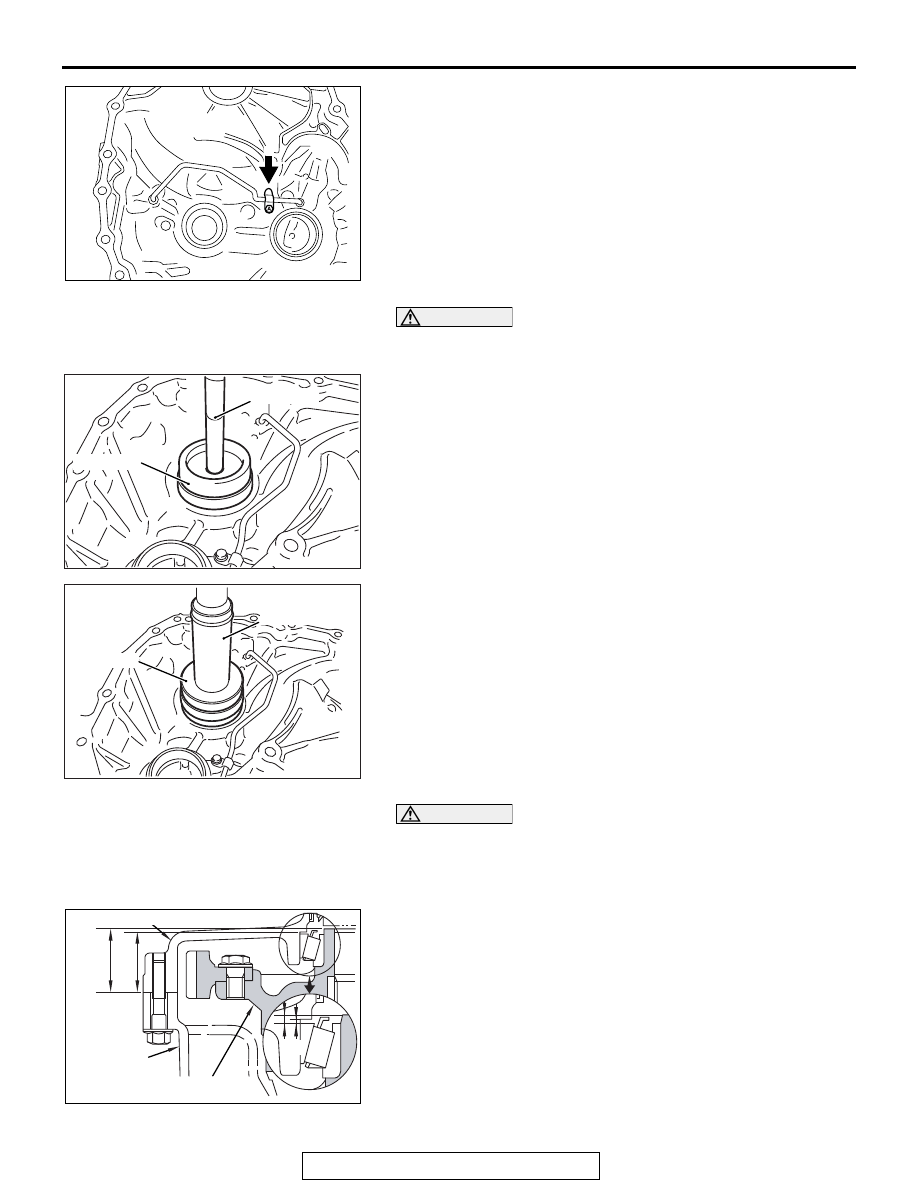

20.Install the clip and tighten the bolt to the specified torque.

Tightening torque: 5.9 N

⋅m (52 in-lb)

CAUTION

• Do not re-use the outer race.
• Replace the outer race together with the inner race.

21.Using the special tools MB990779 and MB990780

<F1CJA> or MB991168 and MB991702 <W1CJA>, Install
the differential bearing outer race of differential side bearing
on the converter housing.

CAUTION

• When adjusting the preload, apply transmission fluid to

the bearing to make it roll smoothly.

• When conducting measurements, measure two or more

places, and find the average value.

22.Measure the preload A of the differential assembly as

follows:

AK502975AD

AK701042AF

MB990780

MB990779

<F1CJA>

AK502847

MB991702

MB991168

<W1CJA>

AF

AK502263AD

Transmission case

Converter housing

Differential assembly

A

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-48

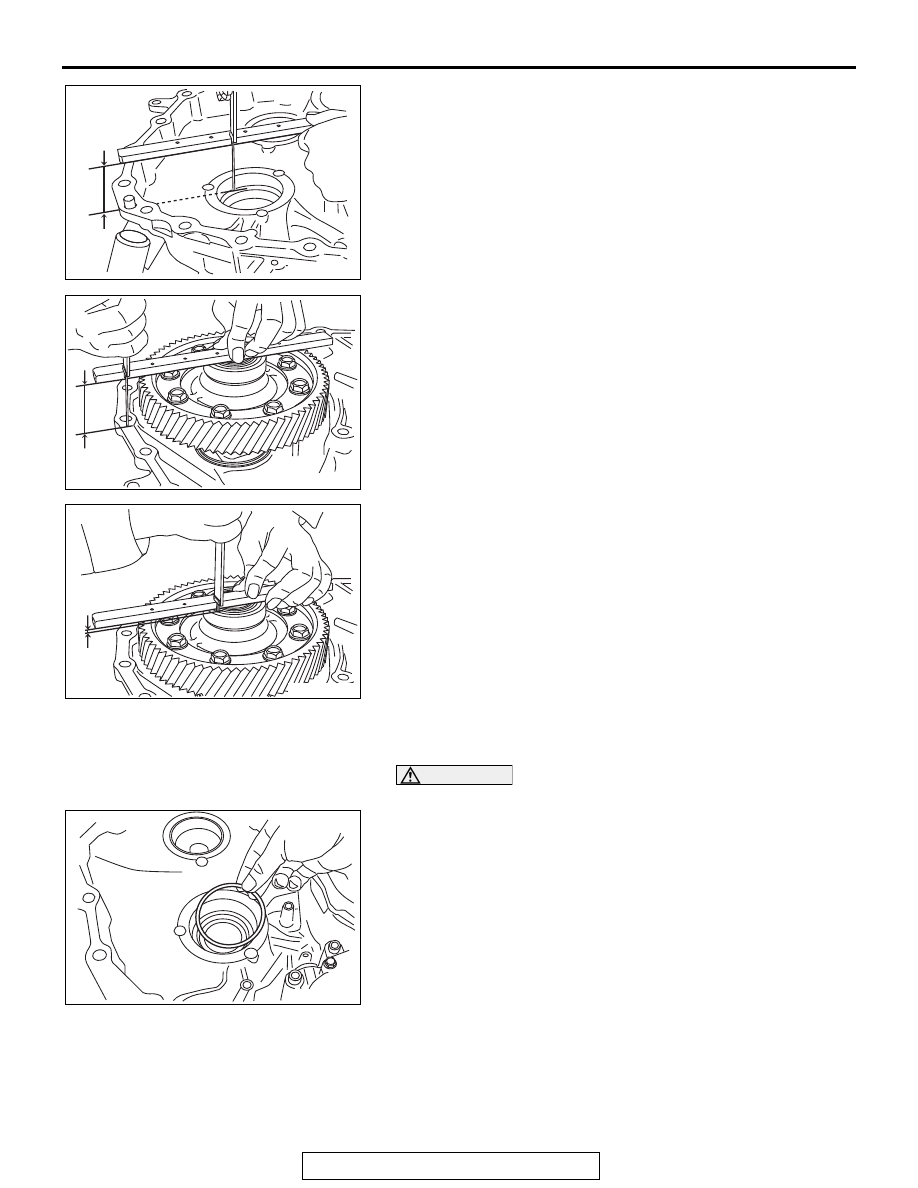

(1) Measure the distance M3 from the edge of transaxle case

to the mounting surface of adjusting shim.

(2) Install the differential assembly on the converter housing,

and measure the distance M4 from the differential case to
the edge of converter housing.

(3) Install the outer race on differential side bearing, and

measure the distance M5 from the differential case to the
outer race of differential side bearing.

(4) Using the following expression, calculate the distance M6

from the edge of converter housing to the outer race of
differential side bearing.

M6 = M4

− M5

(5) Using the following expression, calculate thickness of the

adjusting shim.

Thickness of adjusting shim = M3

− M6 + preload

Standard value: 0.17

− 0.23 mm (0.007 − 0.009 in)

(For differential preload)

CAUTION

Do not re-use the adjusting shim.
23.Install the selected shim on the transaxle case. For selection

of the adjusting shim, refer to "SERVICE
SPECIFICATIONS."

AK502264 AD

M3

AK502265

M4

AD

AK502266

M5

AD

AK502239
