GENERAL INFORMATION

TSB Revision

CVT

23A-5

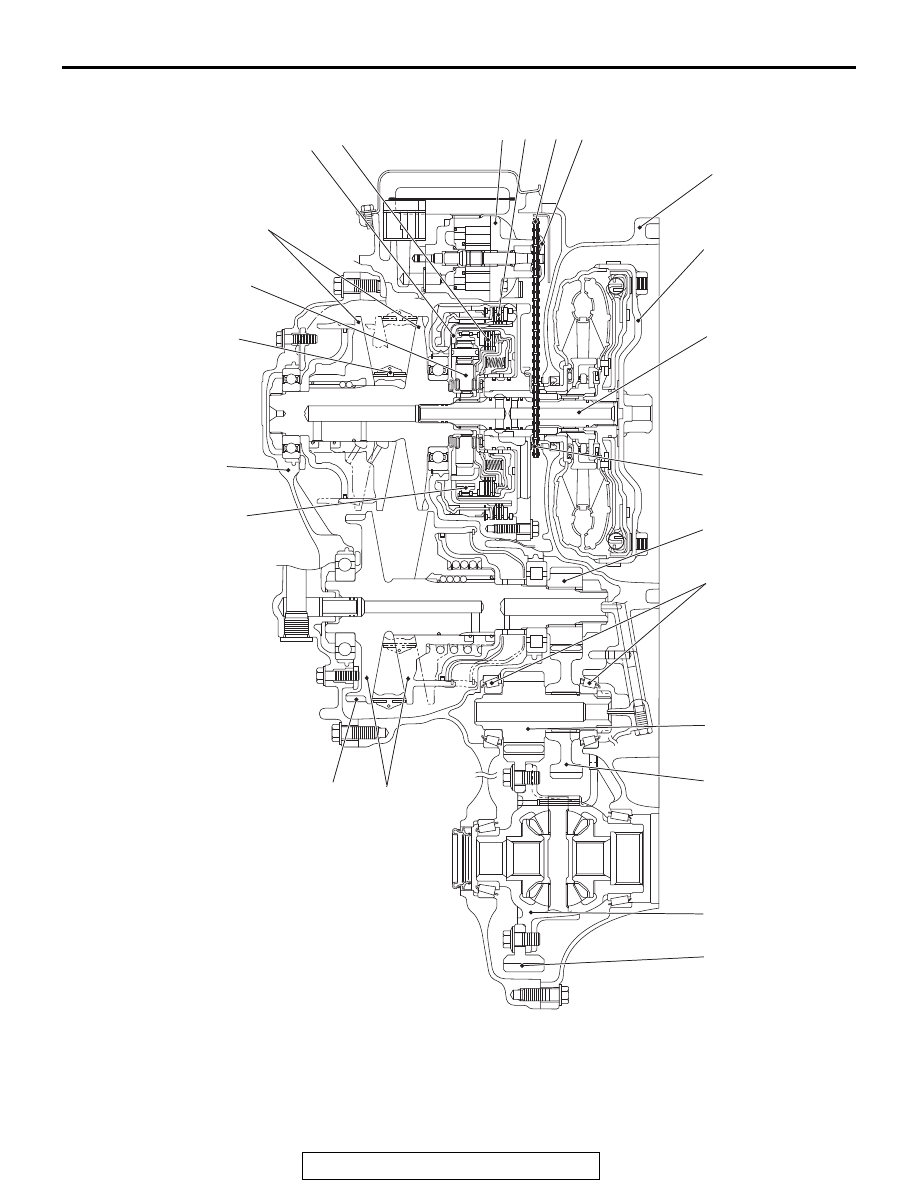

SECTIONAL VIEW

AC505738

AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

1. Converter housing



2.  Driven sprocket
3. Chain
4. Reverse brake
5. Oil pump

6. Forward clutch
7. Planet carrier
8. Primary pulley
9. Sun gear
10. Steel belt
11. Side cover

GENERAL INFORMATION

TSB Revision

CVT

23A-6

ELECTRONICALLY-CONTROLLED
SYSTEM

.

INVECS-III CONTROL

INVECS-III has been newly developed based on
INVECS-II utilizing continuous variable characteris-
tics of CVT.

To select the pulley ratio which can provide the driv-
ing force corresponding to the driver's intention and
vehicle conditions, TCM selects the optimal pulley
ratio and determines the shift strategy to obtain it by
detecting the vehicle driving conditions such as the

vehicle speed, accelerator angle. Then, it outputs the
command to the stepper motor, controls in/out flow of
the line pressure to/from the primary pulley, positions
the movable pulley of the primary pulley, and controls
the gear ratio.

.

ENGINE BRAKE FEATURE ON THE
DESCENDING SLOPE

Pulley ratio is controlled to obtain the engine brake
suitable for the driver’s feelings.

.

12. Internal gear
13. Parking gear
14. Secondary pulley
15. Final gear
16. Differential case
17. Idler gear
18. Reduction gear
19. Taper roller bearing
20. Output gear
21. Drive sprocket
22. Input shaft
23. Torque converter

AC504721

Input
signals

Target wave pattern
creation section

Gear changing mechanism
control section

Selects the
pulley ratio
and determines
the pulley
change method.

Determines how the
stepper motor works
to change pulley
according to the
target wave pattern.

TCM

AB

Stepper motor

Primary pulley

GENERAL INFORMATION

TSB Revision

CVT

23A-7

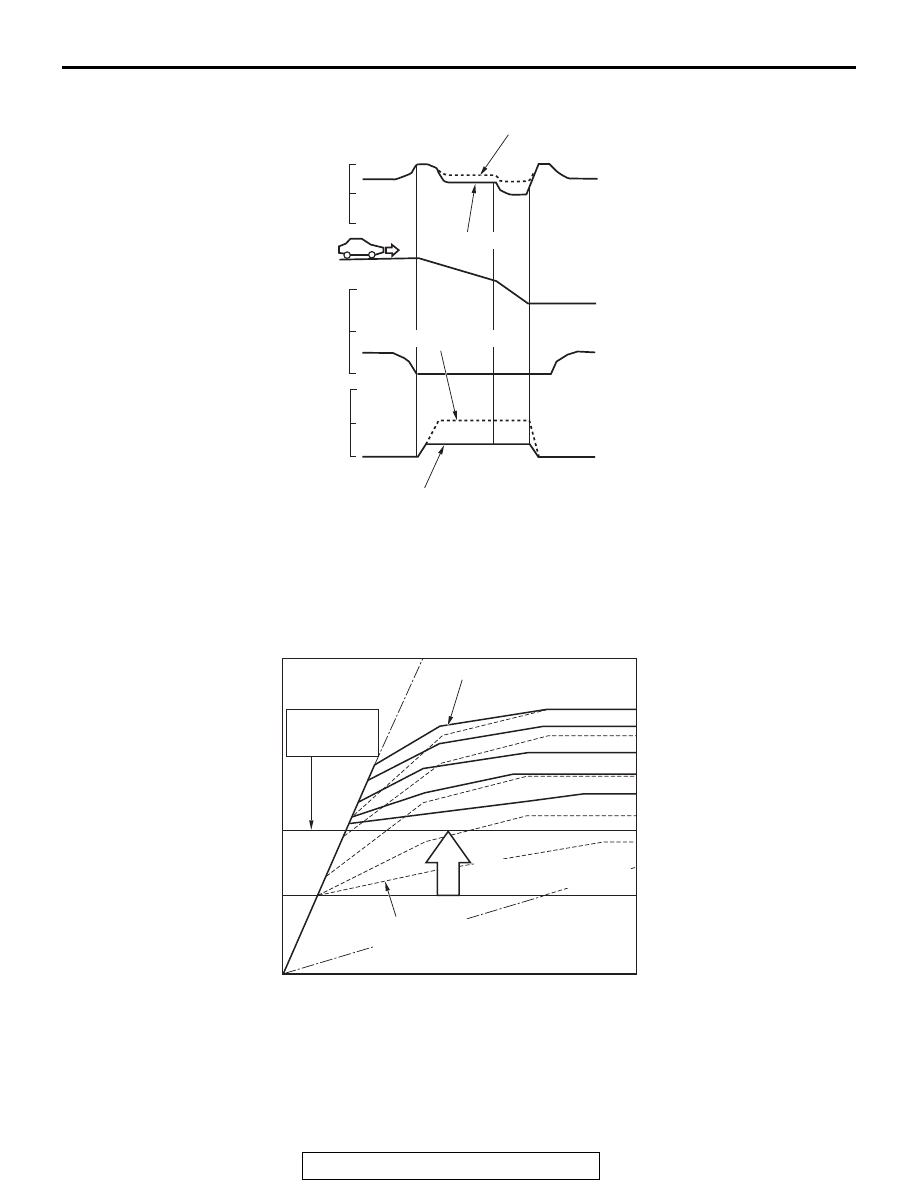

Engine brake learning feature on the descending slope

Learning compensation is made to meet the tastes of
a driver by judging the amount of the engine brake
from the application of the accelerator or the brake.

.

DRIVING FEATURE ON THE ASCENDING SLOPE

If the foot leaves the accelerator pedal during driving
on the ascending slope (called lift foot), driving capa-
bility is secured by preventing excessive upshifting.

.

AC610382 AB

Throttle opening

Pulley ratio

Acceleration

0%

100%

HIGH

LOW

0

Often use accelerator

Often use brake

Often use accelerator

Often use brake

AC610384

0%

100%

20%

40%

80%

60%

AB

Target primary
revolution speed

Throttle opening

When driving fast on the ascending
slope

When driving in a
normal condition

Increasing the target primary
revolution speed

Target primary
revolution speed
lower limit value

Vehicle speed

GENERAL INFORMATION

TSB Revision

CVT

23A-8

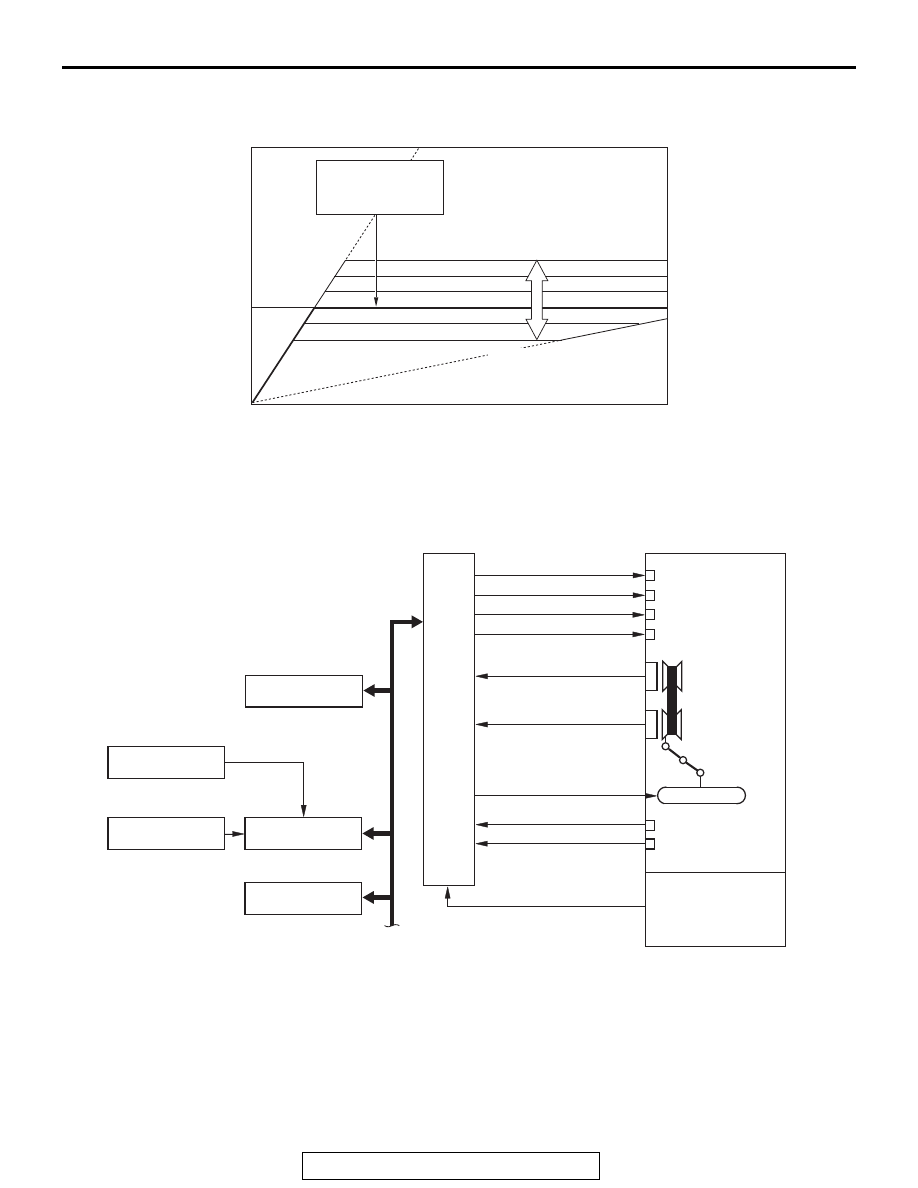

Learning feature corresponding to tastes and habits of drivers

Ratio patterns are continuously switched according
to the driving method of a driver.

.

SYSTEM CONSTRUCTION DIAGRAM

.

AC610398 AB

Target primary
revolution speed

Cruising on
flat road

Target primary
revolution speed
lower limit value

Secondary revolution speed (vehicle speed)

Driving on the
ascending slope
or driving fast

AC610161AD

ECM

ABS-ECU

TCM

Lock-up/select switching solenoid valve

Transaxle body

Variable link

ETACS-ECU

Accelerator pedal
position sensor

Crankshaft
position sensor

Secondary
pulley

Belt

Primary
pulley

Stepper motor

Secondary pressure sensor

Line pressure solenoid valve

Secondary pressure solenoid valve

Lock-up solenoid valve

Secondary pulley speed sensor

Transmission fluid
temperature sensor

CAN communication

Primary pulley speed sensor

Shift switch assembly

Transmission range

switch

Paddle shift switch
