CRUISE CONTROL
TSB Revision
ENGINE AND EMISSION CONTROL
17-21
STEP 5. Check the harness wire for short circuit to body
ground between the ECM connector B-11 terminal number
107 and the cruise control switch connector C-201 terminal
number 3.
(1) Disconnect ECM connector B-11 and measure at the
harness connector side [Refer to GROUP 13A, Engine
Control Module (ECM)
P.13A-887
] <2.4L Engine> or [Refer
to GROUP 13B, Engine Control Module (ECM)
P.13B-904
]
<3.0L Engine>.
(2) Turn the ignition switch to the "LOCK" (OFF) position.

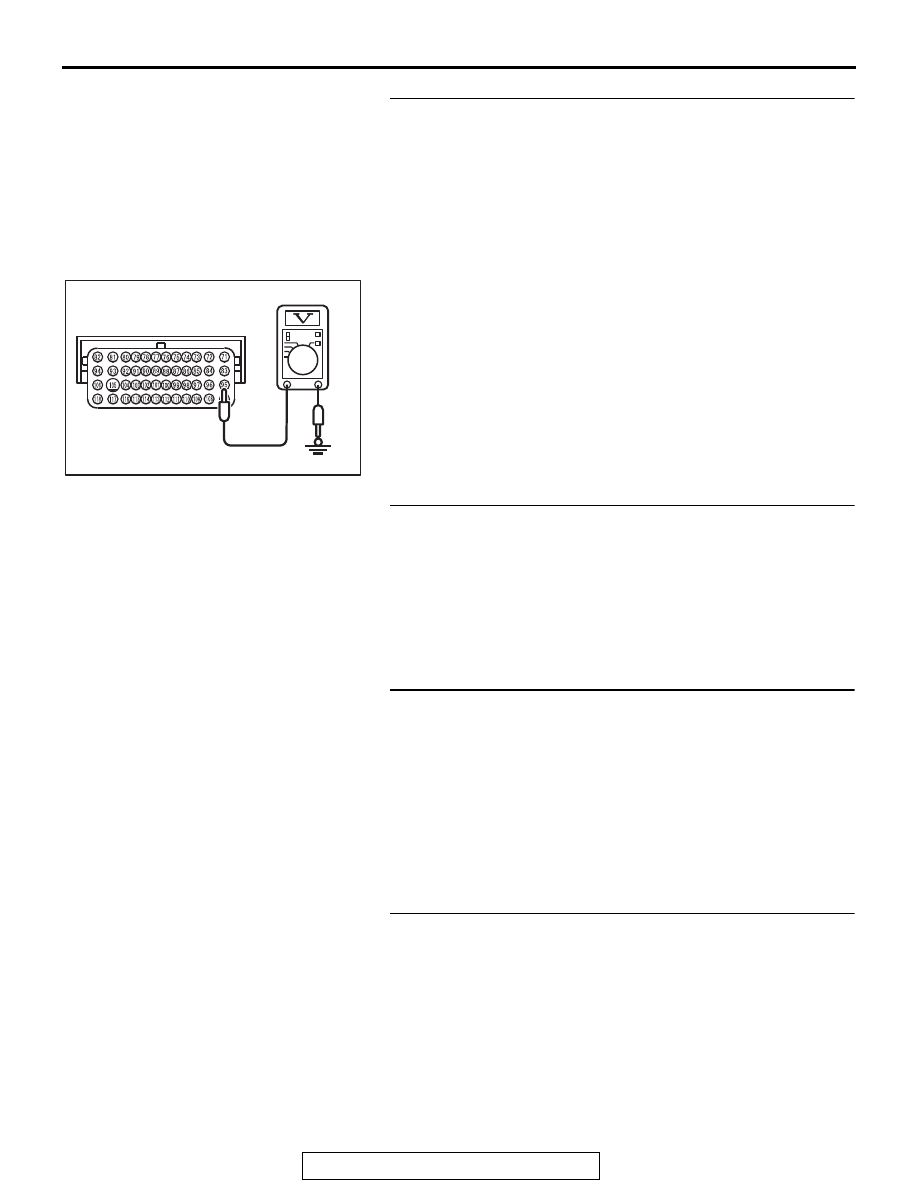

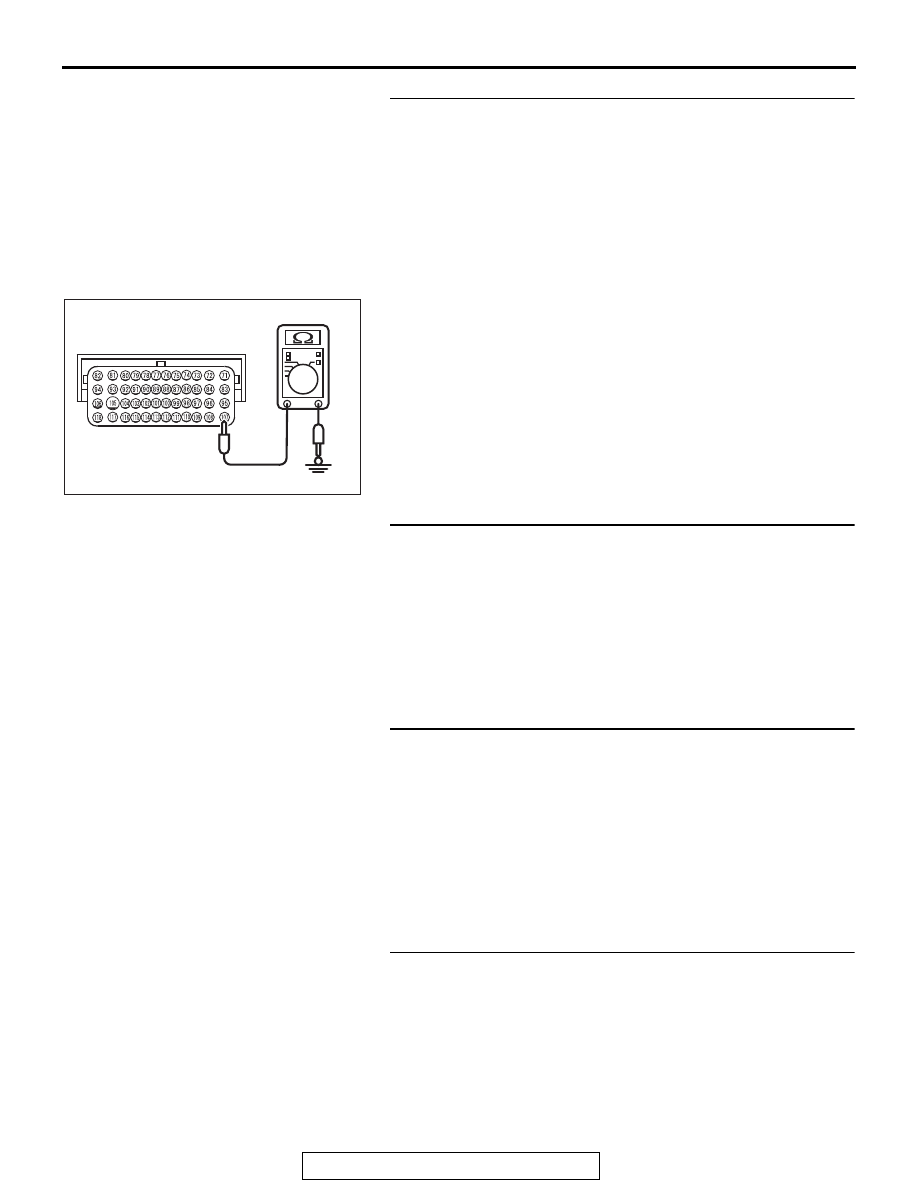

(3) Measure the continuity between ECM connector B-11
terminal number 107 and body ground.
Q: Is the measured continuity open circuit?
YES : Go to Step 24.
NO : Go to Step 6.
STEP 6. Check intermediate connector C-34, cruise control
switch connector C-201 ,and clock spring connectors
C-202 and C-204, for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Refer to GROUP 00E, Harness Connector Inspection
P.00E-2
.
Q: Are the connectors and terminals in good condition?
YES : Go to Step 7.
NO : Repair or replace the damaged connector. Then go to
Step 26.
STEP 7. Check the harness wire between ECM connector
B-11 terminal number 107 and clock spring connector
C-204 terminal number 5, and between clock spring
connector C-202 terminal number 2 and cruise control
switch connector C-201 terminal number 3, for damage.
Check harness wire for short circuit and damage.
Q: Are the harness wires in good condition?
YES : Go to Step 8.
NO : Repair or replace the damaged harness wire. Then go
to Step 26.
STEP 8. Check the clock spring.
Refer to GROUP 52B, Air Bag Modules and Clock Spring
Inspection
P.52B-439
.
Q: Is the clock spring in good condition?
YES : Go to Step 9.
NO : Replace the clock spring (Refer to GROUP 52B, Air
Bag Modules and Clock Spring
P.52B-439
). Then go
to Step 26.
AC703924AB
B-11 Harness connector:
Component side
