ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-3

ENGINE CONTROL

GENERAL INFORMATION

M1171000101311

For the accelerator system, the electronic throttle
valve control system, disposing of the accelerator
cable, is adopted.
This system determines the amount of pressure
applied to the accelerator pedal using the built-in
accelerator pedal position sensor of the accelerator
pedal assembly to control the throttle valve angle
electrically.

• A resin arm is employed to reduce weight.

• The aluminum pedal pad has been adopted to

enhance the sporty image <some models>.

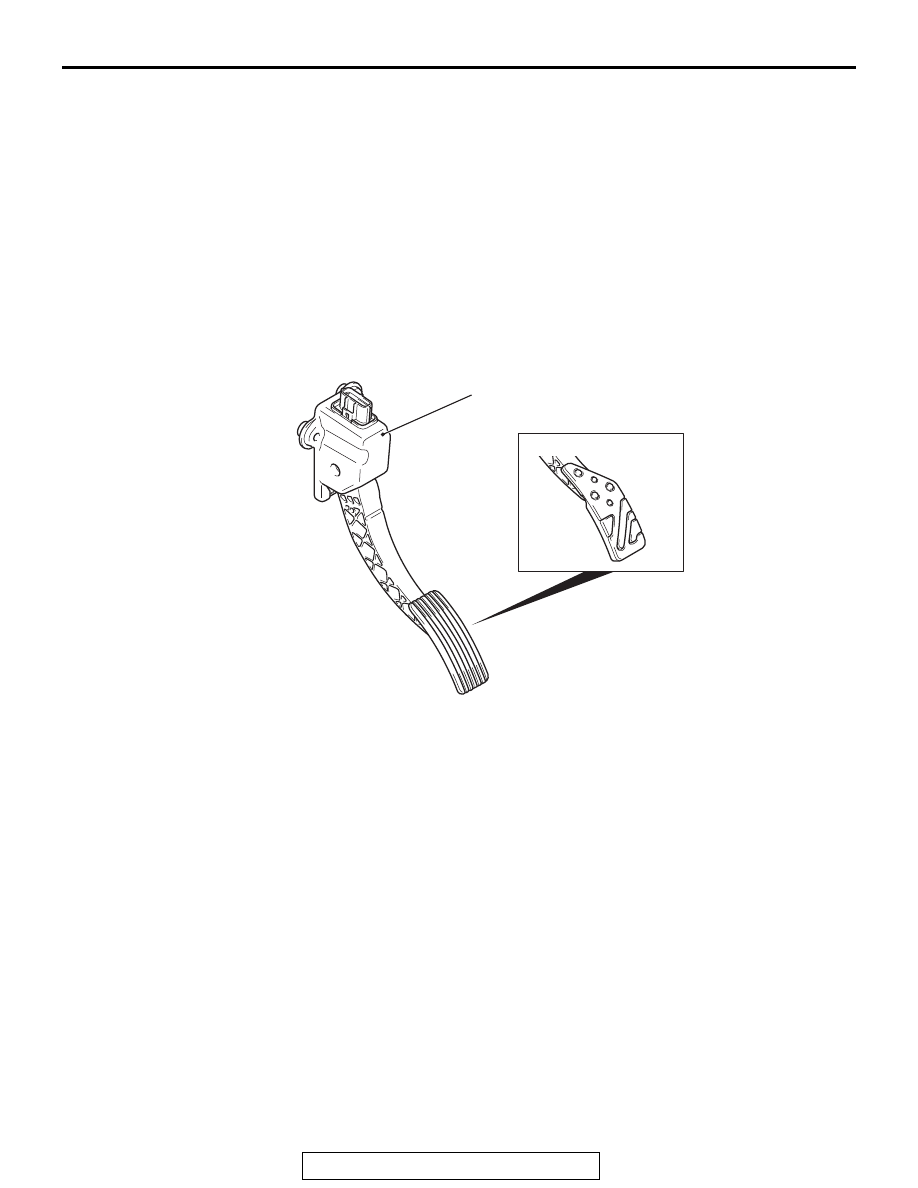

CONSTRUCTION DIAGRAM

AC901627

Accelerator pedal assembly
[Built-in accelerator pedal
position sensor (APP sensor)]

AB

<Aluminium pedal pad>

ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-4

ENGINE CONTROL SYSTEM DIAGNOSIS

INTRODUCTION

M1171002000340

If there is a malfunction in the engine control system,
the accelerator pedal or throttle body may be faulty.

TROUBLESHOOTING STRATEGY

M1171002100370

Use these steps to plan your diagnostic strategy.
If you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find an
engine control system fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

SYMPTOM CHART

M1171002200418

SYMPTOM PROCEDURES

Inspection Procedure 1: Throttle Valve will not Fully Open or Close

.

COMMENT

The throttle body or accelerator pedal position sen-
sor (APP sensor) is suspected.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the throttle body.

• Malfunction of the APP sensor.

• Malfunction of the engine control module (ECM).

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

Symptom

Inspection procedure

Reference page

Throttle valve will not fully open or close

1

P.17-4

Accelerator pedal operation not smooth (over
acceleration)

2

P.17-6
