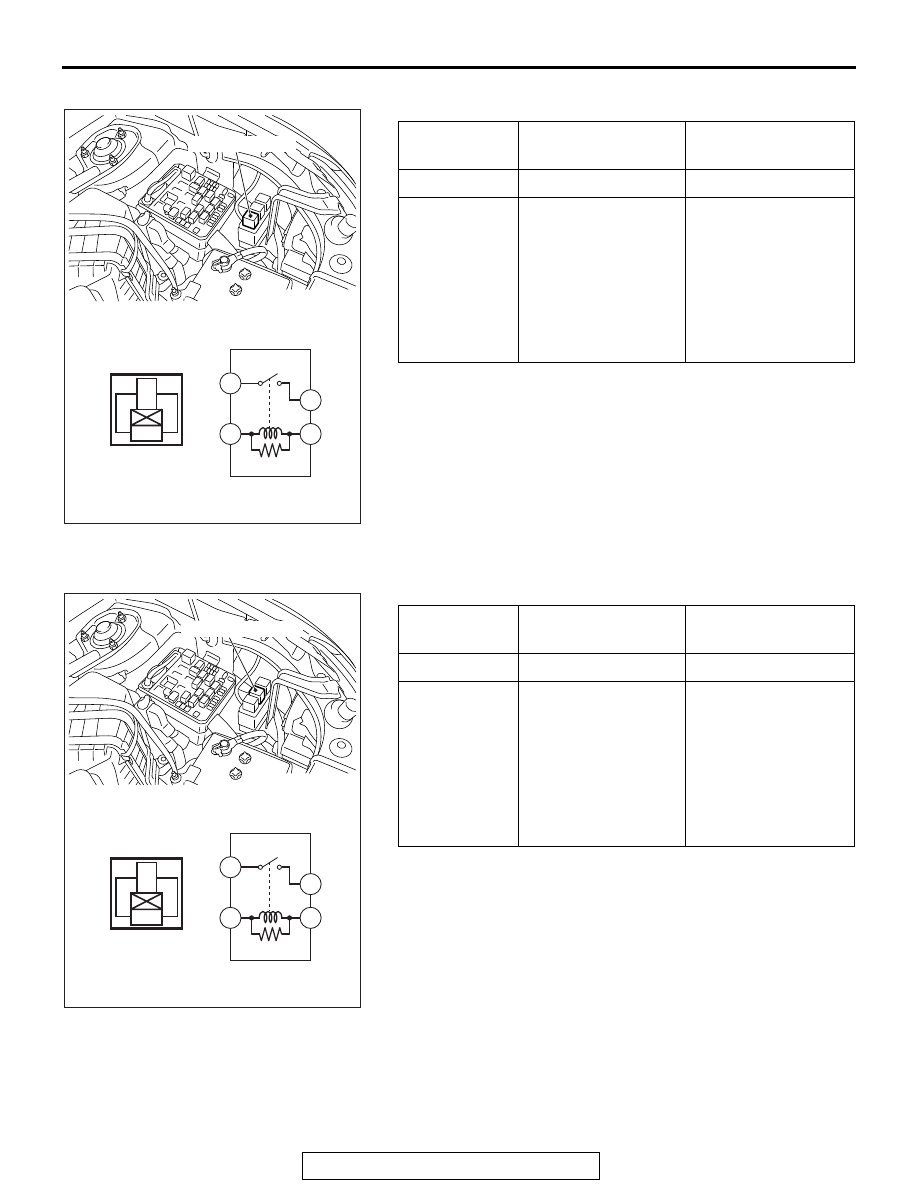

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-31

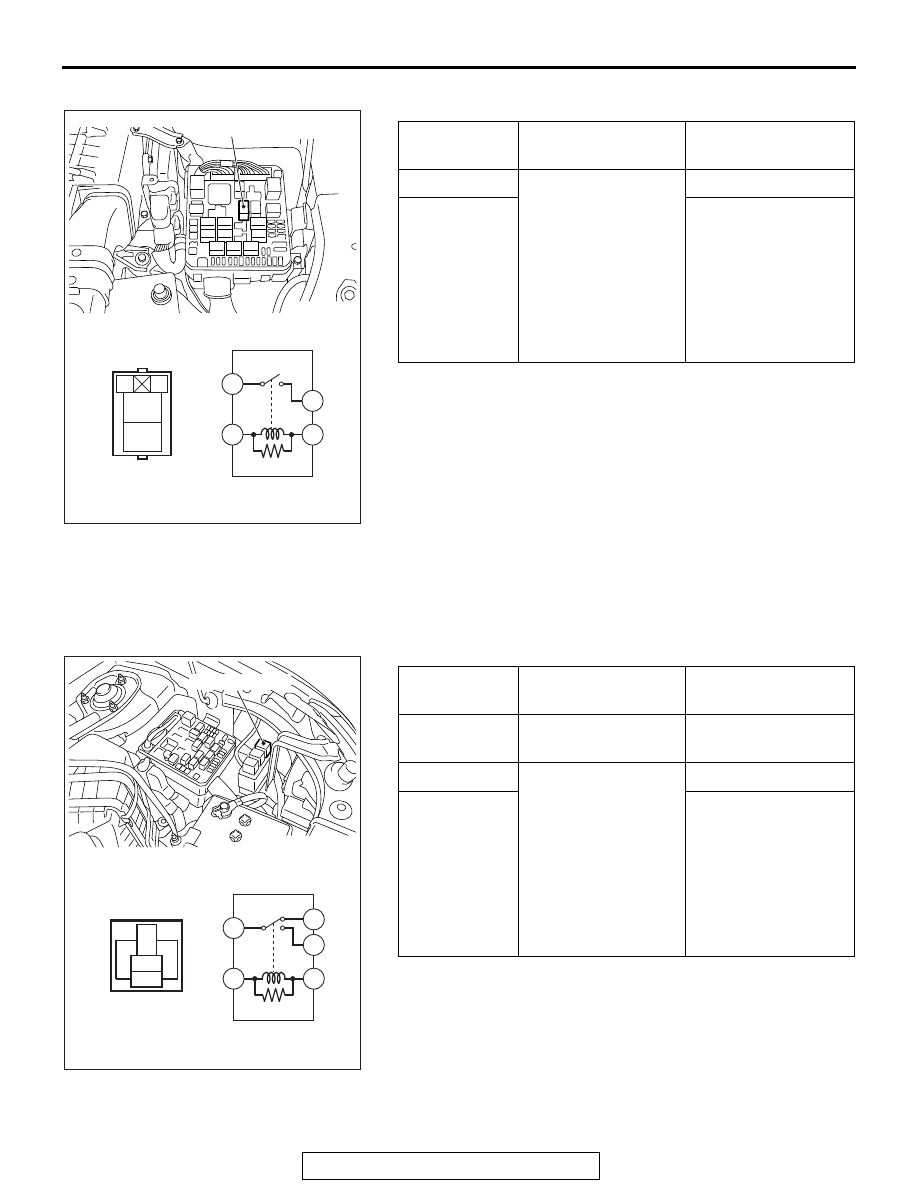

CONDENSER FAN RELAY CHECK

FAN CONTROL RELAY CONTINUITY CHECK
<3.0L ENGINE>

M1141006201197

.

FAN CONTROL RELAY CONTINUITY CHECK

.

Battery
voltage

Terminal No. to be
connected to tester

Continuity test
results

Not applied

3

− 4

Open circuit

Connect
terminal No.1
and battery (+)
terminal.
Connect
terminal No.2
and battery (

−)

terminal.

Continuity (Less than
2 ohms)

4

3

1

2

1

2

3

4

AC506988

AC505376

AB

Condenser fan relay

AB

Battery
voltage

Terminal No. to be
connected to tester

Continuity test
results

Not applied

2

− 4

Continuity (less than
2 ohms)

Not applied

2

− 5

Open circuit

Connect
terminal No.3
and battery (

−)

terminal.
Connect
terminal No.1
and battery (+)
terminal.

Continuity (less than
2 ohms)

5

1

3

2

4

1

3

4

2

5

AC703109

Fan control relay

AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-32

RADIATOR FAN RELAY CONTINUITY CHECK

.

CONDENSER FAN RELAY CONTINUITY CHECK

Battery
voltage

Terminal No. to be
connected to tester

Continuity test
results

Not applied

4

− 2

Open circuit

Connect
terminal No.3
and battery (+)
terminal.
Connect
terminal No.1
and battery (

−)

terminal.

4

− 2

Continuity (less than
2 ohms)

1

3

4

2

AC703110

4

2

3

1

Radiator fan relay

AB

Battery
voltage

Terminal No. to be
connected to tester

Continuity test
results

Not applied

4

− 2

Open circuit

Connect
terminal No.3
and battery (+)
terminal.
Connect
terminal No.1
and battery (

−)

terminal.

4

− 2

Continuity (less than
2 ohms)

1

3

4

2

AC703111

4

2

3

1

Condenser fan relay

AB

ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-33

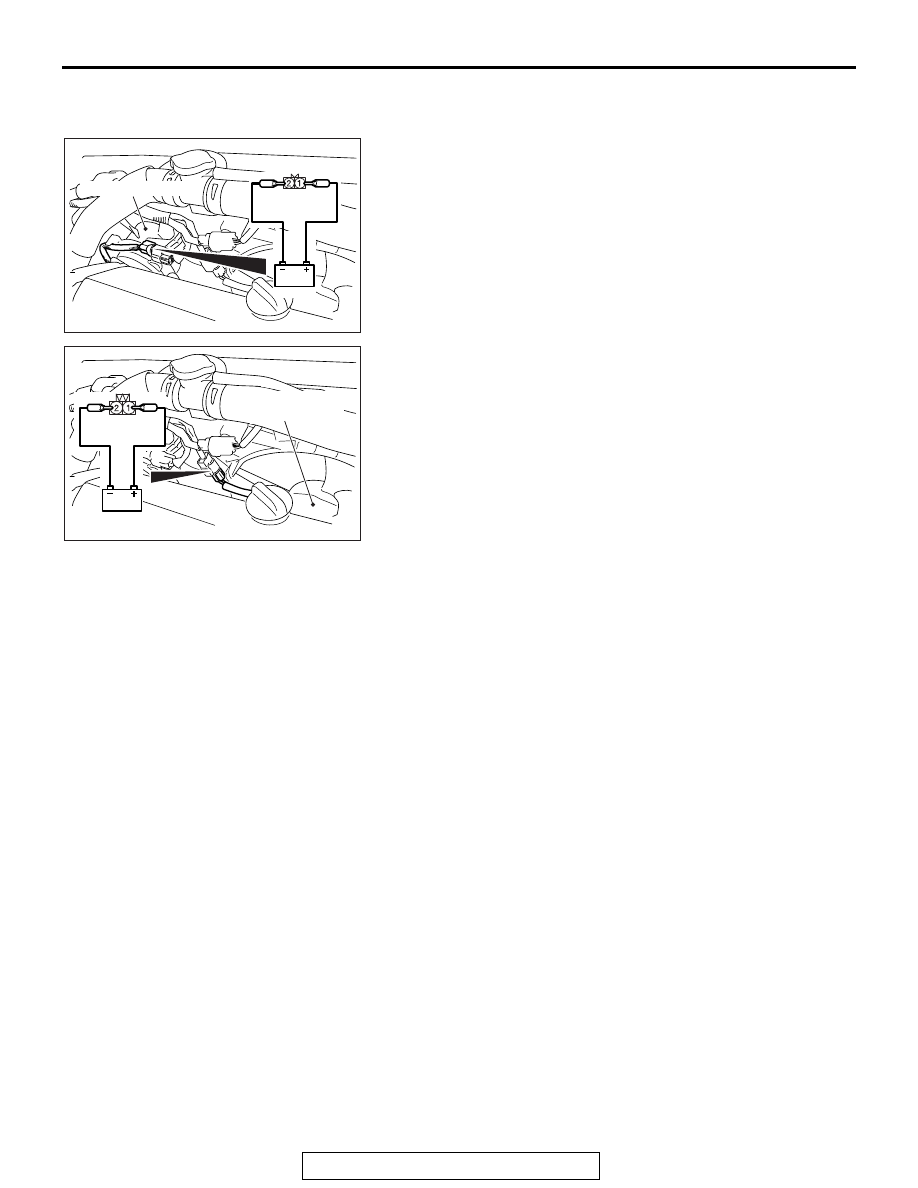

COOLING FAN MOTOR CHECK

M1141007600429

1. Disconnect the fan motor connector.
2. Check that the fan motor runs when a positive battery

terminal is connected to the fan motor-side connector
terminal number 1, and terminal number 2 is grounded. Also
check to see that there is no abnormal sound emitted from
the fan motor at this time.

3. If the fan motor is defective, replace it (Refer to

P.14-49



<2.4L Engine>,

P.14-52

 <3.0L Engine>).

AC802625

Radiator fan motor

AB

AC802626

Condenser fan
motor

AB

THERMOSTAT

TSB Revision

ENGINE COOLING

14-34

THERMOSTAT

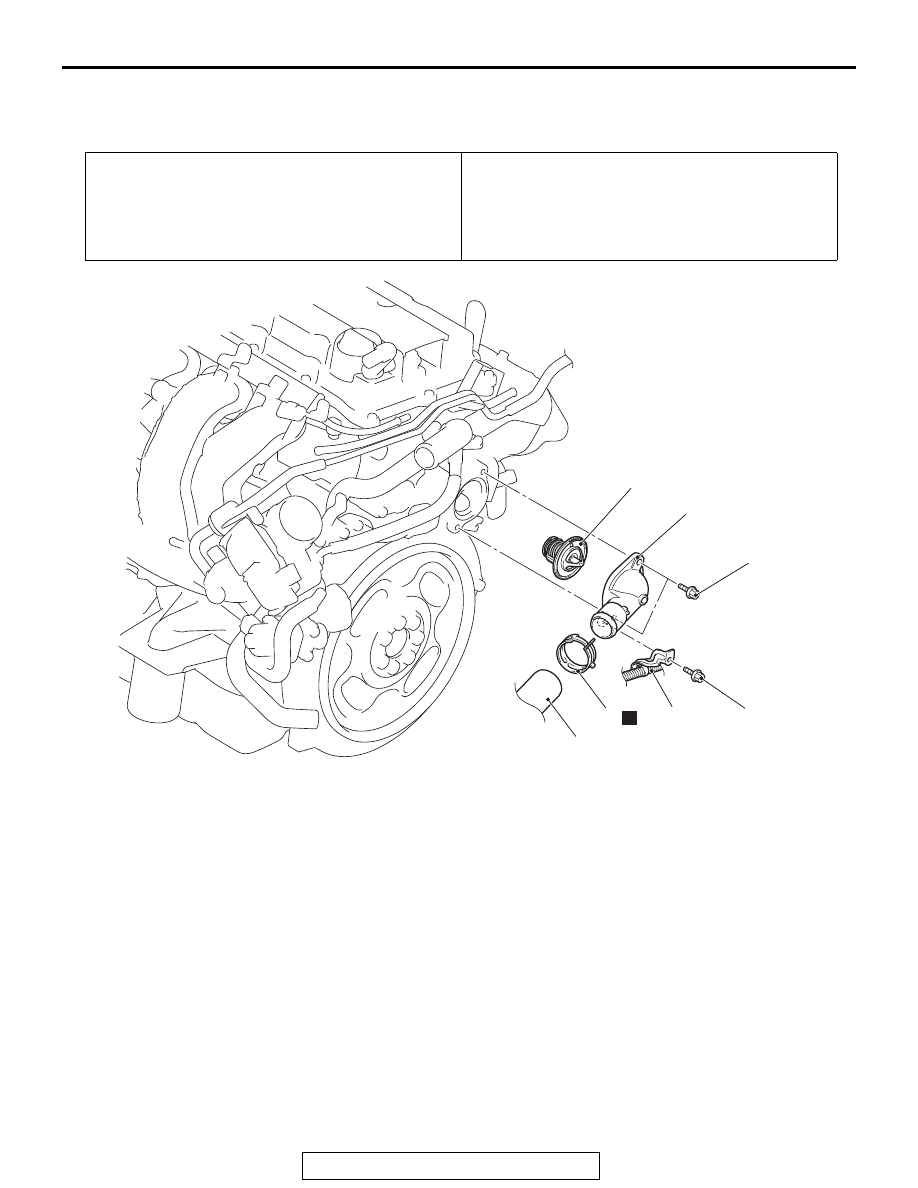

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1141002403151

Pre-removal Operation
• Engine Coolant Draining (Refer to

P.14-26

).

• Engine Upper Cover Removal (Refer to GROUP 11A,

Camshaft

P.11A-26

).

• Air Cleaner Assembly Removal (Refer to GROUP 15, Air

Cleaner

P.15-4

).

Post-installation Operation
• Air Cleaner Assembly Installation (Refer to GROUP 15,

Air Cleaner

P.15-4

).

• Engine Upper Cover Installation (Refer to GROUP 11A,

Camshaft

P.11A-26

).

• Engine Coolant Refilling (Refer to

P.14-26

).

AC506788AF

2

3

4

5

11 ± 1 N·m
98 ± 8 in-lb

24 ± 3 N·m
18 ± 2 ft-lb

1

N

Removal steps

<<

A

>>

>>

B

<<

1.

Hose clip

<<

A

>>

>>

B

<<

2.

Radiator lower hose connection

3.

Control wiring harness clamp
connection

4.

Water inlet fitting

>>

A

<<

5.

Thermostat

Removal steps (Continued)
