PARKING BRAKE DIAGNOSIS

TSB Revision

PARKING BRAKES

36-5

INSPECTION PROCEDURE 2: When the Parking Brake Lever is Pulled, the Brake Warning Light does
not Illuminate.

.

AC702708 AB

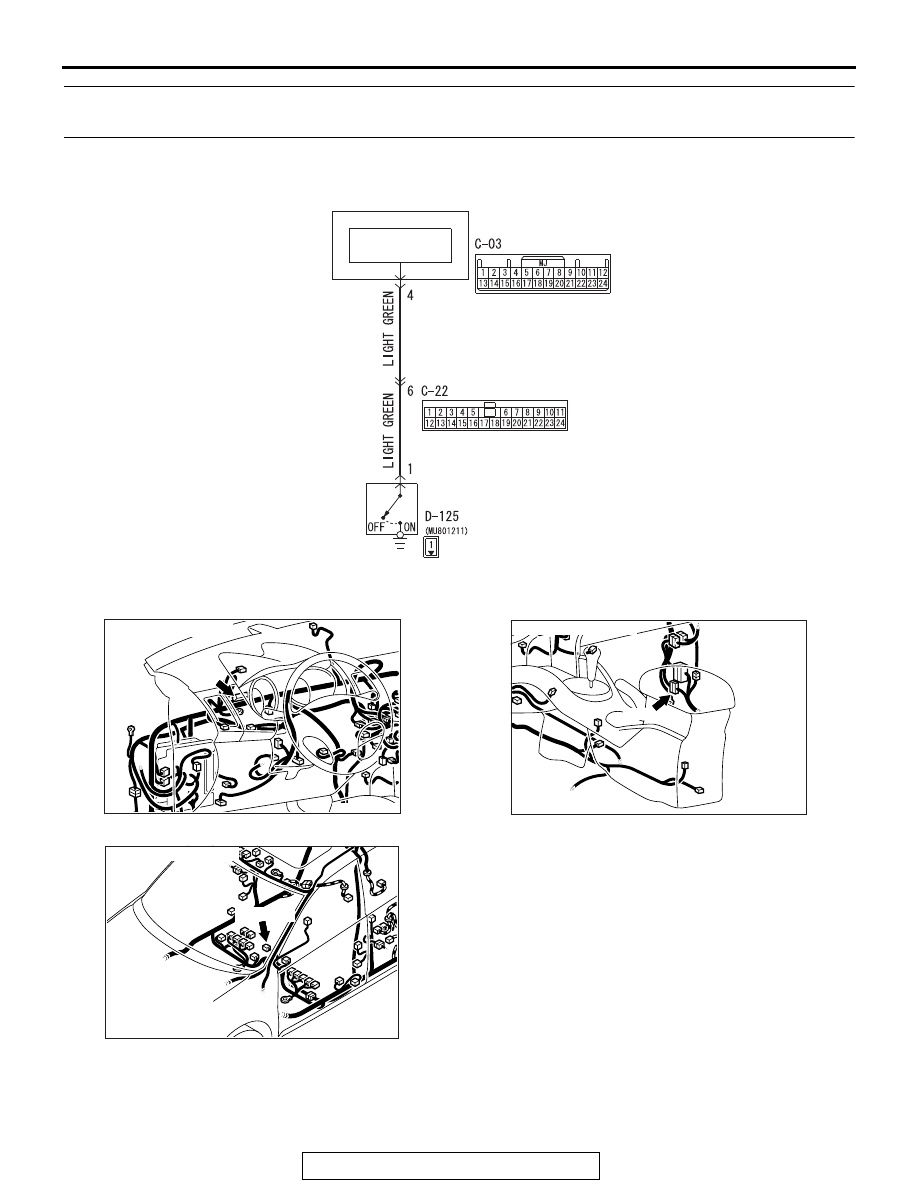

Brake Warning Light Circuit

INTERFACE
CIRCUIT

COMBINATION
METER

PARKING
BRAKE SWITCH

AC702709

CONNECTOR: C-03

C-03

AB

AC702710

CONNECTOR: C-22

C-22

AB

AC702711

CONNECTOR: D-125

D-125 (B)

AB

PARKING BRAKE DIAGNOSIS

TSB Revision

PARKING BRAKES

36-6

TECHNICAL DESCRIPTION (COMMENT)

The parking brake switch turns on and off by operat-
ing the parking brake lever, and the brake warning
light illuminates and goes out, indicating the operat-
ing status of parking brake to a driver.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CASE:)

• Damaged wiring harness or connector

• Parking brake switch defective

• Combination meter defective

.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

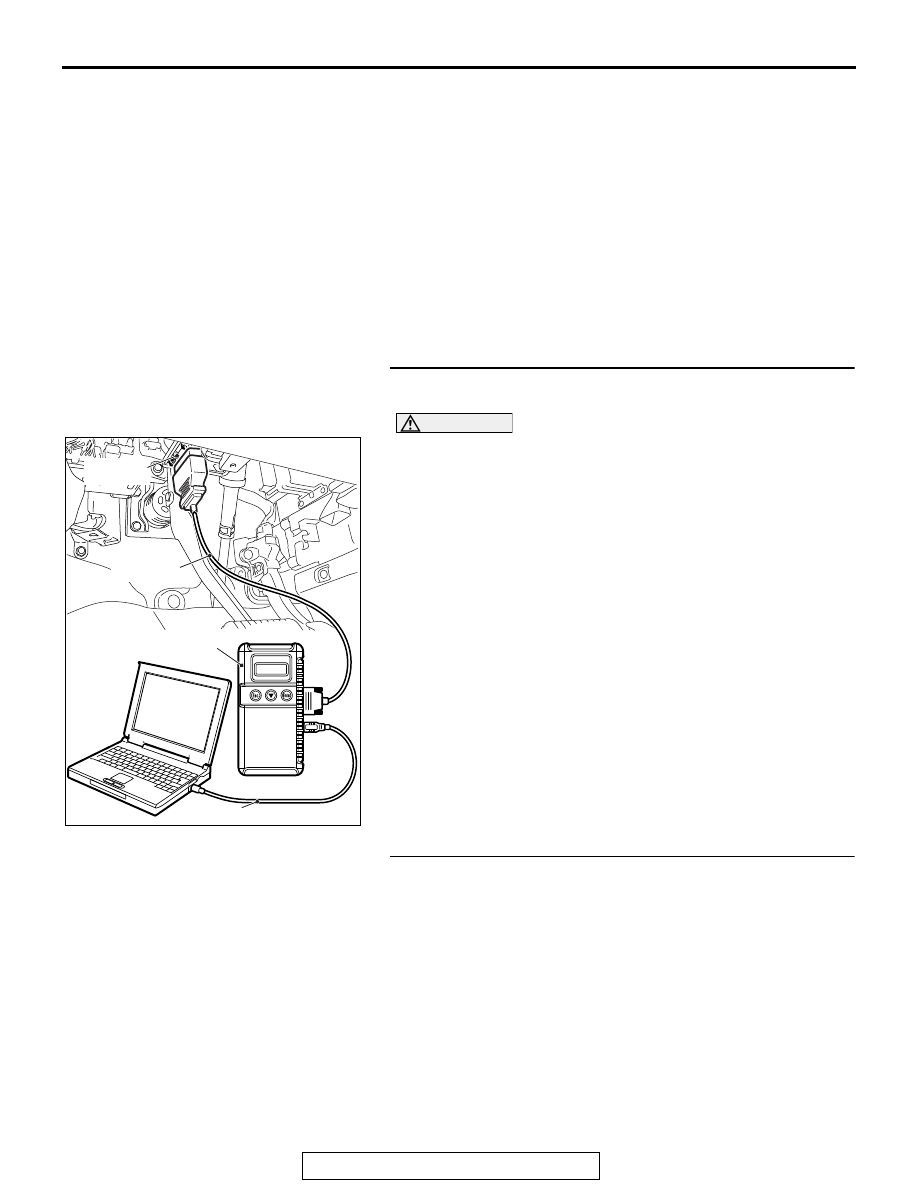

STEP 1. Using scan tool MB991958, check combination
meter actuator test.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Turn the parking brake switch and brake fluid level switch to

"OFF" position.

(4) Set scan tool MB991958 to the actuator test mode.

• Item 13: Indicator4: ON

• The brake warning light illuminates.

• Item 13: Indicator4: OFF

• The brake warning light goes out.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Replace the combination meter (Refer to GROUP

54A, Combination meter assembly

P.54A-118

).

STEP 2. Check the parking brake switch.
Refer to

P.36-10

.

Q: Is the parking brake switch normal?

YES : Go to Step 3.
NO :  Replace the parking brake switch (Refer to

P.36-11

).

Then go to Step 6.

AC702712 AB

MB991824

MB991827

MB991910

Data link
connector

PARKING BRAKE DIAGNOSIS

TSB Revision

PARKING BRAKES

36-7

STEP 3. Connector check: D-125 parking brake switch
connector, C-22 intermediate connector and C-03
combination meter connector
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair or replace the faulty connector (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). Then go to Step 6.

STEP 4. Check the wiring harness for an open circuit
between D-125 parking brake switch connector terminal
No.1 and C-03 combination meter connector terminal No.4.
(1) Disconnect D-125 parking brake switch connector from

C-03 combination meter connector, and measure at the
wiring harness side connector.

(2) Measure the resistance between D-125 parking brake

switch connector terminal No.1 and C-03 combination
meter connector terminal No.4.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES : Go to Step 5.
NO :  A open circuit may be present in the wiring harness

between D-125 parking brake switch connector
terminal No.1 and C-03 combination meter connector
terminal No.4. Repair the wiring harness if necessary,
and then go to Step 6.

STEP 5. Retest the system.
Q: Does the brake warning light illuminate when the

parking brake lever is pull?
YES : It can be assumed that this malfunction is intermittent

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the combination meter (Refer to GROUP

54A, Combination meter assembly

P.54A-118

).

STEP 6. Retest the system.
Q: Does the brake warning light illuminate when the

parking brake lever is pulled?
YES : The procedure is complete.
NO :  Return to Step 1.

SPECIAL TOOL

TSB Revision

PARKING BRAKES

36-8

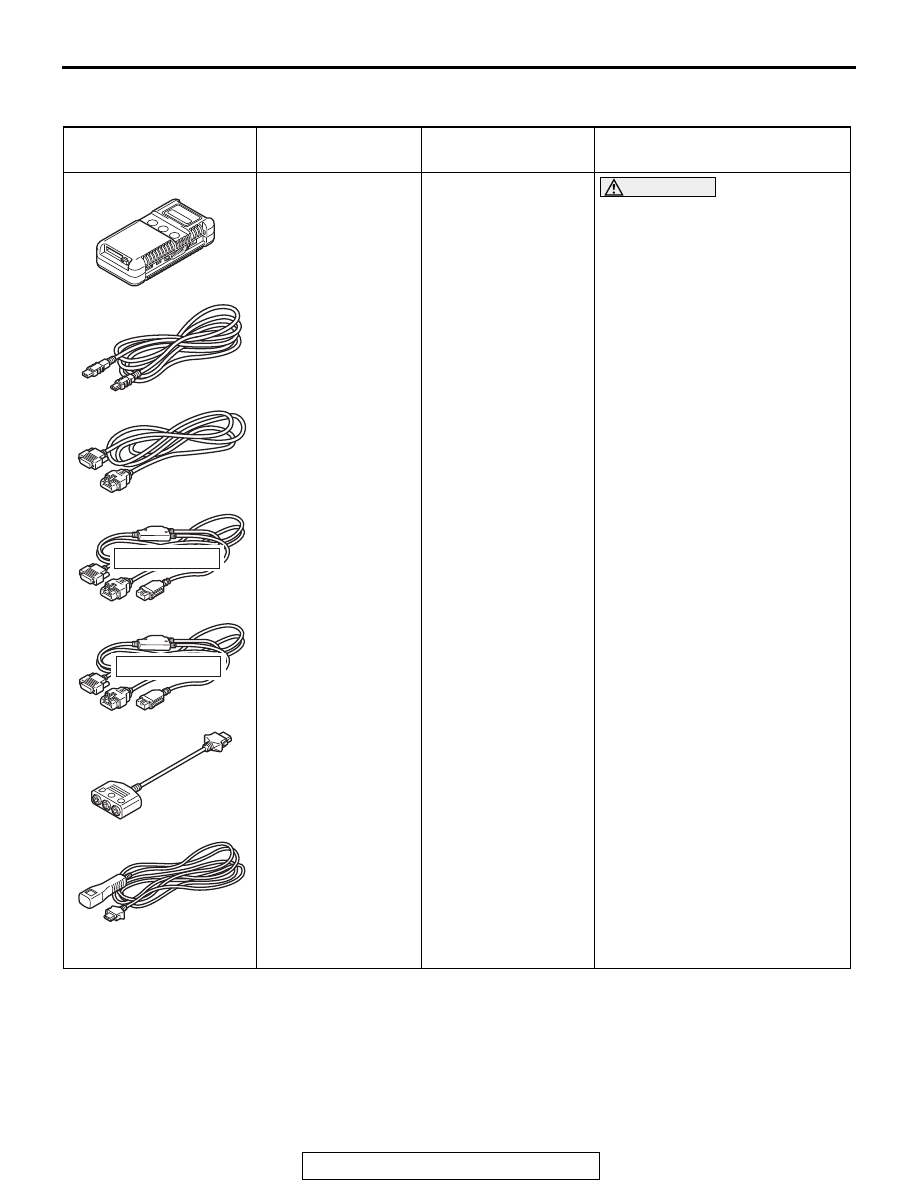

SPECIAL TOOL

M1361000600093

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub
assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
Actuator test check

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c

d

e

f

g

DO NOT USE
