DRIVESHAFT ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-25

Required Special Tools:
MB990242: Puller Shaft
MB990244: Puller Bar
MB990767: Front Hub and Flange Yoke Holder

MB990998: Front Hub Remover and Installer
MB991000: Spacer
MB991354: Puller Body

REMOVAL SERVICE POINTS

.

<<A>> DRIVESHAFT NUT REMOVAL

CAUTION

Do not apply the vehicle weight on the rear wheel hub
assembly before fully tightening the driveshaft nuts. Oth-
erwise, the wheel bearing will be broken.
Use special tool MB990767 to fix the hub and remove the
driveshaft nut.

.

AC703491

N

AC

N

3

1

2

5

6

7

144   176 N·m

107   129 ft-lb

4

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

<2.4L Engine: 7 persons seat,
3.0L Engine>

N

Removal steps

1.

Cotter pin

<<

A

>> >>

B

<< 2.

Driveshaft nut

>>

B

<< 3.

Washer

4.

Rear wheel speed sensor

<<

B

>> >>

A

<< 5.

Driveshaft

6.

Circlip

Removal steps (Continued)

AC703485 AB

MB990767

DRIVESHAFT ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-26

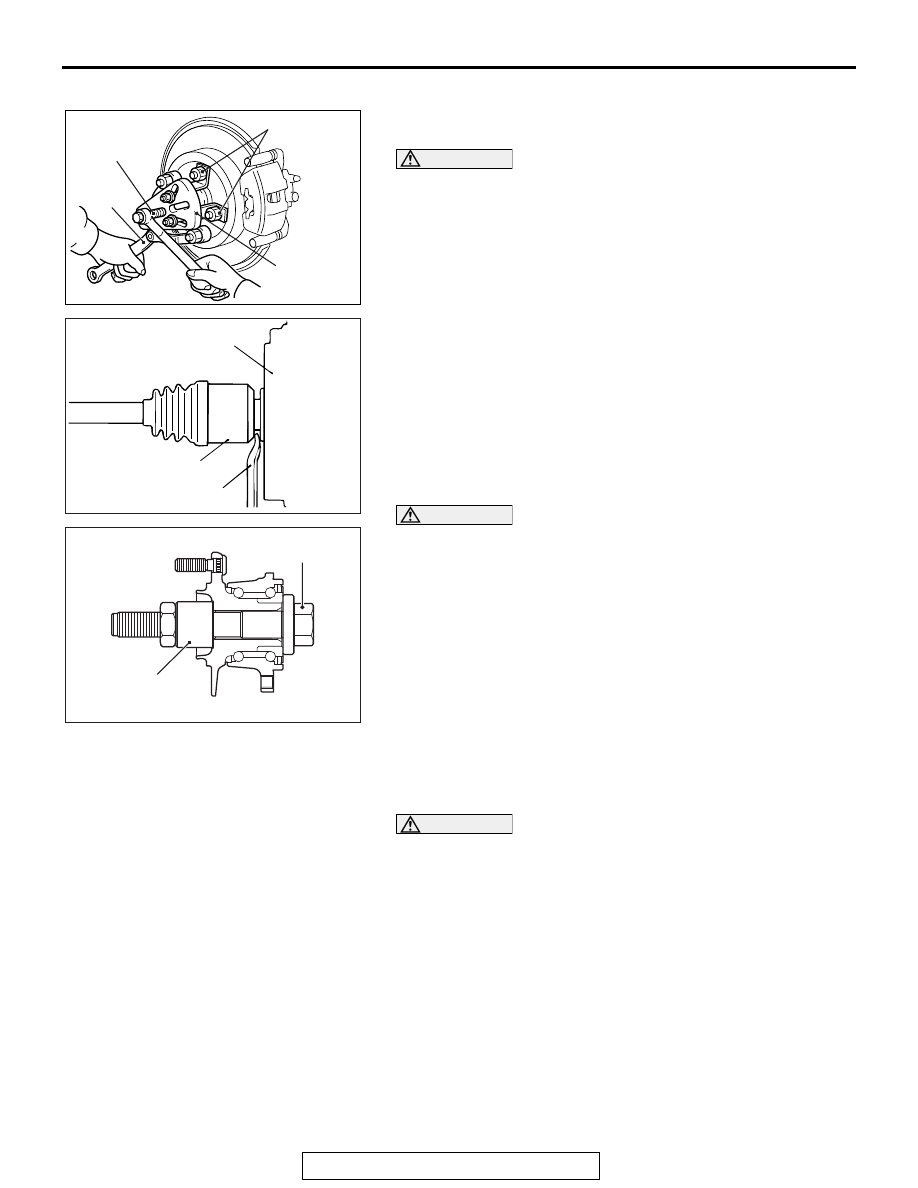

<<B>> DRIVESHAFT REMOVAL

1. Use special tools MB990242, MB990244, MB991354 and

MB990767 to push out the driveshaft from the hub.

CAUTION

• Do not pull out the driveshaft from the EUJ assembly

side. Otherwise, the ETJ assembly will be damaged. Be
sure to remove the driveshaft from the ETJ assembly
side, by using a lever.

• Care must be taken to ensure that the oil seal of the dif-

ferential carrier is not damaged by the spline part of the
driveshaft.

2. Use a lever to remove the driveshaft (ETJ assembly side)

from the differential carrier.

CAUTION

Do not apply the vehicle weight to the wheel bearing with
the driveshaft removed. If, however, the vehicle weight
shall be applied to the bearing (in order to move the vehi-
cle), use special tools MB990998 and MB991000 for tight-
ening to the specified torque [144

− 176 N⋅m (107 − 129

ft-lb)].

INSTALLATION SERVICE POINTS

.

>>A<< DRIVESHAFT INSTALLATION

CAUTION

Care must be taken to ensure that the oil seal of the differ-
ential carrier is not damaged by the spline part of the drive-
shaft.

.

AC703492 AB

MB991354

MB990244
(MB990241)

MB990242
(MB990241)

(Three)

MB990767

AC703493AB

ETJ assembly

Differential
carrier

Lever

AC703488AB

MB991000

MB990998

DRIVESHAFT ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-27

>>B<< WASHER/DRIVESHAFT NUT
INSTALLATION

CAUTION

• The magnetic encoder collects metallic particles easily,

because it is magnetized. Make sure that the magnetic
encoder does not collect metallic particles. Check that
there is not any trouble prior to reassembling it.

• When installing the drive shaft, make sure that it does

not contact with the magnetic encoder (integrated with
the inner oil seal) to avoid damage.

• Do not apply the vehicle weight on the rear wheel hub

assembly before fully tightening the driveshaft nuts.
Otherwise, the wheel bearing will be broken.

1. Assemble the driveshaft washer in the illustrated direction.
2. Use special tool MB990767 to tighten the driveshaft nuts. At

this time, tighten the nuts within the specified torque range
considering the final tightening.

Tightening torque: 144

− 176 N⋅m (107 − 129 ft-lb)

3. If the pin holes do not align with the pins, tighten the

driveshaft nut [less than 200 N

⋅m (147 ft-lb)] and find the

nearest hole then bend the cotter pin to fit it.

AC703486 AB

Magnetic
encoder

Wheel
bearing

Rear wheel
hub assembly

AC703487AB

MB990767

Washer

DRIVESHAFT ASSEMBLY

TSB Revision

REAR AXLE <AWD>

27B-28

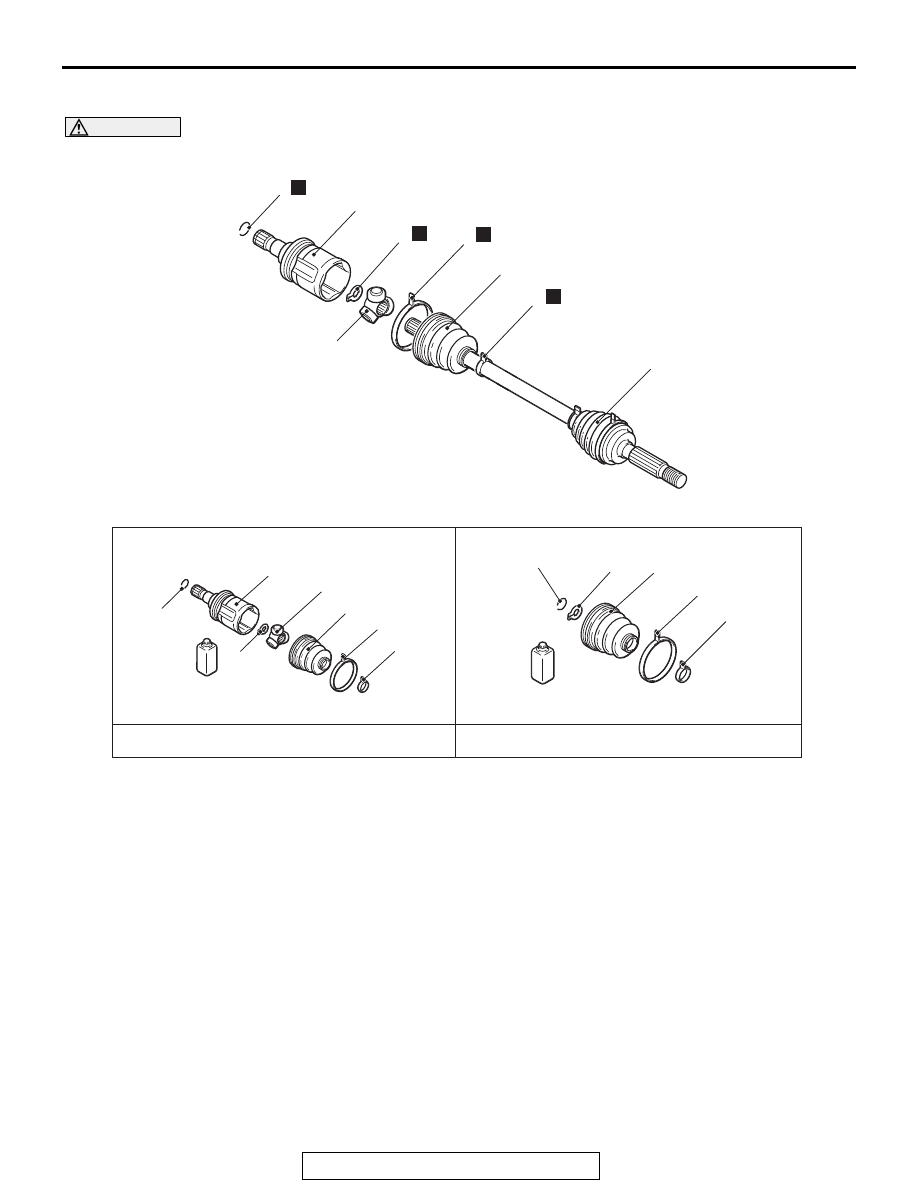

DISASSEMBLY AND ASSEMBLY

M1271003500367

CAUTION

EUJ assembly cannot be disassembled.

AC703494AB

ETJ boot repair kit

ETJ repair kit

2

1

7

6

5

3

4

2

1

7

5

4

N

N

2

7

1

6

5

N

3

4

N

8

Disassembly steps

>>

B

<< 1.

ETJ boot band (large)

>>

B

<< 2.

ETJ boot band (small)

<<

A

>> >>

A

<< 3.

ETJ case

4.

Circlip

5.

Snap ring

<<

A

>> >>

A

<< 6.

Spider assembly

<<

B

>>

7.

ETJ boot

8.

EUJ assembly

Disassembly steps (Continued)
