AIR BAG MODULE(S) AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-447

3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-31

.

INSPECTION

M1524002500767

.

AIR BAG MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag modules (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any component damage is found during the follow-
ing inspection, replace the air bag module with a new
one. Dispose of the old one according to the specified
procedure (Refer to

P.52B-461

).

1. Check the pad cover for dents, cracks or deformation.
2. Check the connectors for damage, the terminals for

deformation, and the harness for binding.

3. Check the air bag inflator case for dents, cracks or

deformation.

4. Install the air bag module (driver’s side) to the steering

wheel and check fit and alignment with the steering wheel.

5. Install the air bag module (front passenger’s side) to the

instrument panel and front deck crossmember and check fit
and alignment.

.

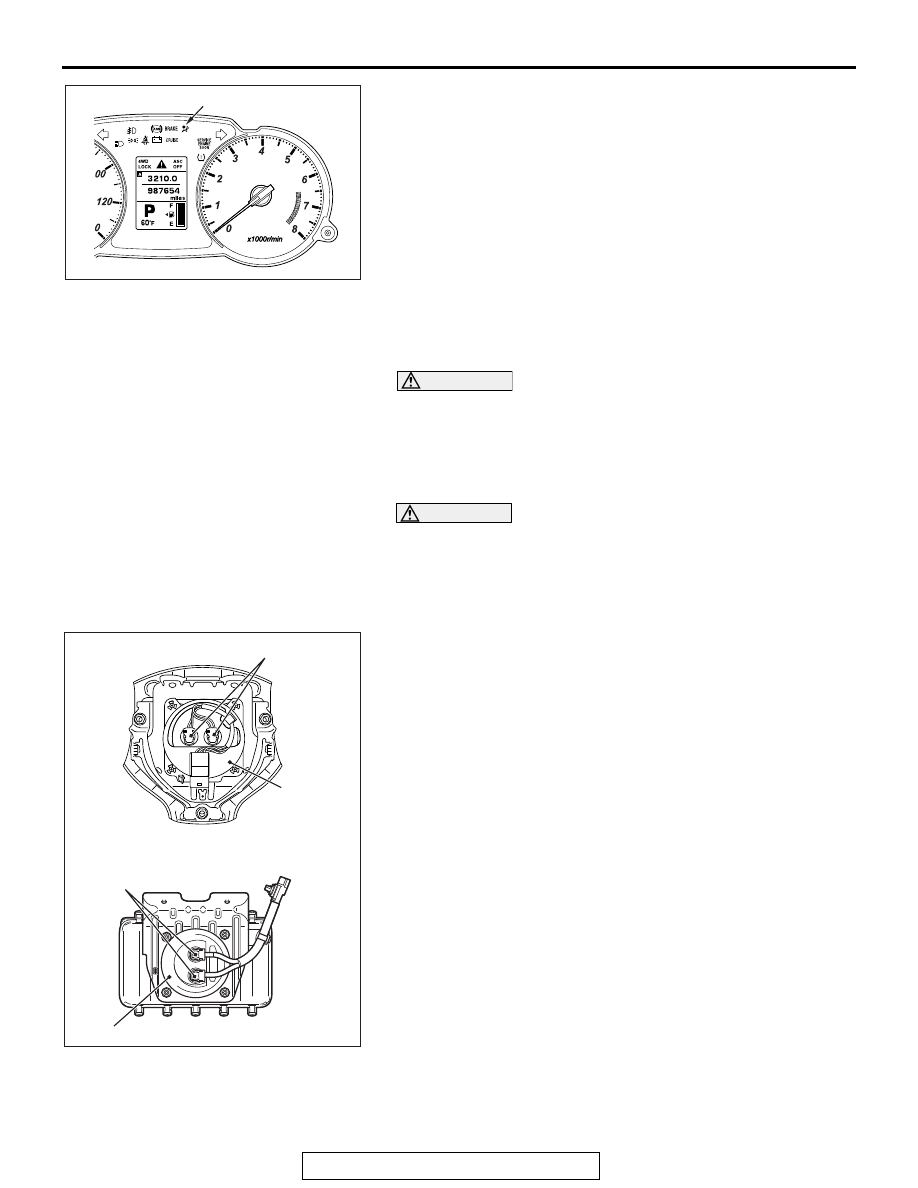

AC901647

SRS Warning light

AB

ZC601274

AC506240

AC701920

Squib connectors

Inflator case

Squib connectors

Inflator case

AB

<Driver's side>

<Passenger's side>

AIR BAG MODULE(S) AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-448

FRONT SEATBACK ASSEMBLY WITH SIDE-AIR
BAG MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag module (squib), even if you are using the
specified tester. If the circuit resistance is measured
with a tester, accidental air bag deployment will
result, and possible serious personal injury.

WARNING

If any improper part is found during the following
inspection, replace the front seatback assembly with
a new one. Dispose of the old one according to the
specified procedure (Refer to

P.52B-461

).

1. Check the air bag module deployment section for dents or

deformation.

2. Check the connector for damage, the terminals for

deformation, and the harness for binding.

.

CLOCK SPRING CHECK

If any malfunction is found in the following inspections, replace
the clock spring with a new one.
1. Check the connectors and protective tube for damage, and

the terminals for deformation.

2. Visually check the case for damage.
3. Check that the continuity exists between the following

connector terminals.

• C-204 connector terminal 1 and horn switch connector

• C-204 connector terminal 2 and C-202 connector terminal 5

• C-204 connector terminal 3 and C-202 connector terminal 4

• C-204 connector terminal 4 and C-202 connector terminal 3

• C-204 connector terminal 5 and C-202 connector terminal 2

• C-204 connector terminal 6 and C-202 connector terminal 1

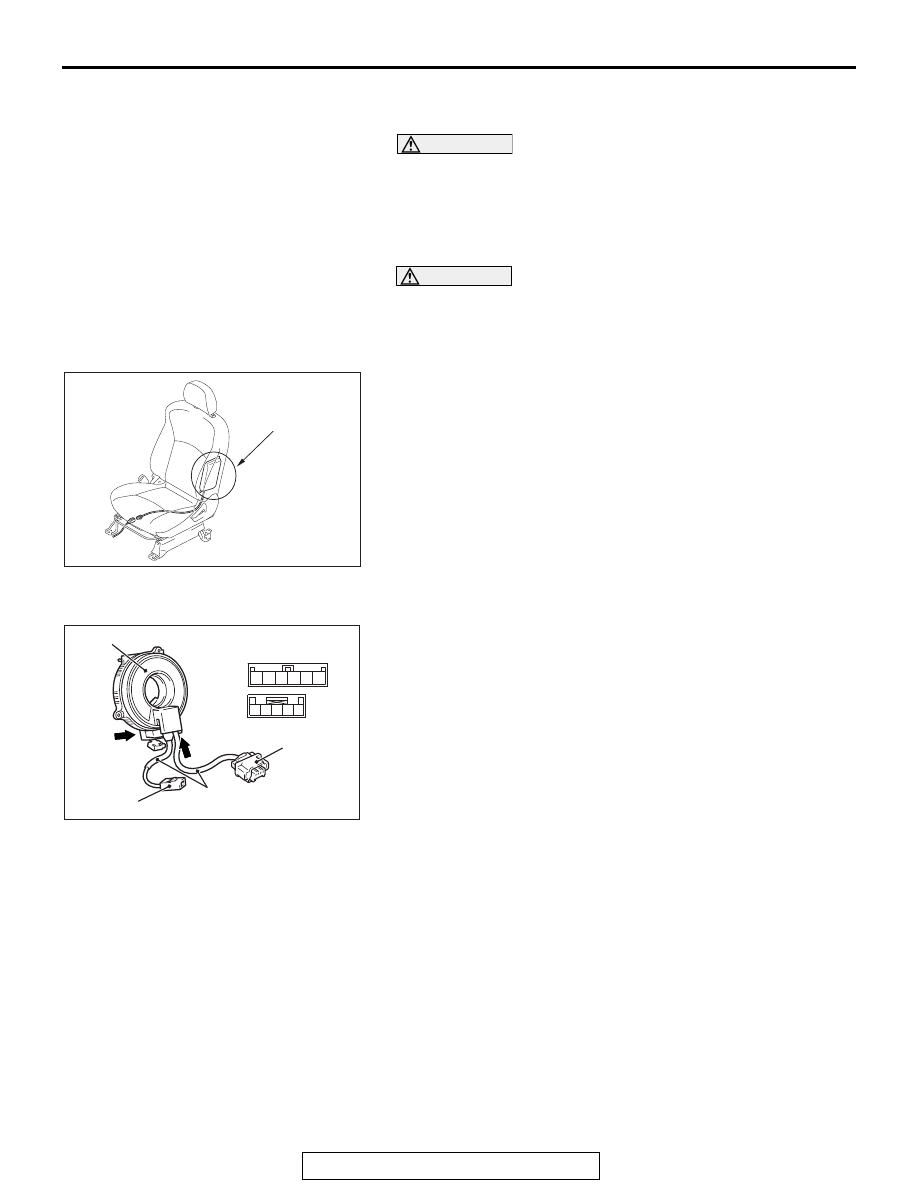

AC701971

Side-airbag module
deployment section

AB

1 2

4

3

5

1 2 3 4 5 6

AC706417

Steering wheel audio remote
control switch connector

Driver's air bag
module connector

AK

C-204

C-204

C-202

C-202

Case

Protective tube

Horn switch

connector

AIR BAG MODULE(S) AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-449

CAUTION

 Do not directly insert a probe, etc. into the terminal from
the front of the connector.
4.  Insert the special tool (MB992006) from behind the air bag

module connector of the C-205 driver's side.

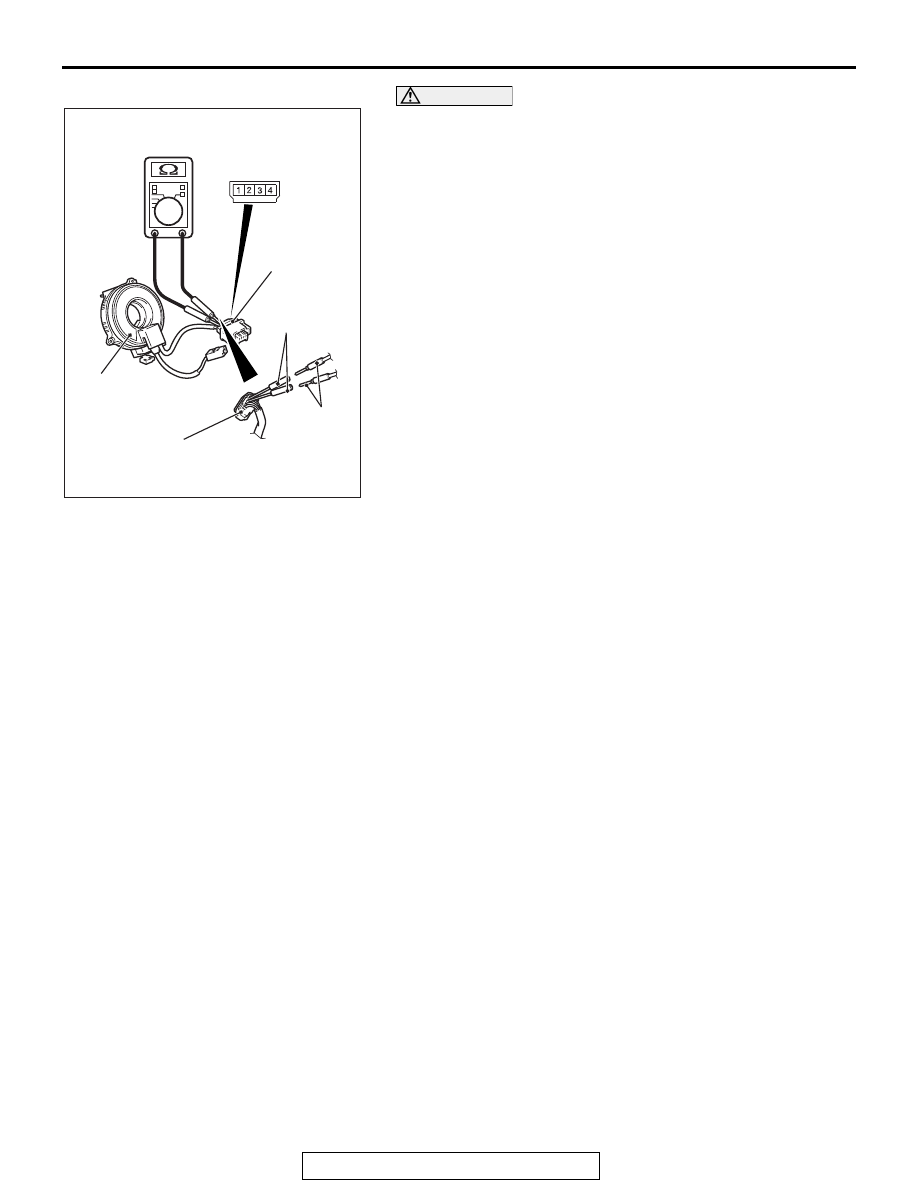

5. Connect the circuit tester to the special tool as shown in the

figure, and check the continuity among terminal No. 1

− 2 or

No. 3

− 4.

AC306759AX

Clock spring

Air bag
module connector
(driver's side)

Digital
multi-meter

Extra fine probe
(MB992006)

Air bag module
connector
(driver's side)

(Rear view)

SIDE IMPACT SENSOR

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-450

SIDE IMPACT SENSOR

REMOVAL AND INSTALLATION

M1524004601235

WARNING

•

Never attempt to disassemble or repair the side impact sensor. If faulty, replace it.

•

Do not drop or subject the side impact sensor to impact or vibration. Replace the side
impact sensor, if dents, cracking, deformation, or rust are present.

•

Replace the side impact sensor after the side and curtain air bag has deployed.

Pre-removal Operation
• Turn the ignition key to the "LOCK" (OFF) position.

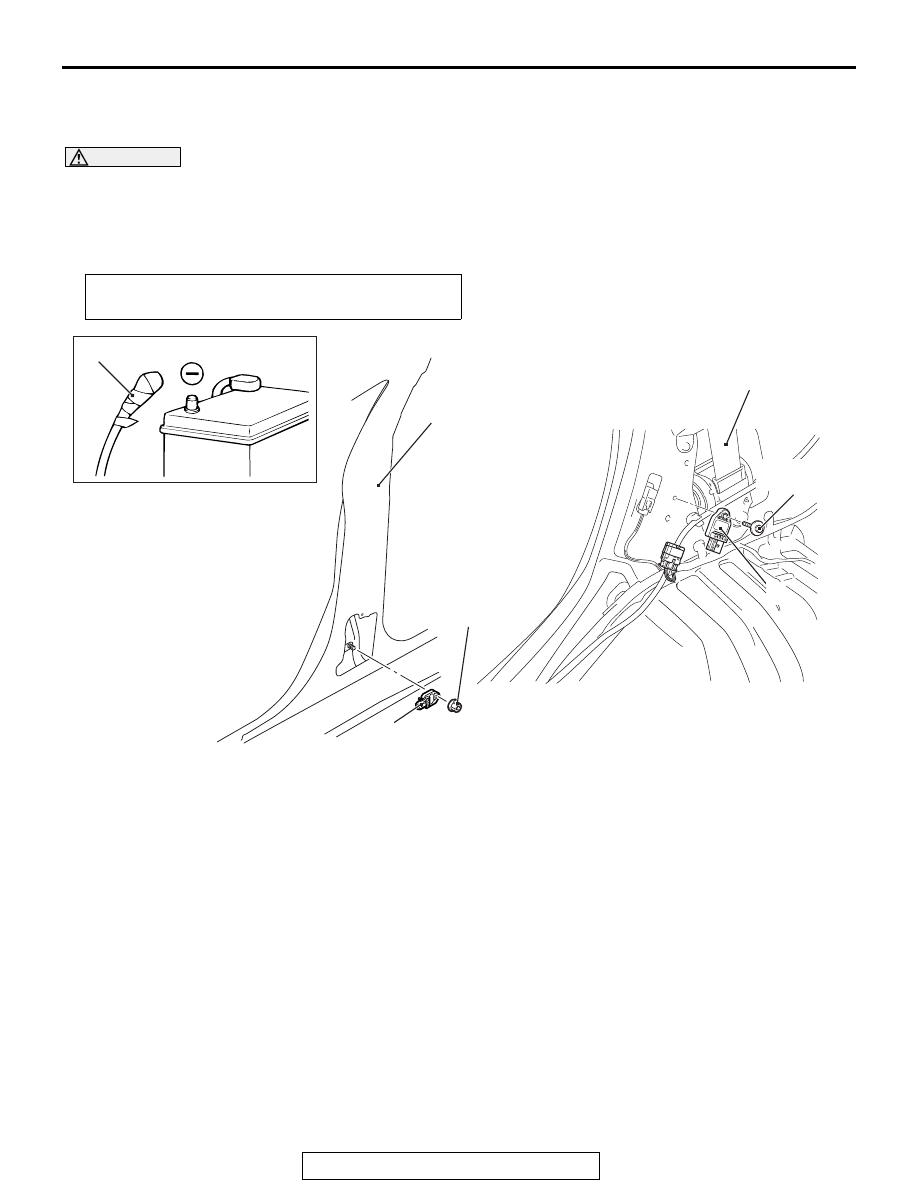

AC701972

1

<Rear>

12 ± 1 N·m
106 ± 8 in-lb

3

9.0 ± 1.0 N·m
80 ± 8 in-lb

Center pillar

Second seat belt

2

AC

<Front>

Side impact sensor (front)
removal steps

<<A>>

1.

Negative (

−) battery cable

connection

•

Center pillar trim, lower (Refer to
GROUP 52A, Interior Trim

P.52A-10

).

•

Seat belt with pre-tensioner (Refer
to

P.52B-457

.)

<<B>>

•

Side impact sensor connector
connection

2.

Side impact sensor (Front)
Side impact sensor (front)
installation steps

>>A<<

•

Pre-installation inspection

>>B<<

2.

Side impact sensor (Front)

•

Side impact sensor connector
connection

•

Seat belt with pre-tensioner (Refer
to

P.52B-457

.)

•

Center pillar trim, lower (Refer to
GROUP 52A, Interior Trim

P.52A-10

).

1.

Negative (

−) battery cable

connection

>>C<<

•

Post-installation inspection
Side impact sensor (Rear)
removal steps

<<A>>

1.

Negative (

−) battery cable

connection

•

Quarter trim, lower (Refer to
GROUP 52A, Interior Trim

P.52A-10

.)

<<B>>

•

Side impact sensor connector
connection

3.

Side impact sensor (Rear)

Side impact sensor (front)
installation steps (Continued)
