REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-87

NOTE: Using the customization function, the rear
wiper intermittent time can be adjusted. (Refer to

P.51-101

.)

.

Rear wiper linked with washer function Initial condition: with function

When the rear washer switch on the column switch is
turned ON while the ignition switch is in ACC or ON
position, ETACS turns the rear washer relay ON.
The rear washer relay turns ON after the rear washer
switch has been ON for 0.3 seconds, then turns the
rear wiper relay ON to operate the rear wiper simul-
taneously. When the rear washer switch is turned
OFF, after 3 seconds the rear wiper is turned OFF.

If the rear washer switch is turned ON during the rear
wiper operation, 7.4 seconds after turning OFF the
rear wiper relay turns OFF, the intermittent action is
resumed in 8 seconds interval.
NOTE: Using the customization function, the washer
linked rear wiper function can be invalidated. (Refer
to

P.51-101

.)

SPECIAL TOOL

M1511000602690

AC702457AB

   t : 0.3 second
T4 : 0.6 second
T1 : 3 seconds

T2 : 7.4 seconds
T3 : 8 seconds

t

t

t

ON

OFF

ON

OFF

ON

OFF

T1

T1

T1

T2

T3

T4

T4

Rear wiper relay

Rear washer switch

Rear washer relay

Rear wiper switch
at OFF position

Rear wiper switch at ON position

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB992326
Adjustment tool,
washer nozzle

General service tool

Injection angle adjustment of
the washer nozzle

MB992326

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-88

REAR WIPER AND WASHER DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1511014600590

Gather the information from the customer.
1. Verify that the condition described by the

customer exists.

2. Find the malfunction by the following Symptom

Chart.

3. Verify the malfunction is eliminated.

TROUBLE SYMPTOM CHART

M1511015000803

TROUBLE SYMPTOM

Inspection
procedure
No.

Reference
page

Rear wiper does not work at all

1

P.51-89

Rear wiper does not stop at the specified park position

2

P.51-94

When the selector lever is moved to "R" position during the rear wiper
operation, the rear wiper does not operate at the continuous mode

3

P.51-97

Rear washer does not work normally.

4

P.51-99

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-89

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Rear wiper does not work at all.

ACC
RELAY 3

ETACS-ECU

VIOLET

SKY

BLUE

BLUE

VIOLET

SKY

BLUE

BLUE

C-311

AC709929

REAR
WIPER
RELAY

REAR

BLA

CK

BLA

CK

WIPER
MOTOR

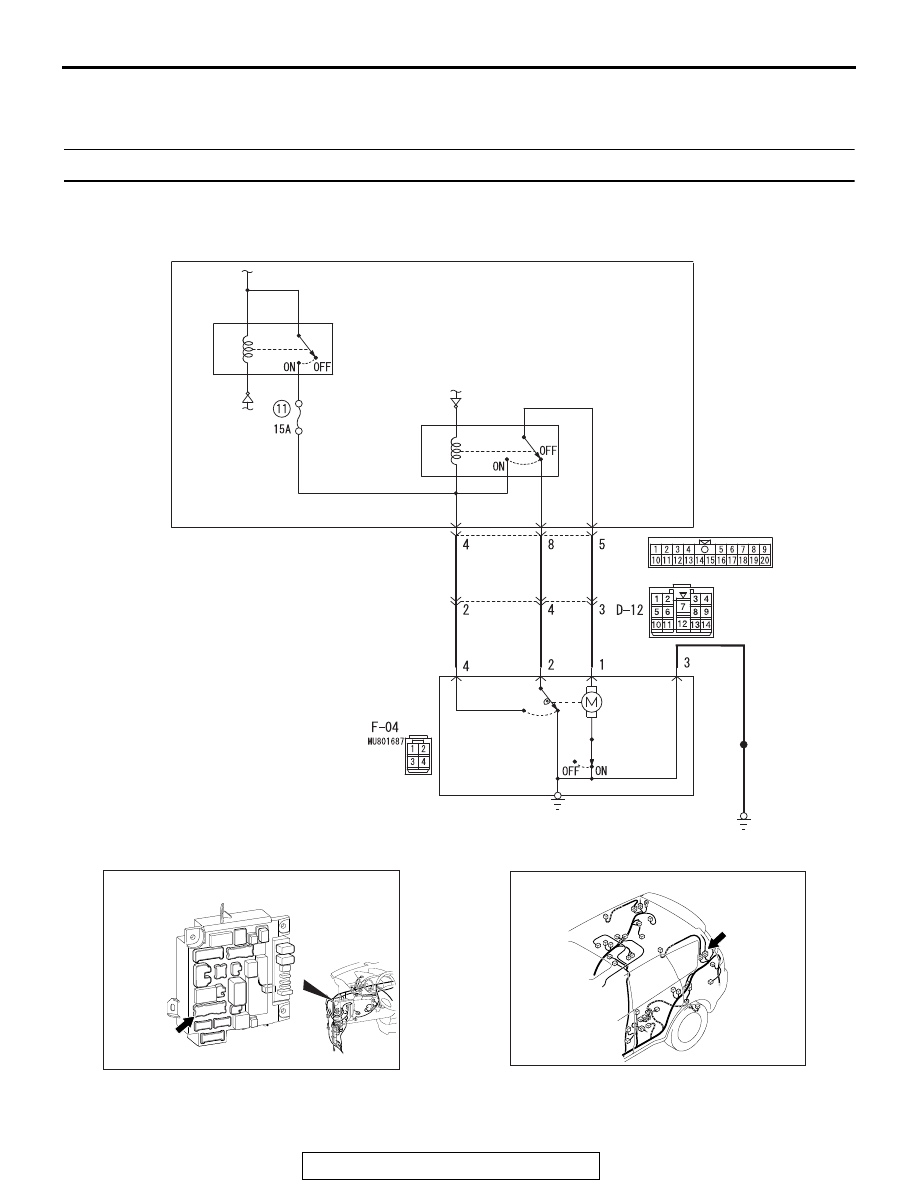

Rear Wiper Motor Circuit

AB

CIRCUIT
BREAKER

ACA02655 AC

Connector: C-311

AC901080 AG

Connector: D-12

REAR WIPER AND WASHER

TSB Revision

EXTERIOR

51-90

.

CIRCUIT OPERATION

• The rear wiper switch sends a signal through the

column-ECU (incorporated in the column switch)
to the ETACS-ECU. If the column-ECU sends a
rear wiper switch "ON" signal to the ETACS-ECU,
the ETACS-ECU turns on the relay (incorporated
in the ETACS-ECU), thus causing the rear wiper
motor to be turned on.

• The ETACS-ECU operates the rear wiper accord-

ing to the following switches:

• Ignition switch (ACC)

• Rear wiper switch

.

TECHNICAL DESCRIPTION (COMMENT)

If the rear wiper does not work normally, the input cir-
cuit system from the switches, the rear wiper motor,
the column switch (windshield wiper and windshield
washer switch) or the ETACS-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The rear wiper motor may be defective

• The column switch (windshield wiper and washer

switch) may be defective

• The ETACS-ECU may be defective

• The wiring harness may be damaged or the con-

nectors may have loose, corroded or damaged
terminals, pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles communication interface (V.C.I.)

• MB991827: M.U.T.-III USB cable

• MB991911: M.U.T.-III Main harness B

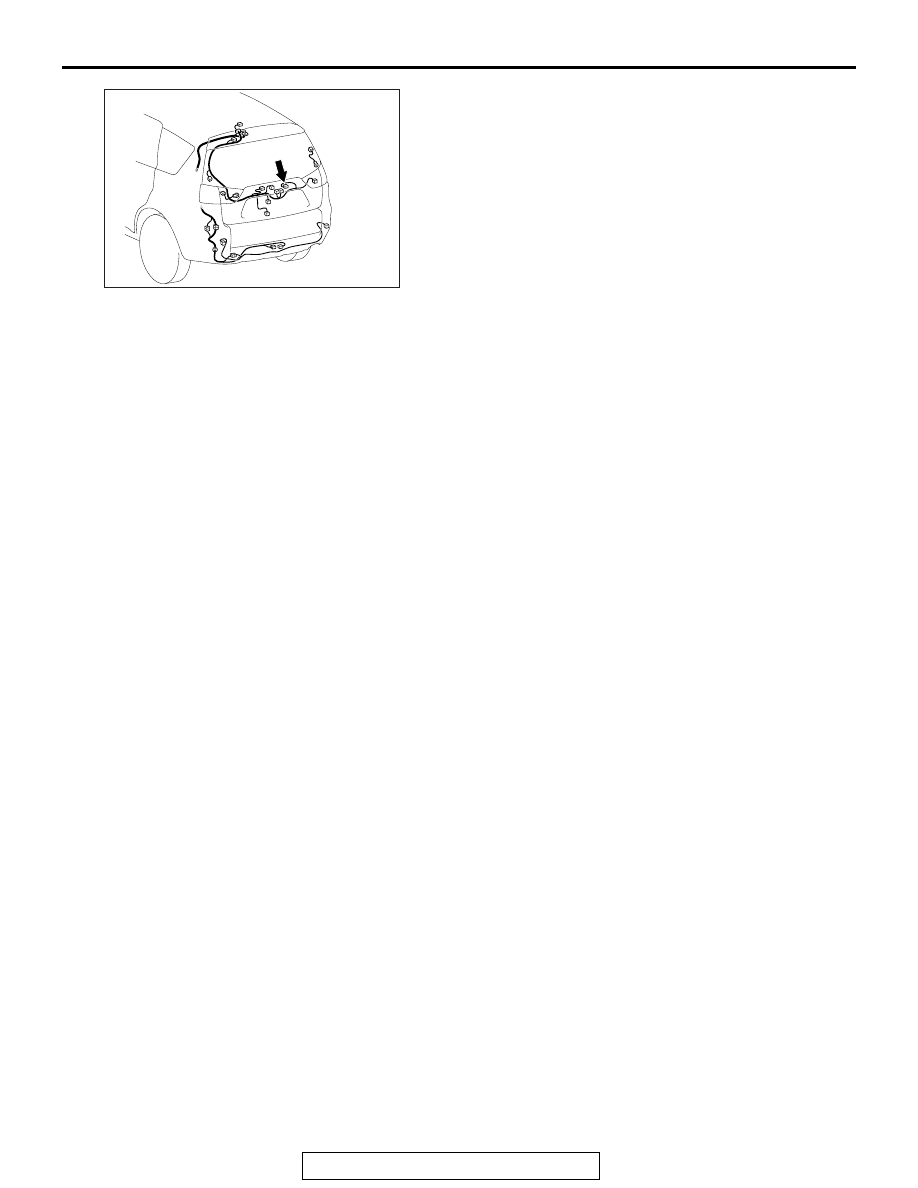

AC702498 AB

Connector: F-04
