WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-51

• MB991910: M.U.T.-III Main Harness A

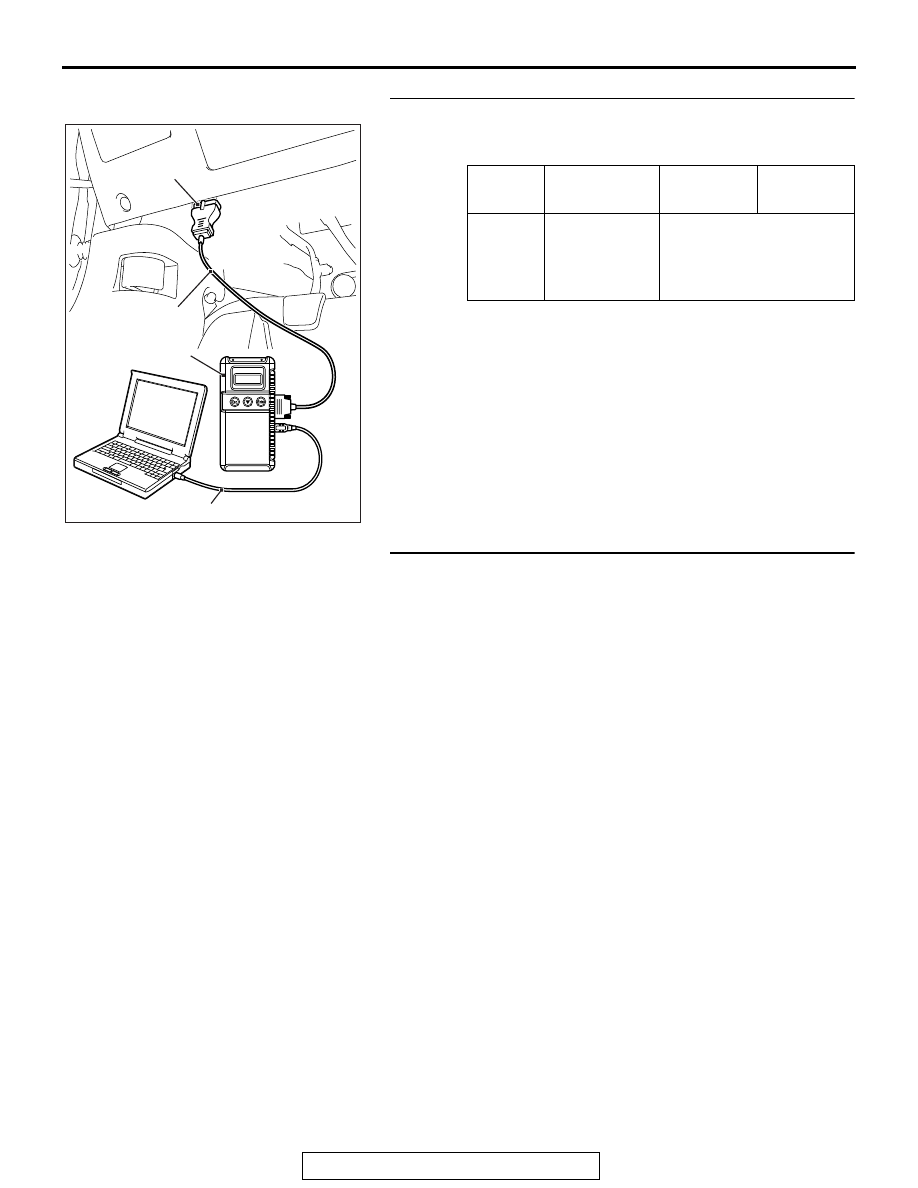

STEP 1. Use the scan tool MB991958 to check if an
ETACS-related diagnostic trouble code is set.
Connect the scan tool. Refer to GROUP 54A ETACS, "Diag-
nostic function

P.54A-729

."

Q: Is the diagnostic trouble code set?

YES : Diagnose the ETACS-ECU. Refer to GROUP 54A

ETACS, "Diagnostic trouble code chart

P.54A-732

."

NO :  Go to Step 2.

STEP 2. Check the ETACS configuration function.
Use the ETACS configuration function to check that "Front
wiper operation" is set to "variable INT" or "vehicle speed
dependent".
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Use the ETACS configuration function to set "Front

wiper operation" to "variable INT" or "vehicle speed
dependent". Refer to

P.51-75

.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-52

STEP 3. Using scan tool MB991958, check data list.
Check the input signal related to the windshield wiper opera-
tion.

• Ignition switch: ACC

• Rotate the windshield wiper interval control from (+) to (−)

side.

OK: Normal condition is displayed.

Q: Is the check result normal?

NO :  Go to Step 4.
YES : Replace the column switch.

STEP 4. Retest the system.
Check that the windshield wiper interval changes when the
windshield wiper volume control is rotated.
Q: Is the check result normal?

YES : Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction

P.00-15

.

NO :  Replace the ETACS-ECU.

INSPECTION PROCEDURE 6: The windshield intermittent wiper interval is not changed according to
the vehicle speed.

.

Item No.

Display on
scan tool

Check
conditions

Normal
condition

Item 359

Front wiper
(interval
volume)

Rotate the
windshield
wiper
interval
control
from (+) to
(

−) side.

Value
changes
from (+) to
254 (

−)

ETACS-ECU

LIN
COMMUNICATION
LINE

COLUMN-ECU

INPUT SIGNAL

WINDSHIELD INTERMITTENT
WIPER INTERVAL
ADJUSTING KNOB

CAN COMMUNICATION
LINE (CAN_H LINE)

CAN COMMUNICATION
LINE (CAN_L LINE)

TCM

INPUT SIGNAL

VEHICLE SPEED

AC702489

Windshield Intermittent Wiper Control Circuit

AB

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-53

TECHNICAL DESCRIPTION (COMMENT)

If the intermittent wiper interval does not depend on
the vehicle speed, the input circuit of the vehicle
speed signal and the ETACS-ECU may be defective.
Alternatively, the vehicle speed-dependent wiper
may be set to "disabled" by using the configuration
function.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The combination meter may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

STEP 1. Retest the system.
Check that the windshield intermittent wiper interval can be
adjusted by operating the windshield intermittent wiper interval
control switch.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Refer to Inspection Procedure 5 "The windshield

intermittent wiper interval cannot be adjusted by
operating the windshield intermittent wiper interval
control switch"

P.51-50

.

STEP 2. Check the ETACS configuration function.
Use the ETACS configuration function to check that "Front
wiper operation" is set to "Variable INT" or "Speed sensitive".
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Use the ETACS configuration function to set "Front

wiper operation" to "variable INT" or "Speed
sensitive". (Refer to

P.51-75

.)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-54

STEP 3. Using scan tool MB991958, check data list.
Check the input signal related to the combination meter.

• Drive the vehicle and change vehicle speed.

Q: Is the check result normal?

YES : Go to Step 4.
NO <Normal condition is not displayed for item No. 80.>
:

Troubleshoot the speedometer (Refer to GROUP 54A
− Combination Meter, Diagnosis - Inspection

Procedure 2: "The speedometer does not work (the
other meters work)”

P.54A-75

 .)

STEP 4. Retest the system.
Check that the intermittent wiper interval depends on the vehi-
cle speed.
Q: Is the check result normal?

YES : Intermittent malfunction. Refer to GROUP 00, How to

Cope with Intermittent Malfunction

P.00-15

.

NO :  Replace the ETACS-ECU.

Item No. Display on

scan tool

Check
condition

Normal
condition

Item 80

speedometer

Speedometer displayed
value and scan tool
displayed value agree
with each other

AC608435

Data link connector

MB991827

MB991824

MB991910
