Mitsubishi Outlander GS45X. Manual - part 135





MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-537

Inspection Procedure 6: The AM/FM Radio Broadcasting Cannot be Received.

CAUTION

Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and
the communication circuit are normal. (Check that the voltage is 10 V or more.)

.

TECHNICAL DESCRIPTION (COMMENT)

In case of AM/FM radio broadcasting cannot be
received., the roof antenna (antenna rod, antenna
base), antenna fender or multivision display may
have a problem.
NOTE: The radio wave may not be received if the
vehicle is placed in the area which is exposed to a
special electric field. Thus, check that the radio
broadcasting can be received using the radio of
another vehicle before carrying out diagnosis.

.

TROUBLESHOOTING HINTS

• Malfunction of roof antenna (antenna rod,

antenna base)

• Antenna feeder malfunction

• Malfunctions of multivision display

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

STEP 1. Check the state of the antenna rod and
antenna base.

Q: Is the roof antenna assembled?

YES :

Go to Step 2.

NO :

Assemble antenna rod and antenna base.

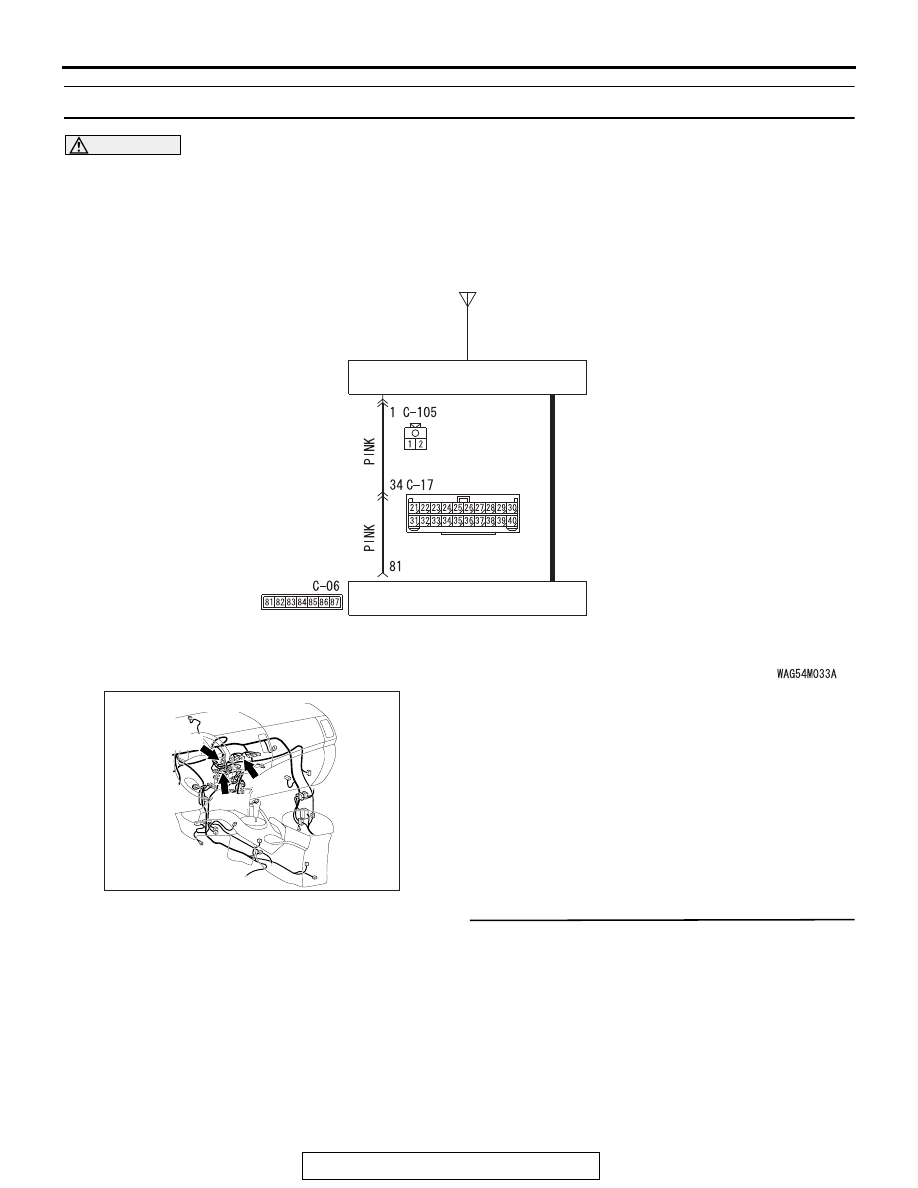

ROOF ANTENNA

ANTENNA AMP

Antenna Circuit

MULTIVISION DISPLAY

ANTENNA FEEDER

AC901076 AQ

Connectors: C-06, C-17, C-105

C-06

C-17

C-105

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-538

STEP 2. Check to see if inspections are taking
place is an area exposed to special electric
fields.

Q: Is the reception area exposed to special electric

fields?
YES :

Go to Step 3.

NO :

Go to Step 4.

STEP 3. Move the vehicle and check the radio.
Move the vehicle to a good reception area that is not
exposed to special electric fields.

Q: Is the check result normal?

YES :

Diagnosis complete.

NO :

Go to Step 4.

STEP 4. Check damage in the roof antenna (the
antenna rod, the antenna base).

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace antenna rod or antenna base.

STEP 5. Check the connection of the antenna
plug and multivision display.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the antenna rod, antenna base and
antenna fender.

STEP 6. Check multivision display connector
C-06 and radio antenna connector C-105 for
loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q: Are multivision display connector C-06 and radio

antenna connector C-105 in good condition?
YES :

Go to Step 7.

NO :

Repair or replace the damaged
component(s). Refer to GROUP 00E,
Harness Connector Inspection

P.00E-2

.

STEP 7. Check the wiring harness between
multivision display connector C-06 (terminal 81)
and radio antenna connector C-105 (terminal 1).

• Check the communication line for open circuit

and short circuit.

NOTE: Also check intermediate connector C-17 for
loose, corroded, or damaged terminals, or terminals
pushed back in the connector. If intermediate con-
nector C-17 is damaged, repair or replace the con-
nector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between multivision display

connector C-06 (terminal 81) and radio antenna
connector C-105 (terminal 1) in good condition?
YES :

Go to Step 8.

NO :

The wiring harness may be damaged or the
connector(s) may have loose, corroded or
damaged terminals, or terminals pushed
back in the connector. Repair the wiring
harness as necessary.

STEP 8. Substitute a known good multivision
display, and check the trouble symptom.

Q: Is the check result normal?

YES :

Replace the multivision display.

NO :

Either repair or replace the antenna rod and
antenna base.

Inspection Procedure 7: GPS signal can not be received.

CAUTION

Whenever the multivision display is replaced,
ensure that the power supply circuit and the
grounding circuit are normal. (Check that the
voltage is 10 V or more.)

.

COMMENTS ON TROUBLE SYMPTOM

The GPS antenna or the multivision display may be
defective.

.

PROBABLE CAUSES

• The GPS antenna may be defective

• The multivision display may be defective

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-539

DIAGNOSIS

STEP 1. Confirmation in MMCS service mode
Perform "Network/Connect Line Check" in the MMCS service
mode to check that the communication and wire connection
with the GPS antenna are OK. (Refer to

P.54A-443

.)

Q: Is the check result normal?

YES : Go to Step 2.
NO :  Check that the GPS antenna is correctly connected to

the multivision display, and go to Step 2.

STEP 2. Check for the vehicle's current position.
Check that the vehicle is parked on a well-ventilated place.
Q: Is the vehicle parked on a well-ventilated place?

YES : Go to Step 3.
NO :  Move the vehicle to a well-ventilated area.

STEP 3. Confirming GPS signal reception
(1) Activate the multivision display.
(2) Press the [INFO] button.
(3) Select [Vehicle Position].
(4) Wait for 5 minutes, and then check whether GPS signal can

be received.

Q: Can GPS signal be received?

YES : The diagnosis is complete. (There is no failure)
NO :  Go to Step 4.

STEP 4. Substitute a known good multivision display, and
check the trouble symptom.
(1) Temporarily replace the multivision display.
(2) Activate the multivision display.
(3) Press the [INFO] button.
(4) Select [Vehicle Position].
(5) Check if the GPS signals are being received after 5 minutes

have elapsed.

Q: Is the check result normal?

YES : Replace the multivision display.
NO :  Replace the GPS antenna.

Inspection Procedure 8: CD/DVD cannot be played.

CAUTION

Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and
the communication circuit are normal. (Check that the voltage is 10 V or more.)

.

COMMENTS ON TROUBLE SYMPTOM

The CD/DVD or the multivision display may be
defective.

.

PROBABLE CAUSES

• Defective DVD (video disk)

• The multivision display may be defective

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-540

DIAGNOSIS

STEP 1. Check the CD/DVD insertion surface.
Check if the CD/DVD is inserted with its correct sur-
face facing upward.

Q: Is the check result normal?

YES :

Go to step 2.

NO :

Confirm the disk face, and insert it again. (If
the disk is single-sided, its label should face
up)

STEP 2. Check the CD/DVD.

• Check that the DVD has the correct region code.

• Check if the CD corresponds with the multivision

display.

Q: Is the check result normal?

YES :

Go to step 3.

NO :

Use the DVD with a correct region code. Or
use the CD which corresponds with the
multivision display.

STEP 3. Check the CD/DVD.
Check that the CD)/DVD is free of dirt or scratch.

Q: Is the check result normal?

YES :

Go to step 4.

NO :

Clean the disk, use a disk without scratches
and burrs, or remove the burrs from the
disk. Then, reinsert the disk.

STEP 4. Temporarily replace the CD/DVD with
another one, and check the trouble symptom.
Check if another CD/DVD is played normally when it
is inserted.

Q: Is the check result normal?

YES :

Replace the used CD/DVD.

NO :

Go to step 5.

STEP 5. Check the service data log for the MMCS
service mode.
(1) Display the service data log for the MMCS

service mode. (Refer to

P.54A-443

.)

(2) Check if the service data log for drive and HDD is

displayed.

Q: Is the service data log displayed?

YES (The service data log for drive is displayed.) :

Check for foreign materials or condensation.
Repair if there is an abnormality, and then
go to Step 6.

YES (The service data log for HDD is displayed.) :

Abnormalities relating to high or low
temperature may be present. Check if the
multivision display can be played at the
operable temperature. If it cannot be played,
go to Step 6.

NO :

Go to step 6.

STEP 6. Perform "Network/Connect Line Check"
in the MMCS service mode.
(1) Display "Network/Connect Line Check" in the

MMCS service mode. (Refer to

P.54A-443

.)

(2) Check if "DVD Drive OK" is displayed.
(3) Check if "HDD Drive OK" is displayed.

Q: Is the check result normal?

YES  :

Go to step 7.

NO  :

Replace the multivision display.

STEP 7. Retest the system.
Check if the CD/DVD is played normally when it is
inserted.

Q: Is the check result normal?

YES :

The diagnosis is complete.

NO :

Go to step 8.

STEP 8. Temporarily replace the multivision
display, and check the trouble symptom.
After temporary replacement of the multivision dis-
play, check that the CD/DVD is played normally
when it is inserted.

Q: Is the check result normal?

YES :

Replace the multivision display.

NO :

Replace the CD/DVD.
