DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-49

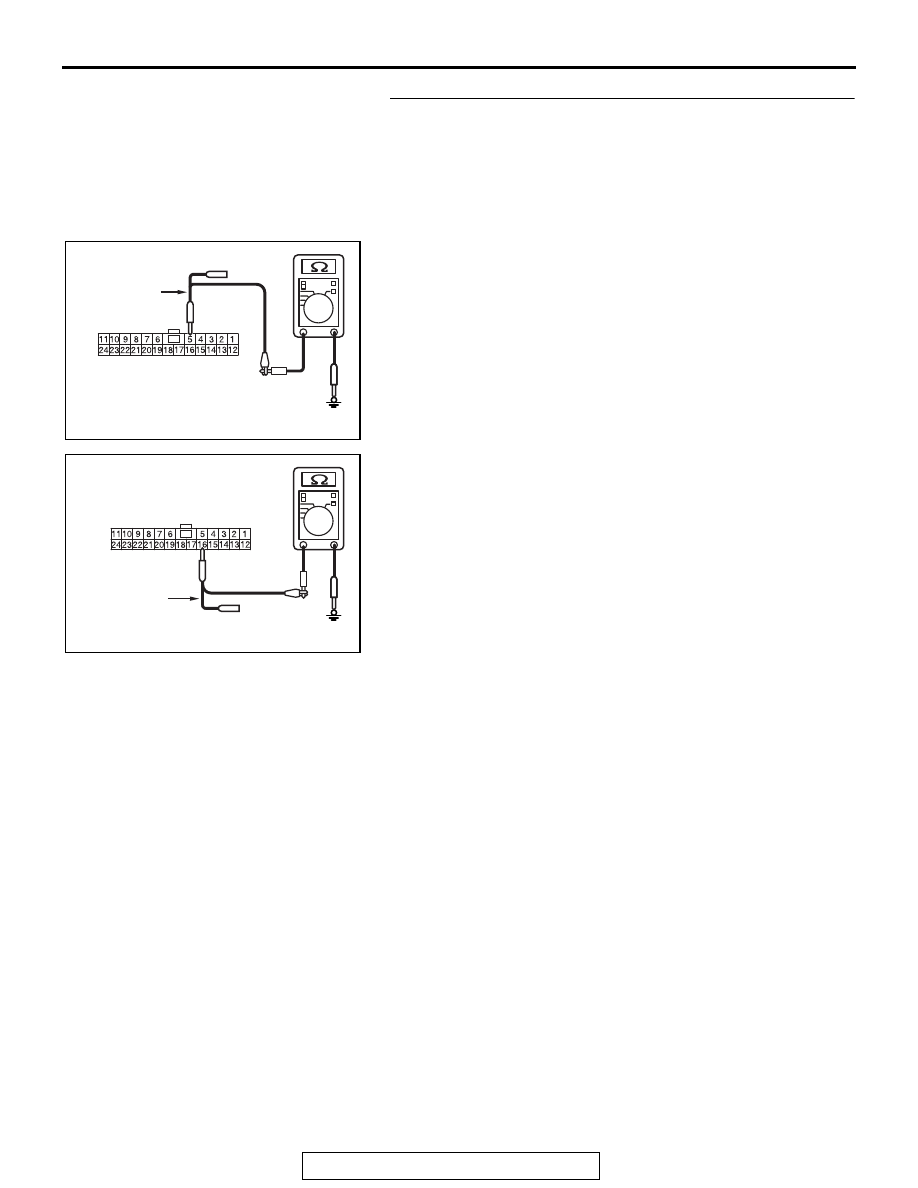

STEP 1. Check the wiring harness between joint connector
(CAN2) C-04 and ETACS-ECU connector C-301 for a short
to ground. Measure the resistance at joint connector
(CAN2) C-04.
(1) Disconnect joint connector (CAN2), and measure the

resistance at the wiring harness side of joint connector
(CAN2).

(2) Measure the resistance between joint connector (CAN2)

terminal 6 and body ground.

OK: 1 k

Ω or more

(3) Measure the resistance between joint connector (CAN2)

terminal 19 and body ground.

OK: 1 k

Ω or more

Q: Do all the resistances measure 1 k

Ω or more?

YES <vehicles with ASC> : Go to Step 2.
YES <vehicles without ASC (FWD)> : Go to Step 5.
YES <vehicles without ASC (Electric controlled AWD)> :

Go to Step 3.

NO  :  Go to Step 11.

AC702818 BR

Harness side: C-04

Test harness

AC702818 BR

Harness side: C-04

Test harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-50

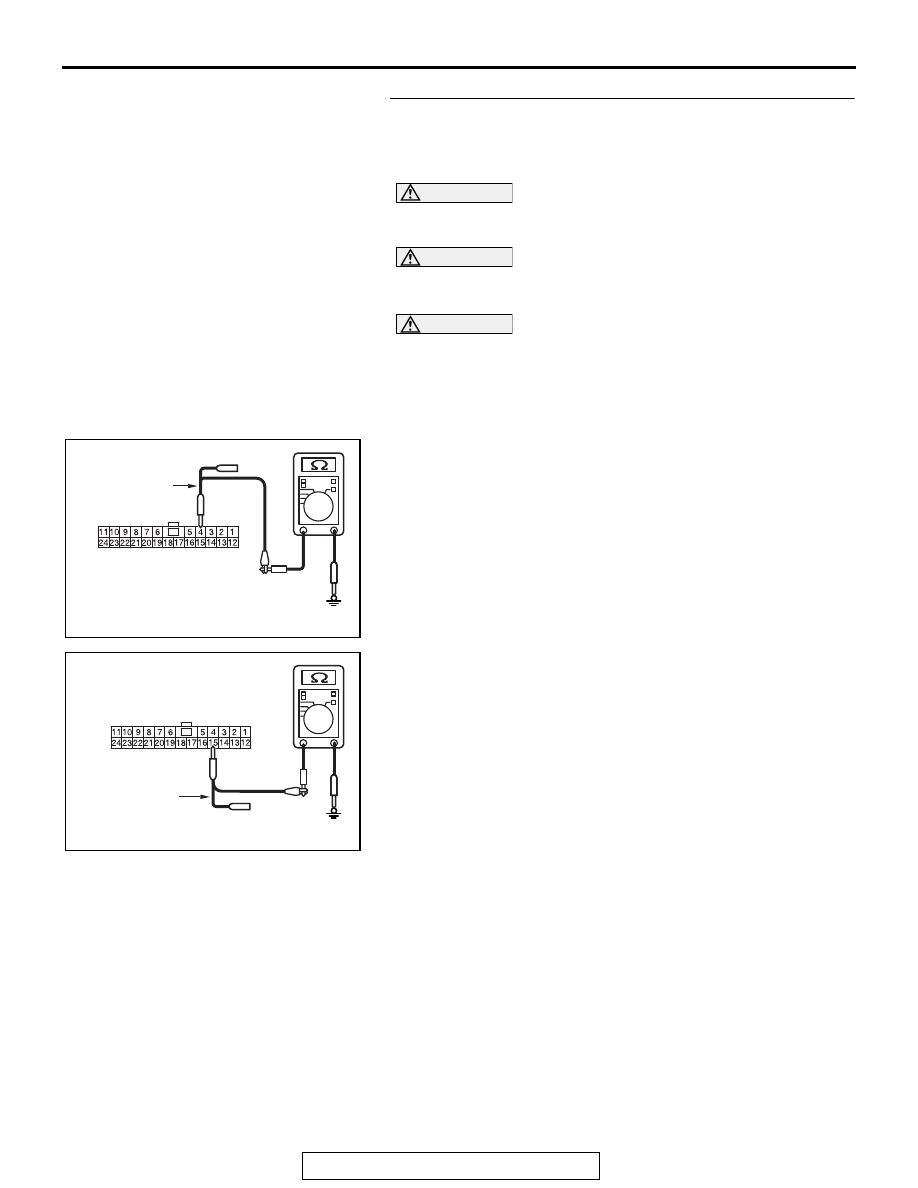

STEP 2. Check the wiring harness between joint connector
(CAN2) C-04 and steering wheel sensor connector C-209
for a short to ground. Measure the resistance at joint
connector (CAN2) C-04.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-7

.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-7

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-7

.

(1) Disconnect joint connector (CAN2), and measure the

resistance at the wiring harness side of joint connector
(CAN2).

(2) Measure the resistance between joint connector (CAN2)

terminal 4 and body ground.

OK: 1 k

Ω or more

(3) Measure the resistance between joint connector (CAN2)

terminal 15 and body ground.

OK: 1 k

Ω or more

Q: Do all the resistances measure 1 k

Ω or more?

YES <FWD> : Go to Step 5.
YES <Electric controlled AWD> : Go to Step 3.
YES <S-AWC> : Go to Step 4.
NO  :  Go to Step 8.

AC702818 BN

Harness side: C-04

Test
harness

AC702818 BO

Harness side: C-04

Test
harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-51

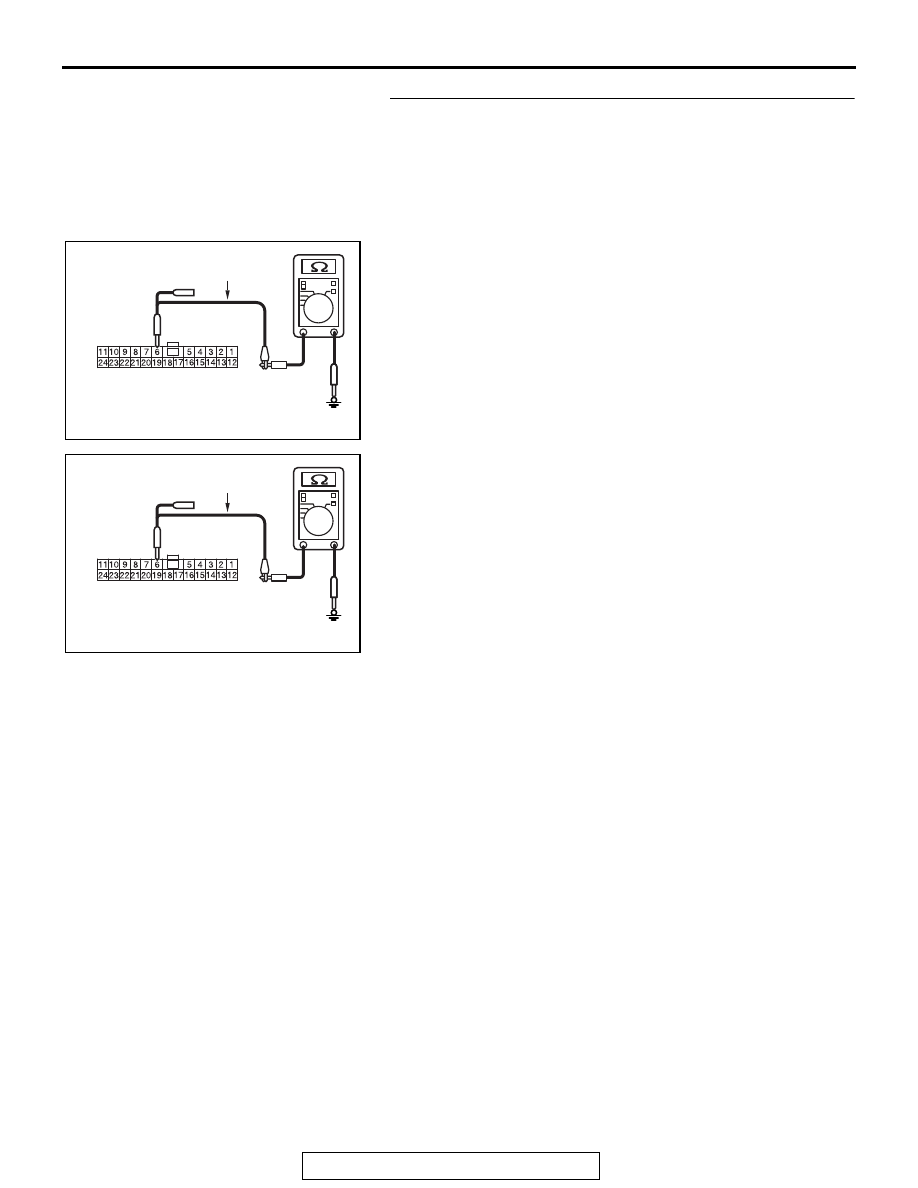

STEP 3 Check the wiring harness between joint connector
(CAN2) C-04 and AWD-ECU connector C-128 for a short to
ground. Measure the resistance at joint connector (CAN2)
C-04.
(1) Disconnect joint connector (CAN2), and measure the

resistance at the wiring harness side of joint connector
(CAN2).

(2) Measure the resistance between joint connector (CAN2)

terminal 5 and body ground.

OK: 1 k

Ω or more

(3) Measure the resistance between joint connector (CAN2)

terminal 16 and body ground.

OK: 1 k

Ω or more

Q: Do all the resistances measure 1 k

Ω or more?

YES : Go to Step 5.
NO :  Go to Step 9.

AC702818BP

Harness side: C-04

Test
harness

AC702818 BQ

Harness side: C-04

Test
harness

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-52

STEP 4 Check the wiring harness between joint connector
(CAN2) C-04 and AWC-ECU connector C-139 for a short to
ground. Measure the resistance at joint connector (CAN2)
C-04.
(1) Disconnect joint connector (CAN2), and measure the

resistance at the wiring harness side of joint connector
(CAN2).

(2) Measure the resistance between joint connector (CAN2)

terminal 5 and body ground.

OK: 1 k

Ω or more

(3) Measure the resistance between joint connector (CAN2)

terminal 16 and body ground.

OK: 1 k

Ω or more

Q: Do all the resistances measure 1 k

Ω or more?

YES : Go to Step 5.
NO :  Go to Step 10.

AC702818BP

Harness side: C-04

Test
harness

AC702818 BQ

Harness side: C-04

Test
harness
