CRANKSHAFT AND CYLINDER BLOCK
TSB Revision
ENGINE OVERHAUL <3.0L ENGINE>
11D-77

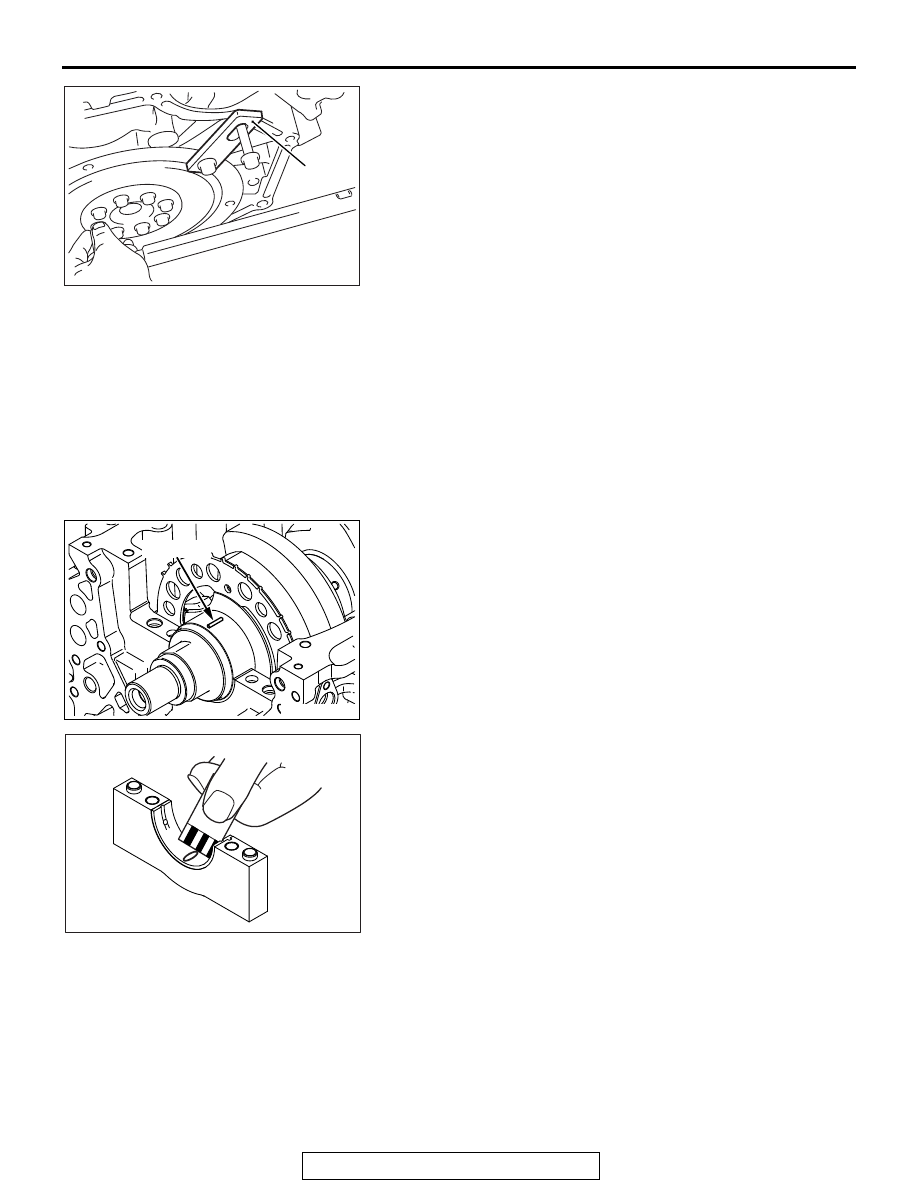

5. Using special tool MD998781, hold the drive plate.
6. Tighten the drive plate bolt to the specified torque.
Tightening torque: 76
± 4 N⋅m (57 ± 2 ft-lb)

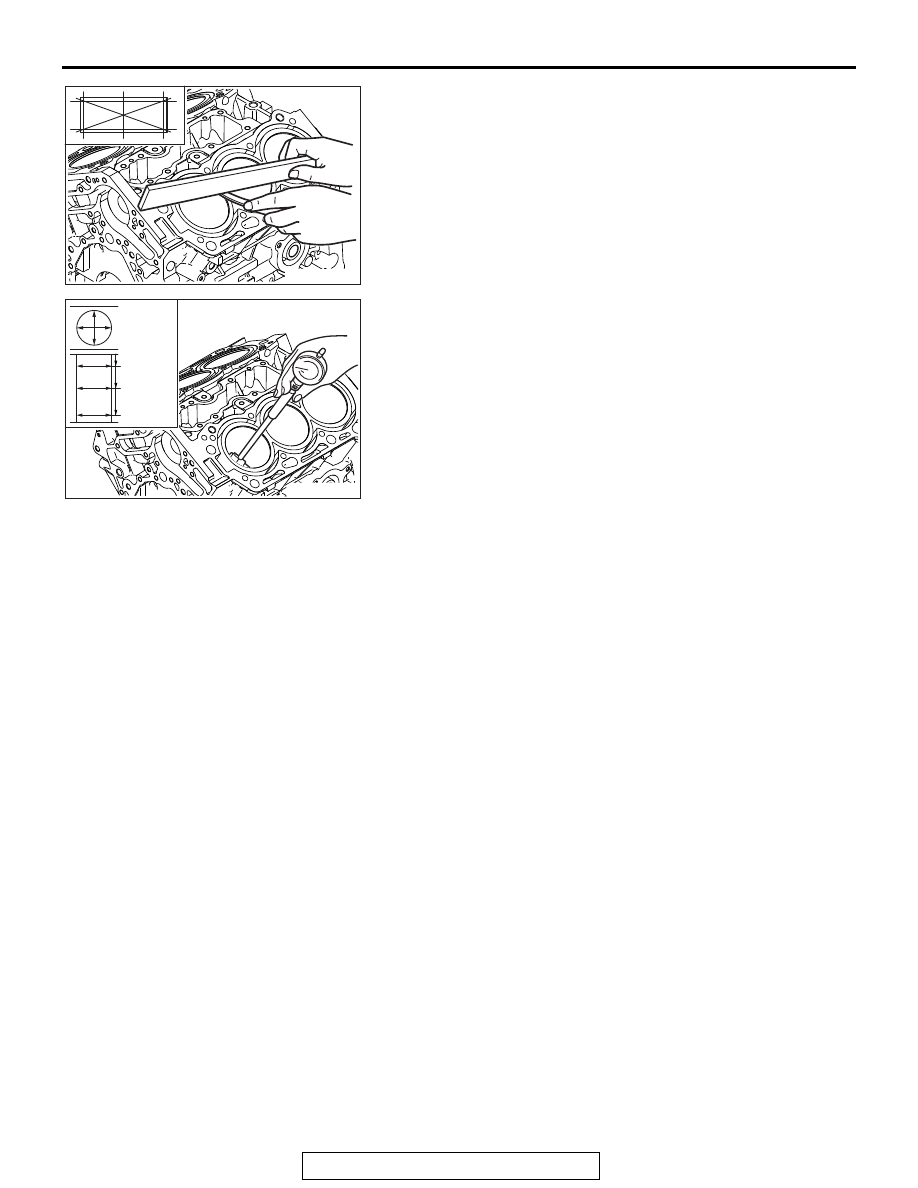

CYLINDER BLOCK INSPECTION
M1113008801659
.
CRANKSHAFT OIL CLEARANCE (PLASTIGAGE
METHOD)
The crankshaft oil clearance can be measured easily by using
a plastigage, as follows:
1. Remove oil and grease and any other foreign matters from
crankshaft journal and bearing inner surface.
2. Install the crankshaft.
3. Cut the plastigage to the same length as the width of
bearing and place it on journal in parallel with its axis.
4. Gently place the crankshaft bearing cap over it and tighten
the bolts to the specified torque.
5. Remove the bolts and gently remove the crankshaft bearing
cap.
6. Measure the width of the smashed plastigage at its widest
section by using a scale printed on the plastigage bag.
Standard value:
Number 1 and 4 journal
0.018
− 0.038 mm (0.0008 − 0.0014 inch)
Number 2 and 3 journal
0.024
− 0.044 mm (0.0010 − 0.0017 inch)
Limit: 0.1 mm (0.004 inch)
.
AK600903
MD998781
AC
AK600905
Plastigage
AC
AK600904
