ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-41

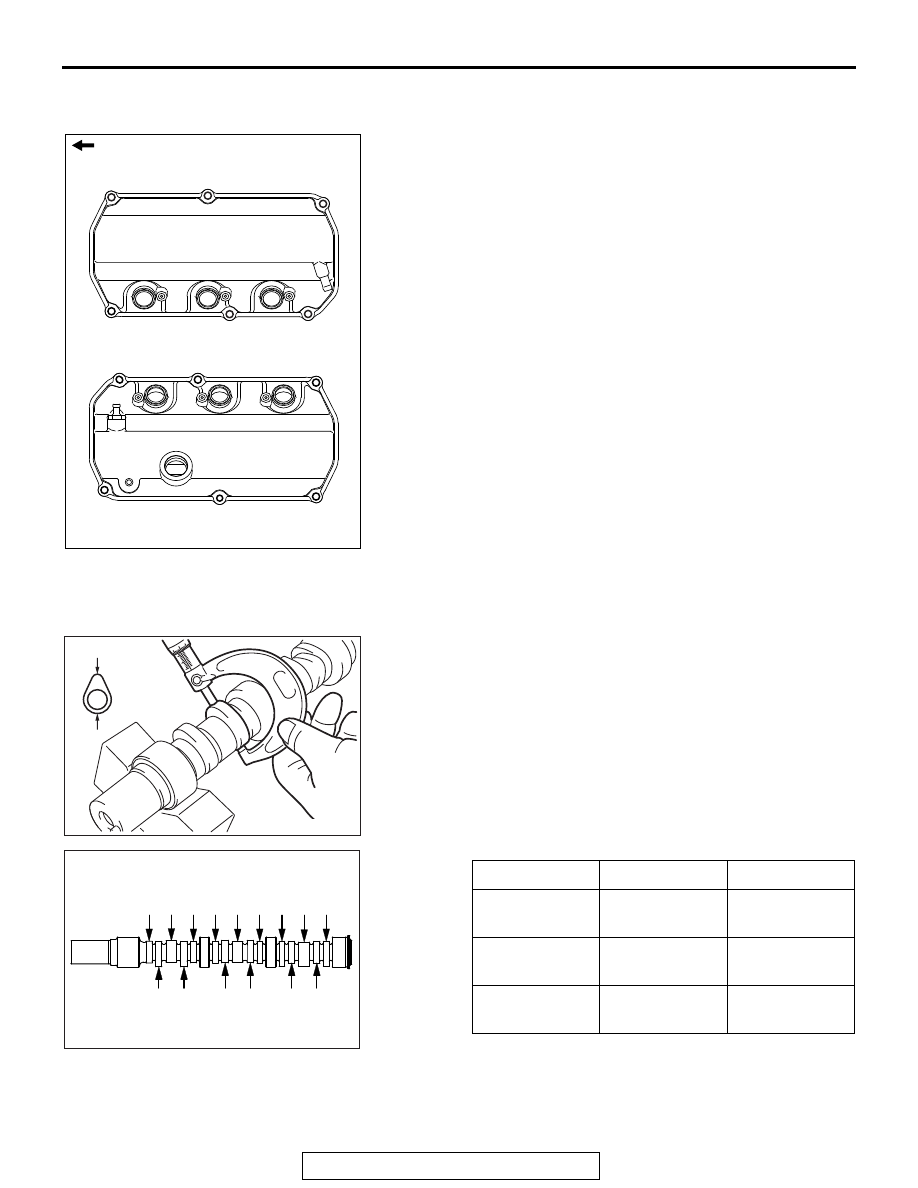

>>G<< ROCKER COVER, RIGHT / ROCKER
COVER, LEFT INSTALLATION

Tighten the rocker cover to the specified torque in the
sequence shown in the illustration.

Tightening torque: 8.3

± 1.0 N⋅m (74 ± 8 in-lb)

INSPECTION

M1113005800066

CAMSHAFT

.

Measure the cam height. If it is below the limit, replace the
camshaft.

.

AK900043

1

2

3

4

5

6

1

2

5

4

3

6

Timing belt side

AD

Left bank

Right bank

Standard value Minimum limit

A: Intake low
speed cam

37.28 mm
(1.468 inches)

36.78 mm
(1.448 inches)

B: Intake high
speed cam

36.23 mm
(1.426 inches)

35.73 mm
(1.407 inches)

C: Exhaust cam 37.84 mm

(1.490 inches)

37.34 mm
(1.470 inches)

AK600867

AK600827

A

A

B

C

C

A

A

B

C

C

A

A

B

C

C

AC

ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-42

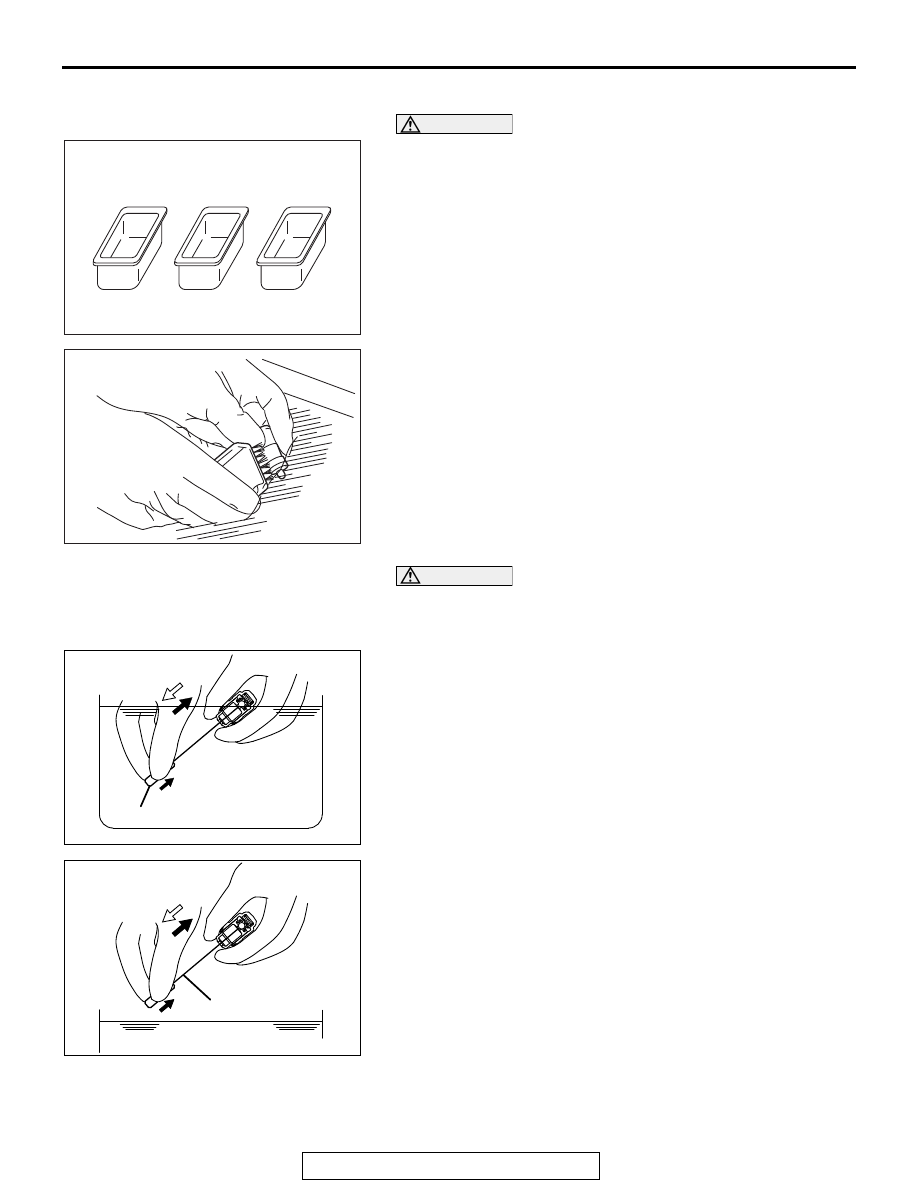

LASH ADJUSTER

CAUTION

• The lash adjusters are precision-engineered mecha-

nisms. Do not allow them to become contaminated by
dirt or other foreign substances.

• Do not attempt to disassemble the lash adjusters.
• Use only fresh diesel fuel to clean the lash adjusters.

1. Prepare three containers and approximately 5 dm

3

 (30.5

quart) of diesel fuel. Into each container, pour enough diesel
fuel to completely cover a lash adjuster when it is standing
upright. Then, perform the following steps with each lash
adjuster.

2. Place the lash adjuster in container A and clean its outside

surface.
NOTE: Use a nylon brush if deposits are hard to remove.

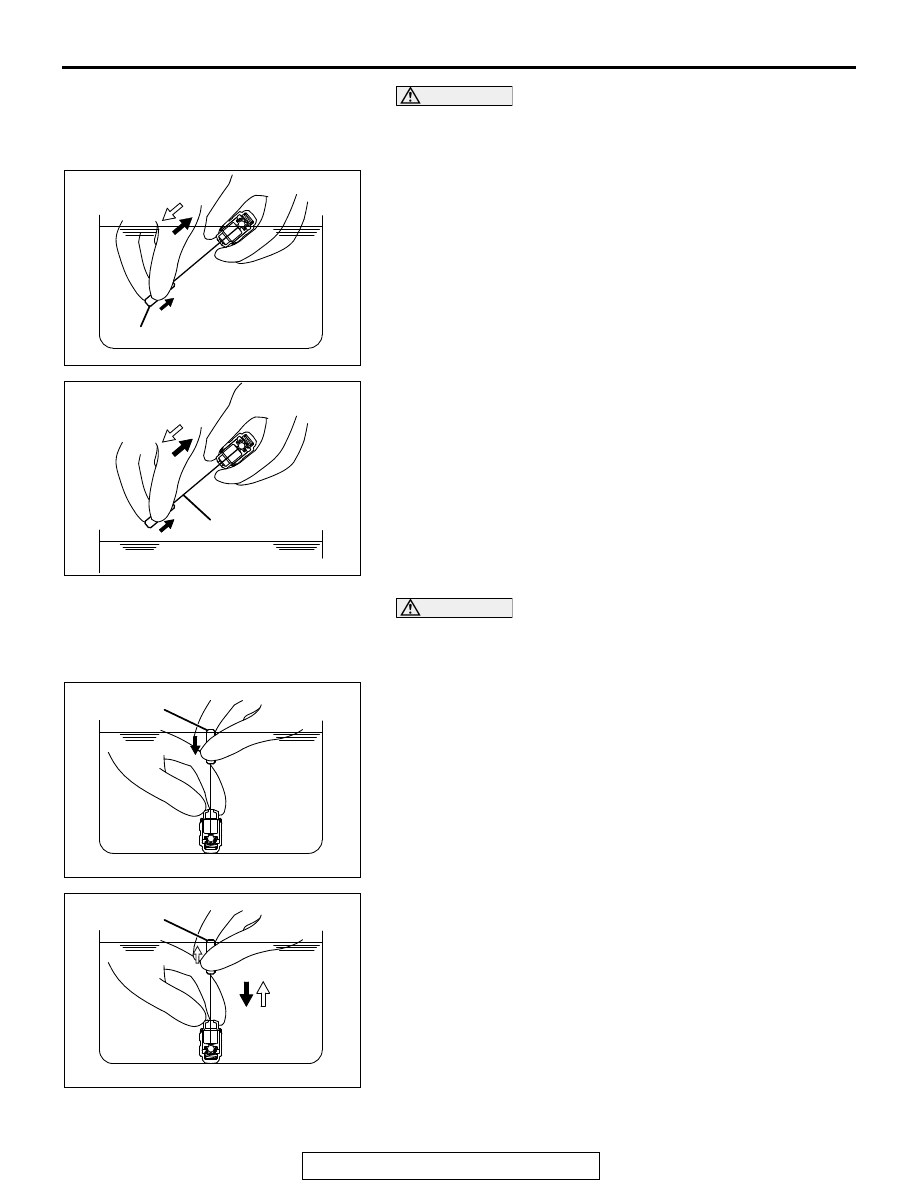

CAUTION

The steel ball spring is extremely weak, so the lash
adjuster's functionality may be lost if the air bleed wire is
pushed in hard.
3. While gently pushing down the internal steel ball using wire

[0.5 mm (0.020 inch) in diameter] or special tool MD998442,
move the plunger through five to ten strokes until it slides
smoothly. In addition to eliminating stiffness in the plunger,
this operation will remove dirty oil.
NOTE: If the plunger remains stiff or the mechanism
appears otherwise abnormal, replace the lash adjuster.

4. Remove the lash adjuster from the container. Then, push

down the steel ball gently and push the plunger to eliminate
diesel fuel from the pressure chamber.

AK400416AD

Outside
cleaning

Inside
cleaning

Filling
diesel fuel

A

B

C

AK400417AD

Diesel fuel

AK304394

MD998442

Diesel fuel

AD

AK304395AD

MD998442

Diesel fuel

ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-43

CAUTION

The steel ball spring is extremely weak, so the lash
adjuster's functionality may be lost if the air bleed wire is
pushed in hard.
5. Place the lash adjuster in container B. Then, gently push

down the internal steel ball using a wire [0.5 mm (0.020
inch) in diameter] or special tool MD998442 and move the
plunger through five to ten strokes until it slides smoothly.
This operation will clean the lash adjuster's pressure
chamber.

6. Remove the lash adjuster from the container. Then, push

down the steel ball gently and push the plunger to eliminate
diesel fuel from the pressure chamber.

CAUTION

Do not use container C for cleaning. If cleaning is per-
formed in container C, foreign matter could enter the pres-
sure chamber when the chamber is filled with diesel fuel.
7. Place the lash adjuster in container C. Then, gently push

down the internal steel ball using a wire [0.5 mm (0.020
inch) in diameter] or special tool MD998442.

8. Stand the lash adjuster with its plunger at the top, then push

the plunger downward firmly until it moves through its
greatest possible stroke. Return the plunger slowly, then
release the steel ball and allow the pressure chamber to fill
with diesel fuel.

AK304394

MD998442

Diesel fuel

AD

AK304395AD

MD998442

Diesel fuel

AK304396AD

Diesel
fuel

MD998442

AK304397

MD998442

AD

Diesel
fuel

ROCKER COVER AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-44

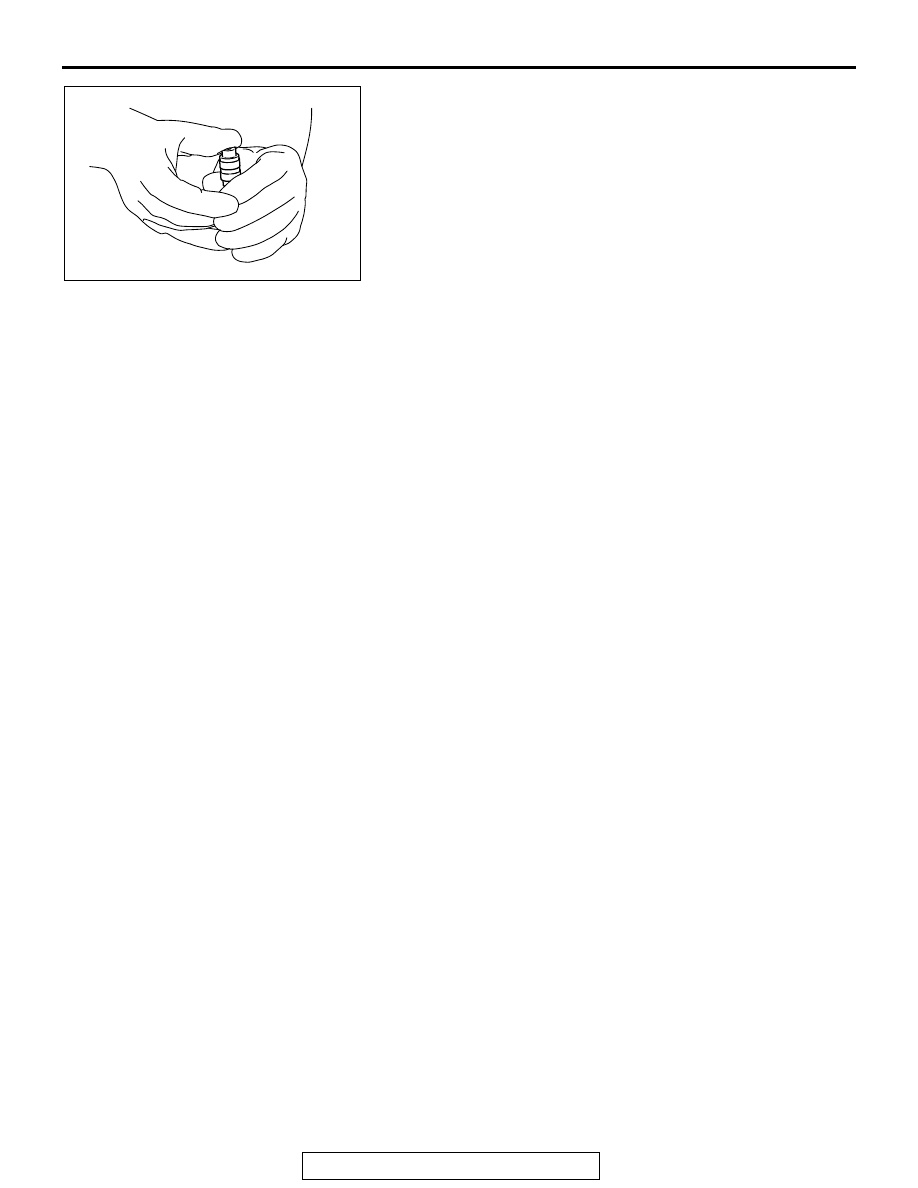

9. Remove the lash adjuster from the container, then stand the

lash adjuster with its plunger at the top. Push the plunger
firmly and check that it does not move.
NOTE: If the lash adjuster contracts or moves, repeat steps
7 through 9 again to fill it with diesel fuel completely.
Replace the lash adjuster if it still contracts or moves after
performing these steps.

10.Stand the lash adjuster upright to prevent diesel fuel from

spilling out. Do not allow the lash adjuster to become
contaminated by dirt or other foreign matter. Install the lash
adjuster onto the engine as soon as possible.

AK300588
