DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-39

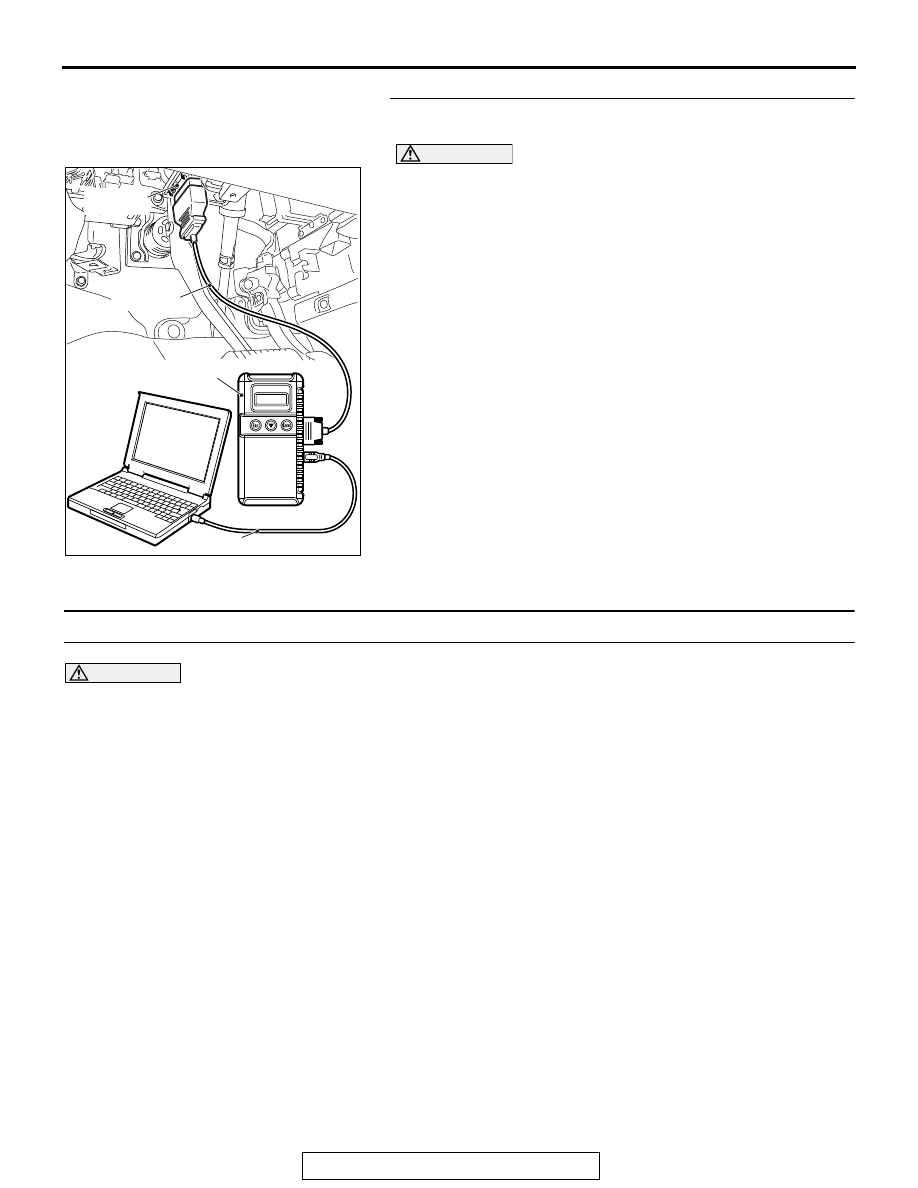

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool (MB991958), always turn
the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool (MB991958).
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO : Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code
Check if a coding-related DTC is set in the ETACS-ECU.
Q: Is the DTC set?

YES : Troubleshoot the ETACS. (Refer to GROUP 54A,

Diagnosis

P.54A-733

NO : Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace WCM and register the ID codes. (Refer to

P.42C-10

NO : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-40

DTC B2206: VIN code mismatch

DTC SET CONDITION

WCM sets DTC B2206 when chassis number regis-
tered in it and the VIN that has been transmitted on
the CAN bus do not match.

TECHNICAL DESCRIPTION (COMMENT)

WCM determines that the abnormality is present
when VIN registered in it and the one that has been
transmitted on the CAN bus do not match.

TROUBLESHOOTING HINTS

• Malfunction of WCM

• VIN registered in engine ECU unmatched

• WCM being registered to another vehicle

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

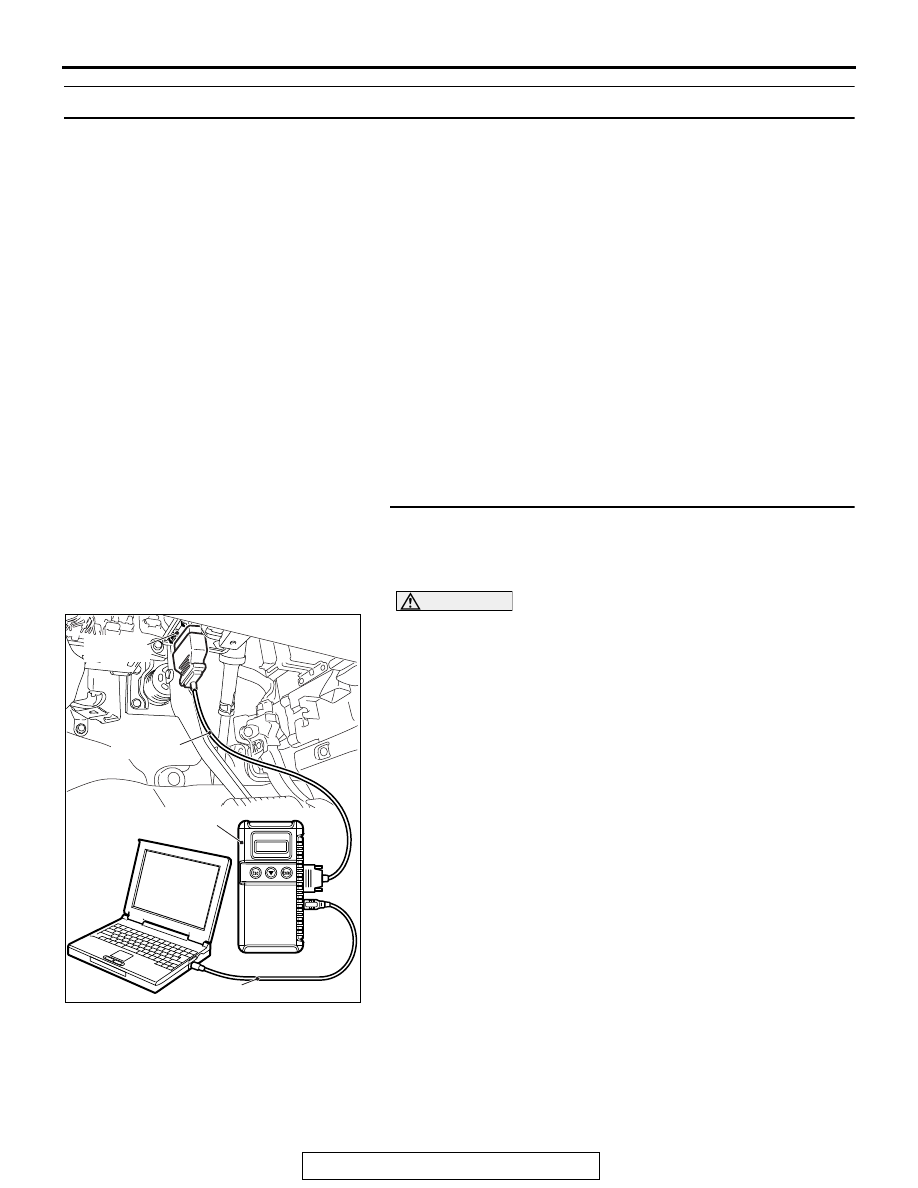

STEP 1. Check the VIN registered in the engine control
module and the VIN of the vehicle.
Check if the VIN registered in the engine control module
matches with the VIN of the vehicle.

CAUTION

"MFI/GDI/Diesel".

(3) Select "Coding."
(4) Select "VIN Information."
(5) Compare with the VIN of the vehicle.
Q: Does the VIN of the engine control module match with

the VIN of the vehicle?
YES : Go to Step 2.
NO : Write the VIN to the engine control module. [Refer to

GROUP 00

− How to Perform Vehicle Identification

Number (VIN) Writing

P.00-40

]. Record VIN and go to

Step 2.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-41

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
Q: Is the DTC set?

YES : Replace WCM and register the ID codes (Refer to

P.42C-10

). After registering the ID codes, go to Step

NO : The procedure is complete.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
Q: Is the DTC set?

YES : Replace the engine control module and record the

VIN [Refer to GROUP 00

− How To Perform Vehicle

Identification Number (VIN) Writing

P.00-40

NO : The procedure is complete.

DTC B2352: Antenna fail

DTC SET CONDITION

WCM sets the DTC B2352 when open or short circuit
to the ground in the antenna is detected.

TECHNICAL DESCRIPTION (COMMENT)

When the ignition switch is turned ON, WCM trans-
mits signal to the antenna. When the antenna is
found faulty, WCM determines that the abnormality is
present.

TROUBLESHOOTING HINT

Malfunction of WCM (Open circuit in antenna)

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

DIAGNOSIS

TSB Revision

WIRELESS CONTROL MODULE (WCM)

42C-42

Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

CAUTION

Erase the DTC.

(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace WCM and register the ID codes. (Refer to

P.42C-10

NO : The procedure is complete.

DTC B2401: Keyless/KOS key ID not register

CAUTION

• If the DTC B2401 is set, be sure to diagnose

the CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

DTC SET CONDITION

If the keyless ID registered transmitter is not regis-
tered to the WCM, the WCM sets the DTC No.
B2401.

TECHNICAL DESCRIPTION (COMMENT)

If the number of keyless ID registered transmitter is
zero, the WCM determines that there is a problem.

TROUBLESHOOTING HINTS

• Malfunction of CAN bus line

• Failure of transmitter registration process

• Malfunction of WCM

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
