Mitsubishi Outlander GS45X. Manual - part 1132





DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-107

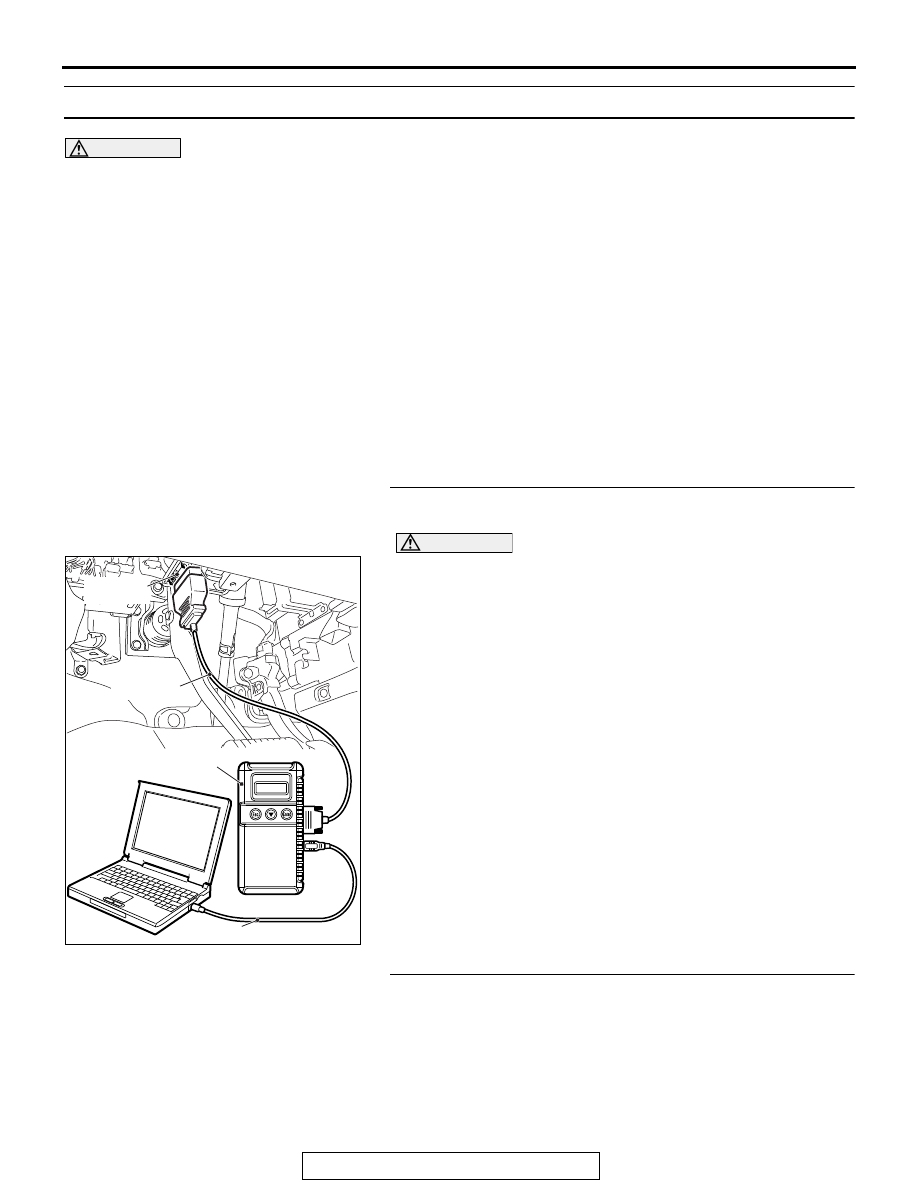

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.42B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace KOS-ECU and register the ID codes. (Refer

to

P.42B-15

.)

NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-108

DTC U0141: ETACS-ECU CAN timeout

CAUTION

• If the DTC U0141 is set, be sure to diagnose

the CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If the signal from ETACS-ECU cannot be received,
the KOS-ECU sets the DTC U0141.

.

TROUBLESHOOTING HINTS

• Malfunction of CAN bus line

• Malfunction of KOS-ECU

• Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.42B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code
Check again if the DTC is set to the ETACS-ECU.
Q: Is the DTC set?

YES : Diagnose the ETACS-ECU (Refer to GROUP 54A

−

Diagnosis

P.54A-733

).

NO :  Go to Step 3.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-109

STEP 3. Using scan tool MB991958, read the other system
diagnostic trouble code.
Check if DTC U0141 is set to the combination meter.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace KOS-ECU and register the ID codes. (Refer

to

P.42B-15

.)

NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

DTC U0151: SRS-ECU CAN timeout

CAUTION

• If the DTC U0151 is set, be sure to diagnose

the CAN bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DIAGNOSTIC FUNCTION

If no signal from SRS-ECU can be received,
KOS-ECU sets the diagnostic trouble code No.
U0151.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The SRS-ECU may be defective

• Malfunction of KOS-ECU

DIAGNOSIS

TSB Revision

KEYLESS OPERATION SYSTEM (KOS)

42B-110

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.42B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the SRS-ECU
diagnostic trouble code
Check again if the DTC is set to the SRS-ECU.
Q: Is the DTC set?

YES : Troubleshoot the SRS (Refer to GROUP 52B,

Troubleshooting

P.52B-31

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the other system
diagnostic trouble code.
Check if DTC U0151 is set to the combination meter.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
