CHASSIS ELECTRICAL

54A-441

Prior to troubleshooting, interrogate your cus-
tomer about how the navigation system is used
and where he/she drives. If you determine that
the system is OK, explain to your customer about
how the system works and how the customer
should operate it.

2. If the system is not OK, diagnose the system

according to the trouble symptom chart.

ERROR MESSAGE

M1546023500221

When the multivision display detects its own uninten-
tional operation or malfunction in the loaded disc, it
displays the following error messages.

Error messages

Error
contents

Cause

Action

The unit is too hot.
Please wait...

Malfunction of
HDD by high
temperature

The temperature of HDD
inside the multivision
display is 201

°F (94°C) or

more.

Wait until the temperature drops to the
operable temperature. After the
temperature drops, the error message
display is terminated, and then
returns to the screen before the error
message display.

The unit is too cold.
Please wait...

Malfunction of
HDD by low
temperature

The temperature of HDD
inside the multivision
display is -4

°F ( −20°C) or

less.

Wait until the temperature rises to the
operable temperature by working the
air conditioning. After the temperature
rises, the error message display is
terminated, and the screen returns to
the status before displaying the error
message.

It is difficult to read the
hard disc. Wait for a
while until the hard disk
is restored.

Malfunction of
HDD by
vibration

Severe vibration is applied
to the multivision display,
and the reading of the
HDD data is prohibited.

When the multivision display confirms
the HDD data reading availability, it
restarts automatically. Check if the
multivision display is securely
installed to the vehicle body.

HDD Partition
Error

System malfunction
occurs to the HDD inside
the multivision display.

The multivision display checks HDD
automatically. "Restart" is displayed
after the completion of the check.
Select "Restart" to restart the
multivision display. If it does not
restart, turn the ignition switch to the
OFF position to turn off the power
supply, and then turn the ignition
switch to the ON position to restart.
After the restart, check that the OK is
displayed for the HDD Drive in the
"Network/Connect Line Check" of the
MMCS service mode. If not, replace
the multivision display.

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-442

NOTE: "Environment" is not displayed on the "INFO"
screen. Ambient temperature is not displayed on the
environment screen. If atmospheric pressure or alti-
tude is not displayed on the environment display, the
CAN box unit may have a problem in the CAN com-
munication with A/C-ECU or engine-ECU. Check if a
diagnosis code is set in the CAN box unit.

Please check the disc. Disk type error The specification of the

disk used has a problem.

The disk used may have a problem.
Check the disk for scratches or dirt.
Also, perform the Inspection
procedure 8 "CD/DVD cannot be
Played" of the troubleshooting. (Refer
to

P.54A-539

.)

Play is impossible due
to a focus error. Please
eject the disc.

Focus error

The disk used has
scratches and dirt, and the
data cannot be read.

Play is impossible.
Please eject the disc.

Disk error

The data of the disk used
has a malfunction, and the
data cannot be read.

Seek error
Servo startup
error
TOC read error
DVD-Video
Disk info error
(Disk
information
cannot be
read.)

Play is impossible due
to a Mechanism error.

Power-on error The DVD drive inside the

multivision display has a
malfunction.

Perform the Inspection procedure 8
"CD/DVD cannot be Played" of the
troubleshooting. (Refer to

P.54A-539

.)

Pickup
operation error
Mecha stack
error
Loading/eject
error

The region code is
incorrect. Please eject
the disc.

DVD-Video
region code
error

The region code of the
DVD does not match the
specification of the
multivision display.

Replace with the DVD that matches
the specification of the multivision
display.

Please eject the disc.
The monitor panel is
too hot. Screen display
has stopped to protect
the liquid crystal panel.
Wait until the monitor
panel has cooled
down.

Monitor high
temperature
error

The temperature of the
monitor is 203

°F (95°C) or

more for 60 seconds or
more.

The monitor turns OFF 5 seconds
after the error message appears. Wait
until the temperature of the monitor
drops. The temperature drops, and
then the multivision display returns
automatically.

Error messages

Error
contents

Cause

Action

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-443

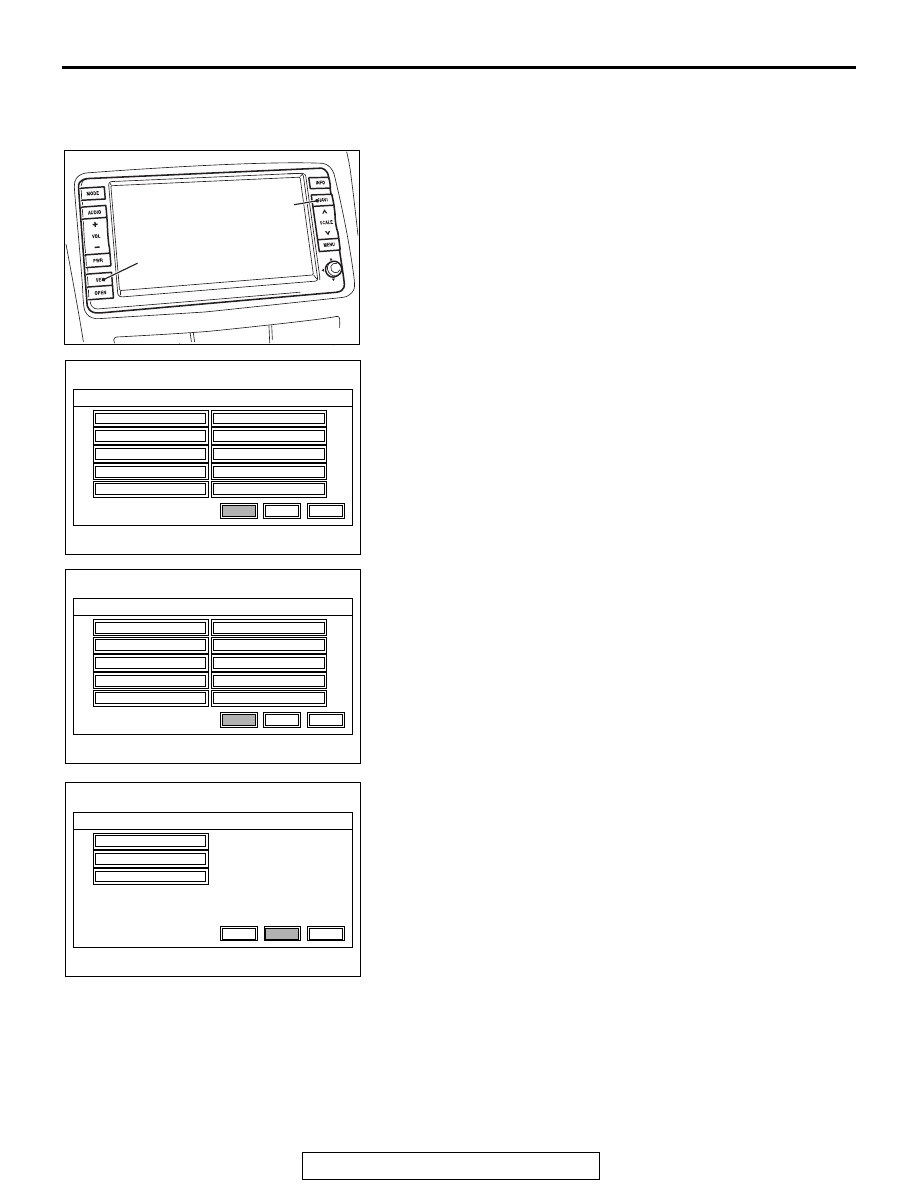

SERVICE MODE

M1546016600903

.

HOW TO INITIATE THE SERVICE MODE

1. With the navigation system active, press and hold both the

"NAVI" and "SET" buttons for 3.5 seconds.

2. The service mode will be initiated. Then "Service" screen

will be displayed.

.

HOW TO TERMINATE THE SERVICE MODE

If the operations below are done, the service mode will be ter-
minated.

•  If "Back" button is selected on "Service" screen, the service

mode will terminate and then return to the previous screen.

• If "NAVI" button is pressed with the service mode active, the

service mode will terminate and change to the navigation
screen.

Service mode item

The following items can be checked or set in the service mode.

• Vehicle Signal Check

• Monitor Check

• Camera Setting

• Network/Connect Line Check

AC904594

AB

SET button

NAVI button

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

Hands Free Module

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC903640

AC

<Vehicles with hands free module>

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

USB BOX

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC904700

AB

<Vehicles with USB box>

Service

TMC Sensitivity

Versions Log Information

Touch Switch Confirmation

2/2

Back

Next

Previous

AC903642

AB

MMCS

TSB Revision

CHASSIS ELECTRICAL

54A-444

• Speaker Check

• Hands Free Module (Refer to

P.54A-586

.) <Vehicles with

hands free module>

• USB BOX (Refer to

P.54A-639

.) <Vehicles with USB box>

• Versions Indication

• Sensor Check

• Touch Switch Confirmation

• CAN communication Confirmation

• Memory Initialization

• TMC Sensitivity

• Version Log Information

.

VEHICLE SIGNAL CHECK

1. Select "Vehicle Signal Check" on "Service" screen.

2. The check results will be displayed for the items below.

• "Speed": "ON" when the vehicle speed is 6 km/h or more,

and "OFF" when the vehicle speed is 4 km/h or less.

• "ILL": "ON" when the lighting switch is on (headlight posi-

tion), and "OFF" when they are off (except headlight posi-
tion).

• "Shift Position R": "ON" when the selector lever is at R posi-

tion, and "OFF" when it is at the other position.

.

MONITOR CHECK

1. Select "Monitor Check" on "Service" screen.

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

Hands Free Module

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC903640

AB

Back

Vehicle Signal Check

Speed
ILL
Shift Position R

:    OFF
:    ON
:    OFF

AC612651

AB

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Versions Indication

1/2

Sensor Check

Hands Free Module

Memory Initialization

Back

Next

Previous

CAN Communication Confirmation

AC903640

AB
