SUNROOF

TSB Revision

BODY

42A-215

BASIC OPERATION

No. Sunroof function

Requirements for the sunroof to function

Normal operation

01

OPEN

1. Ignition switch: ON
2. Sunroof switch: OPEN

When the open switch is
operated, the sunroof lid
glass stops approximately
30 mm (1.2 inches) before
the fully-open position. This
position is called comfort
position. The sunroof lid
glass can be fully opened
by operating the open
switch again.

02

CLOSE

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof closes fully and
automatically.

03

TILT-UP

1. Ignition switch: ON
2. Sunroof switch: TILT-UP

The sunroof tilts up fully and
automatically.

04

TILT-DOWN

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof tilts down fully
and automatically.

05

AUTOMATIC
OPERATION
INTERRUPTION
(OPEN OR
TILT-UP)

A

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP

The sunroof stops the
automatic opening
operation.

B

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN (Push

the sunroof switch to the
CLOSE/TILT-DOWN position while the
sunroof is automatically opening and
release the switch within two seconds)

The sunroof stops the
automatic opening
operation.

C

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN (Push

the sunroof switch to the
CLOSE/TILT-DOWN position more than
two seconds while the sunroof is
automatically opening)

The sunroof stops the
automatic opening
operation, and the sunroof
closes while the sunroof
switch is pushed to the
CLOSE/TILT-DOWN
position.

06

AUTOMATIC
OPERATION
INTERRUPTION
(CLOSE OR
TILT-DOWN)

A

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof stops the
automatic closing
operation.

B

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP (Push

the sunroof switch to the OPEN or TILT-UP
position while the sunroof is automatically
opening and release the switch within two
seconds)

The sunroof stops the
automatic closing
operation.

C

1. Ignition switch: ON
2. Sunroof switch: OPEN or TILT-UP (Push

the sunroof switch to the OPEN or TILT-UP
position more than two seconds while the
sunroof is automatically opening)

The sunroof stops the
automatic closing
operation, and the sunroof
opens while the sunroof
switch is pushed to the
OPEN or TILT-UP position.

SUNROOF

TSB Revision

BODY

42A-216

SUNROOF TIMER MECHANISM

In cases except the following, the basic operation
and jam preventing mechanism will be maintained
for thirty seconds after the ignition switch is turned to
the "LOCK" (OFF) position (Sunroof timer function).

• If you open a door within that period (i.e. a door

switch is on), the sunroof timer function will be
cancelled immediately.

SAFETY MECHANISM

• If any obstacle such as a hand or a head is

detected to be pinched during a sunroof lid glass
closing operation, the sunroof lid glass is opened
by approximately 200 mm (7.9 inches) or more.
(Safety mechanism)

• During the sunroof lid glass closing operation, by

continuing the sunroof close switch operation, the
sunroof can be forcibly closed without activating
the safety mechanism even when an obstacle is
detected to be pinched.

• During the safety mechanism activation, when

the sunroof close switch is operated, the sunroof
lid glass stops. By continuing the close switch
operation, the sunroof lid glass can be forcibly
closed without activating the safety mechanism
even when an obstacle is detected to be pinched.

SUNROOF

TSB Revision

BODY

42A-217

SUNROOF

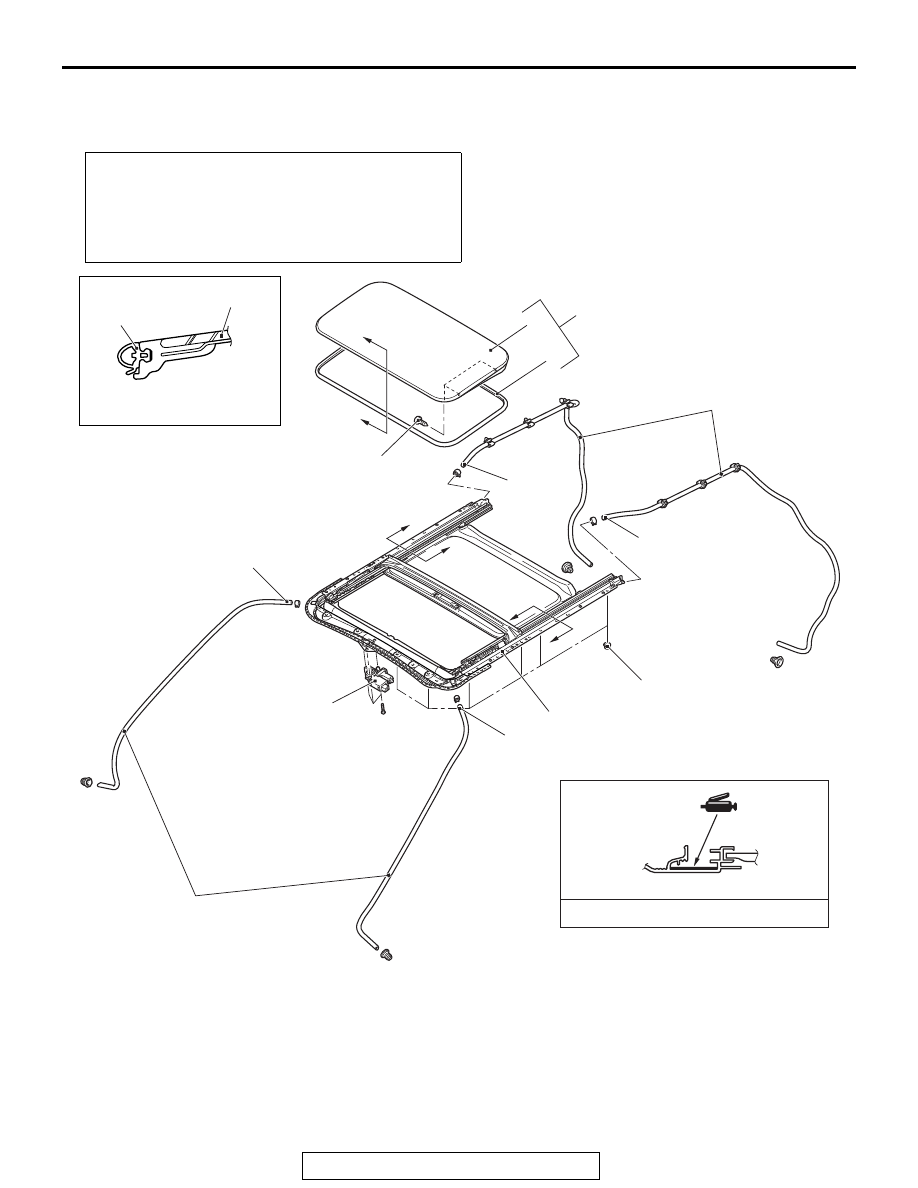

REMOVAL AND INSTALLATION

M1426001201107

Post-installation operation
Roof lid glass assembly and sunroof assembly
• Sunroof leakage check (Refer to

P.42A-211

.)

• Sunroof alignment (Refer to

P.42A-211

.)

• Learning procedures for sunroof fully closed position

(Refer to

P.42A-212

.)

AC900032

AC808968

2

3

1

2

3

Section B – B

B

B

AD

5

5

6

8

4

7

5

5

AC507739

Section A – A

A

A

A

A

Grease: Use resin-proof silicone grease

3.5 ± 0.5 N·m
31 ± 4 in-lb

5.0 ± 2.0 N·m
44 ± 18 in-lb

Sunroof switch removal

•

Front dome light assembly (Refer
to GROUP 52A, Headlining

P.52A-15

.)

Sunroof lid glass assembly
removal

1.

Sunroof lid glass assembly

2.

Sunroof lid weatherstrip

3.

Sunroof lid glass

Sunroof motor assembly
removal steps

•

Front dome light bracket (Refer to
GROUP 52A, Headlining

P.52A-15

.)

4.

Sunroof motor assembly

SUNROOF

TSB Revision

BODY

42A-218

REMOVAL SERVICE POINT

.

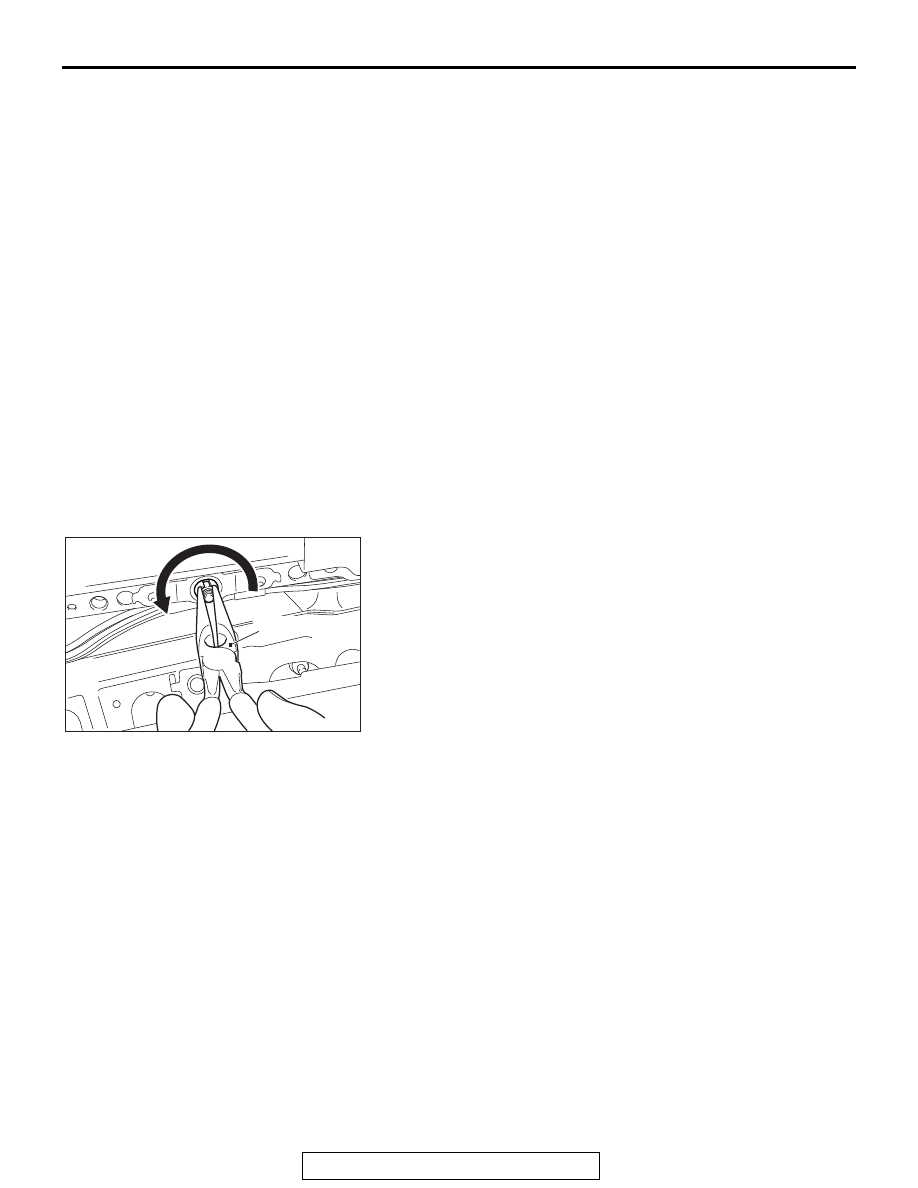

<<A>> SUNROOF ASSEMBLY REMOVAL

Use a pair of long nose pliers or the like to remove the sunroof
assembly while turning it in the direction shown in the figure.

Sunroof assembly removal
steps

•

Front energy absorber roof bracket
vehicles with curtain air bag (Refer
to GROUP 52A, Headlining

P.52A-15

.)

•

Rear monitor bracket <Vehicles
with rear monitor> (Refer to
GROUP 54A, Rear Display Unit

P.54A-723

.)

5.

Drain pipe connection

<<A>>

6.

Sunroof assembly
Drain pipe removal steps

•

Headlining (Refer to GROUP 52A,
Headlining

P.52A-15

.)

•

Splash shield front (Refer to

P.42A-10

.)

>>A<<

7.

Front drain pipe

•

Splash shield rear (rear bumper
side) (Refer to

P.42A-10

.)

>>A<<

8.

Rear drain pipe

AC506535AC

Long nose pliers
